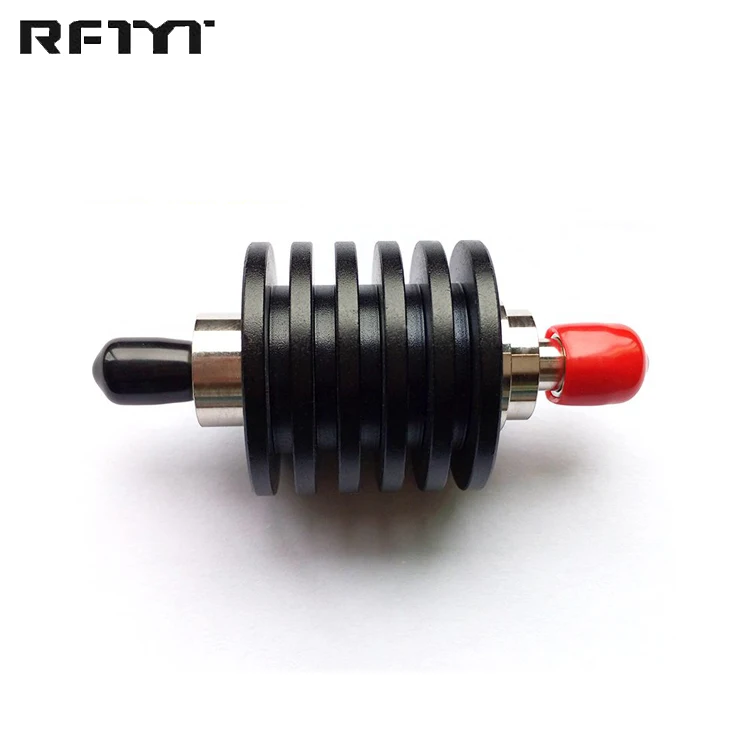

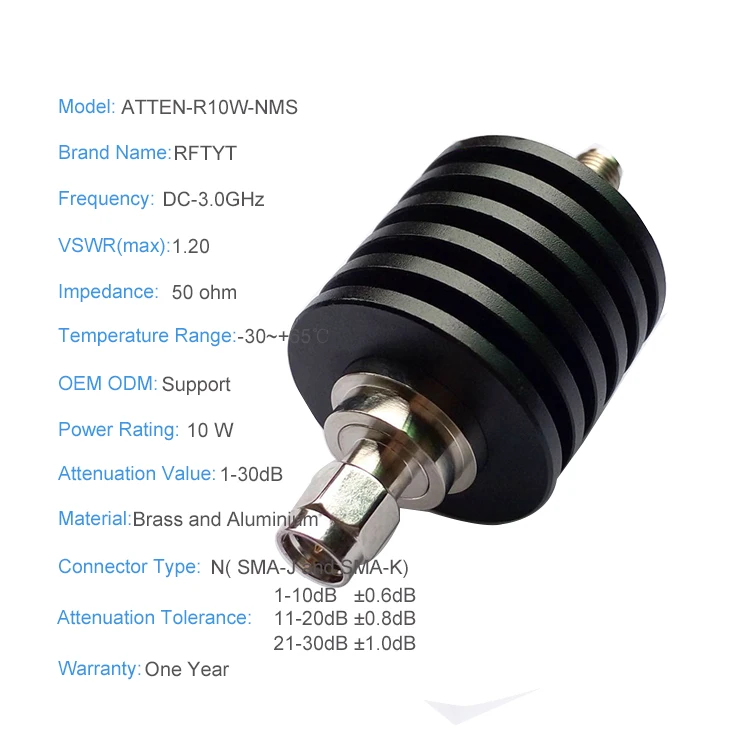

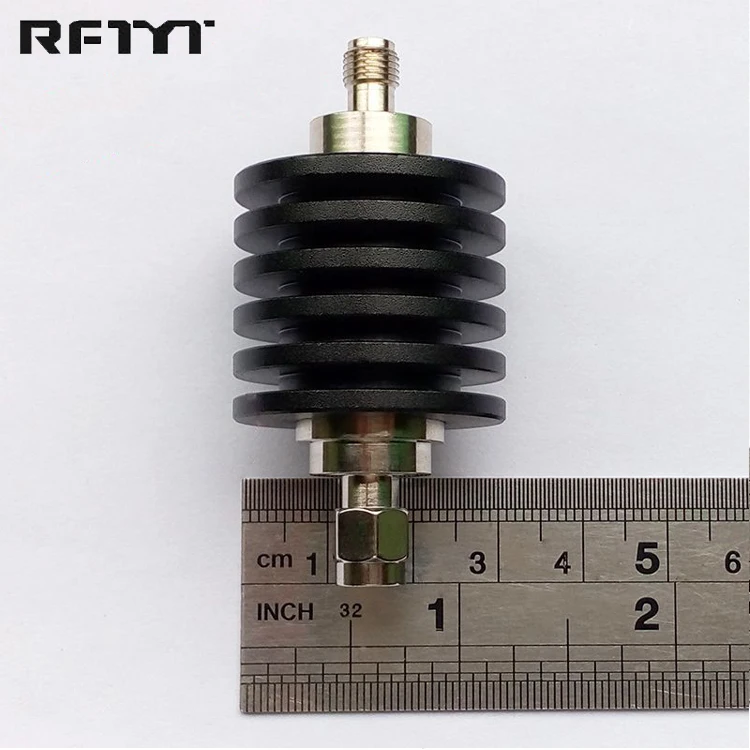

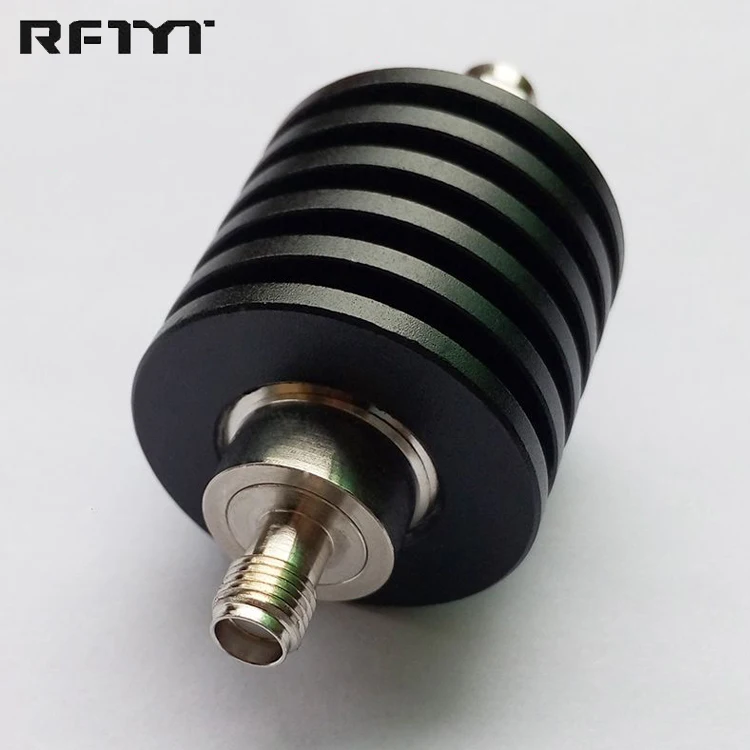

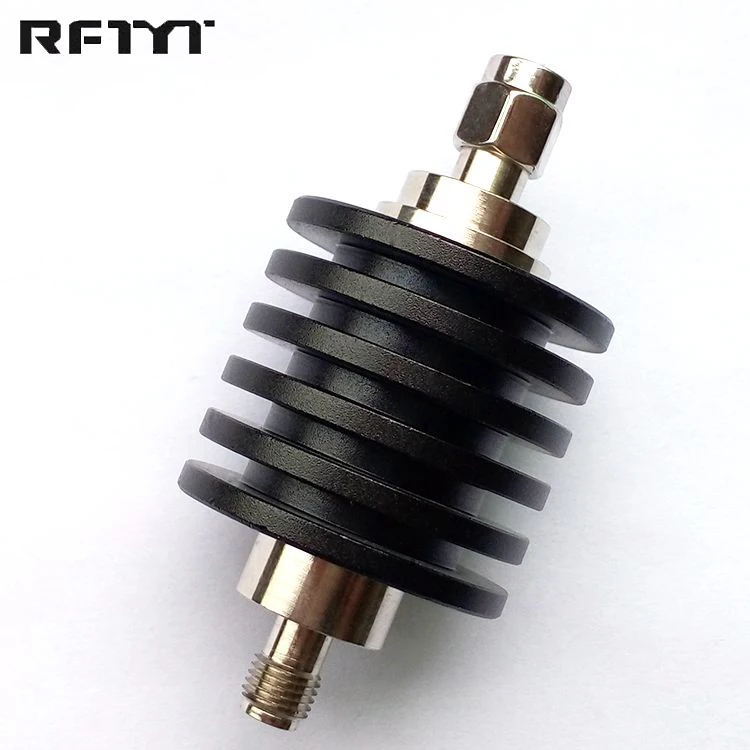

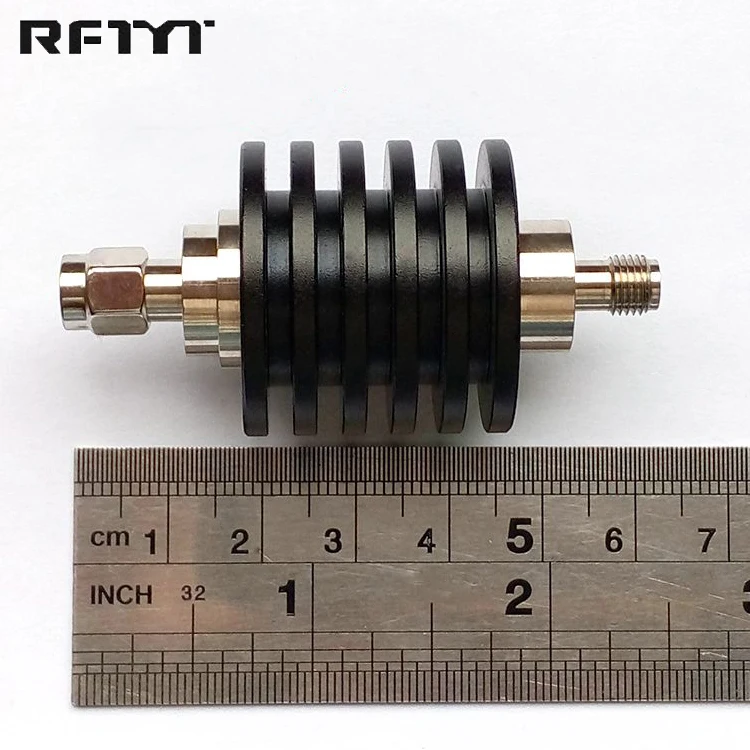

RFTYT High Performance SMA Type 10 W 50 Ohm RF Coaxial Attenuator
- Category: Telecom Parts >>>
- Supplier: Sichuan Rftyt Technology Co. Ltd.
Share on (60789556102):
Product Overview
Description
RFTYT High Performance SMA Type 10 W 50 Ohm RF Coaxial Attenuator
Product Description
Our Products Features:
1.Good temperature behavior, High aseismatic capability. 2.Low Insertion Loss, High power handling.
3.High quality, Low price, Fast delivery. 4.Custom design available upon request.
5.Meet ROHS standard. 6.Guaranteed for one year standard
| Power Rating | Frenquency | VSWR | Attenuation Value | Impedance | Weight | Dimension | Connector | Model |
| (W) | (GHz) | (Max) | (dB) | (Ω) | (g) | (mm) | ||
| 0.5 | DC-3GHz/DC-6GHz | 1.20/1.25 | 1-30 | 50 | 7 | Φ8.3*28 | SMA | ATTEN-R0.5-NM |
| 2 | DC-3GHz/DC-6GHz | 1.20/1.25 | 1-30 | 50 | 30 | Φ15*50 | BNC | ATTEN-R2-T |
| 2 | DC-3GHz/DC-6GHz | 1.20/1.25 | 1-30 | 50 | 64 | Φ20*58 | N | ATTEN-R2-N |
| 2 | DC-3GHz/DC-6GHz | 1.15/1.20 | 1-30 | 50 | 25 | Φ15*41 | SNA | ATTEN-R2-S |
| 2 | DC-3GHz/DC-6GHz | 1.15/1.20 | 1-30 | 50 | 9 | Φ9.1*31 | SMA | ATTEN-R2-S |
| 5 | DC-3GHz/DC-6GHz | 1.20/1.25 | 1-30 | 50 | 80 | Φ30*58 | N | ATTEN-R5-N |
| 5 | DC-3GHz/DC-6GHz | 1.20/1.25 | 1-30 | 50 | 56 | Φ25*42 | SMA | ATTEN-R5-S |
| 10 | DC-3GHz/DC-6GHz | 1.20/1.30 | 1-30 | 50 | 135 | Φ35*72 | N | ATTEN-R10-N |
| 10 | DC-3GHz/DC-6GHz | 1.20/1.30 | 1-30 | 50 | 307 | 60*60*50 | N | ATTEN-S10-N |
| 10 | DC-3GHz/DC-6GHz | 1.20 | 1-30 | 50 | 263 | 60*60*50 | SMA | ATTEN-S10-S |
| 20 | DC-3GHz/DC-6GHz | 1.20/1.30 | 1-30 | 50 | 165 | Φ40*84 | N | ATTEN-R20-N |
| 20 | DC-3GHz/DC-6GHz | 1.20 | 1-30 | 50 | 380 | 70*60*50 | N | ATTEN-S20-N |
| 30 | DC-3GHz/DC-6GHz | 1.20/1.30 | 1-30 | 50 | 230 | Φ45*104 | N | ATTEN-R30-N |
| 30 | DC-3GHz/DC-6GHz | 1.20/1.30 | 1-30 | 50 | 630 | 100*70*50 | N | ATTEN-S30-N |
| 50 | DC-3GHz/DC-6GHz | 1.20/1.30 | 1-30 | 50 | 330 | Φ50*134 | N | ATTEN-R50-N |
| 50 | DC-3GHz/DC-6GHz | 1.20 | 1-30 | 50 | 750 | 100*85*60 | N | ATTEN-S50-N |
| 100 | DC-3GHz/DC-6GHz | 1.20/1.30 | 1-30 | 50 | 1.7Kg | 142*120*65 | N | ATTEN-S100-N |
| 200 | DC-3GHz/DC-6GHz | 1.20/1.30 | 1-30 | 50 | 2.8Kg | 230*160*87 | N | ATTEN-S200-N |
| 300 | DC-3GHz/DC-6GHz | 1.20/1.35 | 1-30 | 50 | 4.51Kg | 300*160*86 | N | ATTEN-S300-N |
| 500 | DC-3GHz | 1.30 | 10-50 | 50 | 10Kg | 400*245*97 | N | ATTEN-S500-N |
| 1000 | DC-3GHz | 1.30 | 30-60 | 50 | 17Kg | 400*410*97 | N | ATTEN-S1000-N |
Forms are specify frequency range and other ranges available
The attenuation tolerance :
1-10dB ±0.6dB 11-20dB ±0.8dB 21-30dB ±1.0dB
Packaging & Shipping
FAQ
Q1. How many years have you engaged in this business?
A1: Our company have engaged in this business more than 20 years, and we professional in microwave passive devices (radio frequency isolators, circulators, RF resistors, attenuators, coaxial loads and attenuators) and microwave passive components research, production, sales and services.
Q2. What’s your payment terms?
A2: Our payment term is T/T , L/C.
Q3. What is your MOQ (minimum order quantity) ?
A3: 1 piece.
Q4. How do you ensure the quality of products?
A4: Each products we made are based on international standards.Meanwhile, every product is strictly checked before loading.
Q5. What price you can offer?
A5: EXW, FOB, CFR/ CIF, etc.
Q6.What’s your delivery time ?
A6: Production finished within 1-30 days after receiving the deposit.
Q7. Can you do OEM for us ?
A7: Yes,we can do OEM according the customer quality standard and packing .
