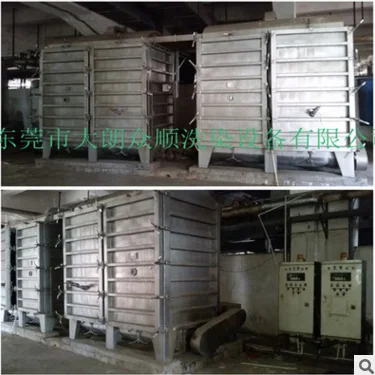

hank dyeing machine

Product Overview

Description

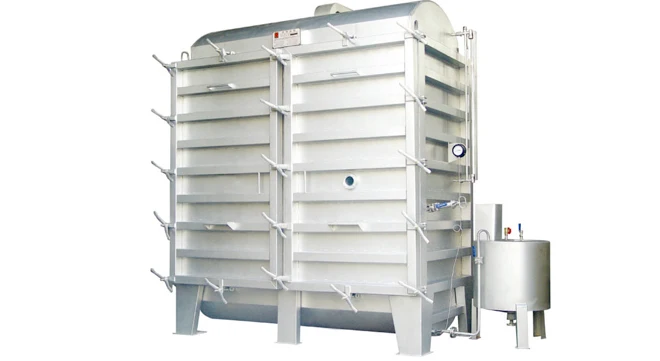

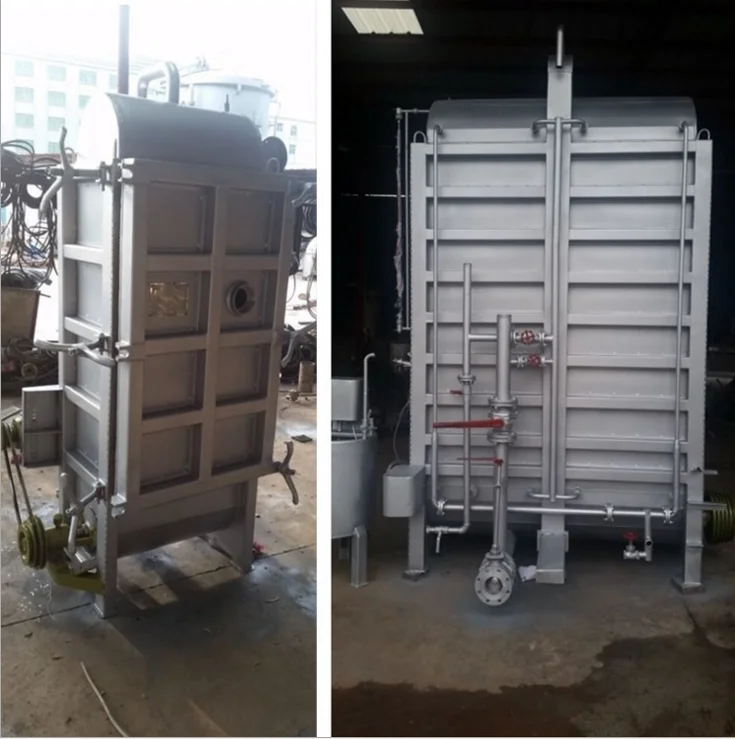

It is mainly composed of a square dyeing tank, a bracket, a bobbin and a circulating pump, and is a batch dyeing equipment. Hang the skein on the support tube of the support and put it into the dyeing tank. The dye is driven down by the circulation pump. Some models of the yarn-carrying tube can also be slowly rotated, there are small holes in the wall of the tube, dye from the holes ejected through the winch. (2) Cheese dyeing machine: mainly composed of cylindrical dyeing trough, barrel rack, storage tank and circulating pump, is a intermittent dyeing equipment. The yarn is wound on a cylindrical reed or a porous tapered tube and then fixed to the porous sleeve of the frame in the dyeing trough. The dye solution flows into the tube rack porous sleeve through the circulating pump, and then flows outward from the inner side of the cheese yarn. After a certain interval, reverse flow is carried out. The dyeing bath is about 10:1. (3) Warp-axis dyeing machine: mainly composed of cylindrical dyeing trough, warp-axis, liquid storage trough and circulating pump, is intermittent dyeing equipment. Originally used for warp dyeing, it is now widely used for open-width dyeing of loosely woven fabrics, especially synthetic warp knitted fabrics. When dyeing, the warp or fabric is wound on a hollow warp shaft covered with small holes and then loaded into a cylindrical dyeing trough. Under the action of circulating pump, dye flows from the hollow warp shaft through the hollow holes of the warp shaft through the yarn or fabric, and makes the reverse flow regularly. Fabric dyeing machine according to the shape and characteristics of the fabric dyeing rope dyeing machine, dyeing machine, pad dyeing machine and continuous pad dyeing machine, the latter three are open-width dyeing equipment. Wool fabrics, knitted fabrics and other easily deformed fabrics, mostly dyed with loose rope dyeing machine, cotton fabrics are often used open-width dyeing machine. (1) Rope dyeing machine: mainly composed of dyeing trough, round or oval basket drum (Fig. 5), is intermittent dyeing equipment. When dyeing, the fabric is loosely curved and immersed in the dyeing bath. The fabric is lifted by the basket roller through the guide roller and then falls into the dyeing bath. The fabric ends up and circulate. The fabric is immersed in the dyeing bath in a relaxed state for most of the dyeing time, and the tension is small. The bath ratio is generally 20:1 to 40:1.



If you are interested in these machine, pls contact me at

Whatsapp: +86 13826924120

Wechat:k13826924120

Qq: 870674276
Mobile(86)13826924120
Skype:allen.chen4120
B.R.

Allen
