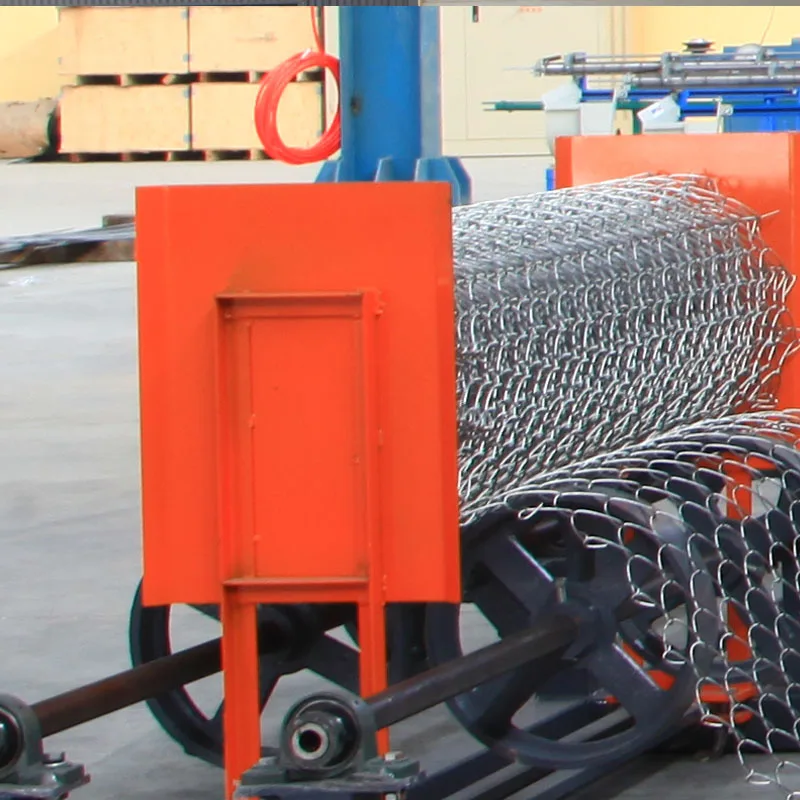

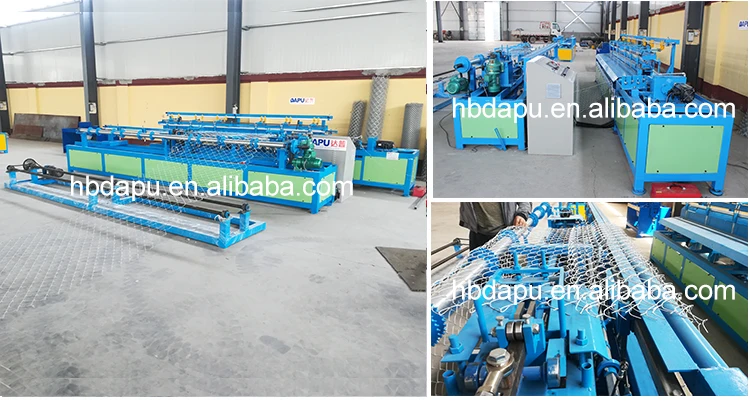

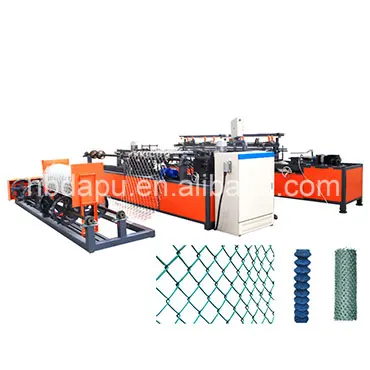

Advanced diamond mesh whole single wire chain link fence making machine
- Category: Wire Mesh Making Machines >>>
- Supplier: Hebei Dapu Import & Export Trade Co. Ltd.
Share on (60790515502):
Product Overview
Description
PLC control automatic chain link machine single wire
Instruction
1. Wire mesh Aperture: Max.: 150mm
2.The machine can use hard wire (Raipur wire in India)
3. Through die, one rods of wire become diamond-shape.
4.Fully automatic (feeding wire, twist/ knuckle sides, winding up rolls)
5. And then diamond-shape wire connects with wire inside the winding shaft.
6. Mesh width and mesh opening can be customized as customers’ will. 3M-6M

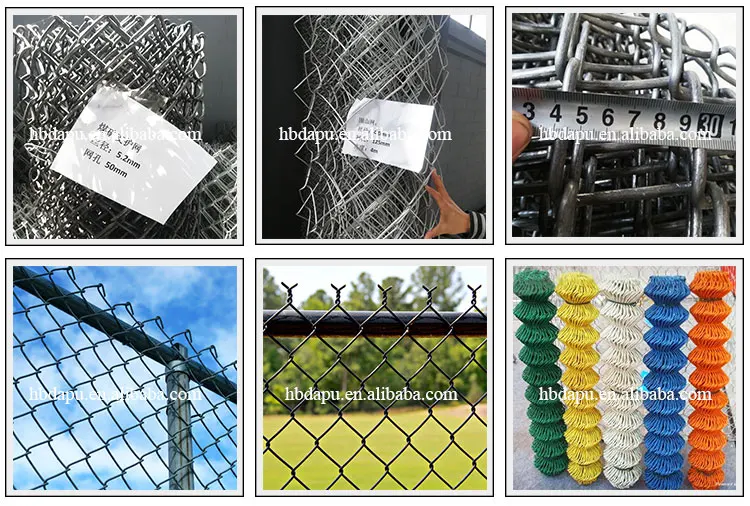

7. Application: extensively used as fences for playground and gardens, highway, railway, airport, port, etc.
8.High production--70-110m2/h, suitable for hard wire material, much easier for adjusting when the machine goes wrong
9.Three sets of molds for free to make three different kinds of mesh hole. And the molds can be customized as your request
After sales service
1. Indian agent available to meet up the requirement of the customer who don't have importing license or can not speak English
2. Indian local after-sale service:installation & traing, problem can be solved within 72h.
3. Front warehouse in India, most spare parts are available in India, saving much time.
Technical Parameters
| Model | DP 30-85 | DP 25-85 | DP 20-100 |
| Wire diameter | 2-4mm | 2-4mm | 1.6-4mm |
| Mesh size | 30-85mm | 25-85mm | 50-150mm |
| Mesh width | 0.5-4m | 0.5-4m | 2-4m |
| Mesh length | 30m, adjustable freely as your request | ||
| Speed | 120-150 m2/h | 120-180 m2/h | 70-110m2/h |

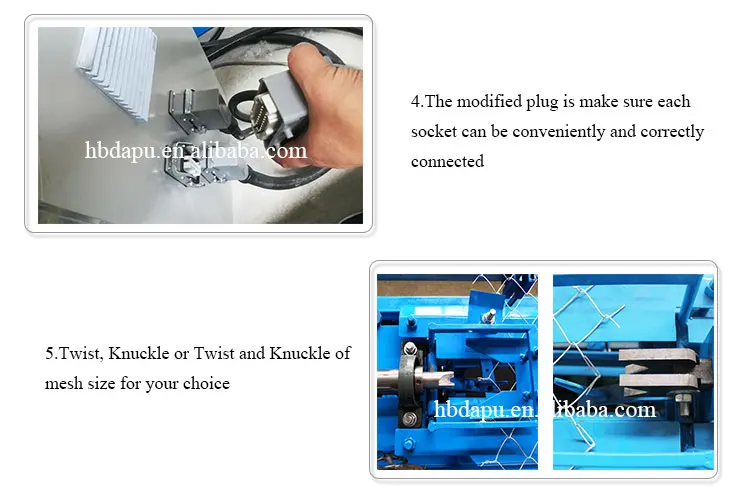

| Mesh side | Knuckled and twisted,both knuckled,both twisted | ||
| Raw material | Galvanized wire,PVC coated wire etc. | ||
| Machine size | 6.7*1.43*1.8m | 6.7*1.43*1.8m | 4.2*2.2*1.7m |
| Weight | 3900kg | 4200kg | 2500kg |
Product Details
Packaging & Shipping
Contact us now ,any machine you need , OEM is ok!

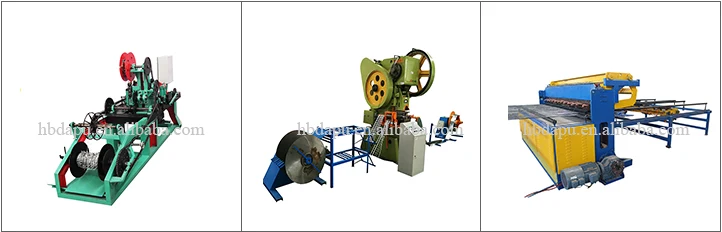

| barbed wire making machine | razor barbed wire machine | Fence mesh welding machine |
| Wire diameter:1.6-3.0mm | Speed:220-280 m/h and 9 strips | Mesh wire:2.5-6mm |
| 100% Response Rate | 100% Response Rate | 100% Response Rate |
Company Information
FAQ
Q: What's capacity of the chain link fence machine?
A: 70-80m2/h
Q: What's the power consumption of this machine?
A: Less that 6kw per hour
Q: How much weigh and container does it require?
A: 2.5T for the full set machine and one single 20ft is enough for one machine. one 40ft container can load 4 sets machines.
Q: Can you arrange the engineer help to install the machine and train our labor?
A: We can send installing video and Instruction manual, And send the engineer to you for free.
Q: How many machines do you sale yearly?
A: About two hundreds sets every year, especially for Indian market.
Q: Can this machine work in the hot temperature condition?
A: Surely, We designed this machine specially for Indian and South Africa these hot countries.
Q: How long is your warranty?
A: 2 years
