Хэбэй Jiaoyang сварочный аппарат переменного тока автоматическая используется проволочная сетка из Китая с диагональю экрана 3 6 мм GWCD 2500D 24/32/40/48 80 раз/мин ISO9001 CE, производство Китай
- Category: >>>
- Supplier: Jiaoyang Welding Industries Hebei Co. Ltd
Share on (60791434428):
Product Overview
Description

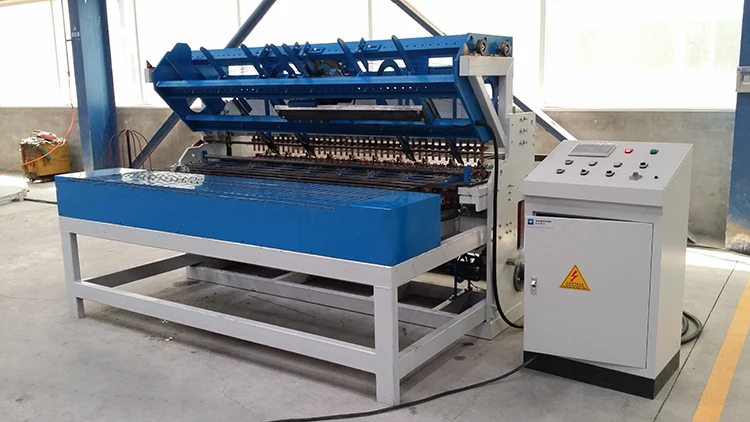

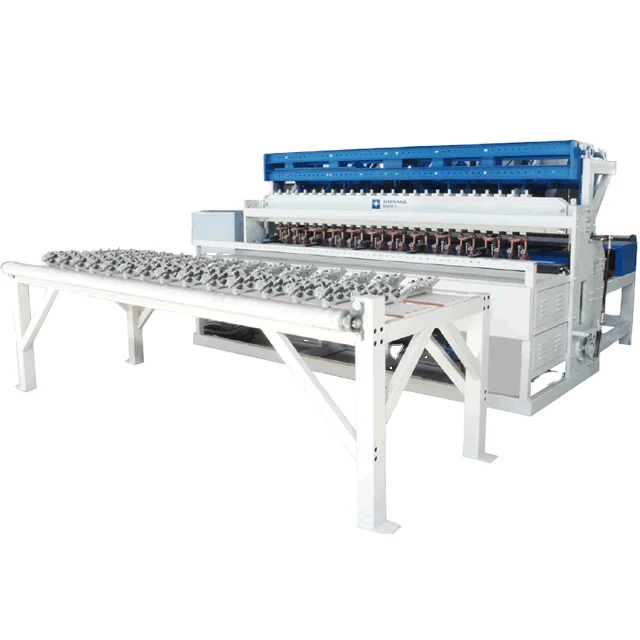

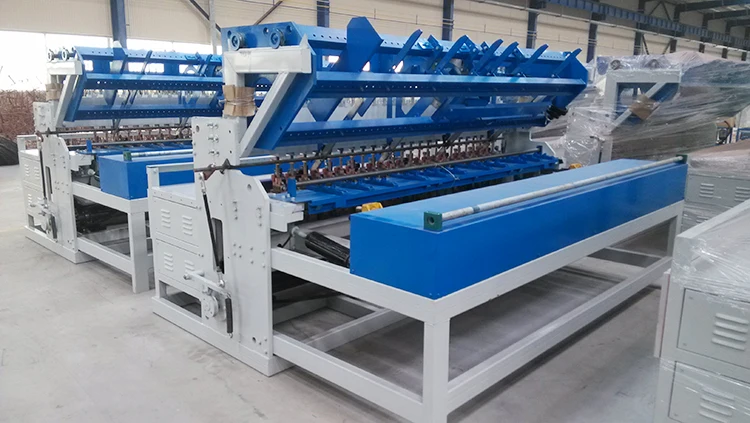

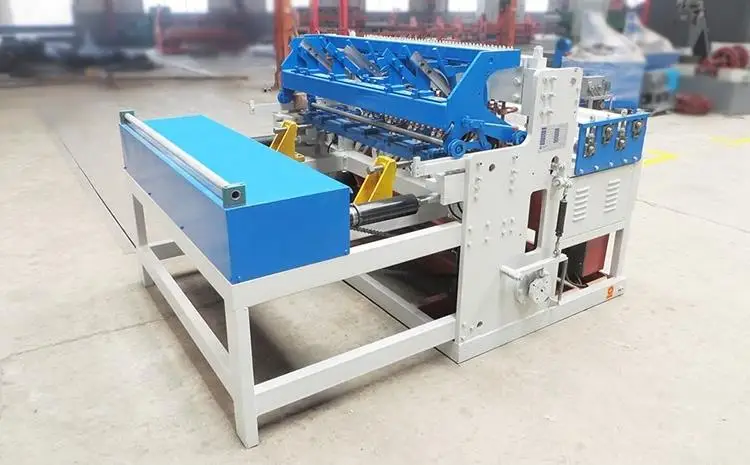

3-6mm automatic used wire mesh welding machine
| Hebei Jiaoyang Wire Mesh Machine CO., LTD. China |
Product description
Basic Information:
| Product Name | Fully Automatic Welded Wire Mesh Machine 3-5mm/Wire Mesh Making Machine |
| Wire Diameter | 3-5mm |
| Mesh Hole | 25-200mm |
| Mesh Width | 1.2-2.5m |
| Welding Speed | 60t/min |
| Shipping Term | Xingang Port |
| Payment Term | T/T, L/C |
Technical Parameters:
Item | GWCD-1200D | GWCD-1600D | GWCD-2100D | GWCD-2500D |
Number of Electrodes | 24 | 32 | 40 | 48 |
Max. Mesh Width | 1200mm | 1600mm | 2100mm | 2500mm |
Wire Diameter | 3-5mm | 3-5mm | 3-5mm | 3-5mm |
Mesh Length | 3-12m | 3-12m | 3-12m | 3-12m |
Cross Wire Space | 50-200mm | 50-200mm | 50-200mm | 50-200mm |
Line Wire Space | 50-200mm | 50-200mm | 50-200mm | 50-200mm |
Electric Capacity | ≥160KVA | ≥160KVA | ≥160KVA | ≥160KVA |
Welding Speed | 60t/min | 60t/min | 60t/min | 60t/min |
Control System | PLC Control | PLC Control | PLC Control | PLC Control |
Special specification is available according to your requirements. | ||||
Product Advantage:
1. The product model:Construction mesh welding machine
2. The control system:The control panel (button)
3. Power system:Motor
4. Characteristic:

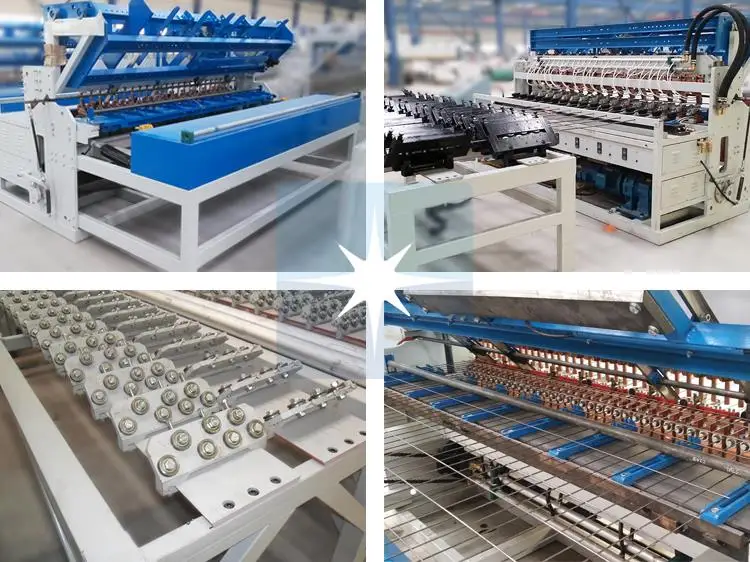

Cross wires are pre-straightening and cutting wires, line wires are coil wire. The machine can weld continuous wire mesh sheets and wire mesh rolls, main functional structures: line wire straightening and locator device, cross wire store hopper, mechanical hauling wire mesh device, mesh size locator device. It is compact in structure, easily to operate and with fully functions. The machine mainly to make construction welded wire mesh.
Auxiliary Machinery:
 | Wire Straightening and Cutting Machine Wire Diameter: 3-6mm Cutting Length: 0.8-6m Cutting Speed: 90-110m/min Motor Capacity: 9KW |
Production Flow
 |
Purchase guide
Below information is required for quick quotation:
1. Wire diameter : From mm to mm.
2. Line wire space : From mm to mm.
Cross wire space : From mm to mm.
3. Mesh width: 1200mm ~1500mm~2100mm~2500mm~3000mm ( customized)
4. Industrial voltage : 380V 50HZ ( Customized)
5. Do you want to weld wire mesh panel or mesh in coil ?
6. Is the auxiliary equipment also require ?
Packaging
Fully Automatic Welded Wire Mesh Machine 3-5mm/Wire Mesh Making Machine:
The machine will be packed with plastic bags, spare parts in carton box.
Special packing is available according to customers' requirements.
 |
Our Service
Fully Automatic Welded Wire Mesh Machine 3-5mm/Wire Mesh Making Machine
 | |
Pre-Sales Service: * Inquiry and consulting support. * Sample testing support. * View our Factory. * Online visit | After-Sales Service: * Training how to install,operate and maintain the machine. * Engineers available to service machinery overseas. * One year gurantee for the whole machine. * Operation manual is available. |
Jiaoyang Services for Best price automatic welded wire mesh machine (BV certificated)
Pre-sale Services of Best price automatic welded wire mesh machine (BV certificated)
1.Product Technical Advisory
2.New Features
3.Product Preliminary Design and Feasibility Discussion
4.Product and System Selection and Configurations
In-sales Services of Best price automatic welded wire mesh machine (BV certificated)
1. Product Installation Instructions
2. Product Onsite Commissioning
3. Complete drawings and related technical information
4.Technical training
After-sales Service of Best price automatic welded wire mesh machine (BV certificated)
1. Technical services during warranty periods
2.Free repair or replacement for products with quality problems during warranty period
3. Maintenance services and spare parts
4. Lifelong service and technical support for products sold
Our company
- Fully Automatic Welded Wire Mesh Machine 3-5mm/Wire Mesh Making Machine
- Employees: 243
- Engineers and technicians: 34
- Processing equipment: 105 sets
- Plant area: 133,000 square meters
- Office area: 3,700 square meters
- National patents: 63
- Assets: USB 20,000,000
- Annual equipment export amount: 360 sets
- Annual equipment output: 800 sets
- Foreign markets: Asia, Middle East, America, Africa
 |
Why choose us
1.Jiaoyang 2.Customized services
is the leading brand in resistance welding industry in China for 30 years We can help to design and develop the welding machine according to your rquirement .We are flexible and capable supplier.
3.Best Quality 4.After sales services and technical assistance
12 months warranty ,most of our machines enjoy 8-10 years services life 100 % guarantee test before delivery 24 hours technical support by email ,our professional team -14 experienced service people is always here willing to be your echnical consultant
5.Quick Deilvery 6.Prompt response to customers.
Our company provides just -in-time delivery Your satisfaction is the goal we pursue.

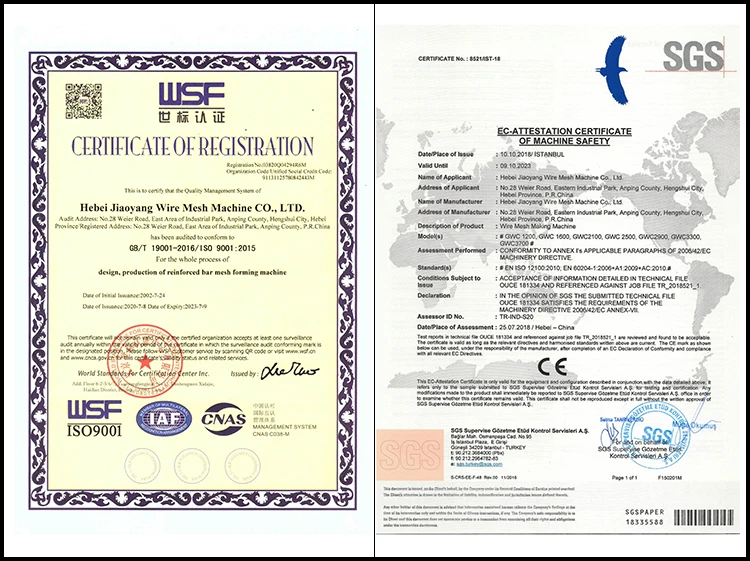

Certifications
We have gotten the ISO9001, CE certifications for Fully Automatic Welded Wire Mesh Machine 3-5mm/Wire Mesh Making Machine.
