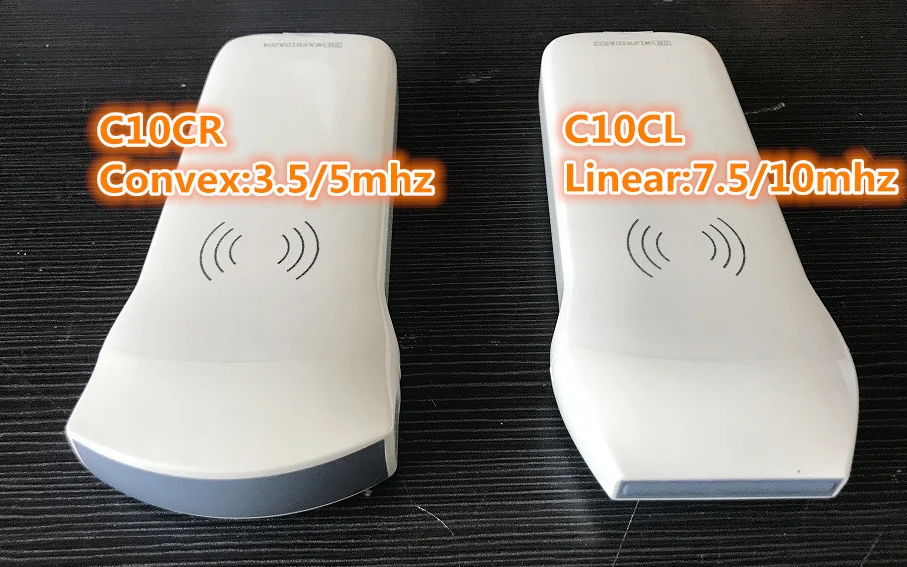

Portable Ecografos Color Doppler Wireless Ultrasound Probe Konted C10CR C10CL

Product Overview

Description

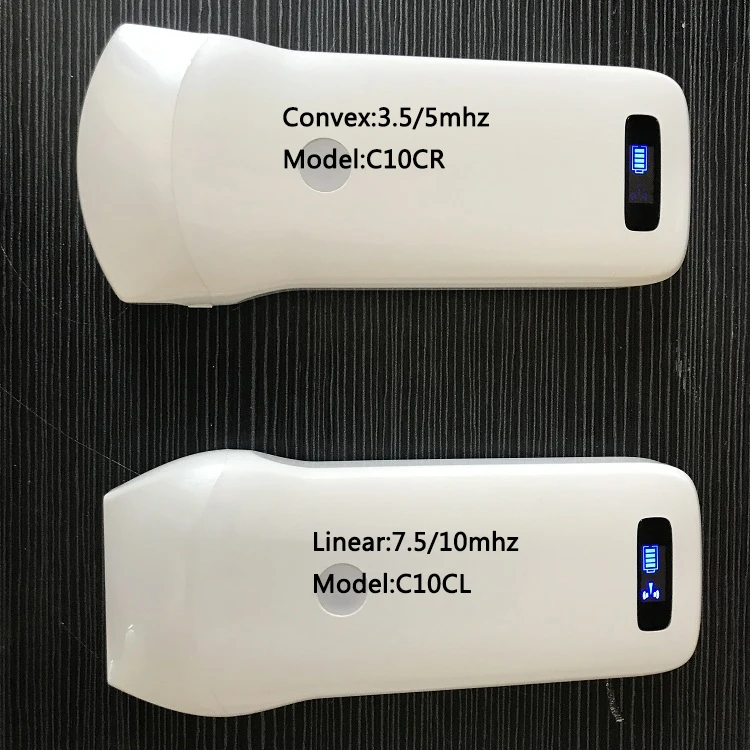

Portable Ecografos Color Doppler Wireless Ultrasound Probe Konted C10CR C10CL





Product Description for ecografos:

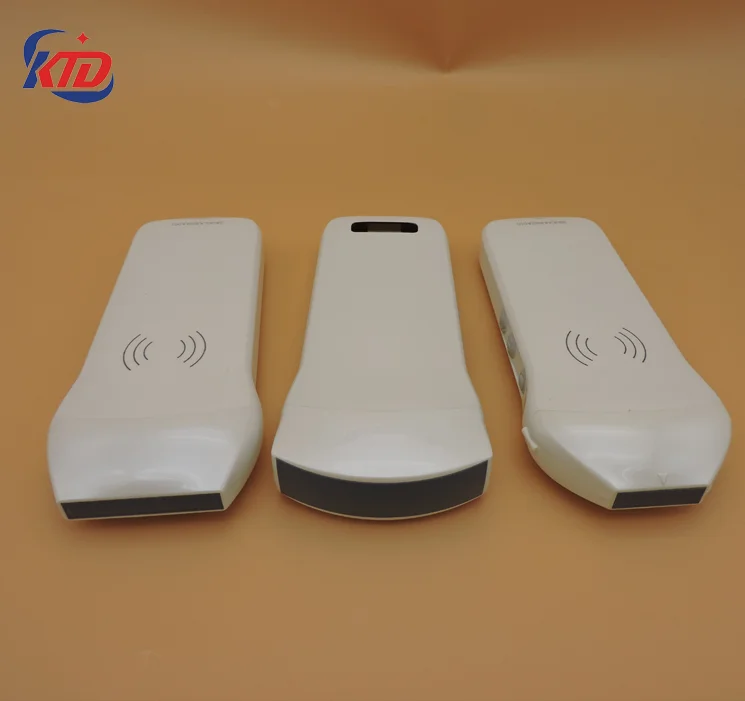

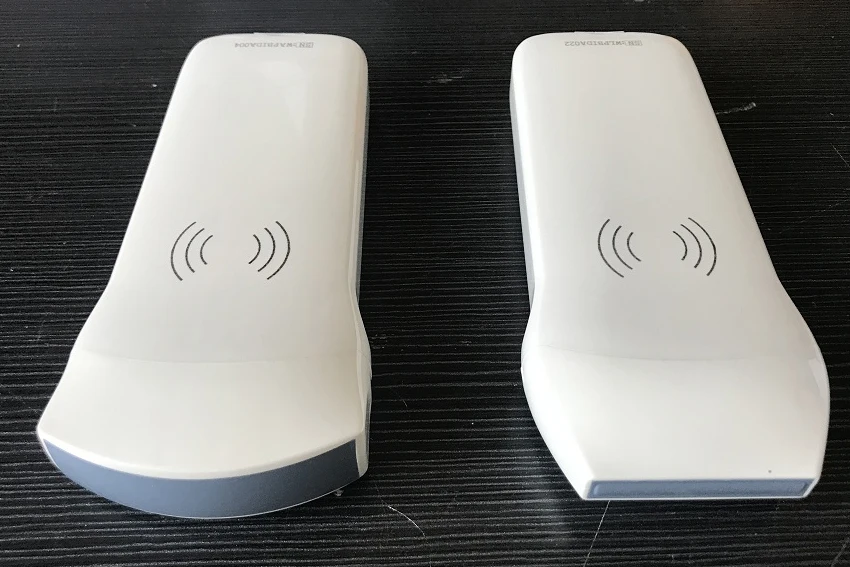

Wireless  probe is a mini ultrasound scanner without screen. probe device combined with integrated ultrasound boards,ultrasound probe integrated with usg board,imaging transmission done by special wifi to pad and phone.Thought professional  ultrasound software APP,wireless probe wifi connected with smart phone or tablet to become a ultrasound scanner.

In emergency clinical, hospital ward inspection, community clinical and outdoor inspect,Clinical training, Nursing Training, an easy carried & operated compact ultrasound such as wireless probe  is desired



Application for ecografos:

Convex:abdomen,Linear:MSK(Muscular-skeletal), Orthopedics, Vascular, Pediatrics, Sports medicine, anesthesia , injection , Puncture , nevers....ect.Point of care, Ultrasound-guided procedures, Veterinary and among other medical fields.

Feature for ecografos:
-Small and Compact size, easy to carry.

-Wireless type without probe cable, working freely.

-Waterproof design, convenient for sterilization.

-Remote diagnosis convenience, capable for images transfer to doctors.

Konted Color Doppler Wireless Ultrasound Probe C10CR/CL Specification:

Scanning system	Linear array sweep
Frequency	7.5/10mhz(linear probe)
Depth	linear probe : 20-55mm

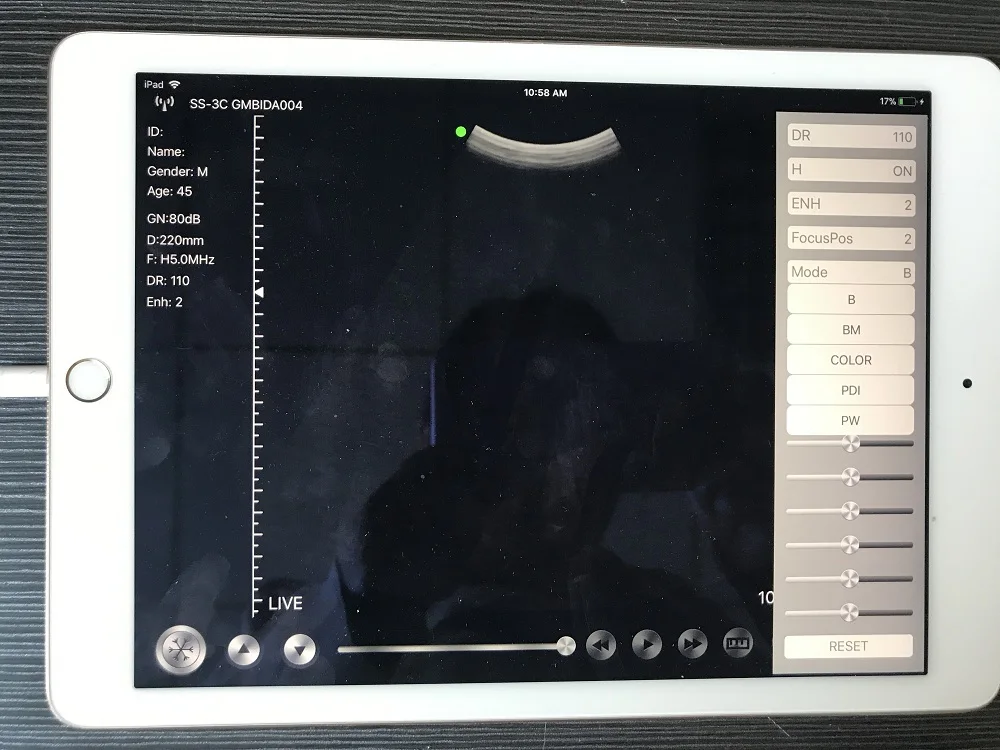

Host	iPhone/iPad,Android Phones,windows
Connection	802.11.g WIFI(AP)
Throughout	54Mbps
Field of view	80 degree

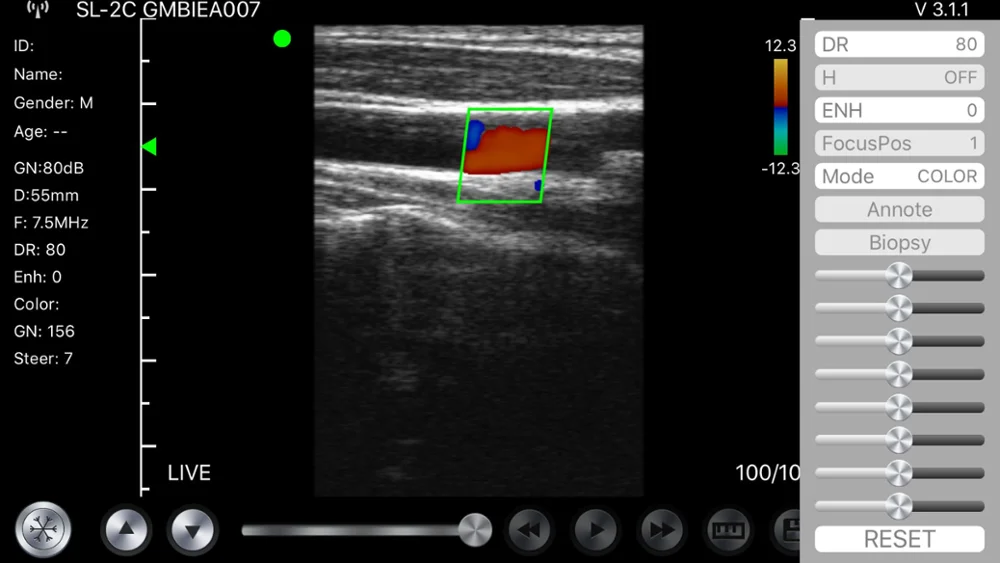

Display mode	B, B/M, color, PW, PDI
Image gray scale	256 level
Gain	30-105Db
Measure	distance, area, obstetrics and other
	Length,Area/Circumference,GA(CRL),GA(BPD),GA(GS),GA(FL) ,GA(HC),GA(AC)
Language	English
Power	by built-in battery
Power consumption	4W (probe run) /1.5W (probe stop)
Battery Replaceable	Yes
Battery last	3 hours(working time), More than 5 hours(stand by time)
Size	157*70*30mm
Weight	221 gram
