(We could customized acrylic equipment for you, except standard equipment, if you need.)
Machining Principle: Thermoforming
Machinable Materials: Acrylic, Plexiglass, ABS, PVC, PC, PS and other Plastic products
Applicable Industry: Advertising, exhibition, gift processing, decoration, automotive, home appliances and other
Drive mode: Pneumatic
Control mode: NC
Processing thickness:0.8-25MM
Warranty: One year
Specification:
Model
Overall (L*W*H mm)
Working Length
Bending Angle
Bending Thickness
Power
TN-BD1200
1680×700×1300mm
1200mm
1~179°
0.8~25 mm
220V/50HZ
TN-BD1800
2280×700×1300mm
1800mm
1~179°
0.8~25 mm
220V/50HZ
TN-BD2400
2950×700×1300mm
2400mm
1~179°
0.8~25 mm
220V/50HZ
TN-BD3000
3550×700×1300mm
3000mm
1~179°
0.8~25 mm
220V/50HZ

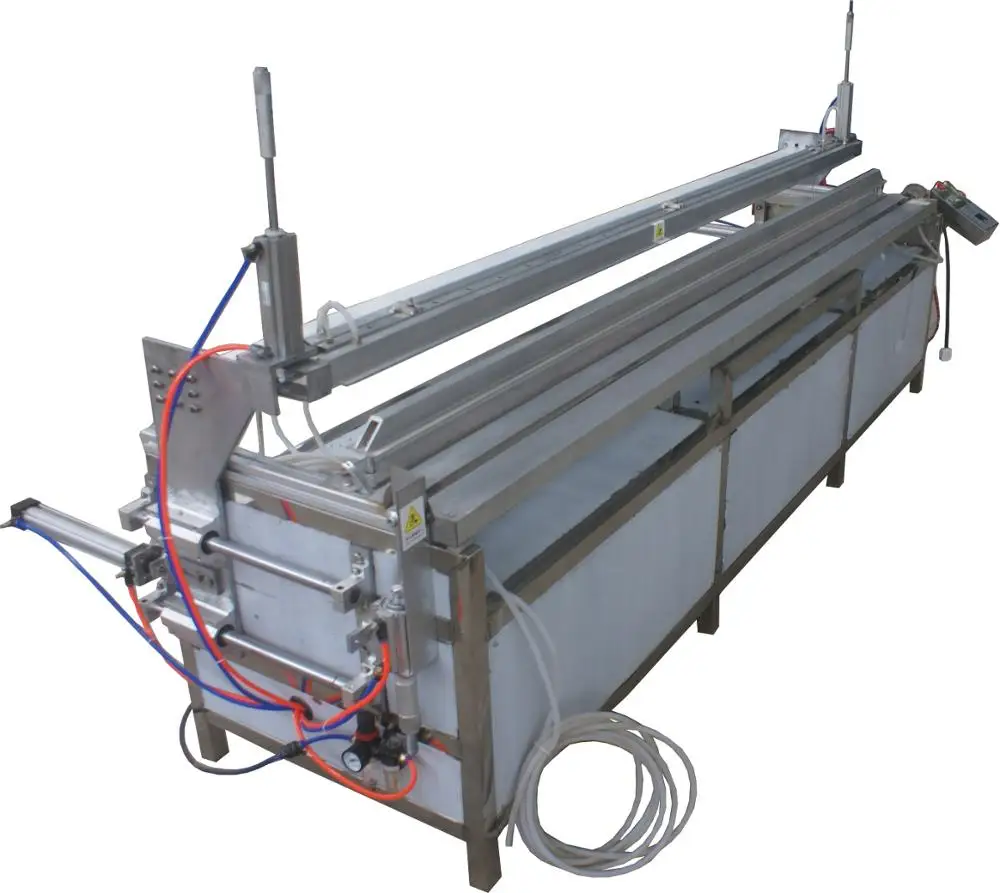

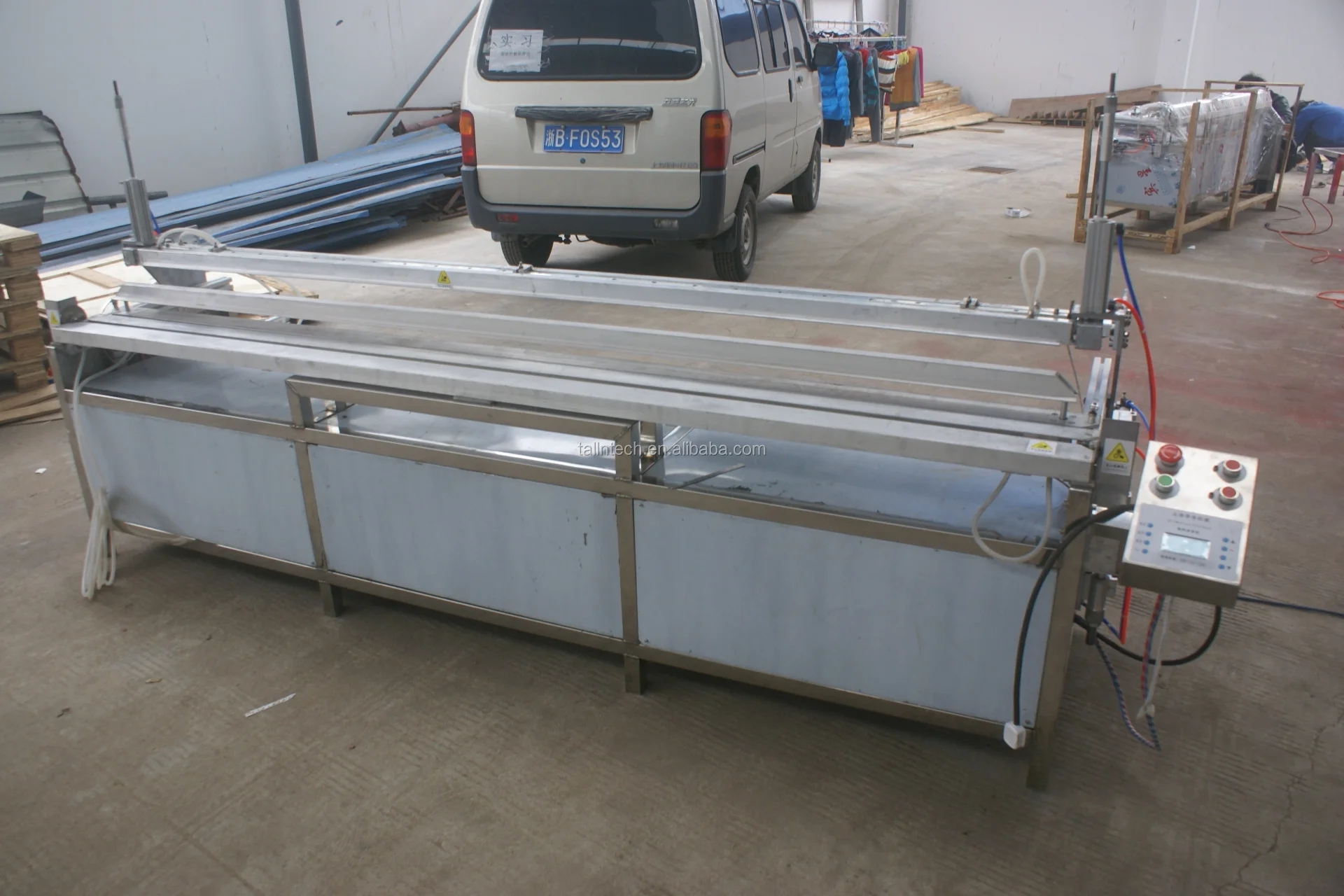

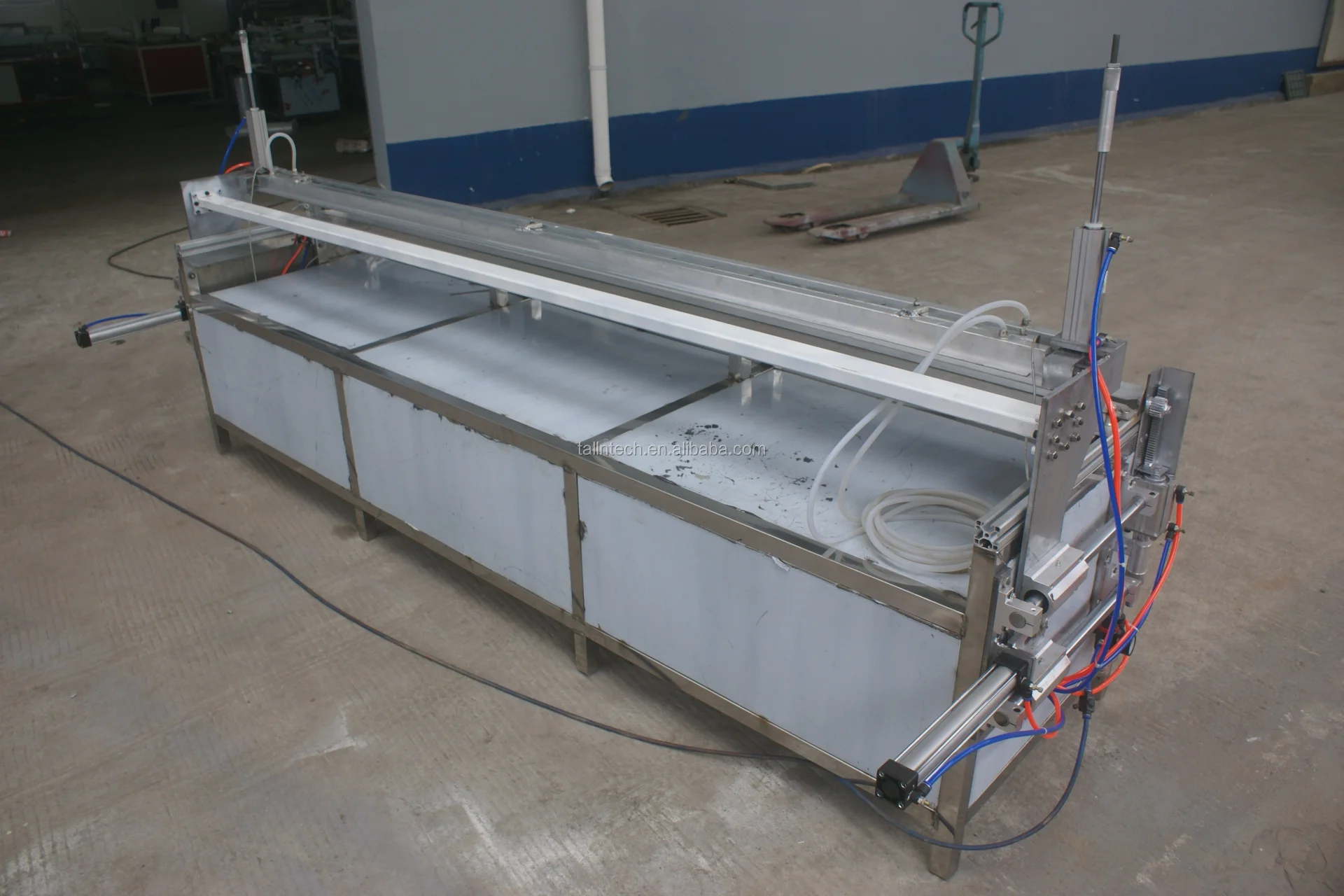

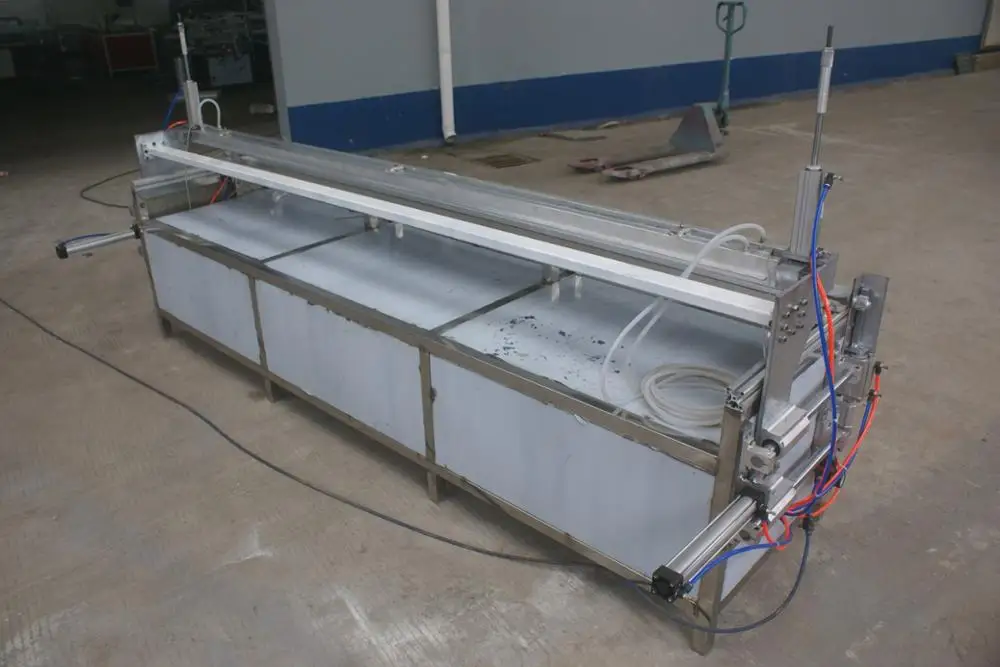

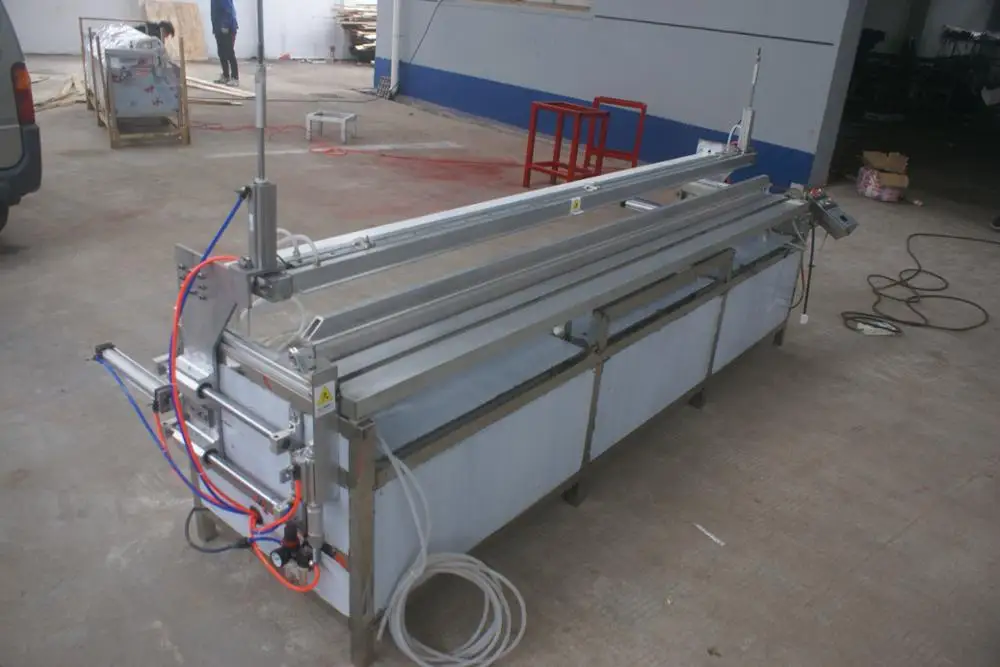

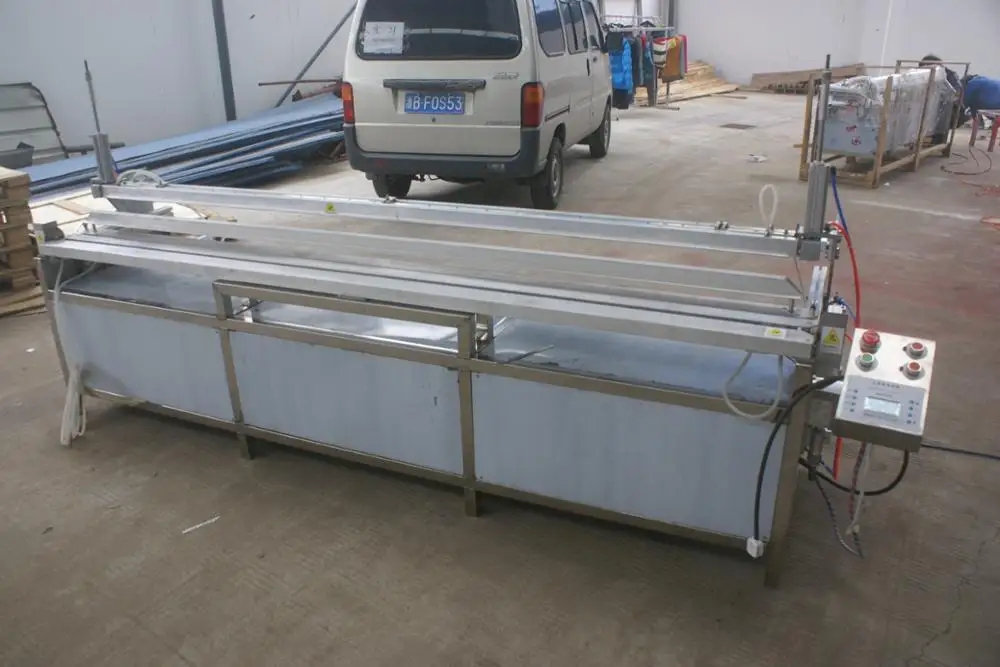

TALLNTECH acrylic bending machine can manual and automatic operation, the heating time is adjustable, heating completed will automatically alarm, heating temperature is adjustable, natural cooling and water cooling. The price is affordable, simple and practical. Improve the efficiency of operating. This machine can processing plastic sheet and a variety of materials.
1.Domestic first manufactured-Infrared plating barium heater and unique energy saving heat insulation device make the heating temperature equally ,meantime can make heat radiation upward, save 40% energy than ordinary machine.
2.When bending,the heater can shift and interrupt power supply. To make the material cooling and shaping more rapidly,save more energy,operation more reasonable and humanity.
3.Our special multifunction fixing position and protractor,can make the bending angle adjustble,steerable,accurate and convenient.
4.Automatically water cooling system,can make the machine has the line heating function.
5.The working table is thick stainless steel platform,avoid the acrylic damaging when it is working.
6..The machine with special double leakage automatic protection function, safety in use.
7.Integration of high strength of frame, stable performance, convenient for transportation and installation.
8.Wide usage: the machine can process acrylic board; ABS board; PVC board; Sunshine board and etc.
9.Automatic bending function.can bend automaticly according to plate requirements to.cool and finalize the design after bending, then flap plate to return.Remove bended workpiece. Fully realized automation.
Service
1.one year quality guaranty for mainly spare parts ( not include quick-wears parts)
2.We will provide the consumable parts at an agency price when you need replacement.
3.Free training course at our plant.
4.12 hours free technical support online.
5. The english operation manul is included.
6. Machine has been adjusted well before delivery. Operation disk was included.

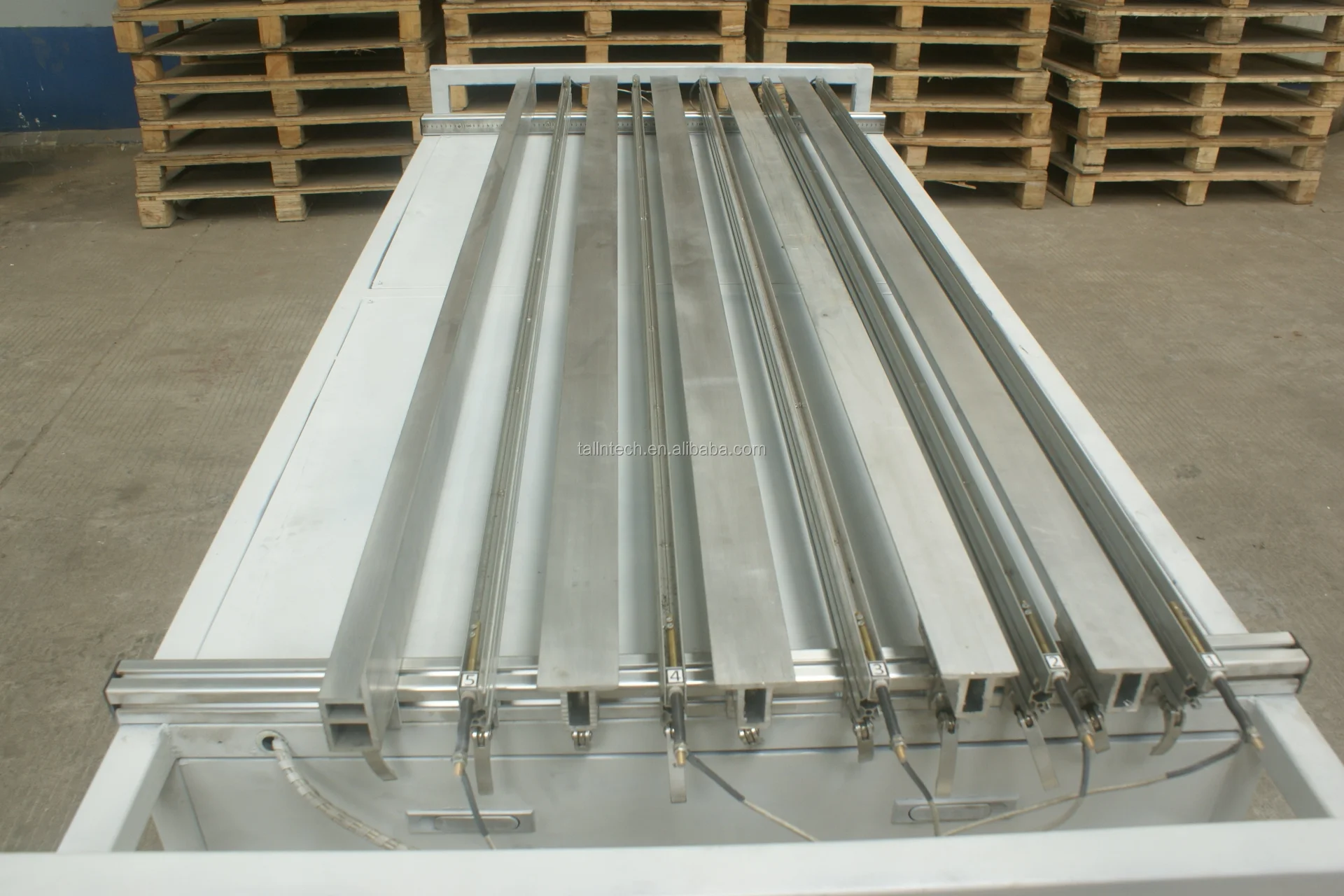

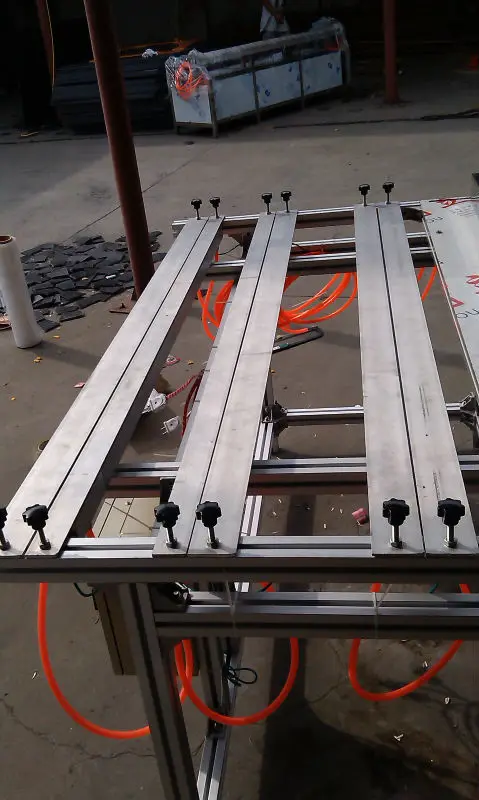

custom multi lines

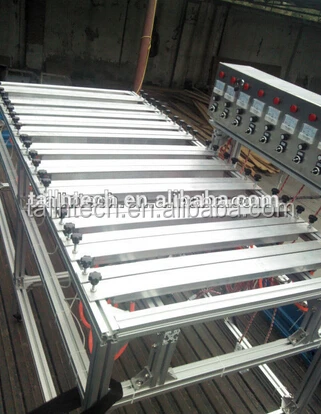

manual type
