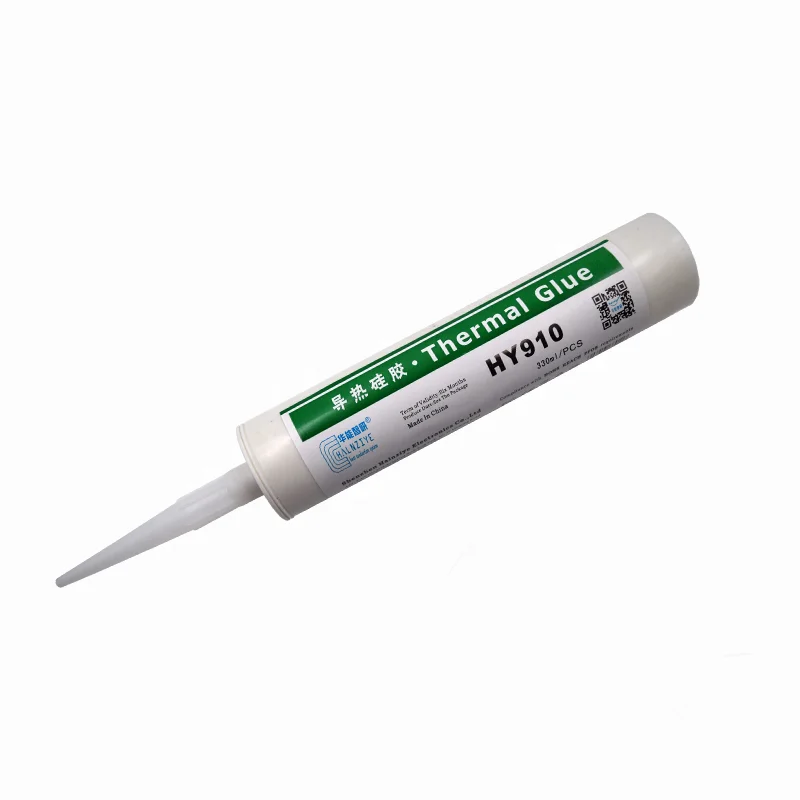

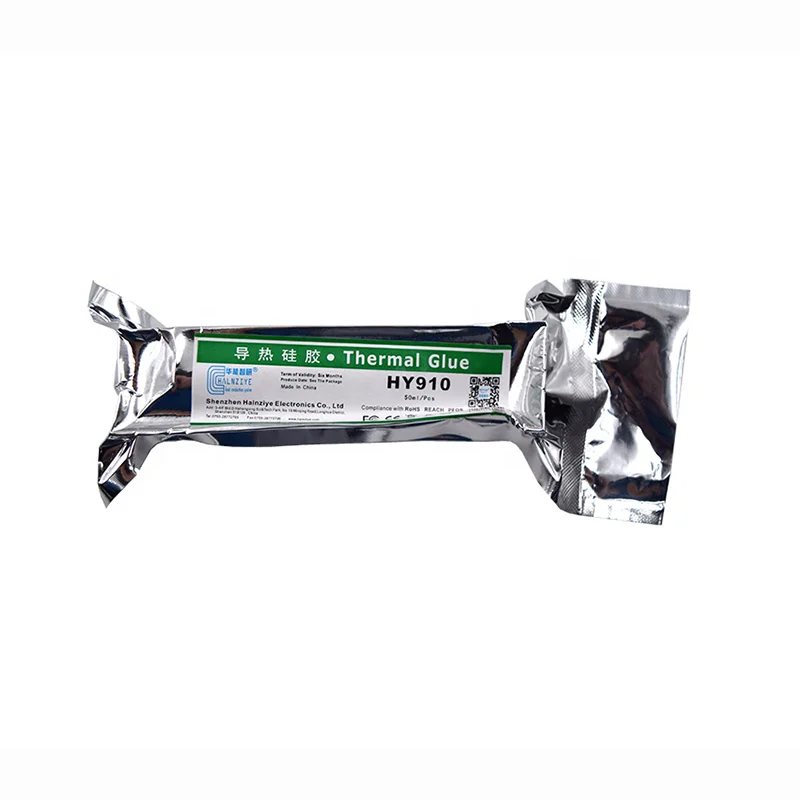

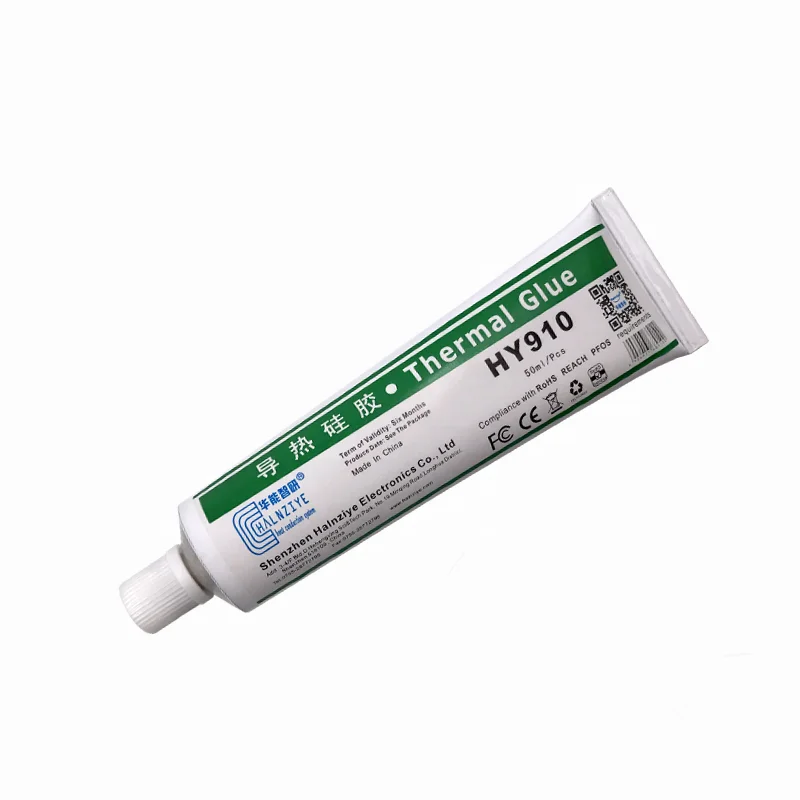

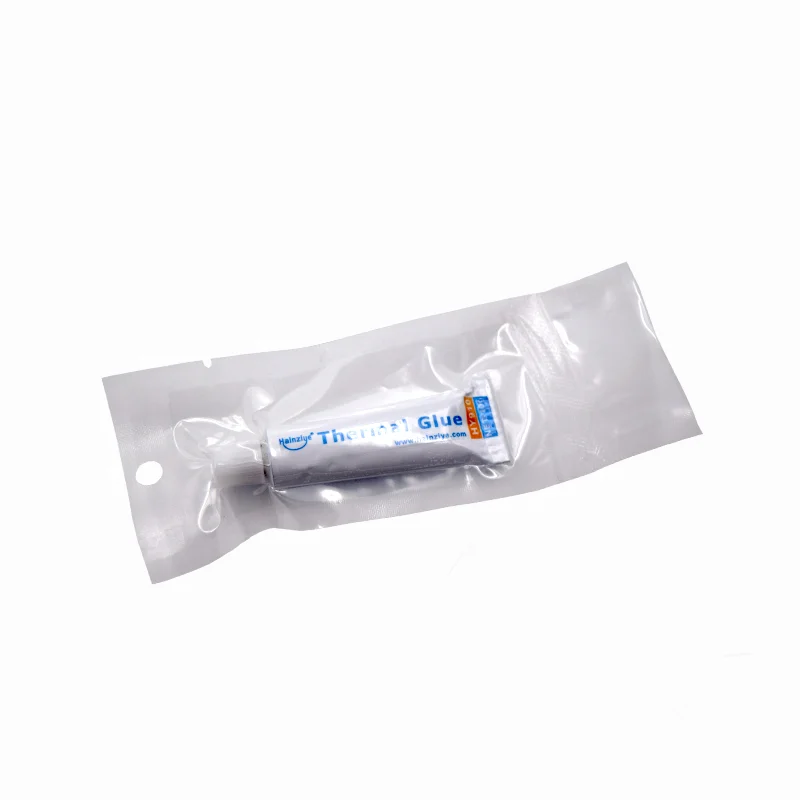

Effective heatsink thermal glue for LED HY910 white 0.975w/m k 5g

Share on (60792961471):


Price:

Quantity:


Product Overview

Description



Product Description





hot sell LED silicone Thermal conduction adhesive/glue  (HY910)with CE&RoHS&MSDS





Not recommended for using between CPU and cooler.


White thermal glue/plaster, the thermal conductivity is 0.975W/m-k


*The Dielectric constant is very high, can withstand voltages above 10 000 volts.


*Low thermal impedance, it can endure paste state.


*Wide Operation temperature range, can keep stable performance between -55~200°C.


*High heat dissipation performance, have Cost-effective.





1 (2)

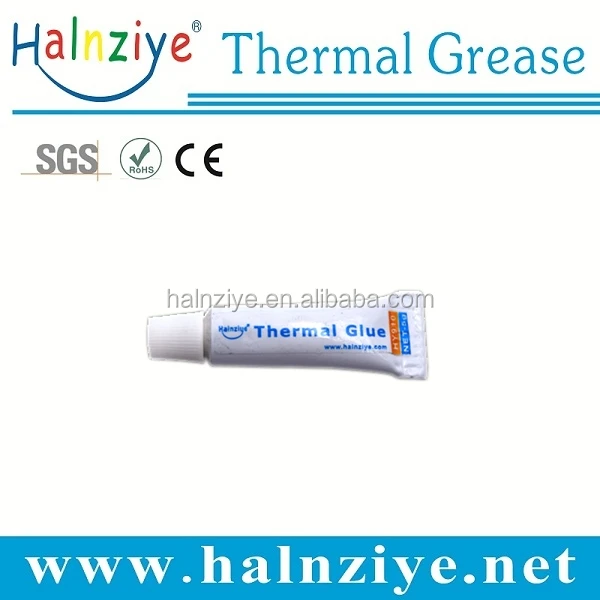

HY910-ST5G 1

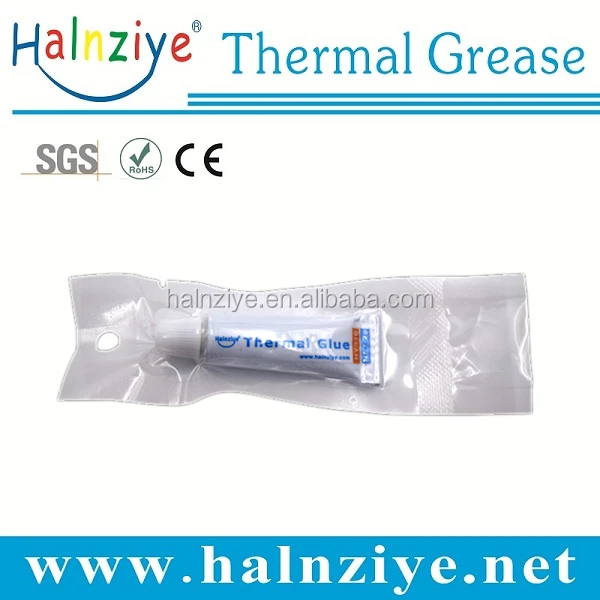

HY910-ST5G











111


 Specifications
































































Items



HY910



Units



Color



White



No



Thermal conductivity



>0.975



W/m-K



Hardness



78±5



(Shore A)



Specific Gravity



>2.3



g/cm3



Tensile Strength



2.1



Mpa



Dry Time Table



5-15 min



No



Elongation At Break



70



%



Shear Strength



1.8



Mpa



Dielectric Strength



10



KV/MM



Operation temperature



-60--200



°C















Packaging & Shipping


 333





Our Services





Our Service


1.Gurantee Period: 6 months


2.Express Door to Door Service


3.Payment:T/T Pay-pal Western Union


4.OEM&ODM


5.Products Exchange & Returns


(you should provide pictures or video or testing data to confirm that it is our products' problem)





Company Information





About US








We, Shenzhen Halnziye Electronics Co., Ltd. are senior Thermal Grease manufacturer in China for years, our main products are heat sink compounds & heat sink plaster & heat sink flow and thermal pad, our products are widely used in CPU&VGA, LED, IC etc, with great operating property of our products (all products got CERoHS (certification), and our main markets are EU, north America, Northeast Asia, Southeast Asia etc, I believe you will find what you want to order with the best cost performance.


444











FAQ





FAQ





1>Lead time:


Less than or be equal to 1000pcs In 3 working days;other quantity depends on arranging of our factory.


2>Delivery period: 3~5 working by Express door to door service and airport to airport service, if by ship, it depends on schedule and destination.


3>All Emails will be answered in 12 hours, if you do not receive our reply,please send it again and we will reply as soon as possible.


4>Any other question ,no hesitate to contact us
