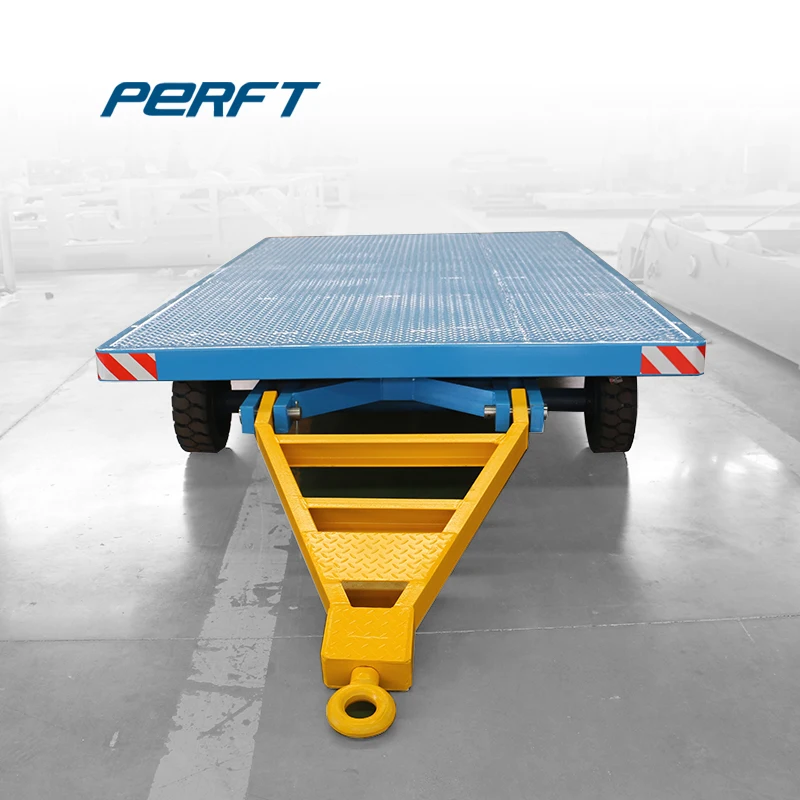

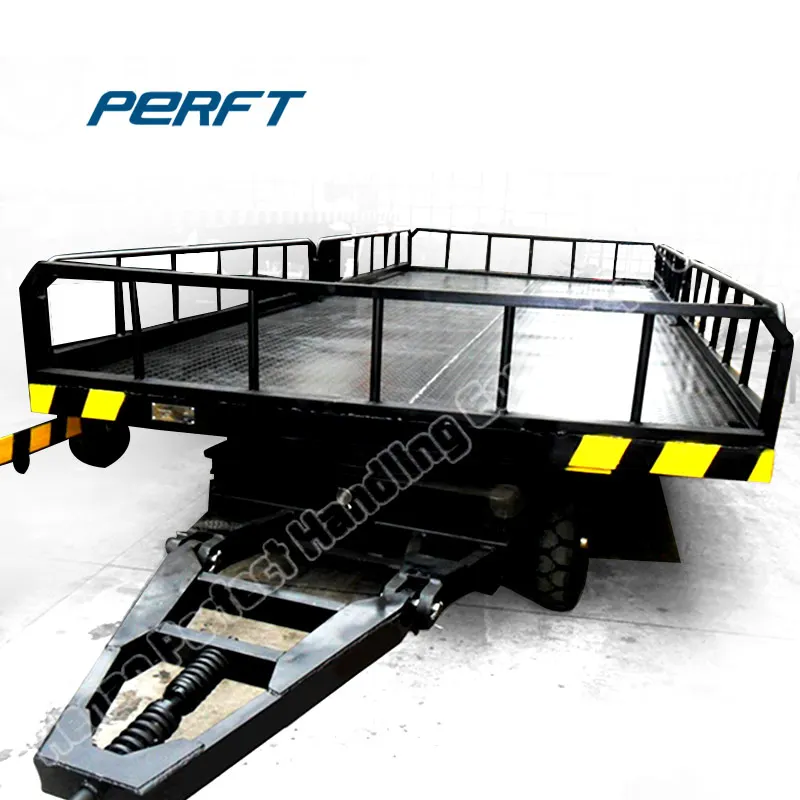

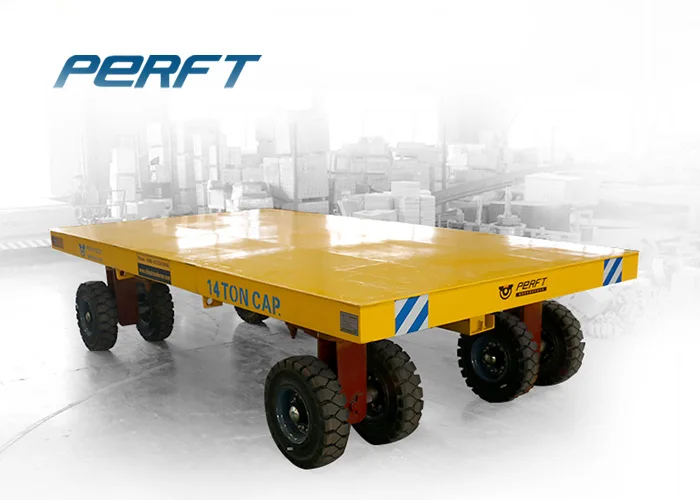

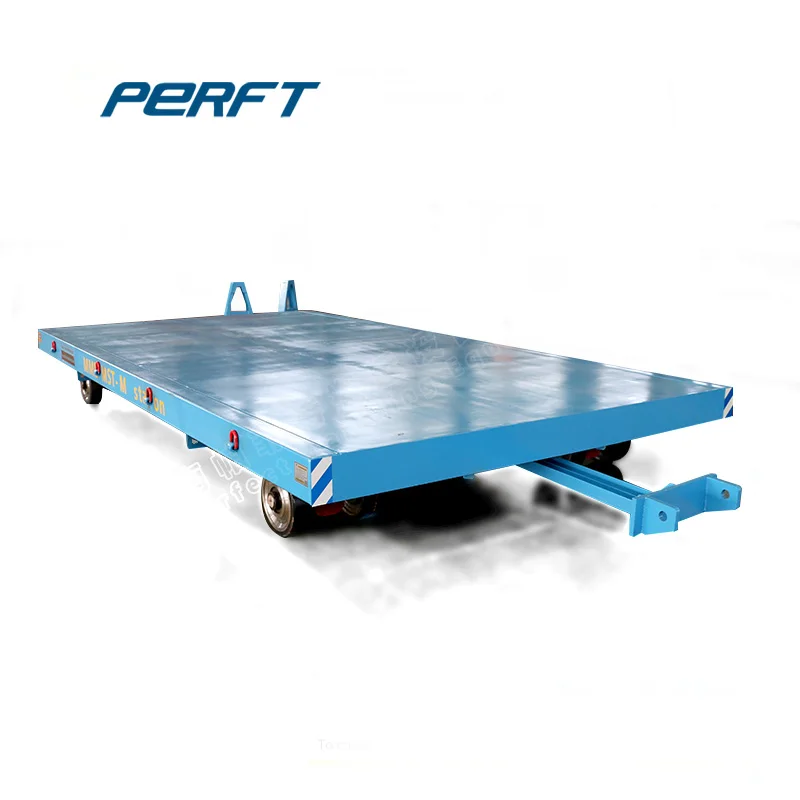

Industrial Materials Handling Forklift Towing Truck Trailer

Product Overview

Description

Model	BWT-2t	BWT-5t	BWT-10t	BWT-20t	BWT-30t	BWT-45t	BWT-60t
Rated Load(t)	2	5	10	20	30	45	60
Table Size (mm)	2000*1500	2500*1500	3000*2000	4000*2000	5000*2200	6000*2400	6000*2500
Height (mm)	500	600	700	750	800	850	950
Wheel Quantity	4	4	8	8	12	12	12
Tire Specification	254*102	305*165	559*254	22*9-10	22*9-10	22*10-16	22*14-16
Tire Material	Press-on solid tire	Press-on solid tire	Press-on solid tire	Press-on solid tire	Press-on solid tire	Press-on solid tire	Press-on solid tire
Frame Material	Q235	Q235	Q235	Q235	Q345	Q345	Q345
Color	Customized	Customized	Customized	Customized	Customized	Customized	Customized
Speed(km/h)	0-20	0-20	0-20	0-15	0-15	0-15	0-10

• Industrial Materials Handling  Forklift Towing Truck Trailer apply pressed-on solid rubber tire, which makes the trailer with low height but heavy load capacity and service life of wheels will be over than 15 years, which is very durable, reliable and safe;
• Heavy steel to build the structure, which make the trailer's service life at least 15 years;
• Equipped with connector or pin and the height of towing hook is adjustable to adapt different tractor, forklift;
• There are two springs on the towing device, which will protect the trailer and cargo when it is started or suddenly stopped;
• The turning device is large rotation support as the fifth wheel, which is usually used in excavating machinery and truck crane;
• Industrial Materials Handling  Forklift Towing Truck Trailer applies balance beam for the wheels to make the trailer available on the uneven ground;
• Several Trailer could be towed together and the running distance of Trailer is unlimited;















• Our product not only have sold across china, also exported to US, Germany, Thailand, Netherlands, South Africa, Syria, Turkey, Nepal etc;
• The cats body is packed with tarp, and the wheel and parts of the cart will be packed with wooden case;
• According transfer carts table size and quantity, cart will be transported to clients by FCL, LCL, Bulk Transportation, Open Top Container, Flat Rack Container and so on.
• The delivery time is around 30 days after clients pays the perpayment;



Our factory is located in Xinxiang City, Henan province. We cooperate with the Nanjing Engineering Institute all the year round and a senior welding engineer personally directs the production. Our company passed ISO9001 Quality management system and got the CE, SASO, SGS certificate.

we can produce all kinds of transfer cart from 1-1300 tons, our main products including BDG series Transfer cart BJT cable drum series Transfer cart , BHX safety sliding line series Transfer cart , BXC battery series Transfer cart , BTL towed cable series Transfer cart , BP non-power series Transfer cart , BQY train towed series Transfer cart , BWP trackless series Transfer cart  and special Transfer cart , such as turning, trackless, ladle, hydraulic lifting, ferry, painting room, blasting booth etc.





       Our commitment:

• The load bearing safety factor of the Handling Vehicle is no less than 120%;
• Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material;
• 16 hours engineering service and 24 hours internet service for our customers;
• During the warranty period, if our Coil transfer cart can't work normally, we can support you repair technology or replace relevant parts for you within 48 hours;
• Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and Preserve the image of our company;





• 1. Q: What is the size and load of this Rail Coil Transfer Car?
• A:The size and load of our this rail coil  transfer car is customized design according to your requirement.
• 2. Q: How do you transport the Rail Coil Transfer Car and what is the package ?
• A: For the big part, we will pack the rail coil  transfer car with tarpaulin and wood pallet on the bottom of the rail coil  transfer car to prevent it from moving. For the small part, we will pack it in wood case.
• 3. Q: What is the leading time, delivery term, and payment term?
• A: Usually our leading time is 45 days, for some special rail coil  transfer car, such as rail coil  transfer car, it maybe longer to 60 days. About the delivery term, we accept EXW, FOB, CIF, DDU. About the payment, we accept T/T or L/C.
• 4. Q: What is your MOQ?
• A: At present, our MOQ is 1 set.
• 5. Q:Can choose the power supply?
• A:Yes,such as the cable drum, rail powered, busbar powered ,trailing cable powered, etc.
