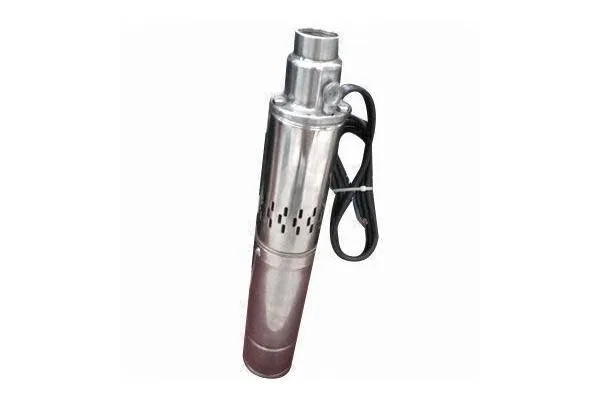

Daily life water supplying solar water pump price list (60793466568)

Share on:


Price:$900.00 - $1,190.00
Price in USD:Details

Quantity:


Product Overview

Description


Product Description

 Solar water pump system mainly consists of array,solar water pump and pump inverter,mounting bracket.

Solar PV array transfer solar radiation to DC electricity power, solar pump inverter adjusts input DC current, through inverter and frequency conversion, solar panel’s nonlinearity DC current become continuously output AC current for pump motor accompanying Max. power point tracking to drive AC pump lift water.


Daily life water supplying solar water pump  design

Our solutions are all customized according to site situation,It would be ideal to furnish us with following data, so detailed offer can be sent accordingly:


 Water source: Borehole (Diameter: _______mm)

              Lake, river, reservoir, dam

Average daily water demand: __________ m3

H (lift from lowest water level to the top site): __________m

L (Horizontal distance for water transport): _______m

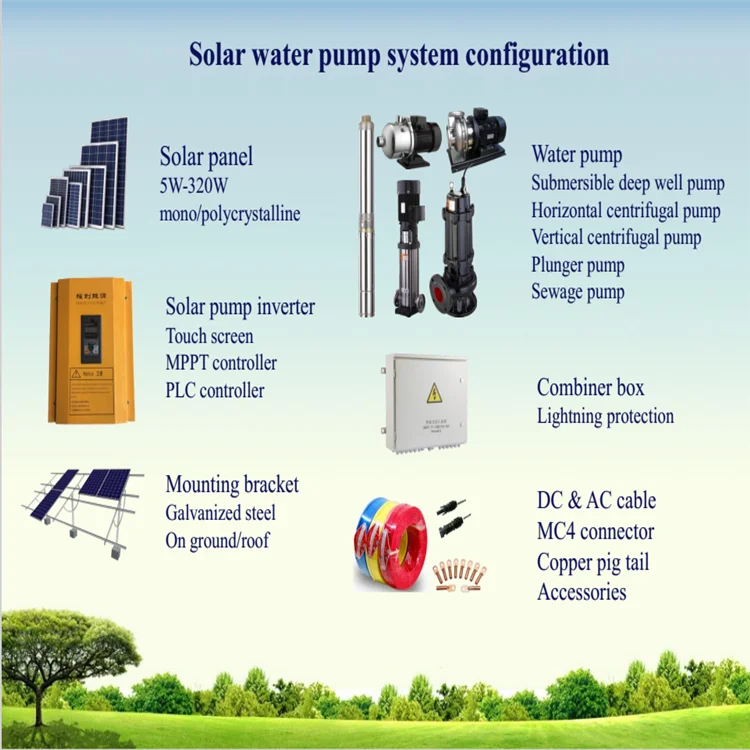

Daily life water supplying solar water pump configuration




Solar water system operation condition

Maximum system voltage DC 1000V (IEC)/1500V(IEC)/600V(UL)

Operating Temperature : -40℃~+85℃

Maximum series fuse : 15A

NOCT : 45±2

Application class : Class A

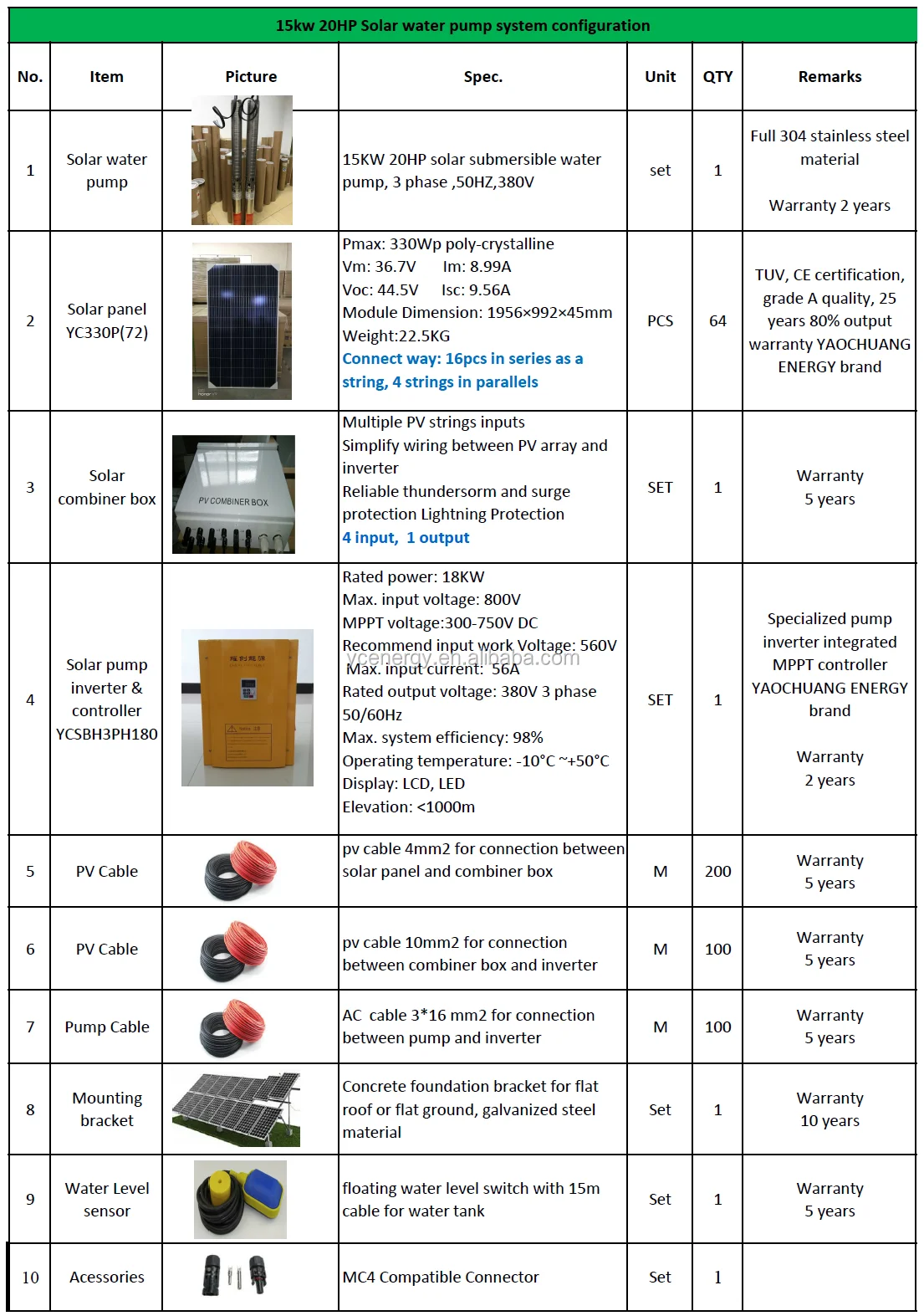

20HP

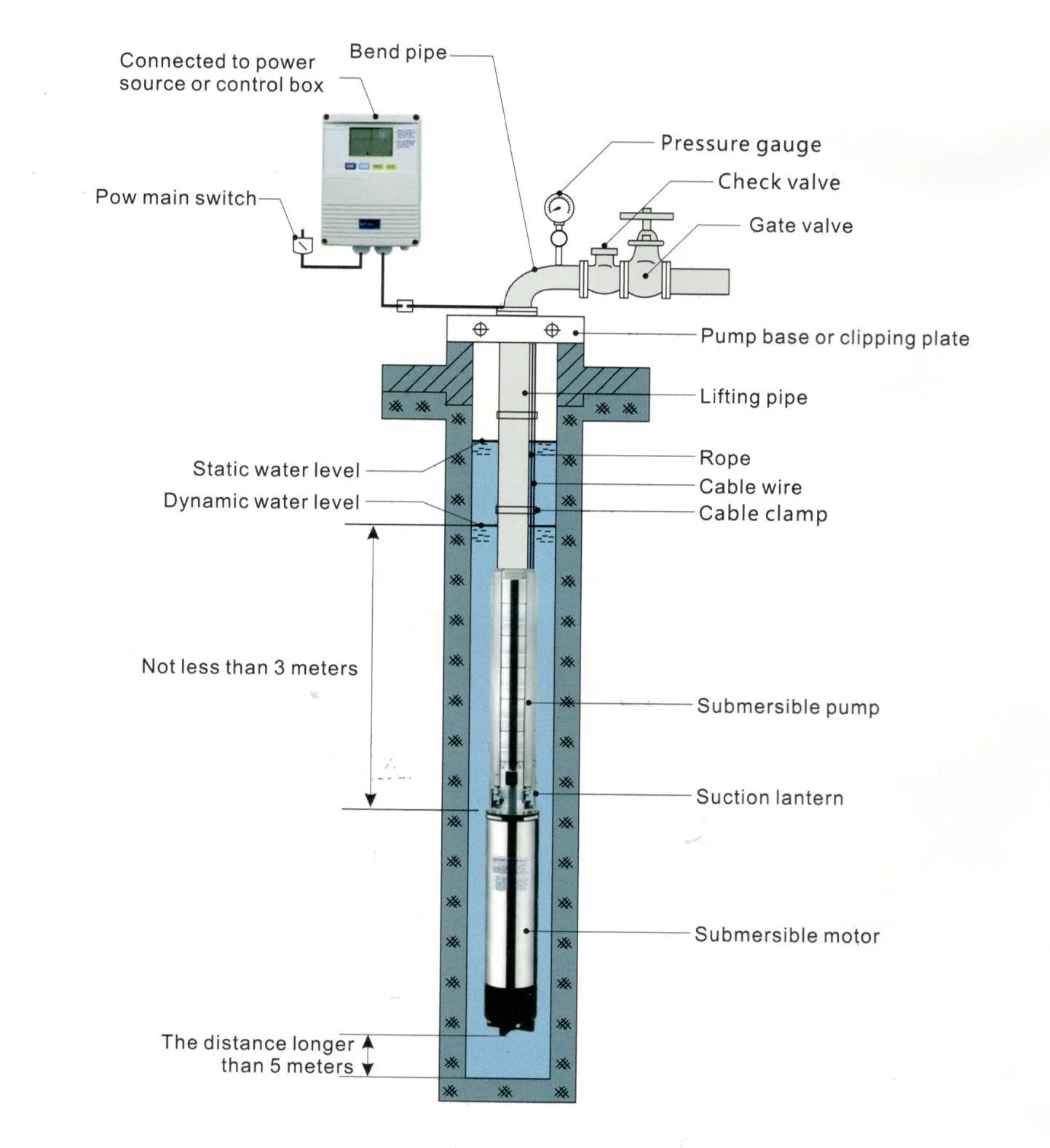

Installation diagram

_

Why Choose Us

Pre-sale service:

1. Free of making offers, craft and technical guidance timely.

2. We can also make customized products according to your needs.



After-sale service:

1. We provide long-term after-sale service.

2. Just call or email to consult any relevant questions since we have a special line of aftersale service which will be available all day,or you can communicate online with our foreign sales and solve the problems.

Company Information



Yaochuang Energy Co.,Ltd. is a professional solar power system integrator, especially solar water pump system, residence off grid solar power system, on grid solar power plant, solar street light, etc.


Our factory of solar panel & solar pump is located in Shanghai, the biggest sea port in China makes transport more convenient.


Sale office is located in Kunming, a very beautiful place be named as Flower city, it is near to Thailand, Myanmar, Vietnam, Laos, and we have installed many solar water pump system in those countries, and get high praise.On the other hand,those provinces------Yunnan ,Guizhou,Tibet, three provinces are rich of solar radiation, we set our office in Kunming to develop the solar power system in those three provinces.




FAQ



1. What is solar pumping system?

The solar pumping system is composed of solar pumping inverter, 3 phase AC pump, and solar array. The solar array is composed of many solar cells panels in series and in parallel, and absorbs irradiation from Sunlight, and converts into electrical energy (DC). Inverter controls and regulates pumping operation system and converts DC voltage from PV modules to AC to drive the AC pump, with the function of MPPT and it regulates the output frequency according to irradiation in actual time to achieve the maximum power. The AC pump driven by a 3 phase induction motor, draws water from well or rivers and lakes, then water reserved on tank/ponds for irrigation systems or other applications. Based on the requirements and installation conditions, different types of pumps will be required.

The solar pumping system is widely used for sea water desalination system, desert controlling, daily life water supplying, agricultural irrigation, forest irrigation, waterscape, and water treatment project. The YCsolar solar pumping system is dispensed with battery and that enhance the reliability of the system and reduce the bill invest.



2.Why cubic meters/day not cubic meters/hour for measuring the solar pumping system?

The YCsolar solar pumping dedicated inverter is adopted to achieve MPPT (Maximum Power Point Tracking) to regulate the speed of the pump, and the water output changes while the sunshine radiation changes, so, cubic meters/day is the only standard measurement of the water output of a solar pumping system.



3.How long will the photovoltaic system serve?

The solar PV module is with 25 years of using life, and the output power will get lower as the time past.
