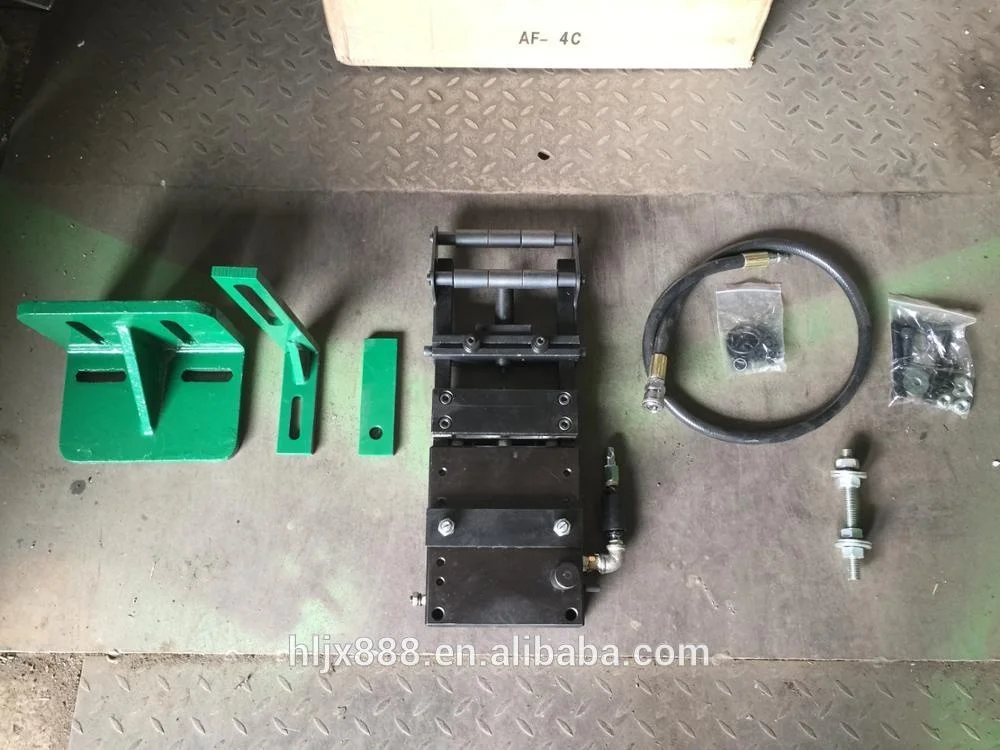

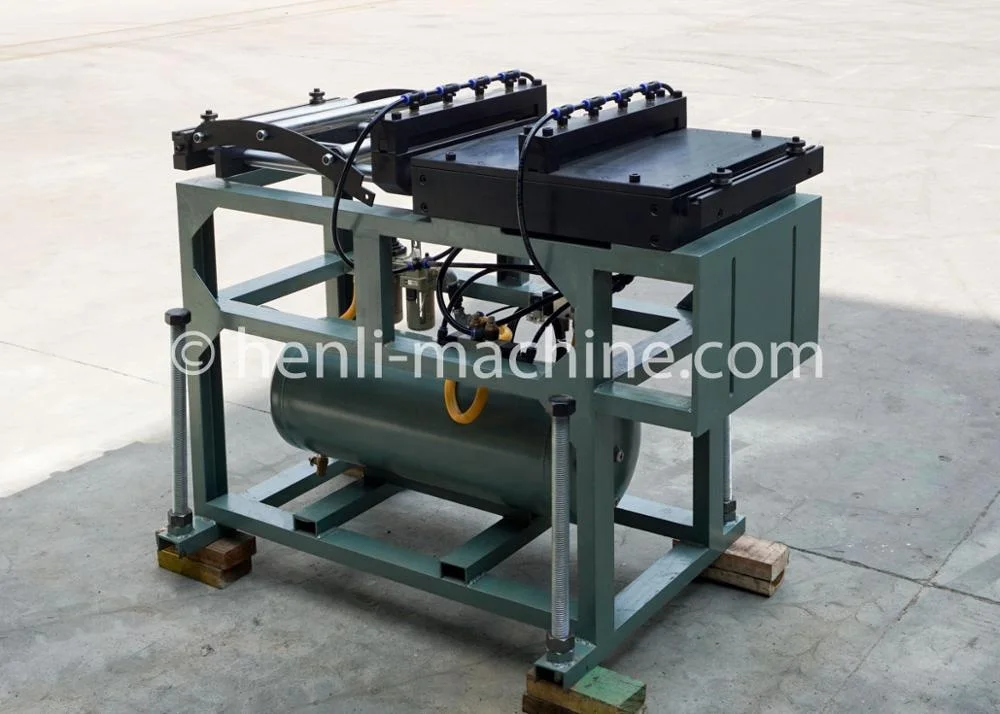

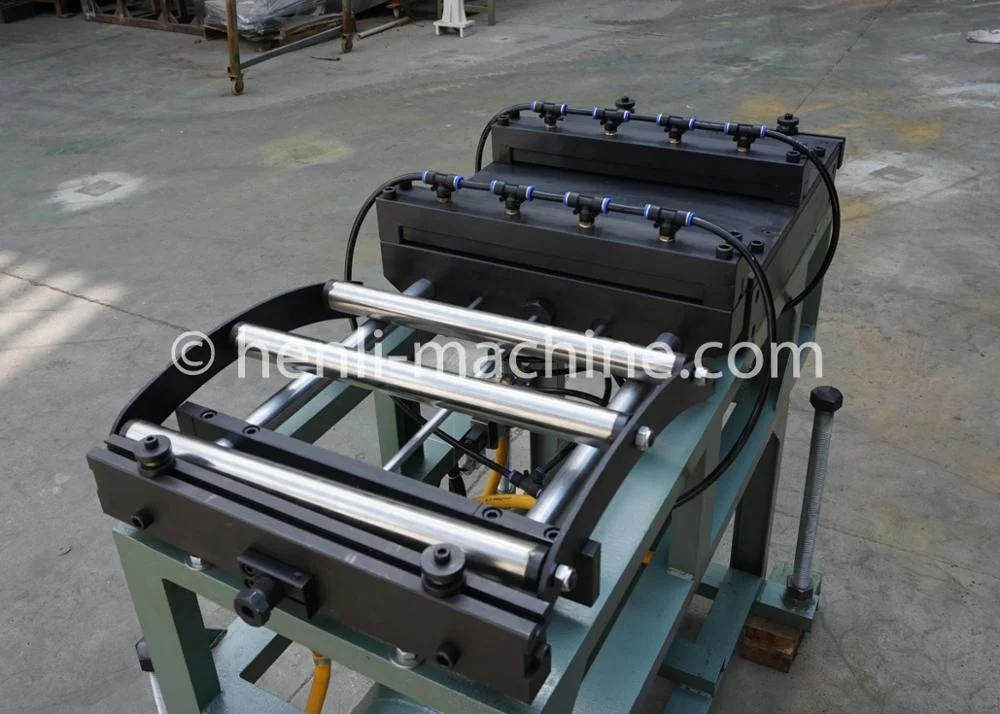

AF 7C Automatic Steel Sheet Pneumatic Air Feeder For Press Machine
- Category: Metal Straightening Machinery >>>
- Supplier: Dongguan Henli Machinery Equipment Co. Ltd.
Share on (60793488147):
Product Overview
Description
| Model | AF-1C | AF-2C | AF-3C | AF-4C | AF-5C | AF-6C | AF-7C | AF-8C | AF-9C | AF-10C | AF-11C |
| Max Feeding Width (mm) | 50 | 65 | 80 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 |
| Max Feeding Length (mm) | 50 | 80 | 80 | 130 | 150 | 200 | 250 | 300 | 350 | 400 | 450 |
| Max Feeding Thickness (mm) | 0.5 | 0.8 | 1.2 | 1.5 | 2 | 2 | 2.5 | 2.5 | 3 | ||
| Air Press (kg/cm) | 4.5 | ||||||||||
| Speed max.(stroke /min) | 200 | 160 | 150 | 93 | 80 | 60 | 48 | 40 | 35 | 30 | 25 |
| Fixed Stock cl.Force. Kg | 10 | 27 | 40 | 55 | 78 | 78 | 90 | 100 | 119 | ||
| Movable Stock cl. Force.Kg | 30 | 49 | 65.5 | 72.5 | 144.5 | 169 | 200 | 217 | 220 | 245 | |
| Pulling cl. Force kg | 14 | 16.5 | 19.5 | 25.5 | 41 | 67 | 74 | 77 | 85 | ||
| Air Consup. L/min | 26.5 | 38.5 | 47 | 58.5 | 109.5 | 108.5 | 152 | 162.5 | 174.2 | 182.5 | 185 |
| Weight (Include Tool) kg | 8.8 | 9.6 | 12.8 | 19.6 | 38.4 | 52.4 | 80 | 95 | 156 | 178 | 200 |
