FIRE FIGHTING TRUCK MODELS
XDR Fire truck is made up of two parts,chassis and superstructure.The superstructure is consisted of tank,pump room,storage compartment,power take off and transmission system,pipeline system and electrical system.This fire fighting truck can be widely used in department such as fire brigade of public security,petrochemical industry,factory,forest and seaport.Firefighter can fight with fire quickly,and save life and property in time.
XDR Fire Truck can be generaly divided into four categories, water type,foam type,dry powder type and rescue type.Each type can be used in different fire situation. The Chassis we normally equipped are Dongfeng,Sinotruk.Other brand is also available.
XDR COMPANY is professional manufacturer for fire trucks, so the disadvantages choosing us are as follows:
1. Price is always competitive.
2. Delivery time is always guaranteed.
3.Service is always the best.
SPECIFICATION
| Main information | ||||||

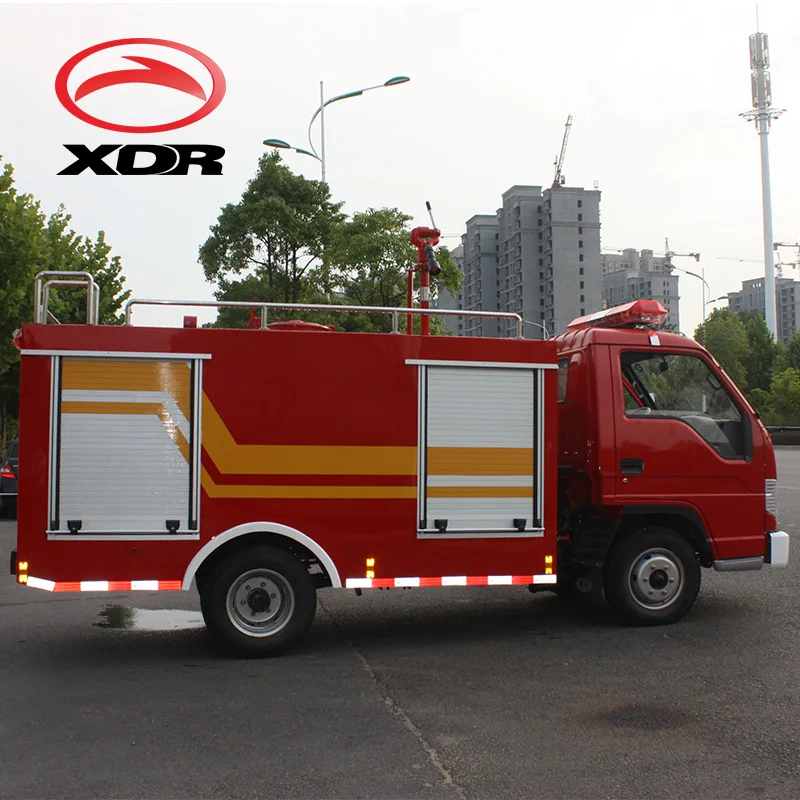

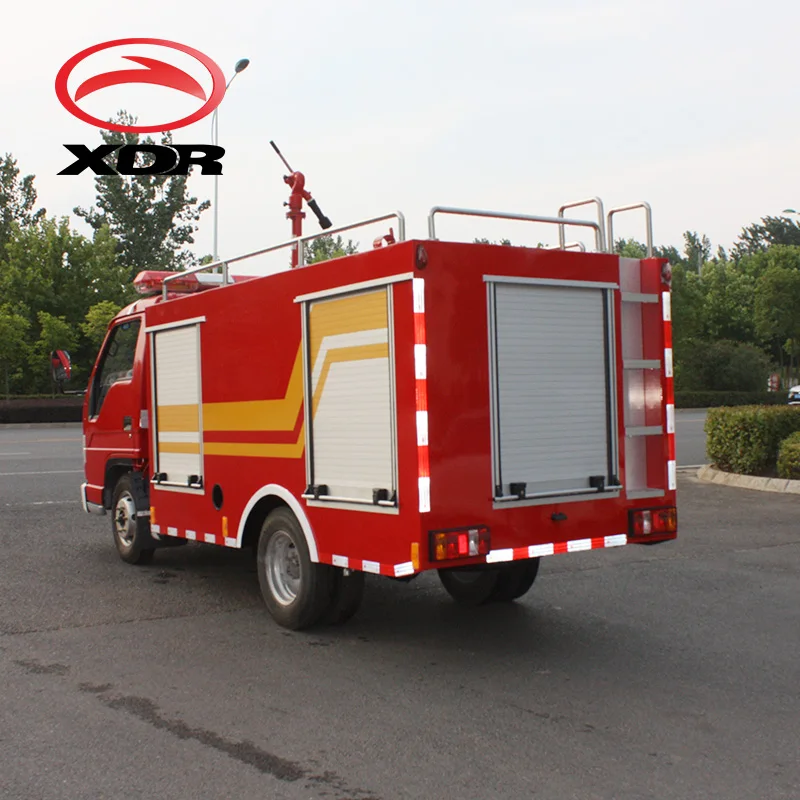

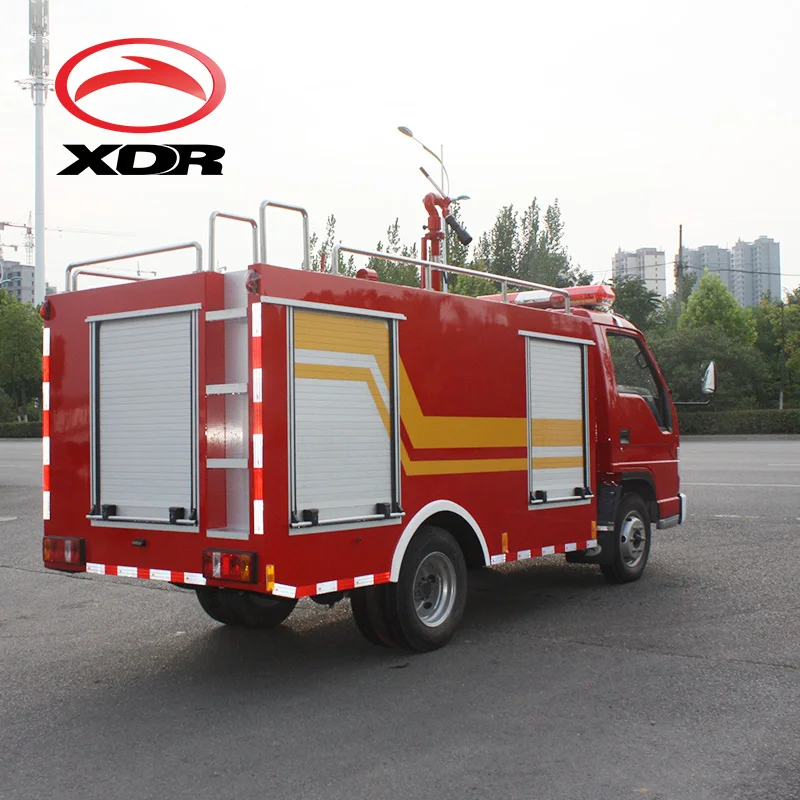

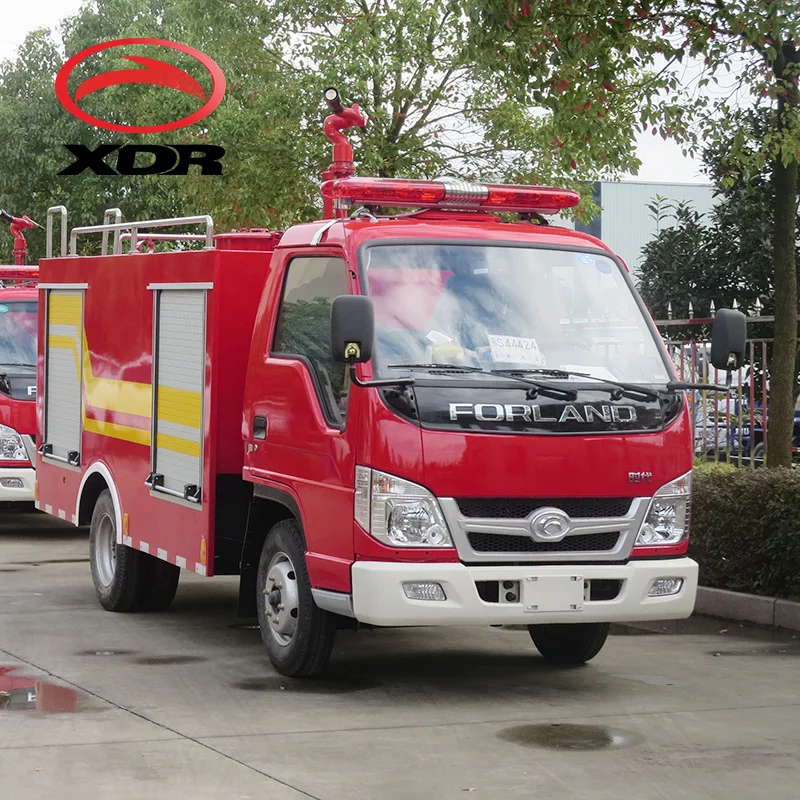

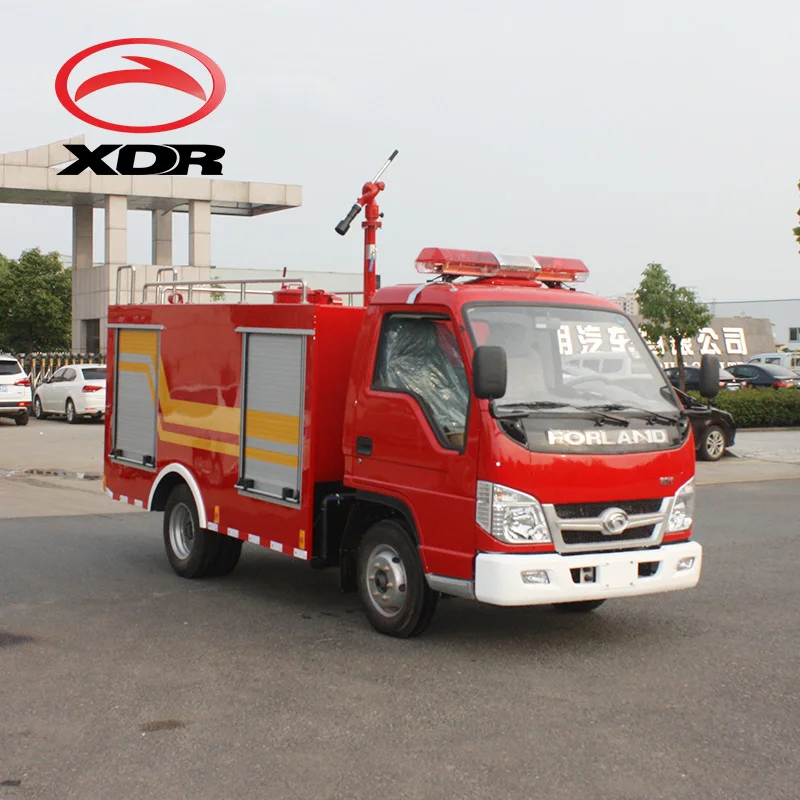

| Product Name: | Foton Water Tank Fire Truck (LHD) | |||||
| Itme No. | YZR2600XFCS | |||||
| Chassis No. | BJ2810-20 | |||||
| Overall Size | mm | 5100x1680x2550 | ||||
| Total Weight: | kg | 4000 | ||||
| Curb weight: | kg | 2300 | ||||
| Rated load capacity: | kg | 1500 | ||||
| Cab-by the number : | people | 2 | ||||
| Approach/departure angle | ° | 25/17 | ||||
| Front/rear suspension | mm | 1100/1400 | ||||
| Number of axles | pcs | 2 | ||||
| Wheelbase | mm | 2600 | ||||
| Front / Rear tread | mm | 1450/1440 | ||||
| Maximum speed | km/h | 80 | ||||
| Function parameter | ||||||
| Water Tank Capacity | L | 1500 | ||||
| Material | high quality carbon steel plate,anti-rust treatment inside | |||||
| Rated flow of the Cannon | L/s | 20 | ||||
| Shot range | m | 20~30 | ||||
| Engine information | ||||||
| Model | N485QA | |||||
| Brand | Quanchai | |||||
| power/Displacement | kw | 50 | ||||
| Emission Level | Euro 2 | |||||
complete steel frame welding structure cab, the front of crew cab is connected with driving cab; inside and outside tanker model, qualitative carbon steel material (Q235A),thickness 4mm, preservative treatment, durable in use; aluminium alloy roller shutter door,easily operate with little noise,besides the origional equipments, there are PTO indicator light, 100w alertor,LED alarm lamp, identification lamp, clearance lamp and rear lamp.
