Advanced Designed cement mini concrete pump and mixer price/concrete mixer and concrete pump for construction works
- Category: >>>
- Supplier: Taian Minle Machine Manufacture Co. Ltd.
Share on (60793577123):
Product Overview
Description
Advanced Designed cement mini concrete pump and mixer price/concrete mixer and concrete pump for construction works
Mobile/WhatsApp: 86-15066732025
Item-Concrete Mixer With Pump | Unit | HBTS40 | |
Concrete delivery capacity | m3/h | 40 | |
Maximum outlet pressure | MPa | 13 | |
Maximum horizontal delivery distance | m | 500 | |
Maximum vertical delivery distance | m | 150 | |
Maximum aggregate size | mm | ≤40 | |
The third party test | Acceptable | ||
Model/Color | Customized | ||
Engine type | Customized | ||
Hydraulic drawing | Provide | ||
Feeding height | mm | 1400 | |
The diameter of pipeline | mm | Φ125 | |
Remote control | yes | ||
Oil cylinder bore × stroke | mm | Φ110×1100 | |
Material cylinder bore × stroke | mm | Φ180×1100 | |
hydraulic system pressure | MPa | 28 | |
Hydraulic oil tank | L | 300 | |
Main engine power | kw | 80 | |
Dimensions (L × W × H) | mm | 5500*2000*2300mm(can be adjustable) | |
Weight | kg | 5100 | |
cement mini concrete mixer and pump it was the newest products designed by our company, it is combined by the traditional concrete pump and the mixer together, it was the most suitable for usein four to six floor buildings,especially in the group buildings, bridges, and the spread of small construction sits where need theconcrete mixer at the scene.
concrete pump and mixer, two machines into one, it was simple to operate, easily move, flexible, and stable performance.
concrete pump and mixer, two machines into one, it was simple to operate, easily move, flexible, and stable performance.
The pump construction operation system used automatically, material mixing drum, high pumping pressure ; hydraulic system, pump parts greatly enhance the the stirring wet Concrete pump overall reliability ensure pump strive foolproof work in the harsh conditions.
Product Details
1.Power system Concrete Mixer and Pump
Hydraulic oil pump: Germany Rexroth or Japan Kawasaki are adjusted.
Diesel power: Germany Deutz, Weichai, Cummins;
2.Electronic control system Concrete Mixer and Pump
Japan Mitsubishi Programmable Logic Controller (PLC) electronic control system. Main electric elements are imported original Schneider, Siemens, OMRON, LG etc.
3.Hydraulic system Concrete Mixer and Pump
The unique open hydraulic system and hydraulic cushion technology contribute to the smaller exchange impact and less heat of the system.
4.Pumping system Concrete Mixer and Pump
Pumping displacement variable adjustment: Change the pumping displacement according to the construction to meet the requirement of the condition.
5.Lubrication System Concrete Mixer and Pump
The patented central automatic lubrication system comes with a piston grease pump, features high pressure and reliability, which can realize automatic lubrication of piston.
6.Cooling System Concrete Mixer and Pump
Compulsory air cooled heat exchanger keeps the temperature of the hydraulic oil below 60 degree,that ensures the whole hydraulic system works at normal status.
Hydraulic oil pump: Germany Rexroth or Japan Kawasaki are adjusted.
Diesel power: Germany Deutz, Weichai, Cummins;
2.Electronic control system Concrete Mixer and Pump
Japan Mitsubishi Programmable Logic Controller (PLC) electronic control system. Main electric elements are imported original Schneider, Siemens, OMRON, LG etc.
3.Hydraulic system Concrete Mixer and Pump
The unique open hydraulic system and hydraulic cushion technology contribute to the smaller exchange impact and less heat of the system.
4.Pumping system Concrete Mixer and Pump
Pumping displacement variable adjustment: Change the pumping displacement according to the construction to meet the requirement of the condition.
5.Lubrication System Concrete Mixer and Pump
The patented central automatic lubrication system comes with a piston grease pump, features high pressure and reliability, which can realize automatic lubrication of piston.
6.Cooling System Concrete Mixer and Pump
Compulsory air cooled heat exchanger keeps the temperature of the hydraulic oil below 60 degree,that ensures the whole hydraulic system works at normal status.
About Us

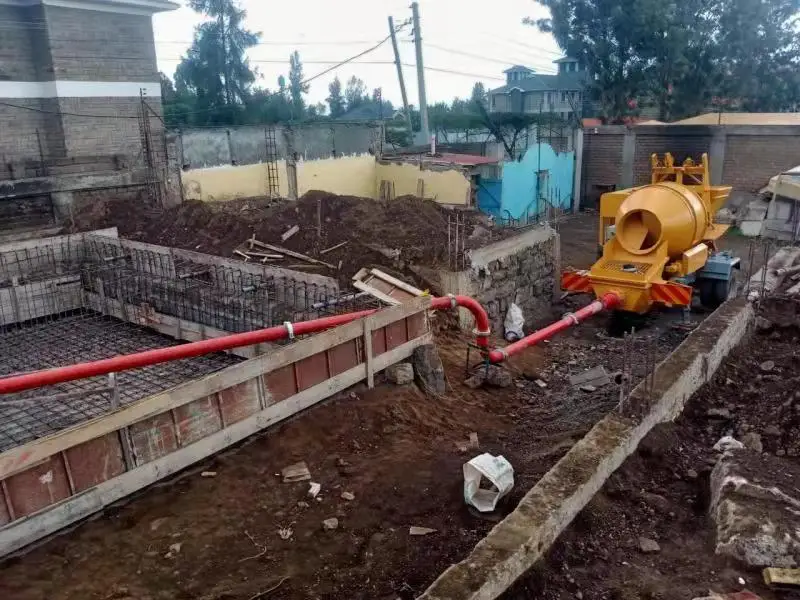

Customers sent good feedback after they used our concrete mixer with pump:
