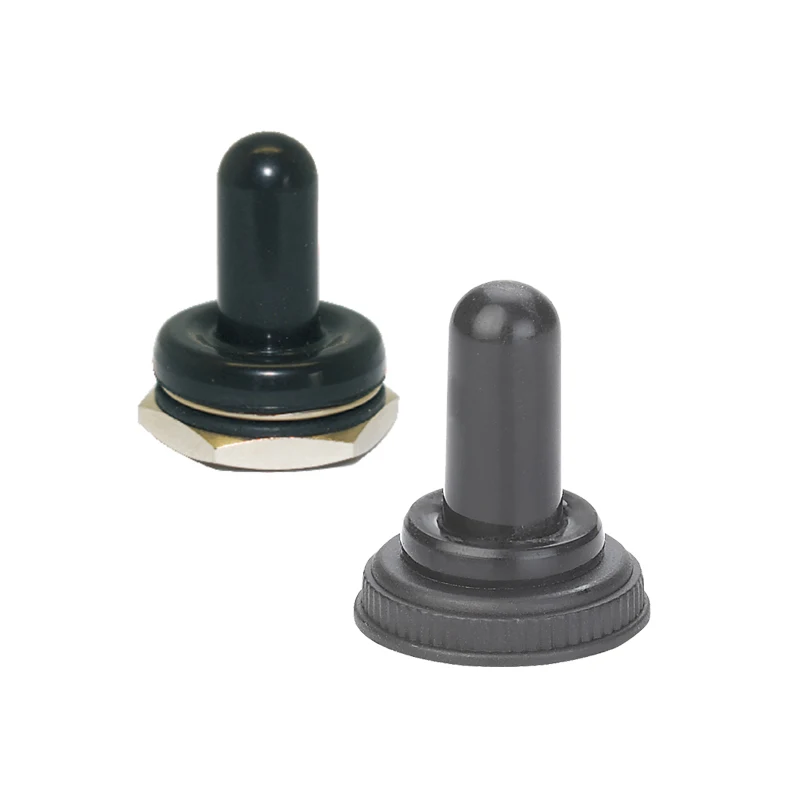

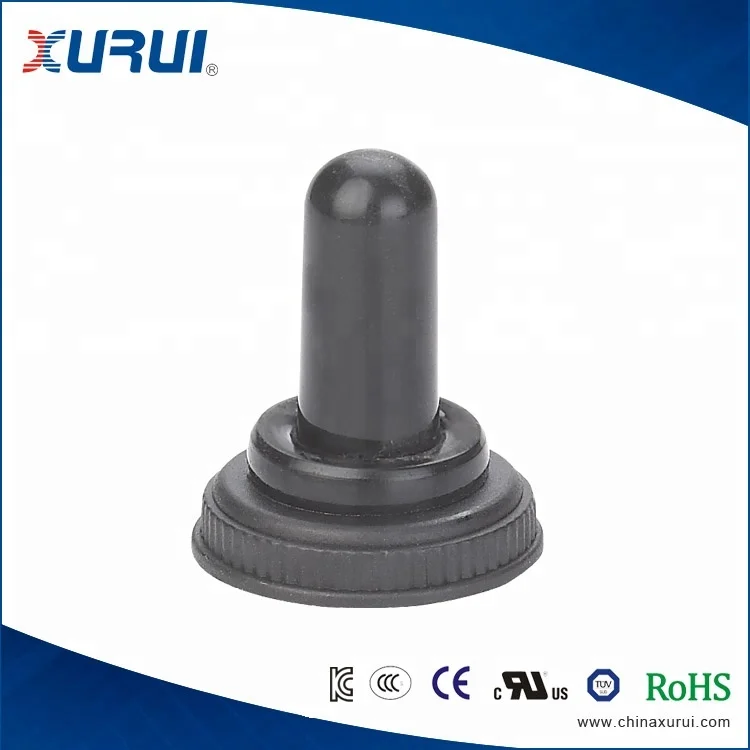

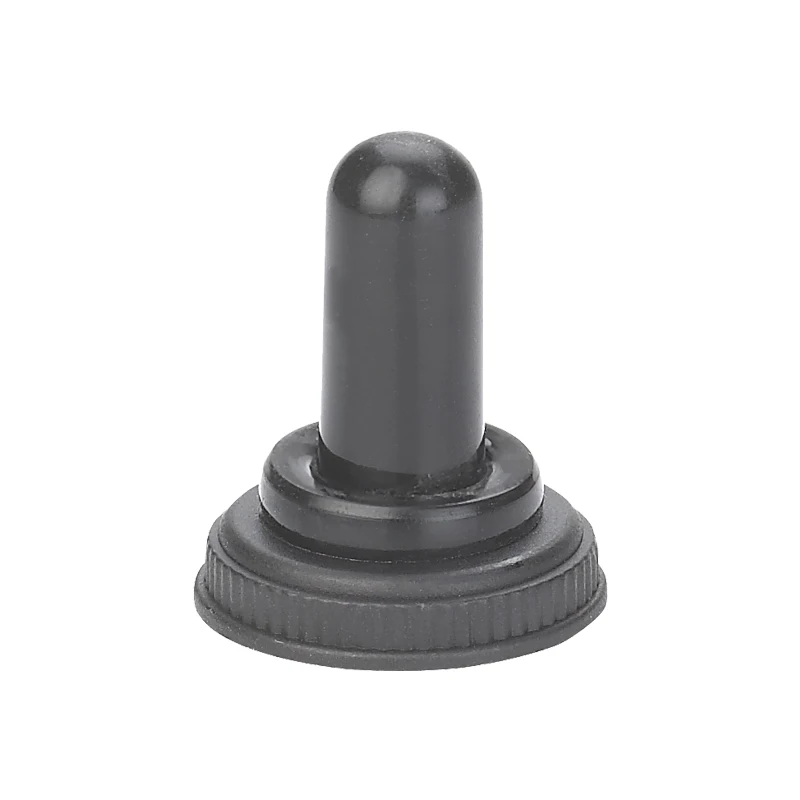

Waterproof Rubber Toggle Switch Cover
Waterproof Rubber Toggle Switch Cover
Waterproof Rubber Toggle Switch Cover
Waterproof Rubber Toggle Switch Cover
Waterproof Rubber Toggle Switch Cover

Waterproof Rubber Toggle Switch Cover

Share on (60793689138):


Price:

Quantity:


Product Overview

Description



















Property & Application



  • Adopt thermoplastic crust, compact construction, and simple installation;

  • May install the protecting cap, can against oil and dustproof;

  • Hand reset and automatic reset for flexible choice;

  • Widely used in electrical equipment, automatic machine, communication equipment and instrument, electro motion tool etc.

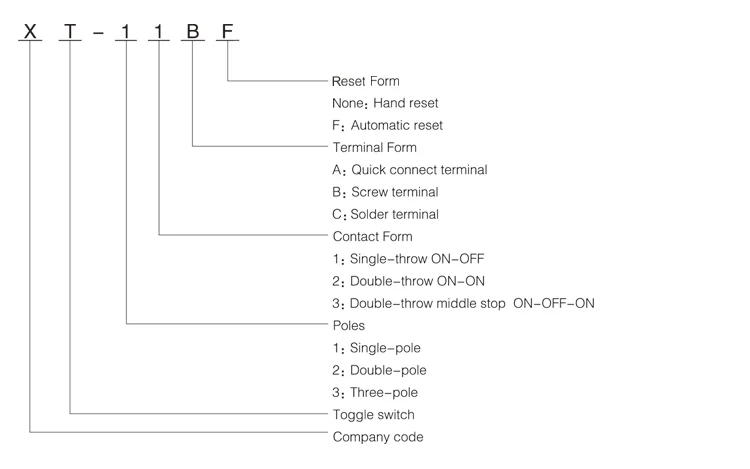

Model & Meanings

Model & Meanings.jpg


Mounting Holes & Product Structure




Mounting Holes.jpg



Specification






































































Item



Data



Rating load



15A/250VAC,25A/250VAC



Operating frequency



30times/min



Insulation resistance



100MΩAbove DC500V



Contact resistance



25mΩ initial value



Withstand voltage



Non-connection wire



1000VAC



Every terminal



1500VAC



Vibration



Misoperation



10-55Hz Amplitude 1.5mm



Impact



Durable



1000m/s²



Misoperation



300m/s²



Life



Electrical



100,000 above



Mechanical



500,000 above



Protection degree



IP40



Operating temperature



-25~+80℃



Operating humidity



<85%

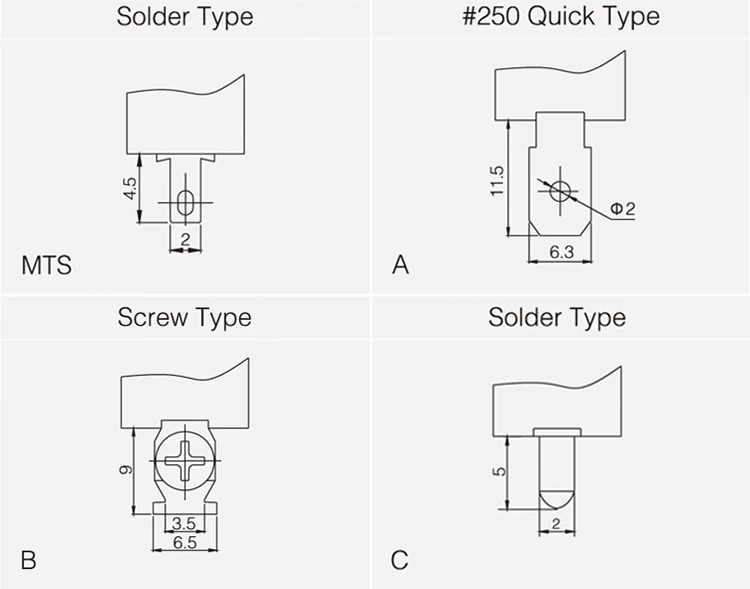

Terminal Forms




New Terminal Forms.jpg

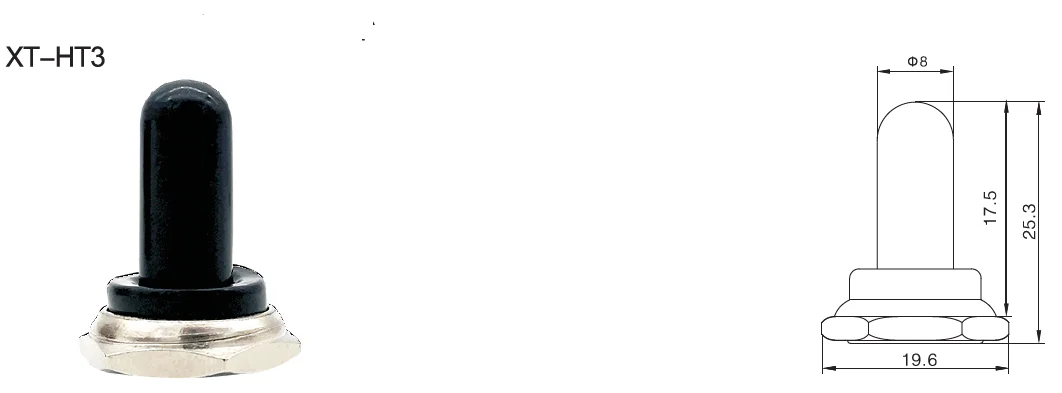

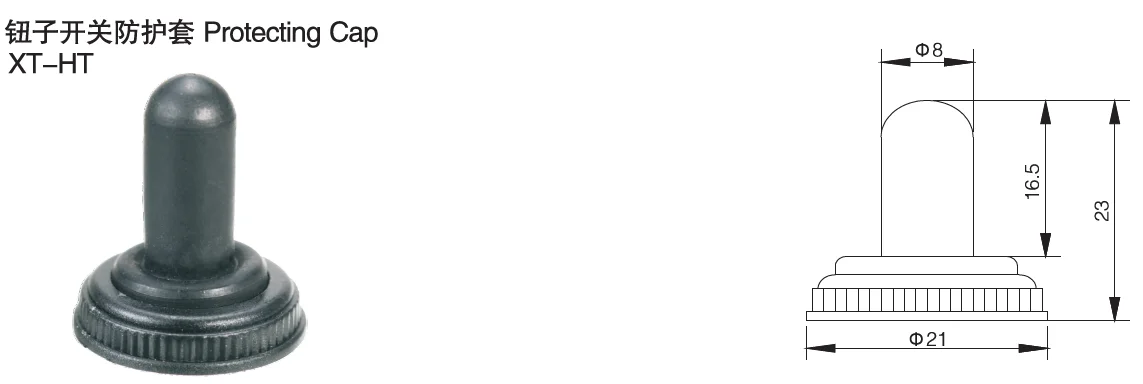

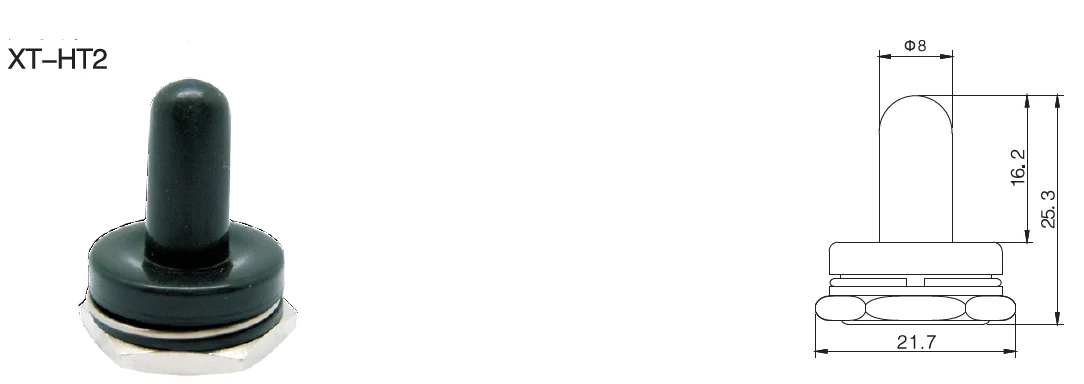

Dimensions
