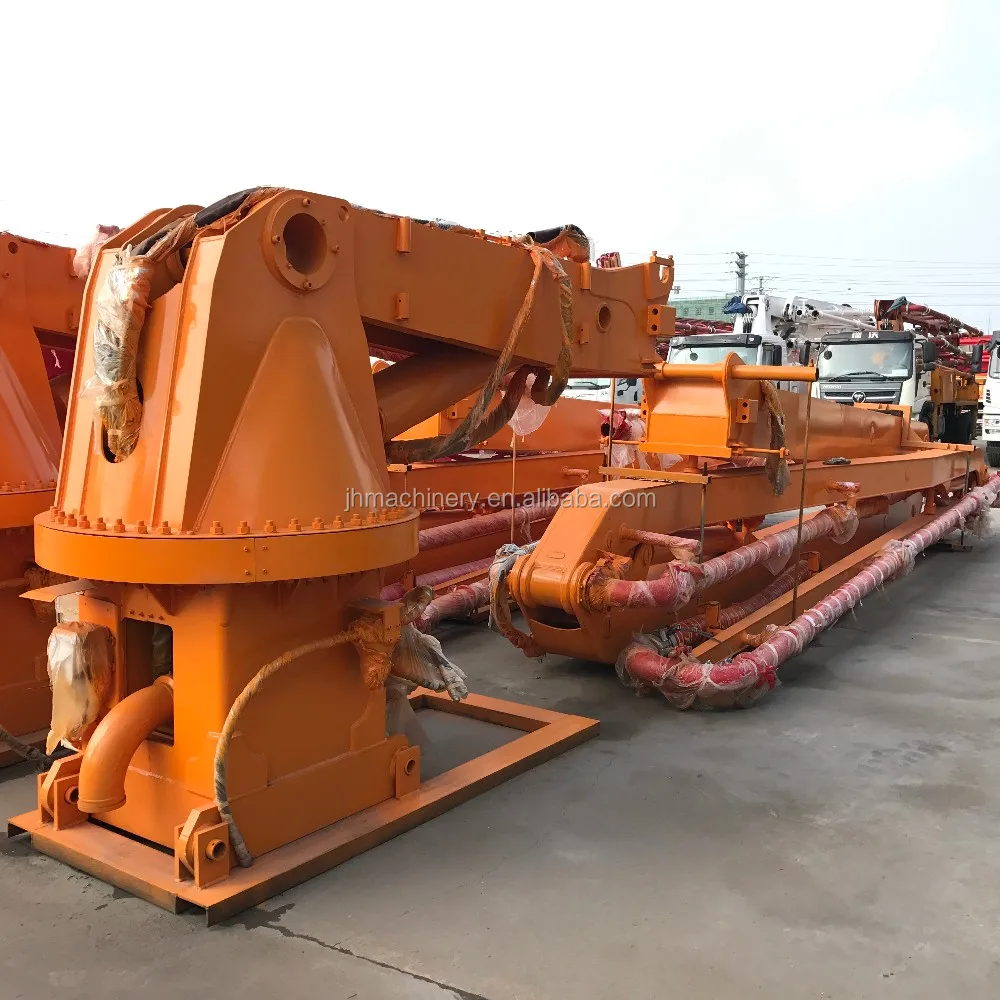

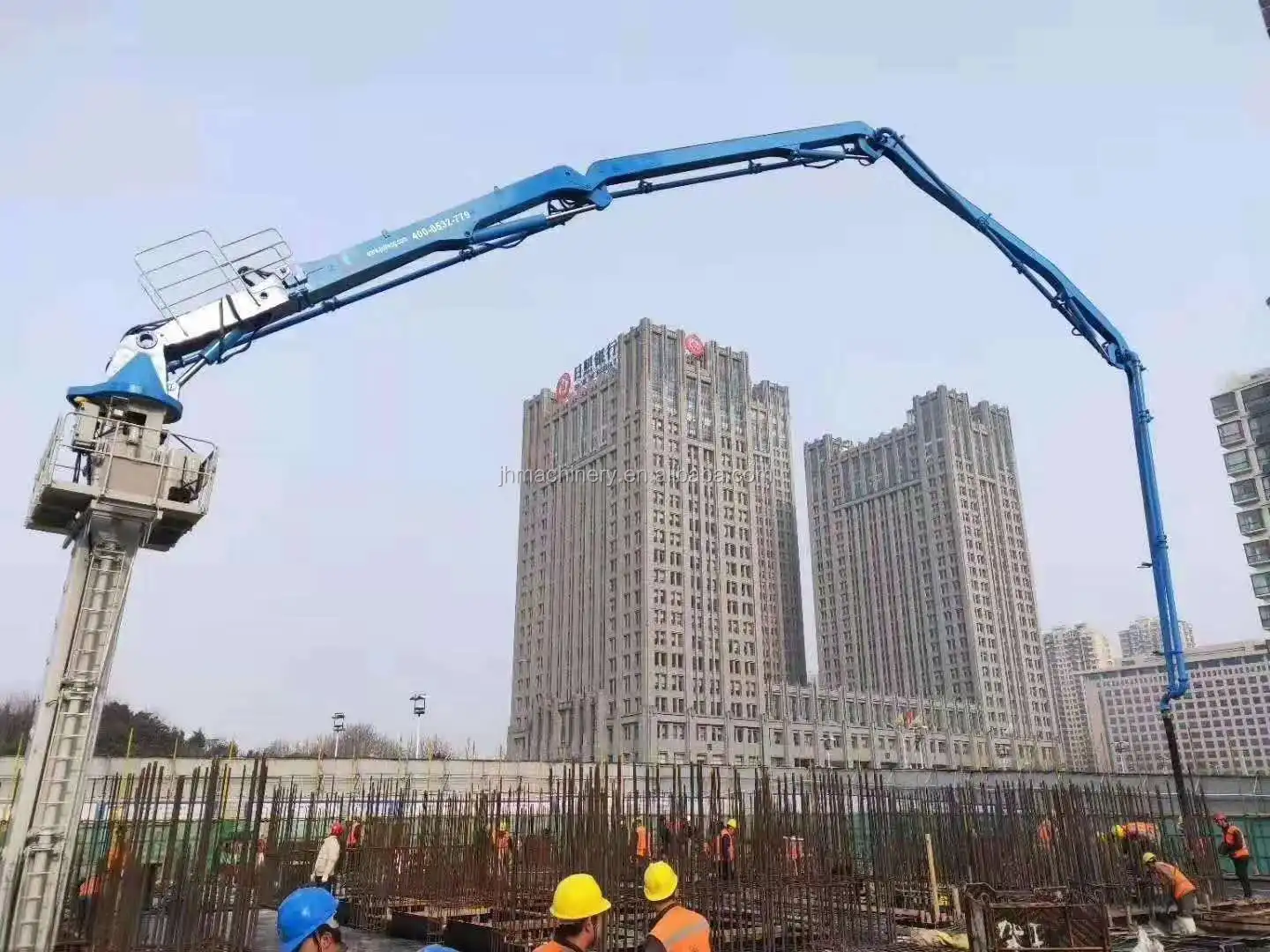

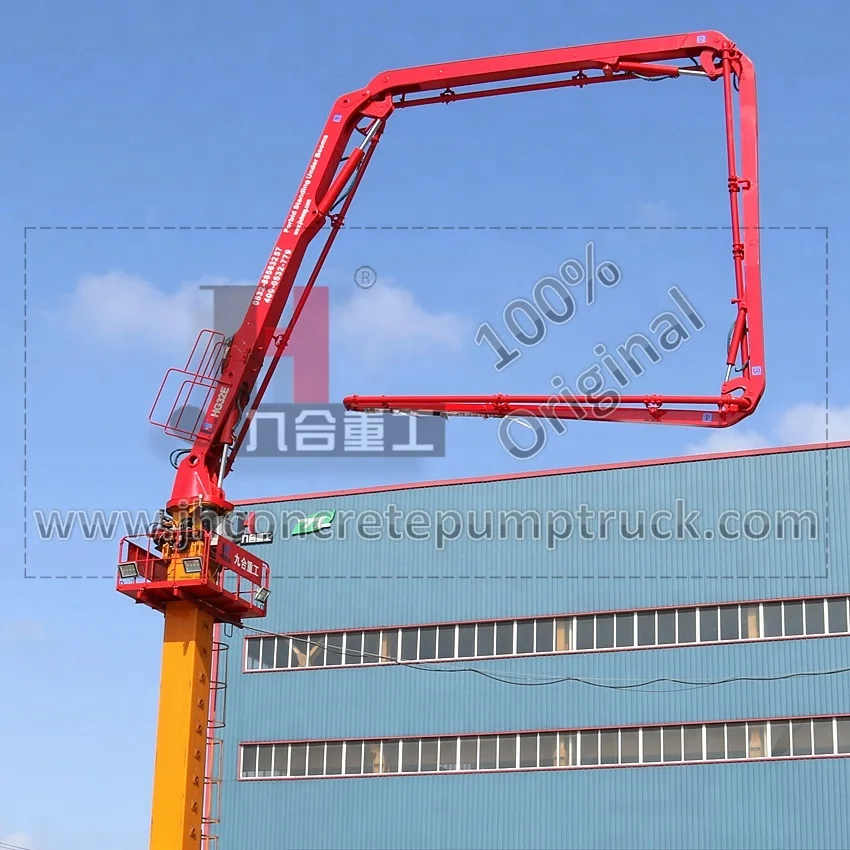

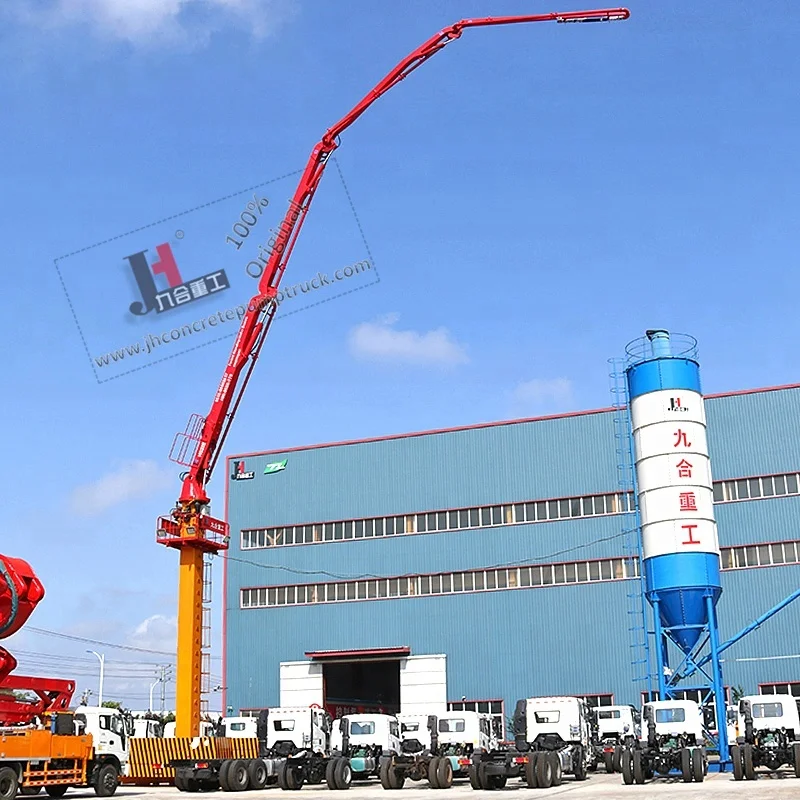

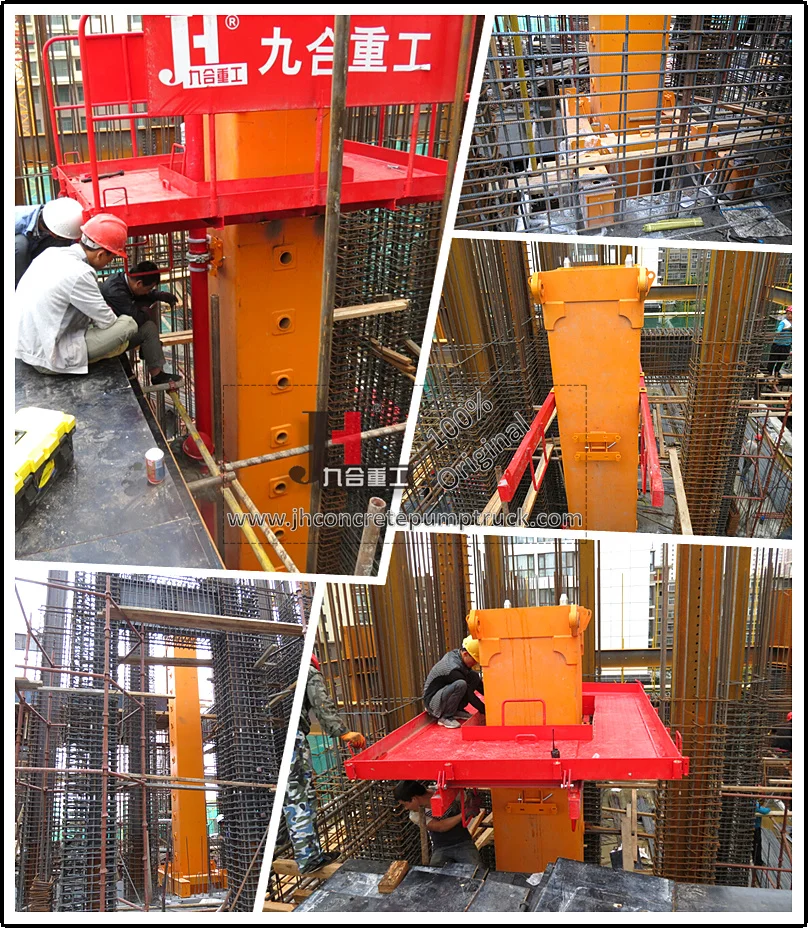

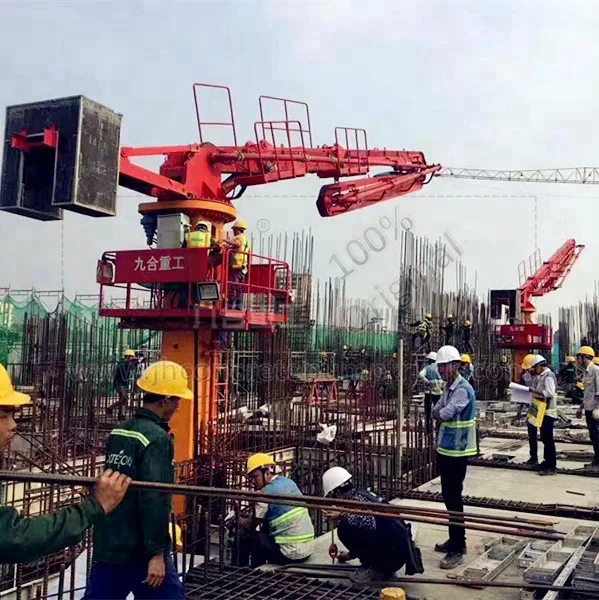

The HG32m and 33m climbing concrete placing boom can be anchored to the floor with initially prepared holes when working, and it can be lifted itself by its equipped climbing system, one lifting can meet the need of two floors concrete placement.If the floor area is large,several tower bodies can be installed and move the boom assembly onto relevant tower body to meet the needs of certain area concrete placement and save cost. t.Compact structure,easy operation,reliable safety,economical and practical,it can be installed on either floor or lift shaft.
Main technical parameters
Max.Placing radius
28-36m
Rotation scope
0~360
Height
22.7m
Jacking height
0.52m
Hydraulic system pressure
30Mpa
Concrete delivery pipe inner diameter
125mm
Bare machine weight
21940kg
Certifications

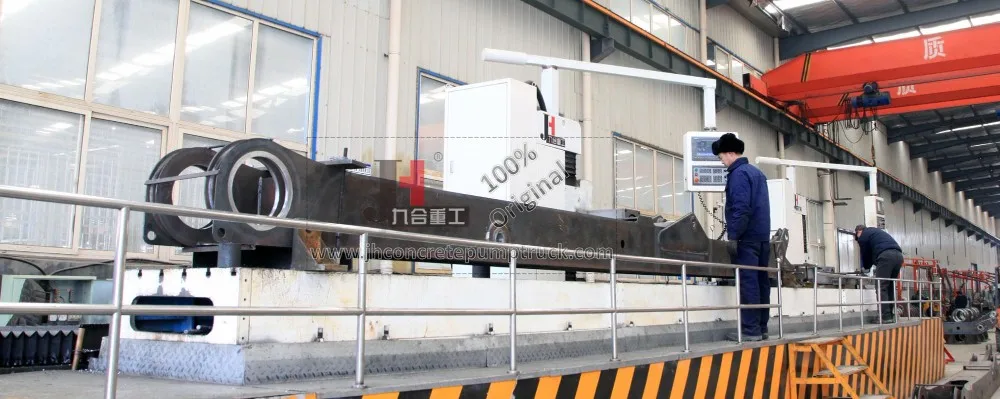

Our Company

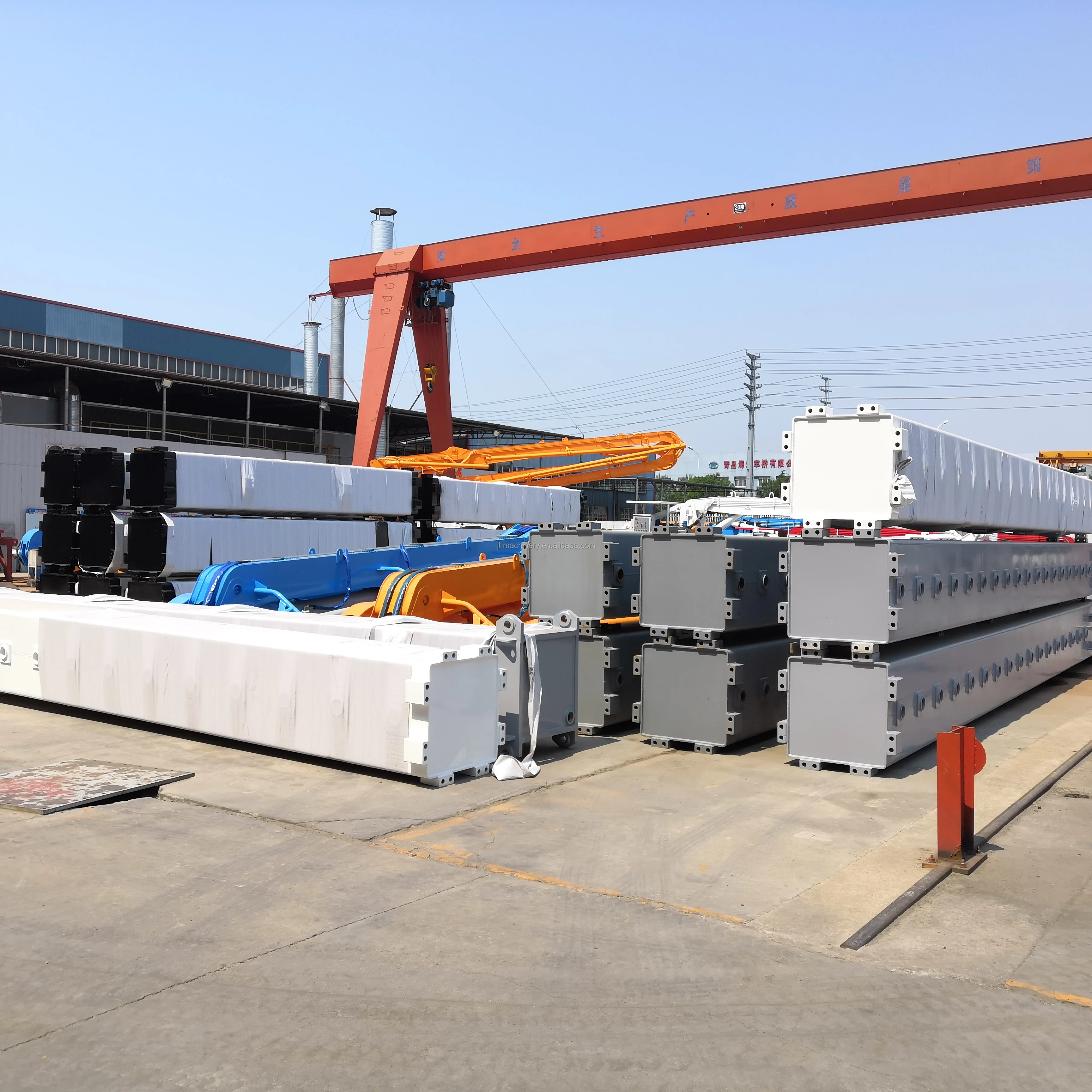

Packing & Delivery
