1. The specification of the rolling production (mm): 80-300×L (see appendix 1)
2. The speed of the roll-in: 12-15M/min
3. The number of the roller: 17
4. The material of the roller: use the excellent hammered steel Cr15 to be quenched as a whole, then to process by numerical control.
5. The material of the principal axis: use the excellent steel No.45 to process.
6. The power of the principal electric motor: 22kw
7. Hydrodynamic station cut: 7.5kW
8. Drive-by-wire system: The whole machine uses the PLC industrial computer to control by frequency conversion.
9. The size of the shape equipment: 10.3×2.3×1.2 (see the appendix 2)
10. The gross weight of the equipment: 15T
11. Accessories: one set of the stacking shelf, one set of leveling mechanism, one set of punching and cutting mechanism, one set of hydrodynamic station, one set of computer control system (Panasonic programmable PLC, touchable display screen, a series of Panasonic transducers, and OMRON encoder) a set of material shelf.

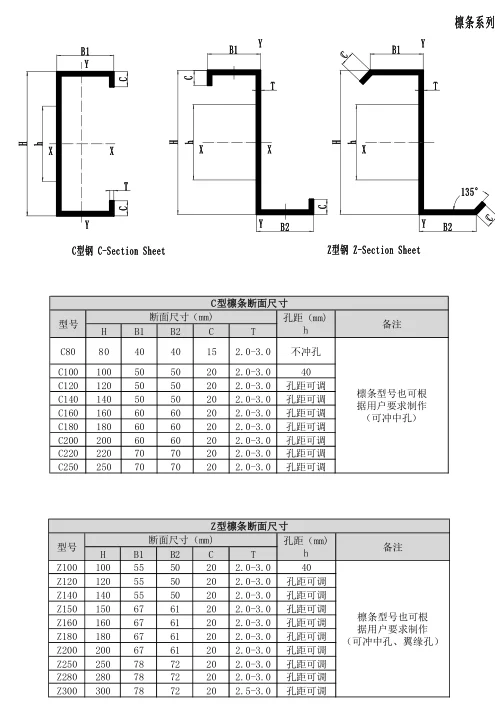

Profile drawing

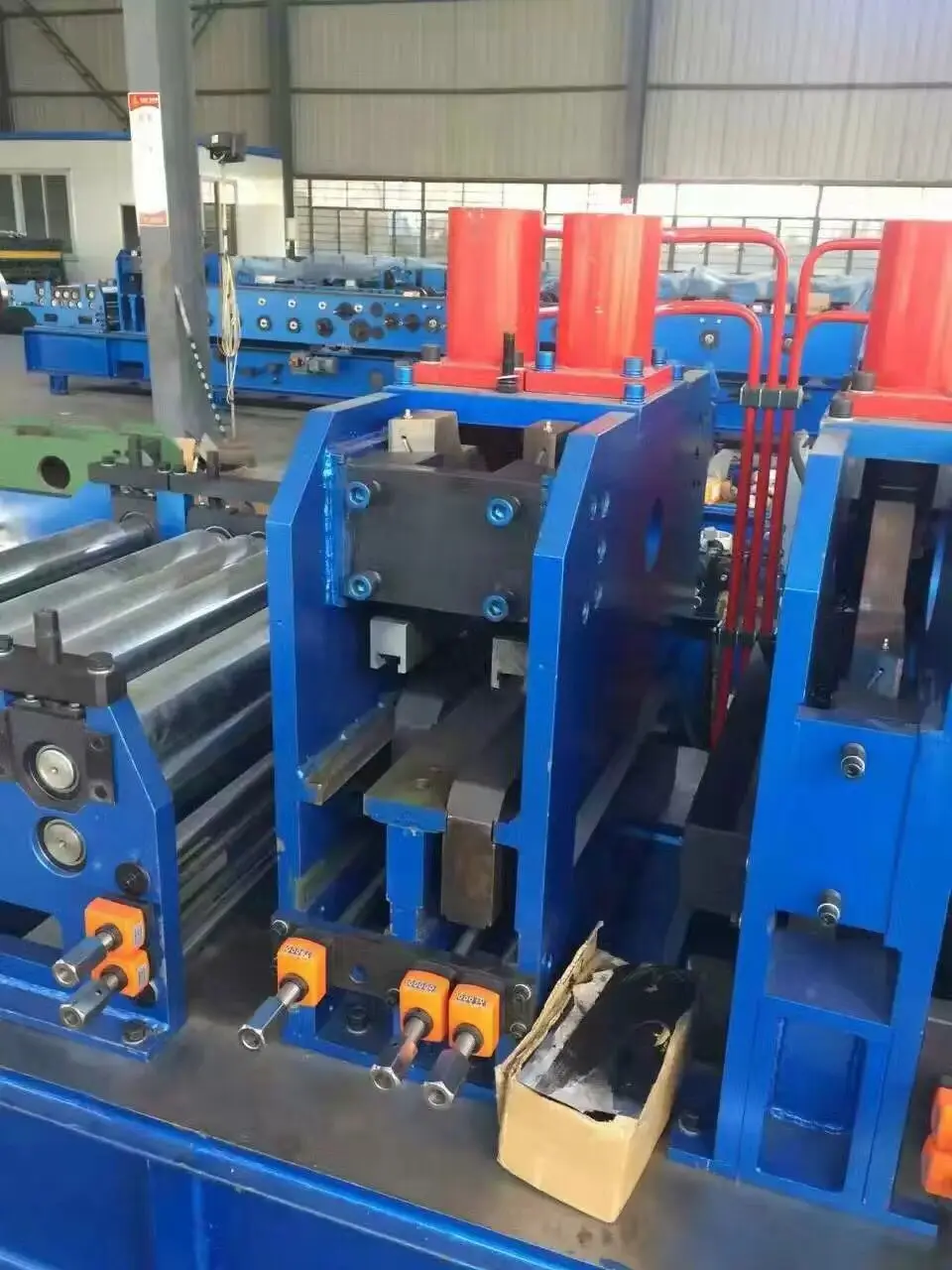

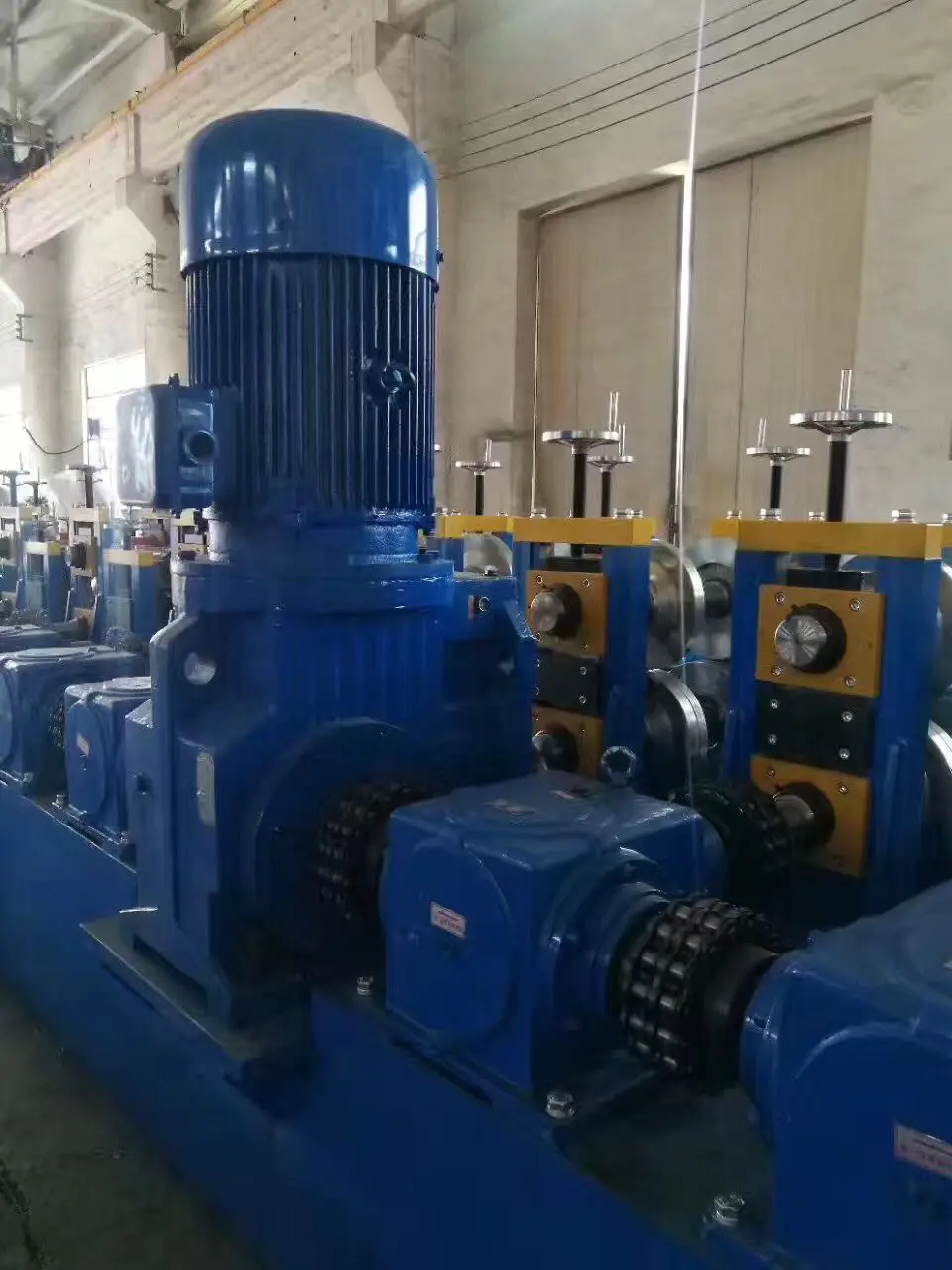

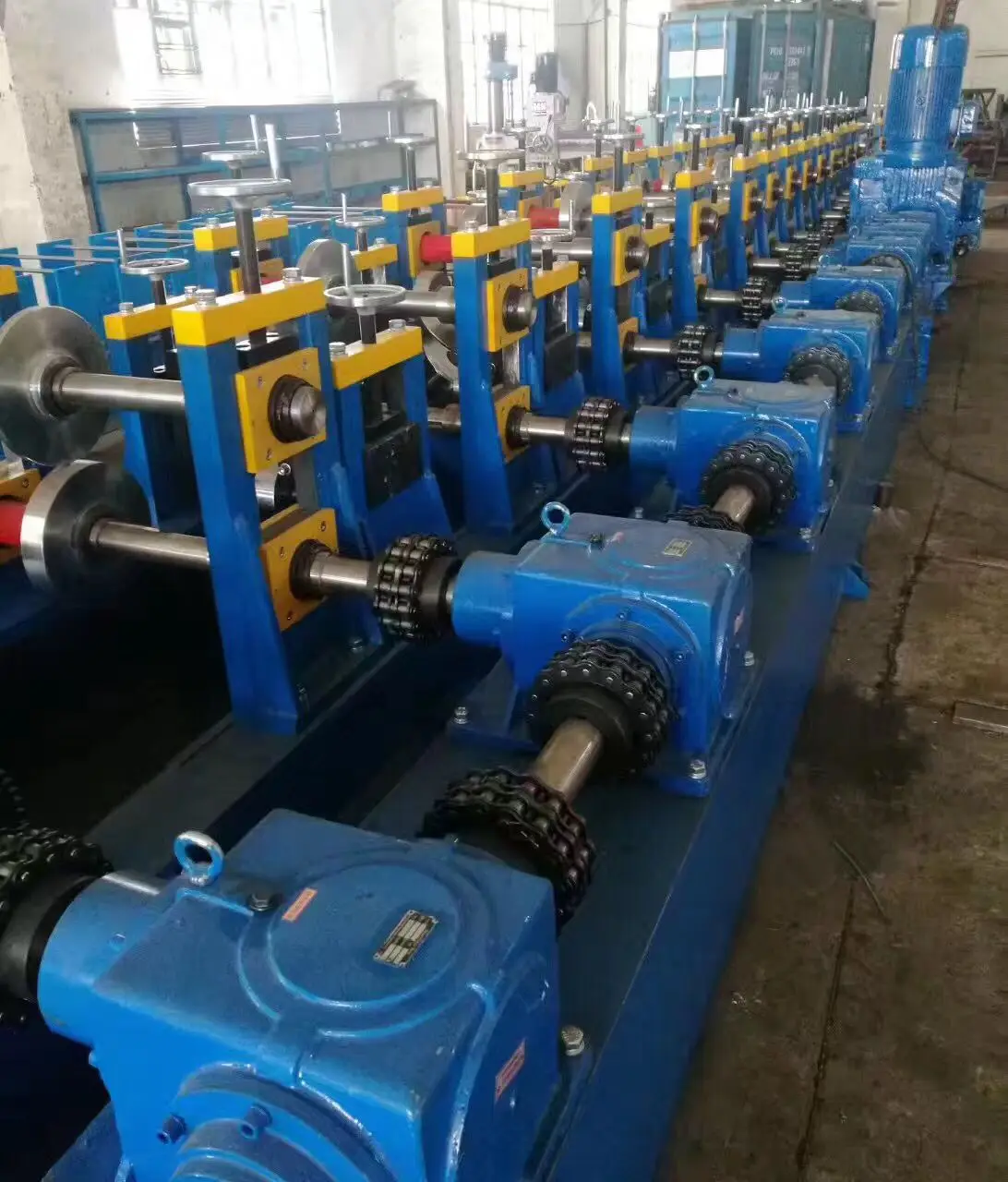

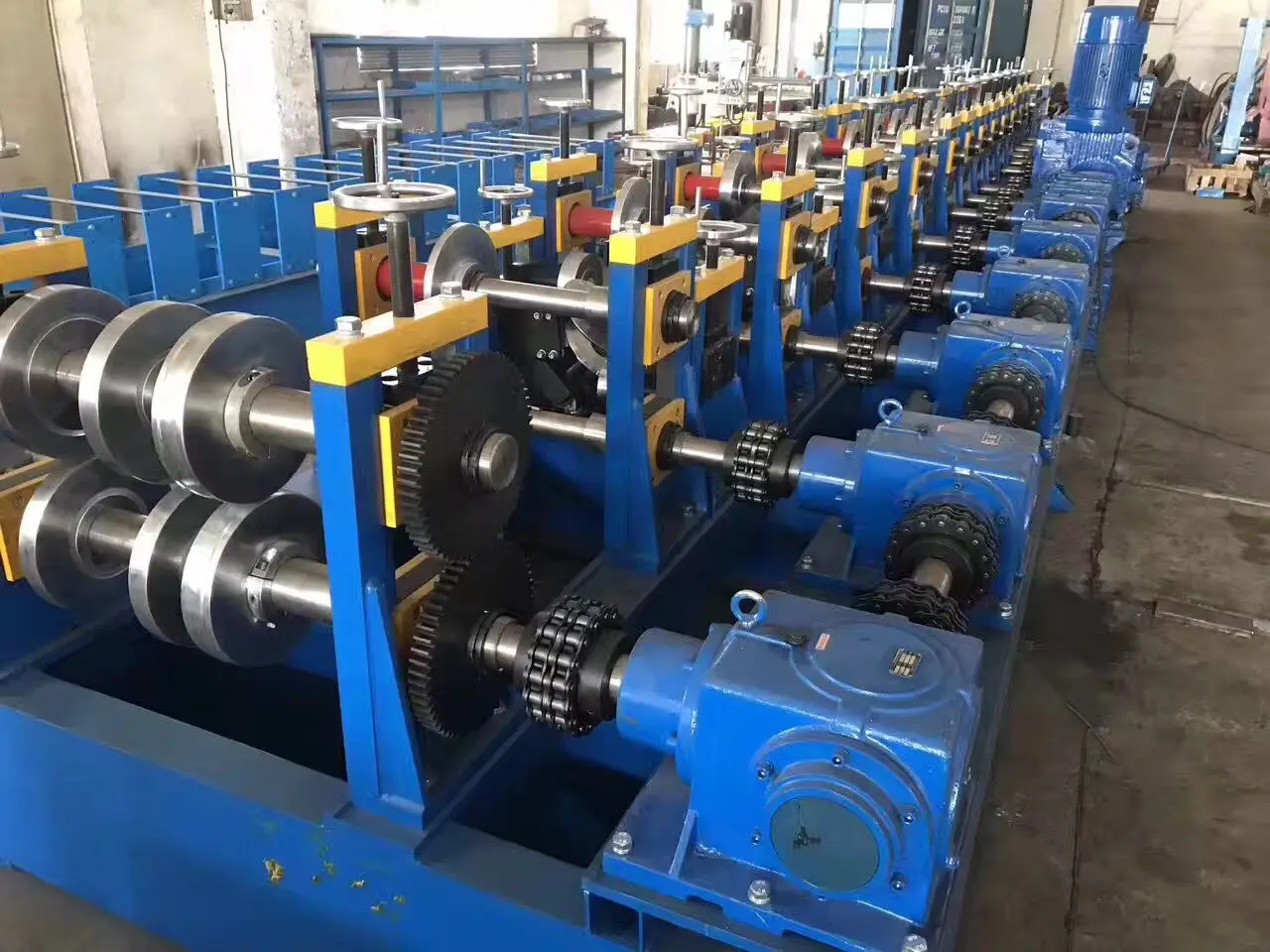

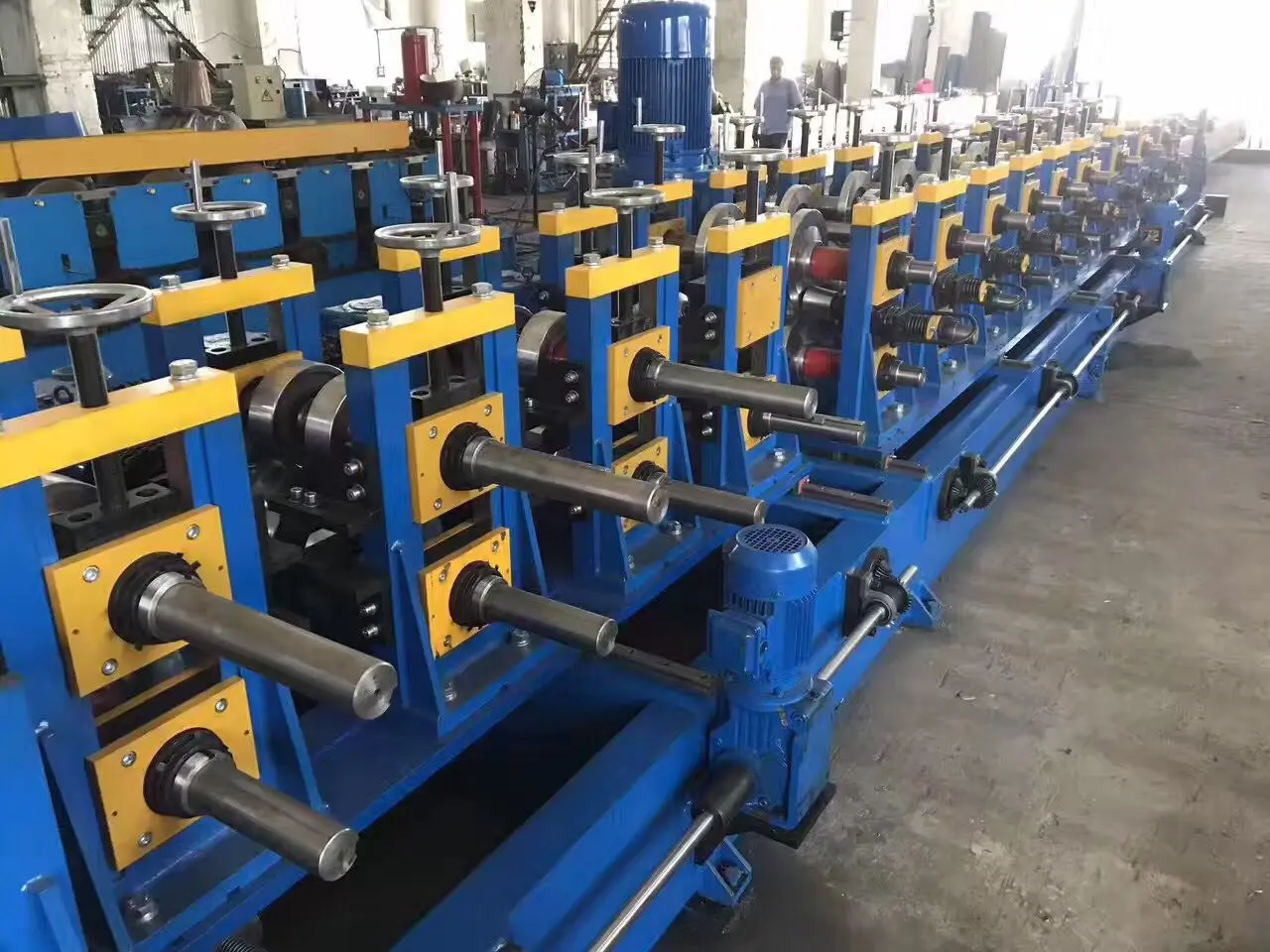

Product pictures

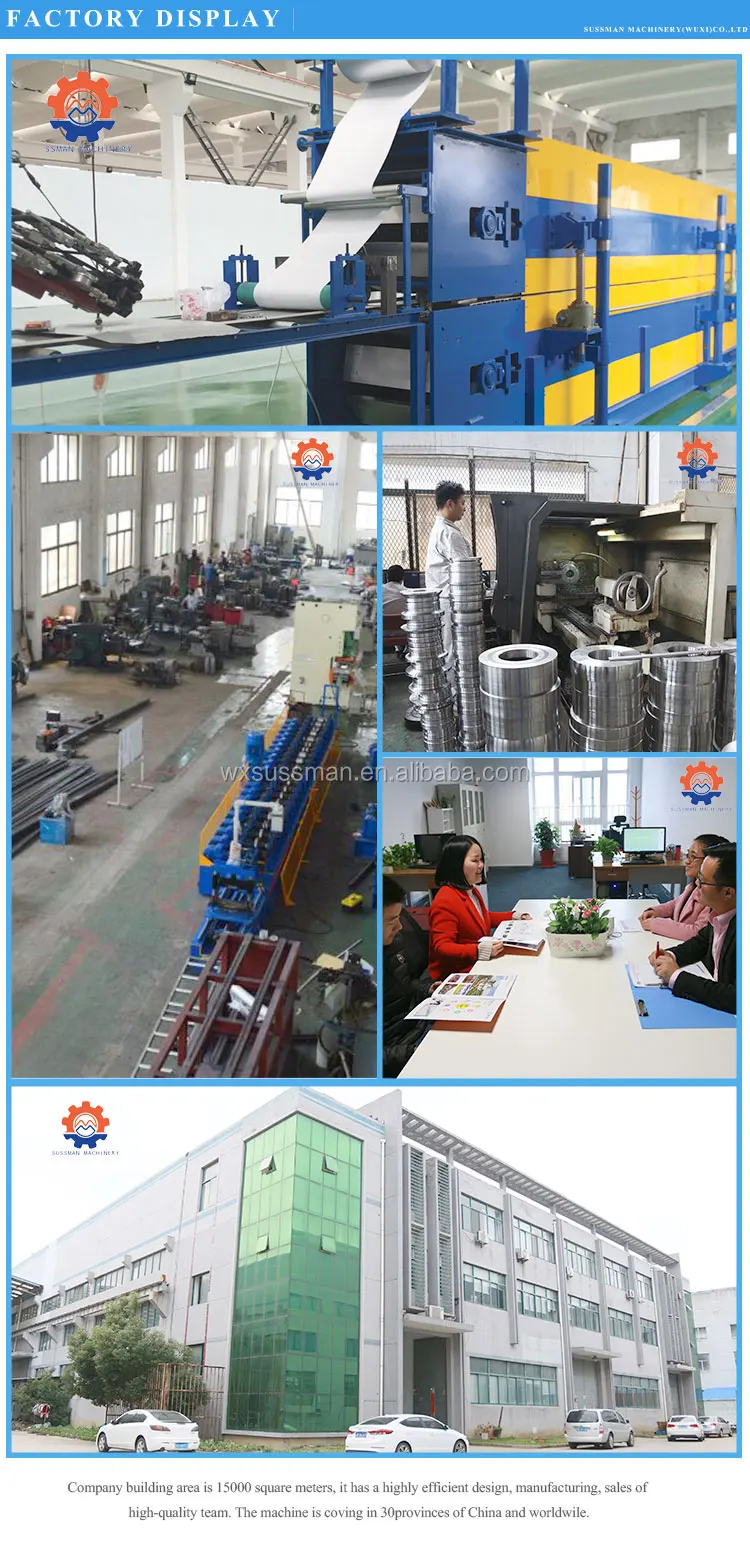

Factory diaplay
Assemble workshop
Production Process
Customer Visiting
Why choose us
FAQ
1) Q: Are you manufacturer or trading company? A: We are manufacturer and trading company . 2) Q: Do you provide installing and training overseas? A: Overseas machine install and worker training services are optional. 3) Q: How is your after sales support? A: We provide technical support on line as well as overseas services by skillful technicians.
4) Q: How does your factory do regarding quality control? A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment. 5) How can I trust you that machines pasted testing running before shipping? A: 1) We record the testing video for your reference. Or, 2) We welcome your visit us and test machine by yourself in our factory. 6) Q: Do you sell only standard machines? A: No. Most machines are made to order.
