25 years warranty 10 kw solar panel system 10000watt on grid solar energy system
- Category: Solar Energy Systems >>>
- Supplier: Jingjiang Alicosolar New Energy Co. Ltd.
Share on (60794893469):
Product Overview
Description
Product Description
The grid tied solar system must be connected to the public power grid. It is mainly composed of solar panels and inverters. The solar panels send out electricity directly through the inverter to convert into alternating current and supply power to household appliances. When solar power fails to meet household appliances, it is replenished automatically from the grid. And this whole process is intelligent control, does not need the human to open or close.
Equipment Details
25 years warranty 10 kw solar panel system 10000watt on grid solar energy system
If you need off grid solar system,please click here

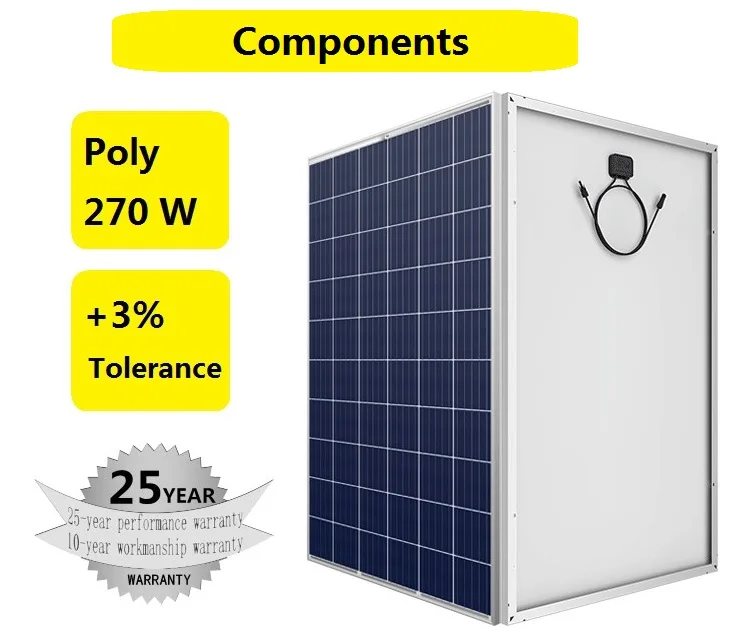

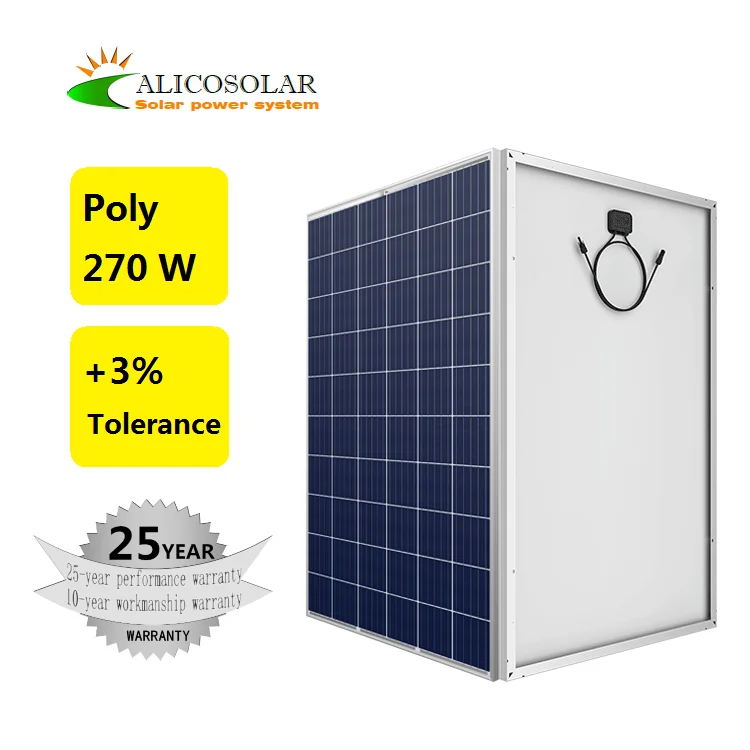

| STC:AM=1.5,1000W/m2,Cells Temperature 25°C | ||||||
| Typical type | 275w | 270W | 265W | 260W | 255W | 250W |
| Max power(Pmax) | 275 | 270 | 265 | 260 | 255 | 250 |
| Max power voltage(Vmp) | 31.74 | 30.47 | 30.45 | 30.43 | 30.41 | 30.39 |
| Max power current(Imp) | 8.89 | 8.86 | 8.70 | 8.54 | 8.28 | 8.23 |
| Open circuit voltage(Voc) | 37.7 | 37.16 | 37.14 | 37.12 | 37.1 | 36.97 |
| Cell efficiency(%) | 19.31 | 19.06 | 18.71 | 18.34 | 17.98 | 17.6 |
| Module Efficiency(%) | 16.90 | 16.59 | 16.29 | 15.98 | 15.67 | 15.37 |
| Max system voltage | DC1000V | |||||
| Maximun Series Fuse Rating | 15A | |||||

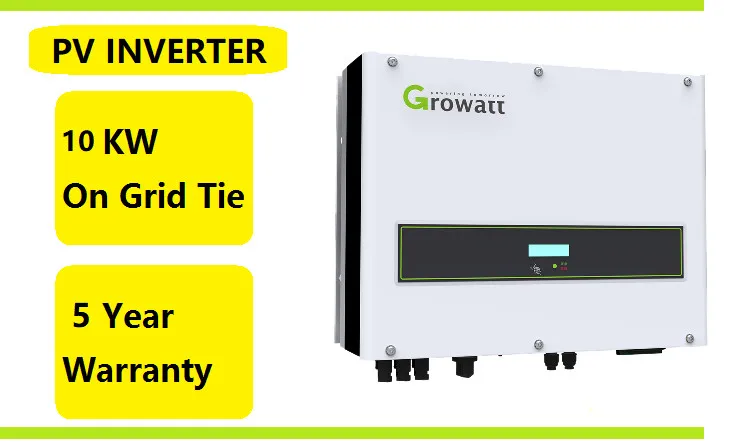

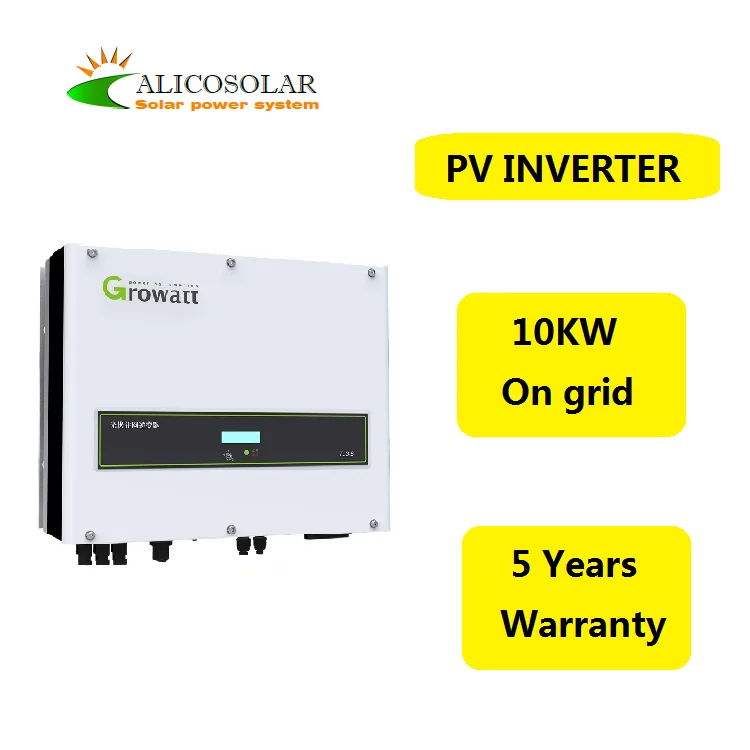

| Model | Growatt 8000TL3-S | Growatt 9000TL3-S | Growatt 10000TL3-S | Growatt 11000TL3-S |
| Input data | ||||
| Max. recommended PV power (for module STC) | 9600W | 10800W | 12000W | 13200W |
| Max. DC voltage | 1000V | |||
| Start Voltage | 250V | |||
| PV voltage range | 160V-1000V | |||
| Nominal voltage | 600V | |||
| MPP voltage range at Full Power | 360V-850V | 400V-850V | 450V-850V | 450V-850V |
| Max. input current | 11.5A/11.5A | 13A/13A | ||
| Max. input current per string | 12A | |||
| Number of independent MPP trackers/ strings per MPP tracker | 2/1 | |||
| Output (AC) | ||||
| Rated AC output power | 8kW | 9kW | 9kW | 10kW |
| Max AC apparent power | 8.8kVA | 9.9kVA | 11kVA | 12.1kVA |
| Max. output current | 13.3A | 15A | 16.7A | 18.3A |
| AC nominal voltage; range | 230V/400V184~275V | |||
| AC grid frequency | 50/60Hz | |||
| Power factor | 0.8leading - 0.8laging | |||
| THDi @Full load&Thdv<1% | <3% | |||
| AC grid connection type | 3W+N+PE | |||
| Efficiency | ||||
| Max.efficiency | 98.3% | 98.4% | 98.4% | 98.4% |
| MPPT efficiency | 99.5% | 99.5% | 99.5% | 99.5% |
| General Data | ||||
| Dimensions(W/H/D) | 480/448/200 mm | |||
| Weight | 21.6kg | |||
| Operating temperature range | -25 °C ... +60 °C | |||
| Noise emission (typical) | ≤35 dB(A) | |||
| Altitude | 3000m without derating | |||
| Self-consumption night | < 0.5W | |||
| Topology | Transformerless | |||
| Cooling concept | Natural | |||
| Environmental Protection Rating | IP65 | |||
| Relative humidity | 0~100% | |||
| Certificates and Approvals | ||||
| CE, IEC 62109-1/2, VDE 0126-1-1, Greece, VFR 2014, VDE-AR-N4105, G83, EN50438, CEI 0-21, AS4777, IEC 61727, IEC 62116, CQC | ||||

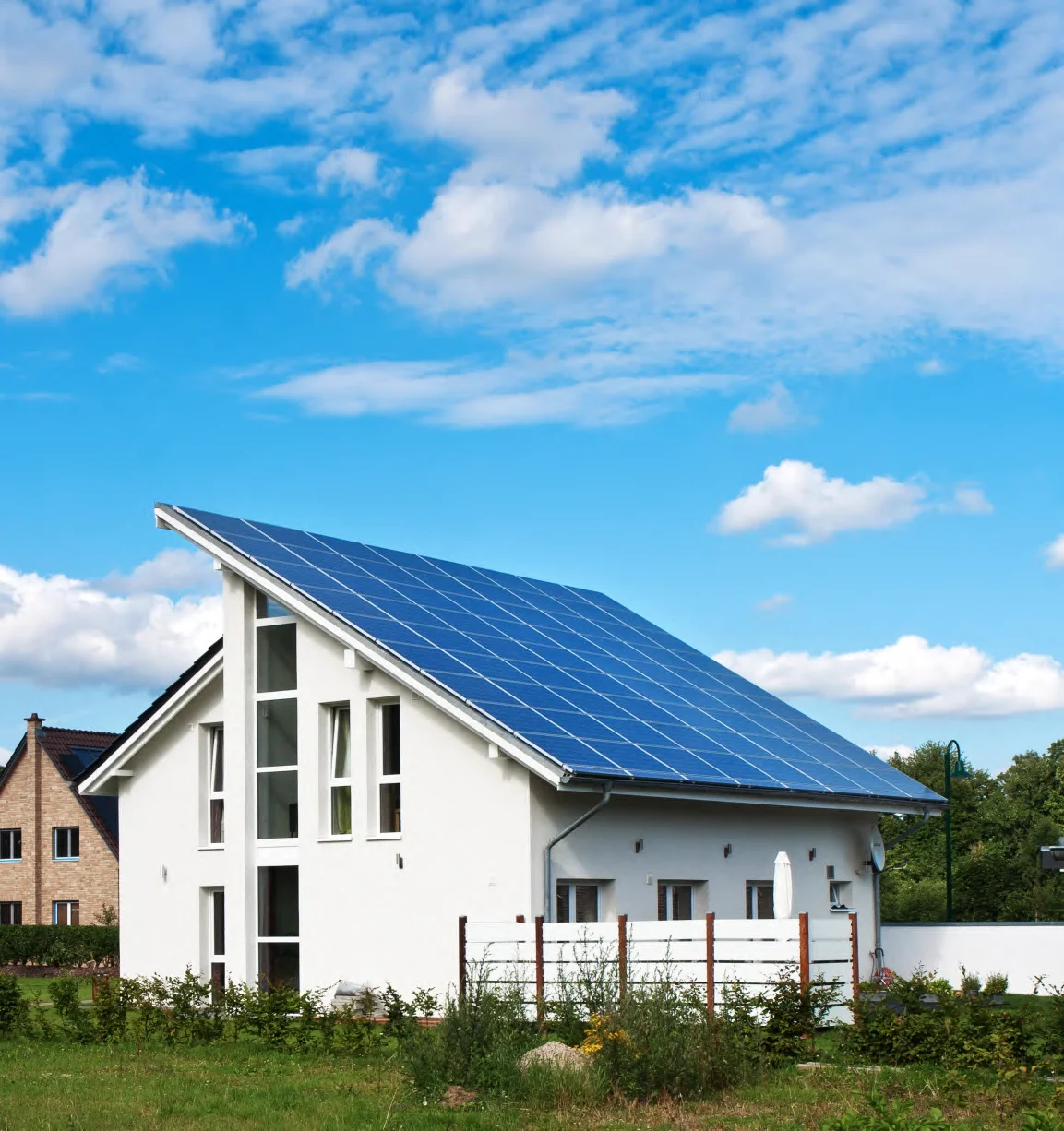

Projects
Certifications
Payment
| T/T | EXW | 30% deposit in advance by T/T,balance paid before delivery |
| FOB | ||
| CIF | 30% deposit in advance by T/T,balance paid against the copy of B/L | |
| L/C | L/C amount $50000,we accept L/C at sight | |
We welcome use Trade Assurance, you'll enjoy:
100% product quality protection
100% on-time shipment protection
100% payment protection for your covered amount

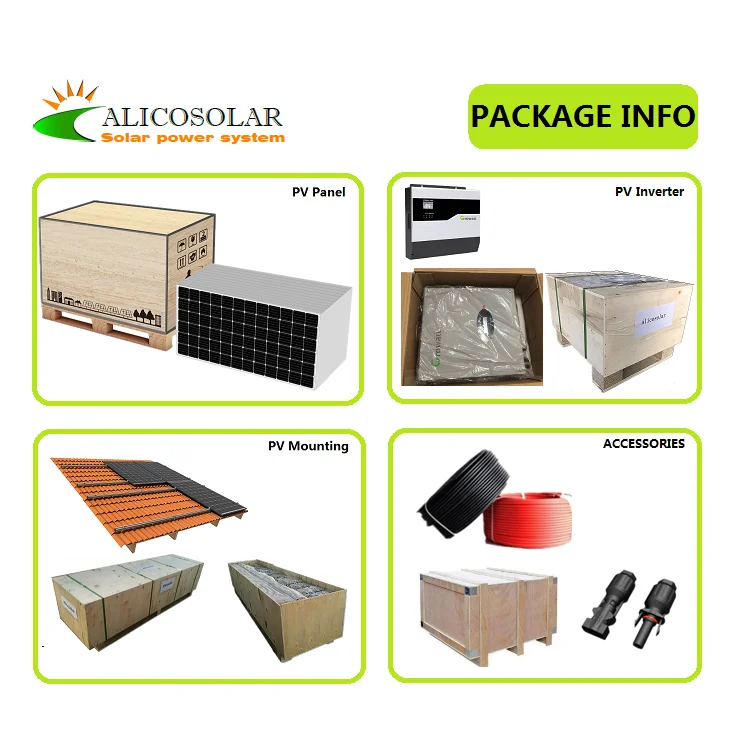

Packaging & Shipping
| By sea | Delivery from Shanghai or Ningbo |
| By air | Departure from Shanghai pudong airport |
| By express | By TNT/DHL |
