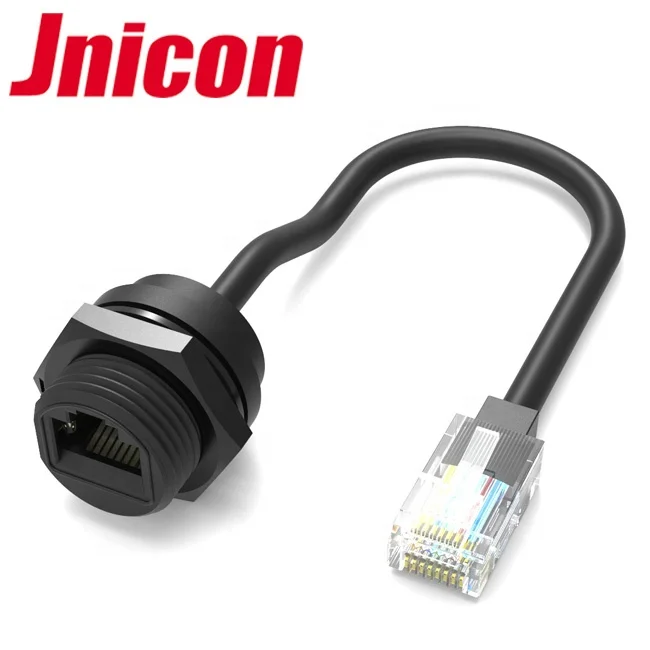

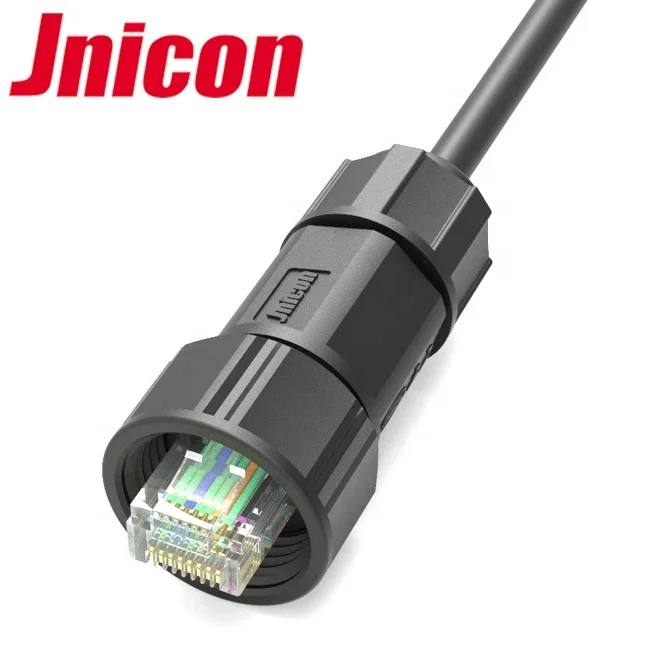

Jnicon IP67 ip68 M19 waterproof RJ45 connector with Ethernet cable
- Category: >>>
- Supplier: Shenzhen Jnicon Technology Co. Ltd.
Share on (60794996286):
Product Overview
Description
Product Description

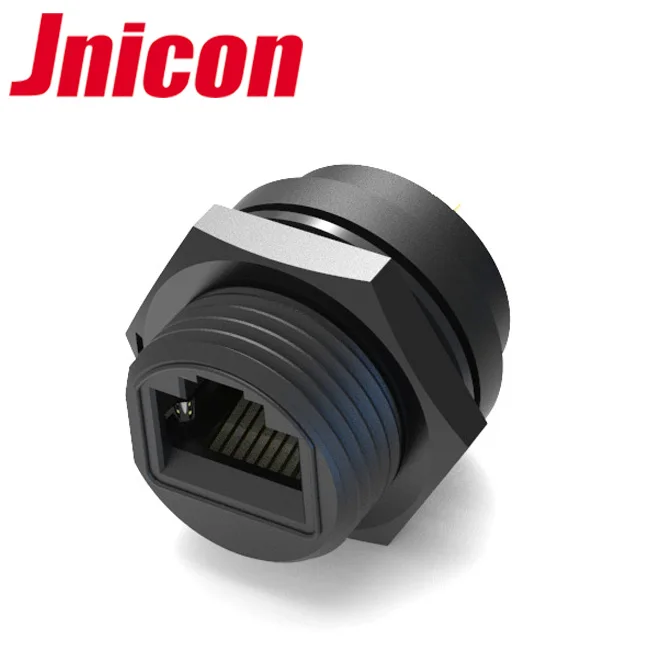

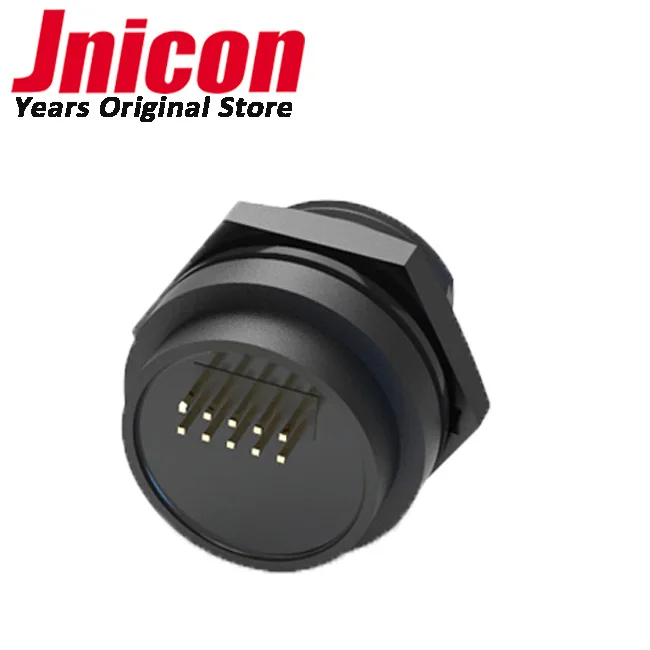

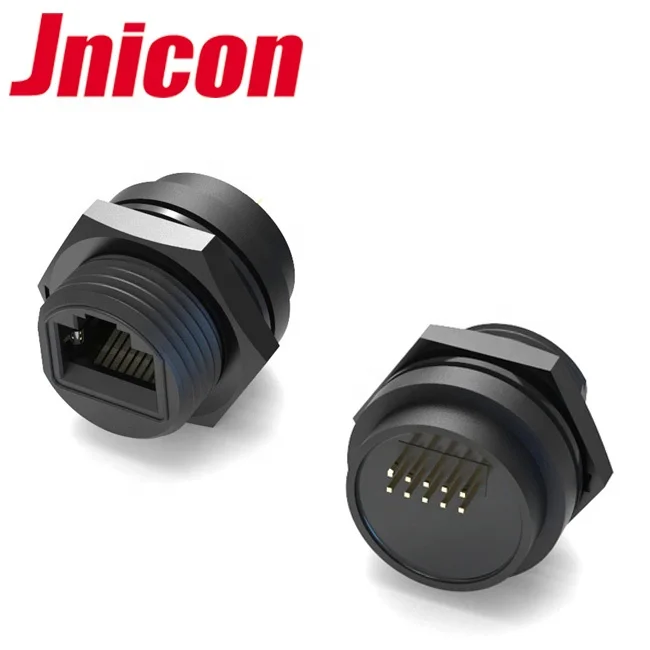

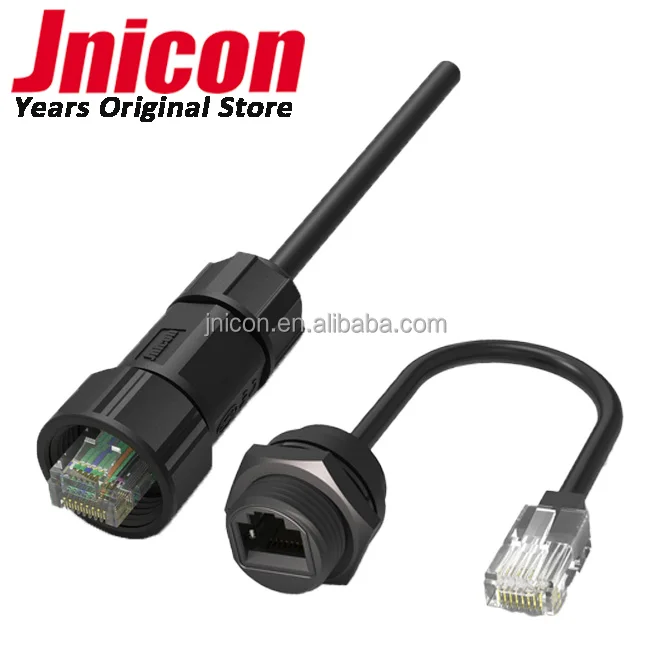

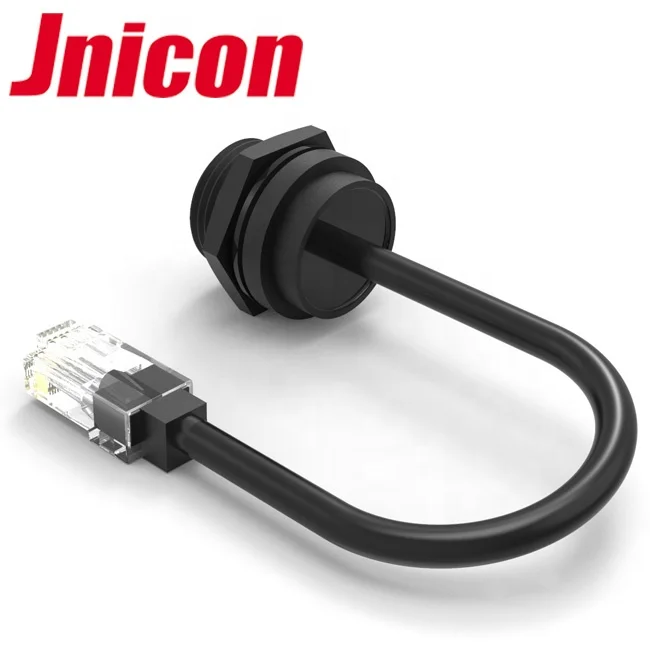

Jnicon IP67 ip68 M19 waterproof RJ45 connector with Ethernet cable
1.Compliance with D level or CAT 5e standard of EIA568B and ISO/IEC11801,RJ45 connectors compatible CAT5e,data transfer rate reach 10GBIT/S
2.Multi-style connecting modes:straight dual etherne port, 90 degree, Pin type for PCB available
3.Applicable for harsh environments.
4.Cable jacket with solid diecasted shell and unique dual-clip-clip wire saddle.
5.Sheath of cable applicable for common RJ45 plugs.
6.Waterproof design,protection level IP67/IP68
7.High performance plastic shell against wind and rain.
8.Shielding system with high frequency noise immunity and electromagnetic interference protection.
2.Multi-style connecting modes:straight dual etherne port, 90 degree, Pin type for PCB available
3.Applicable for harsh environments.
4.Cable jacket with solid diecasted shell and unique dual-clip-clip wire saddle.
5.Sheath of cable applicable for common RJ45 plugs.
6.Waterproof design,protection level IP67/IP68
7.High performance plastic shell against wind and rain.
8.Shielding system with high frequency noise immunity and electromagnetic interference protection.
Materials | Nylon(PA66)+GF |
Contact materials | brass with gold plated |
Sealing | Sillica Gel |
Current Rating | 3.0A |
Voltage Rating | 300V |
Contact Resistance | <10mΩ |
Insulation Resistance | ＞500MΩ |
Breakdown Voltage | 1.5KV/1minute |
Temperature Rating | -40°C~+105°C |
Durability(Plug/Unplug) | 3000 times |
Waterproof Rating | IP68 |
Cable OD range | 3mm-10mm |
Flame-resistant rating | UL-94-V0 |

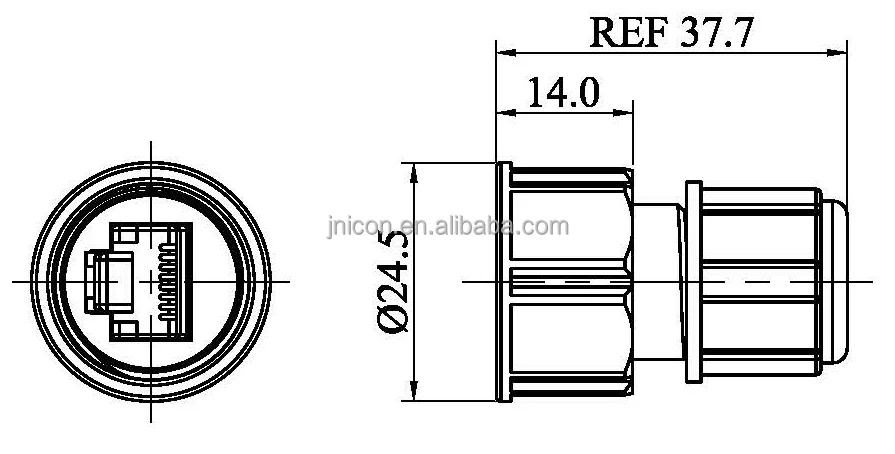

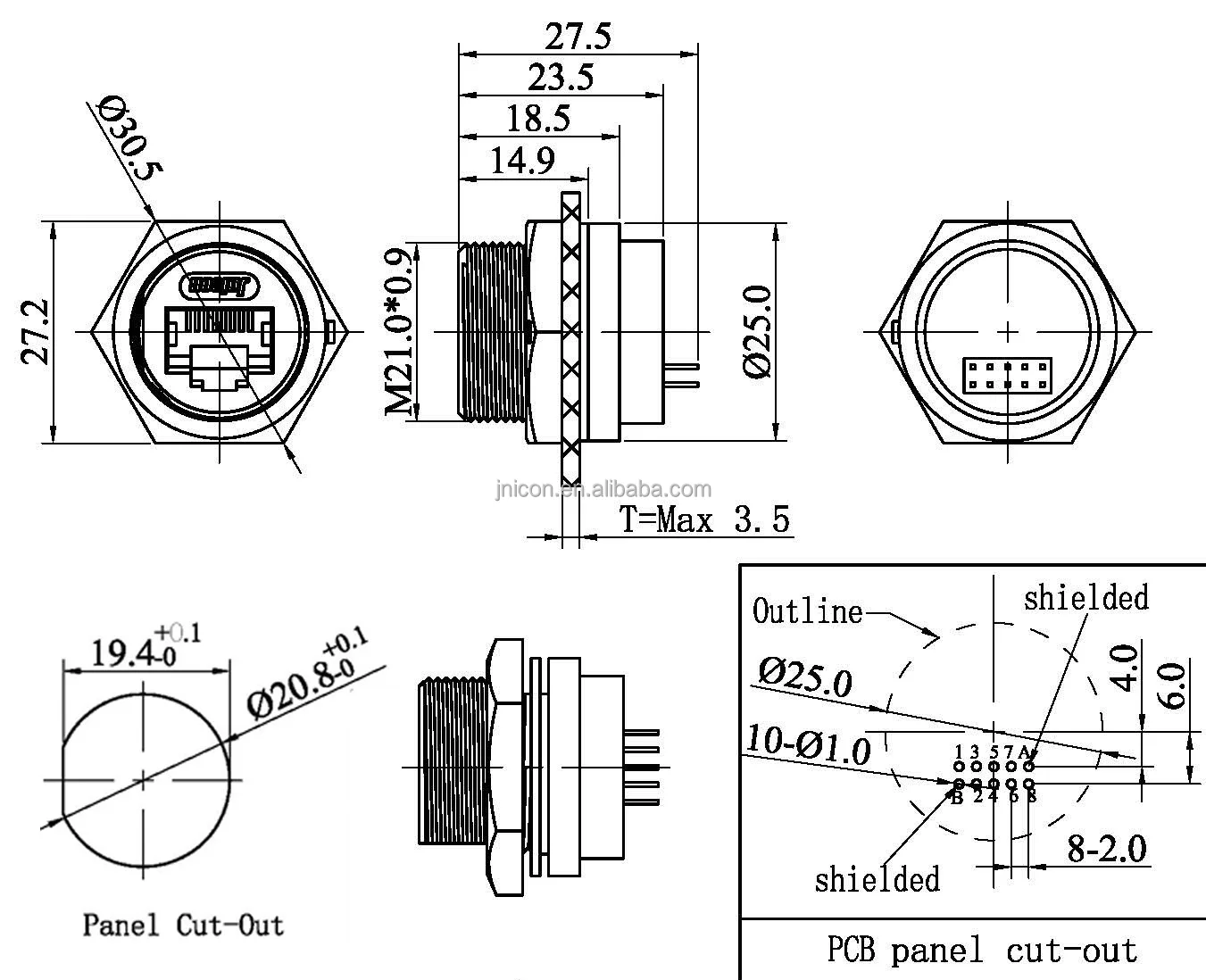

Details Images
Application
Certifications
Company Profile
Jnicon is located in Shenzhen China,own more than 200 people's team,4000 square meters factory,varites of test equipments of environment,electric and machinery 3 aspects.Jnicon does not only povide waterproof and high-current connectors, but also offer the service of customized connectors and cable assembly.
Jnicon has more than 50 items invention, utility model and design patents till 2017. In addition,all our connectors have
UL,TUV,CCC,CE and Rohs certificate.we are committed to providing responsive, cost effective, efficient and reliable logistic solution to our customers.
With years of experience in waterproof connector applications,Jnicon connectors are selling well in all cities and provinces
around China, also popular to countries such as United State, United Kingdom, Germany, Netherlands, Spain, United Arab Emirates etc.
Jnicon has more than 50 items invention, utility model and design patents till 2017. In addition,all our connectors have
UL,TUV,CCC,CE and Rohs certificate.we are committed to providing responsive, cost effective, efficient and reliable logistic solution to our customers.
With years of experience in waterproof connector applications,Jnicon connectors are selling well in all cities and provinces
around China, also popular to countries such as United State, United Kingdom, Germany, Netherlands, Spain, United Arab Emirates etc.
Customer Photos
FAQ
Q1. Are you a factory or trading company?
A: We are a factory,more than 5,000 square. Located in Shenzhen,China.
Q2. What is your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We could support show you production and picture of the products and packages.
Q3. How about the delivery time?
A: Generally, it will take 10 to 15 days after receiving your advance payment. The specific delivery time depends on the ordered
items and quantities.
Q4. Can you produce according to the samples?
A: Yes, we can produce according to samples or technical drawings. We can also make the molds and fixtures.
Q5. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the sample cost and the shipping cost should be paid.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% Full check before delivery.
Q7.Can I visit your factory?
A: Welcome to visit, you will be more confident to us because of our professional control from design,production to shipment.
Q8.How to buy your products?
A: You need to do as followings:
* Confirm Current Rating and Number of Contacts
* Confirm Assembly style
* Confirm Cable Wire guage
* Confirm Cable Length and Material.
A: We are a factory,more than 5,000 square. Located in Shenzhen,China.
Q2. What is your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We could support show you production and picture of the products and packages.
Q3. How about the delivery time?
A: Generally, it will take 10 to 15 days after receiving your advance payment. The specific delivery time depends on the ordered
items and quantities.
Q4. Can you produce according to the samples?
A: Yes, we can produce according to samples or technical drawings. We can also make the molds and fixtures.
Q5. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the sample cost and the shipping cost should be paid.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% Full check before delivery.
Q7.Can I visit your factory?
A: Welcome to visit, you will be more confident to us because of our professional control from design,production to shipment.
Q8.How to buy your products?
A: You need to do as followings:
* Confirm Current Rating and Number of Contacts
* Confirm Assembly style
* Confirm Cable Wire guage
* Confirm Cable Length and Material.
