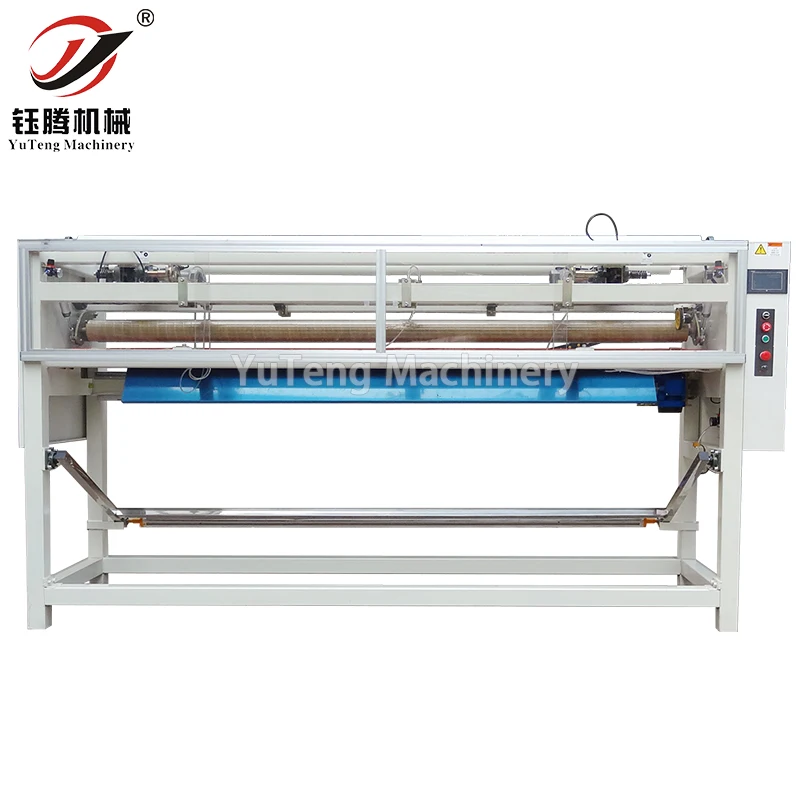

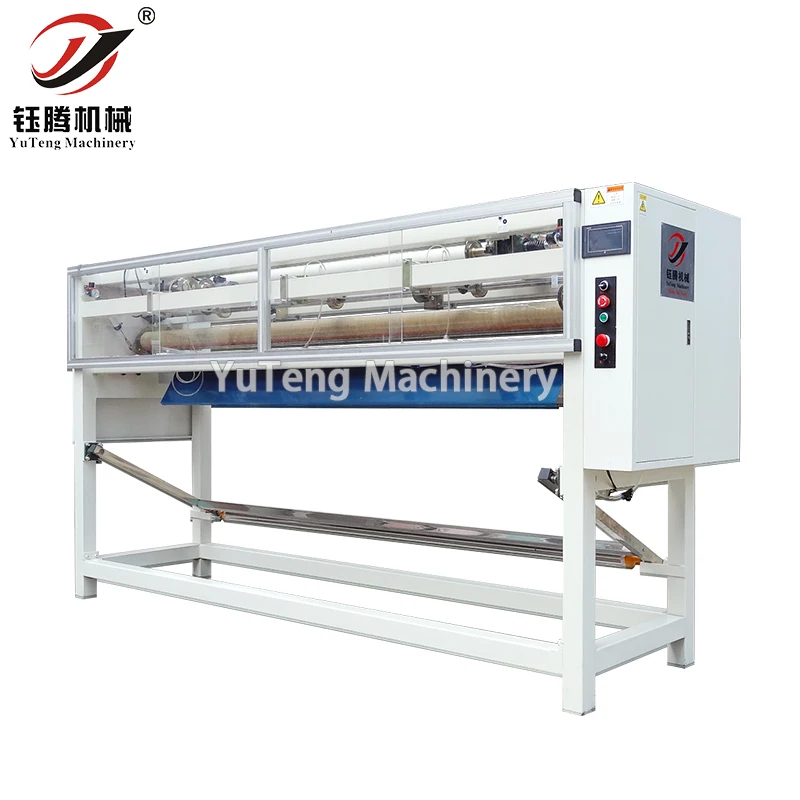

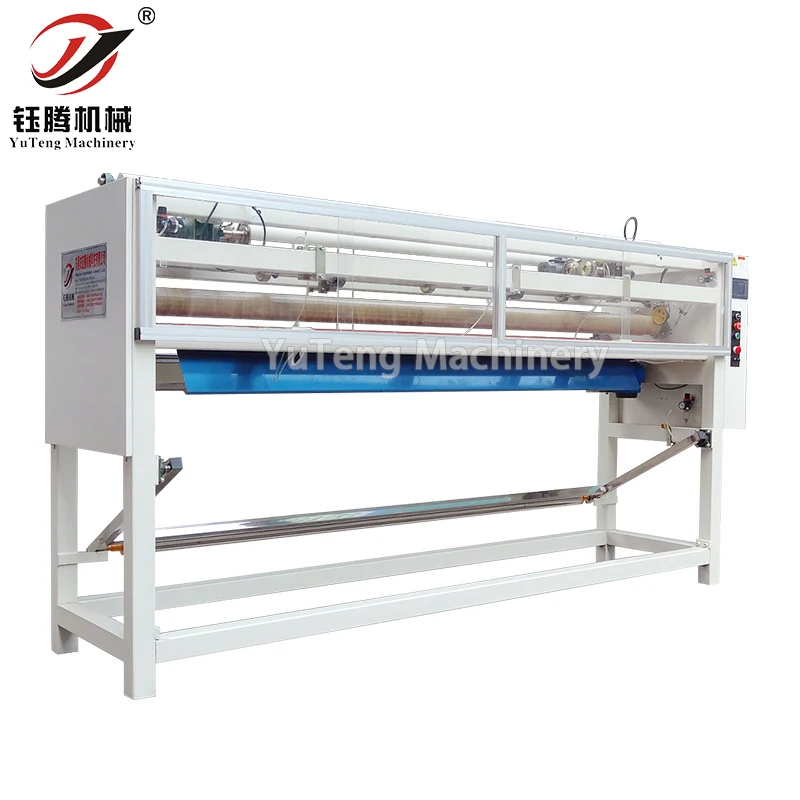

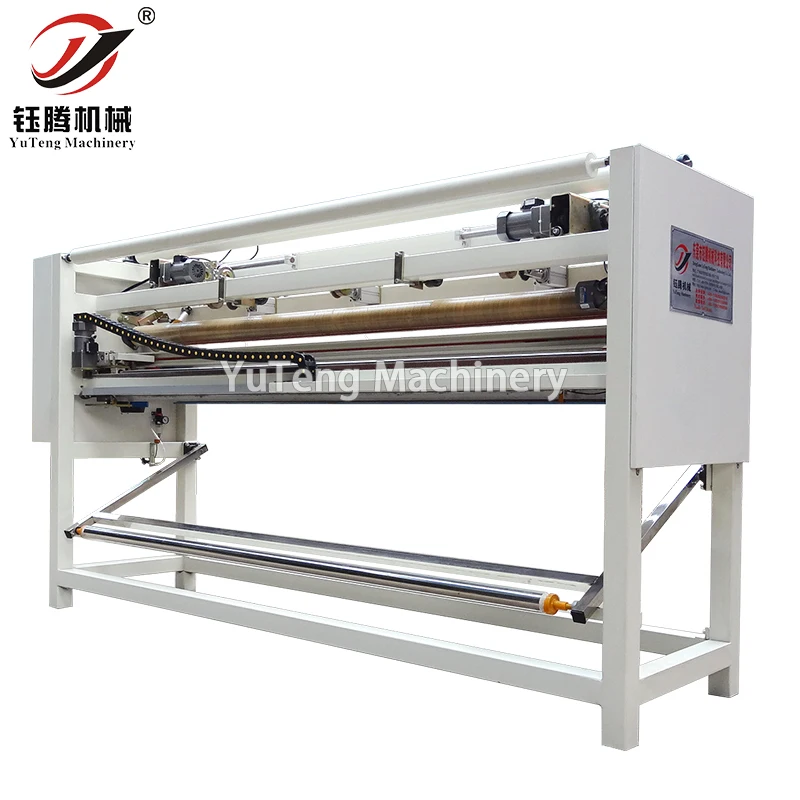

Automatic Computerized Quilting Fabric Panel Cutting Machine

Product Overview

Description

 ♦ Product main features :

1.Using national standard 5-inch color touch screen PLC man-machine interface,easy to operate;

2.All computer materials,electrical appliances,motors and so on are adopted by CE certification,greatly extending the service life of the machine;

3.The length and width of the cut can be adjusted by electric length,which makes the operation more user-friendly;

4.Synchronous pressure bar for material feeding,the pressure is even,the feeding and slitting cut is more smooth,especially for the thin material edge trimming;

5.Box shape,optimized design,improve the whole machine running speed and quality of cutting scissors,cutting efficiency is higher.





 ♦ Purpose :

For mattress,seat covers,sofa cushions,quilt covers,bedcovers,home decoration,export packaging,bedding processing,automatic cutting after sewing etc.For cross-cutting,slitting,edge cutting,quilting products,composite products,can also be used alone.











 ♦ Technical Parameters :



Model	YTCM96-C
Machine size(L*W*H)	3200*2200*2500(mm)
Cutting width	2400mm(can be customized)
Cutting length	Min 30cm-Infinite
Cutting speed	Vertical cut 10m/m,horizontal cut 5 s/cut
Machine weight	600KGS
Max power	1.8KW
Voltage	380V/50HZ 3P

* Customized model are available to meet client's various needs

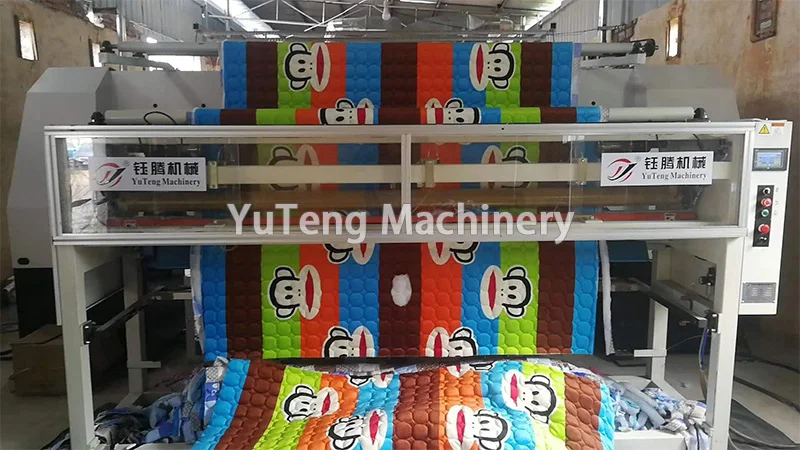

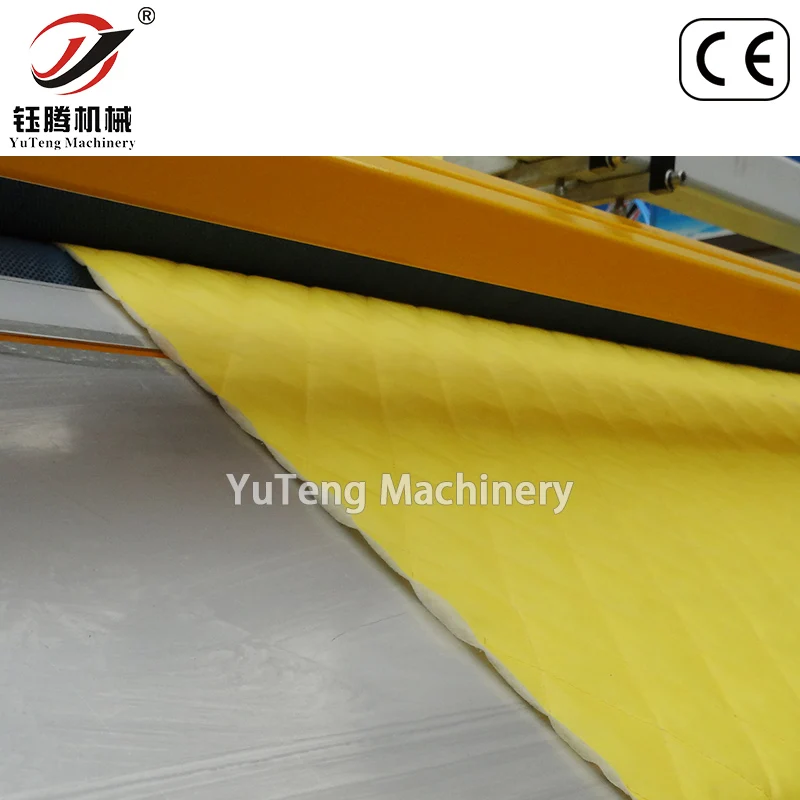

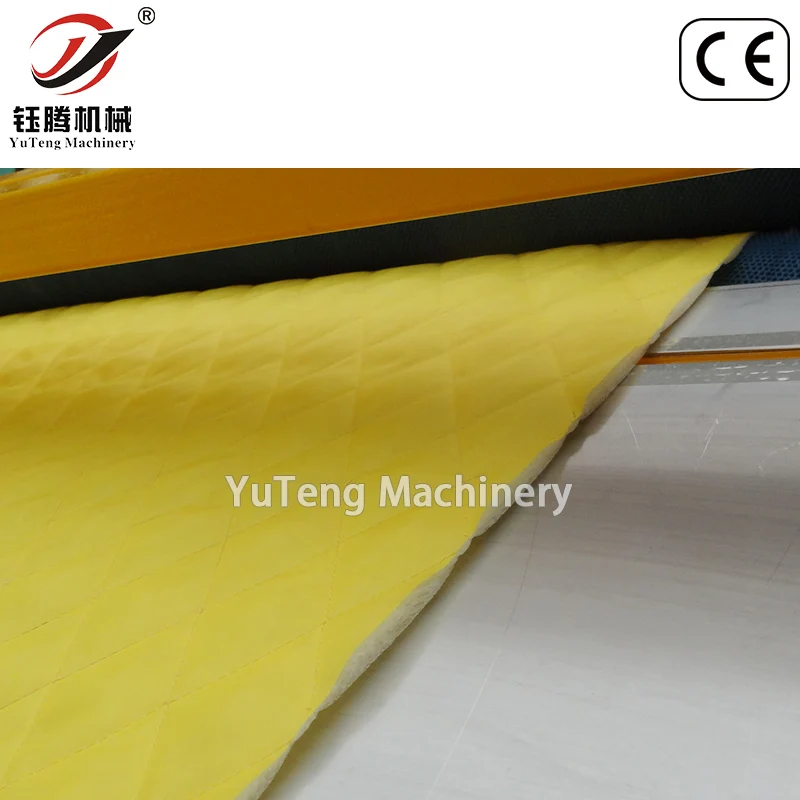

 ♦ Effect diagram :
