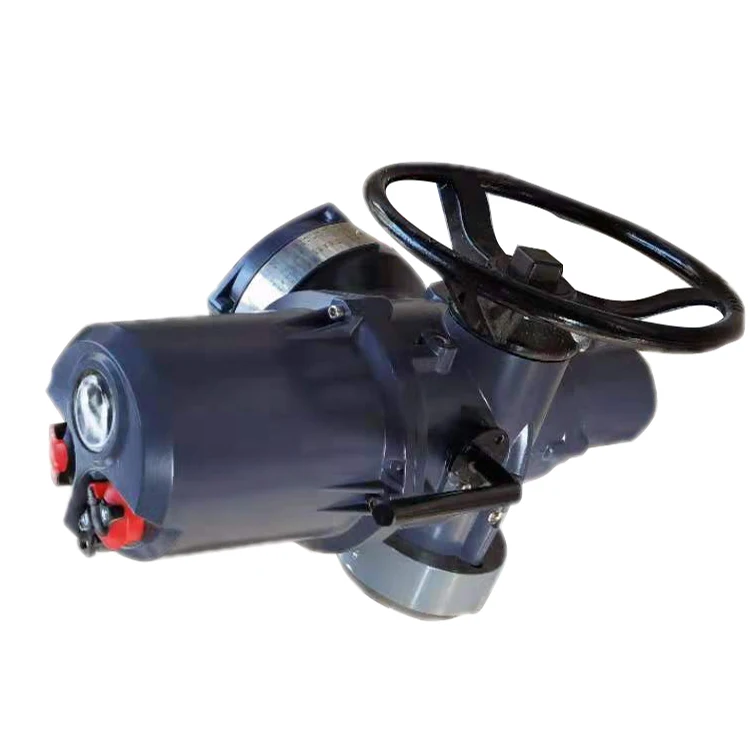

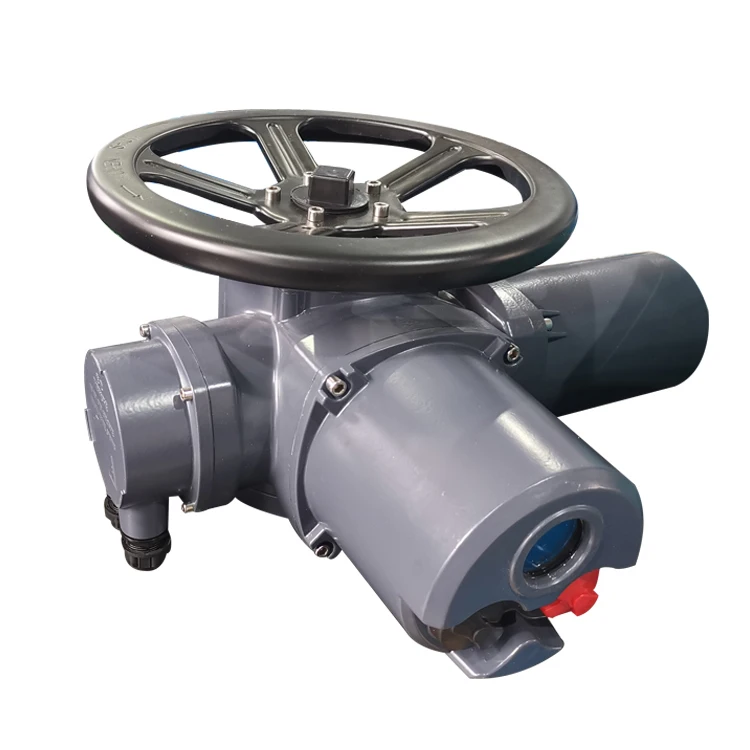

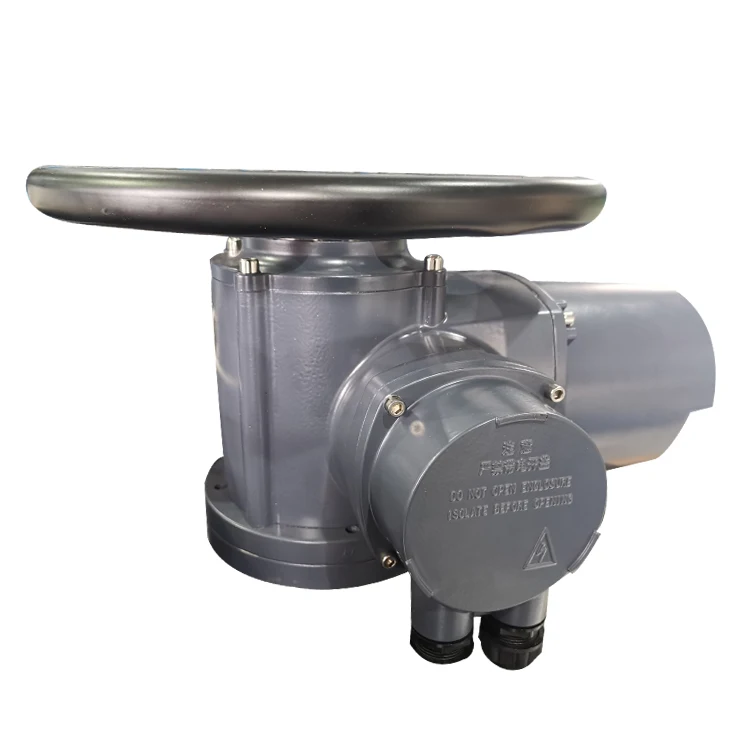

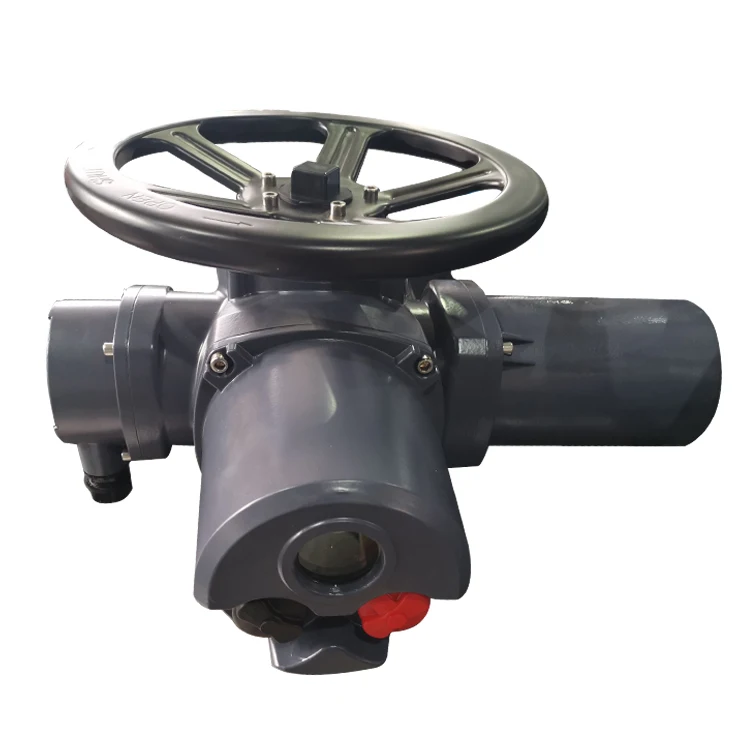

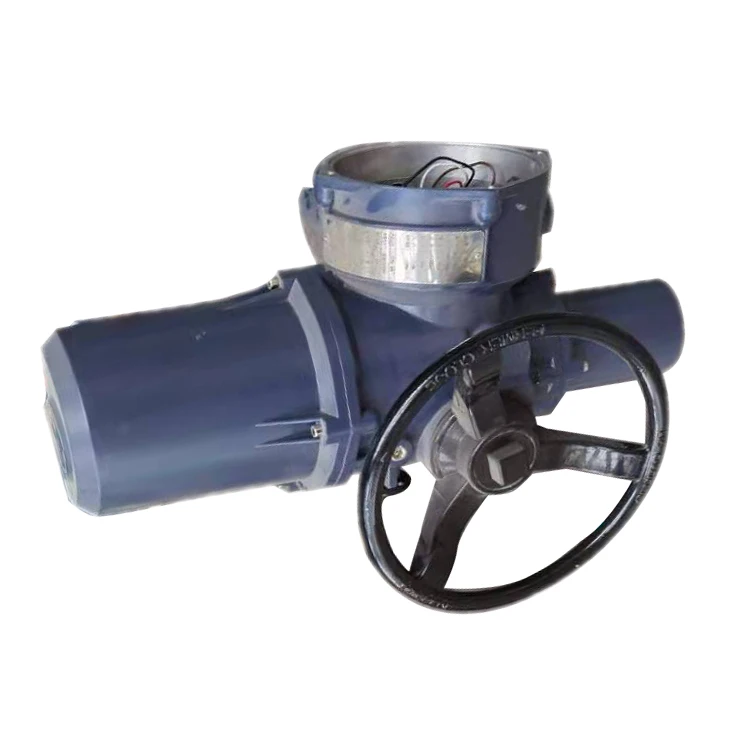

230V Motor Actuator IP68 Multi turn Electric Actuator Manufacturers XZA45 18 36 Z30 18W/Z/T
- Category: Solenoid Valves >>>
- Supplier: Tianjin Freya Automation Technology Co. Ltd.
Share on (60795634374):
Product Overview
Description
·Power supply: 380 v AC+ 10% I 50 hz plus or minus 5%, or custom 220 v AC + 10% I 50 hz plus or minus 5%, or custom |
·Input signals A) analog quantity 4mA~20mA DC, input impedance 250Ω B) On-off quantity active 24V DC C) the profibus- dp or MODBUS (optional) |
·Output signal. A )4 ma ~ 20 ma DC, load resistance Ω 750 or less C) 6 groups of passive contacts C) PROFIBUS or MODBUS (optional) |
·Fundamental error bound≤1% ·Repeatability error:≤±1% ·Dead band setting:0.1%-9.9%adjustable ·Protection grade:standard IP67(1m underwater 30 minutes) Optional IP68 |
· Low temperature: 20℃~+60℃ special-40℃~ + 70 ℃ · Ambient humidity: ≤95% (+25°C) · working system: S2-15min short-time working system for NZ on-off type S4- 25% intermittent working system for NT control Type ·Explosion-proof marks: Exdl, Exdib II BT4 and ExdibII CT4 |
Shipment Term:
1. Orders processed timely after the payment verification .
2. Terms of Deliver: FOB / CFR / CIF / EXW etc.
3. Due to stock status and time differences , we will choose to ship your item from our first available warehouse for fast delivery .
Payment Term:
1. Accept T/T, D/A, D/P, L/C, West Union with 30% Deposit.
2. Advance payment should be made within 3 days of order .
Our Services
Our company provides you with the following services free of charge:
1. All-round electric actuator and valve technology selection service
2. High-quality post-product maintenance and technical analysis services
3. Accept other related cooperation.
