Электроперманентный магнитный захват для автоматического захвата и размещения роботизированной руки
- Category: Manipulator >>>
- Supplier: Zhuzhou HVR Magnetics Co. Ltd.
Share on (60795682176):
Product Overview
Description

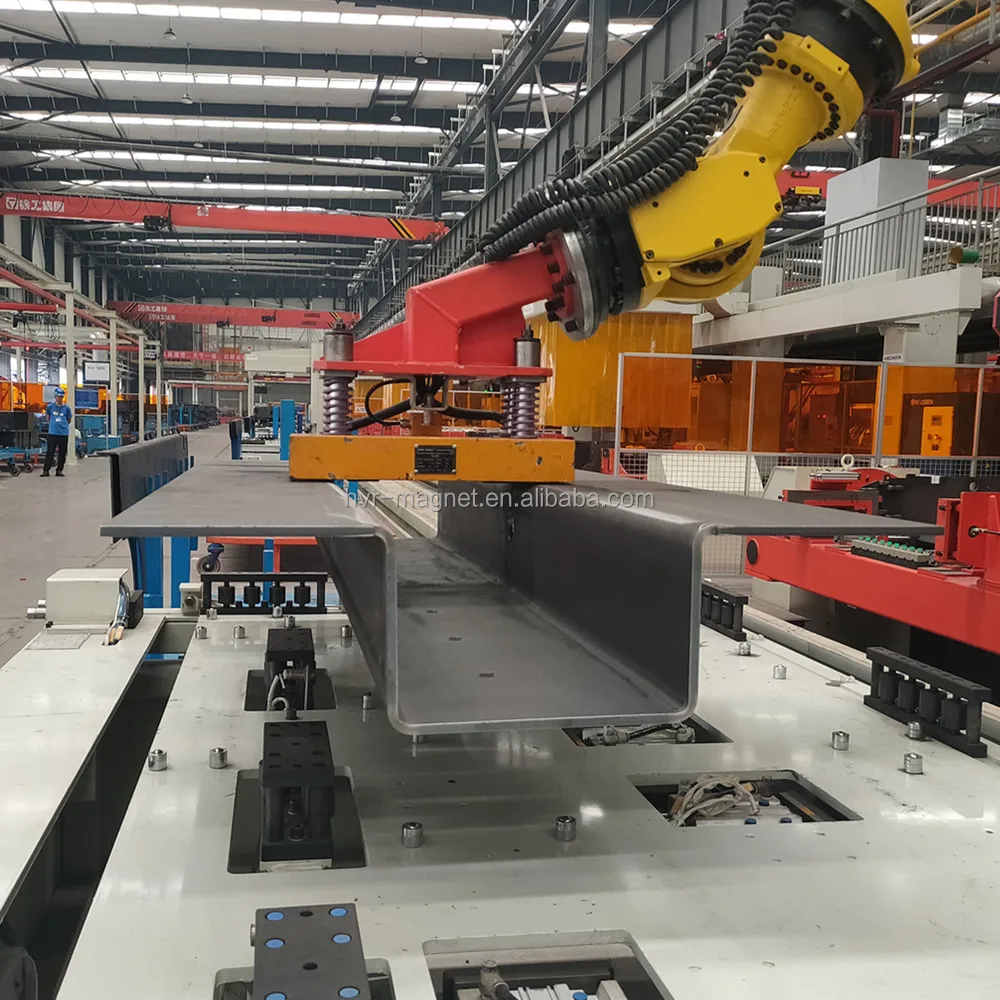

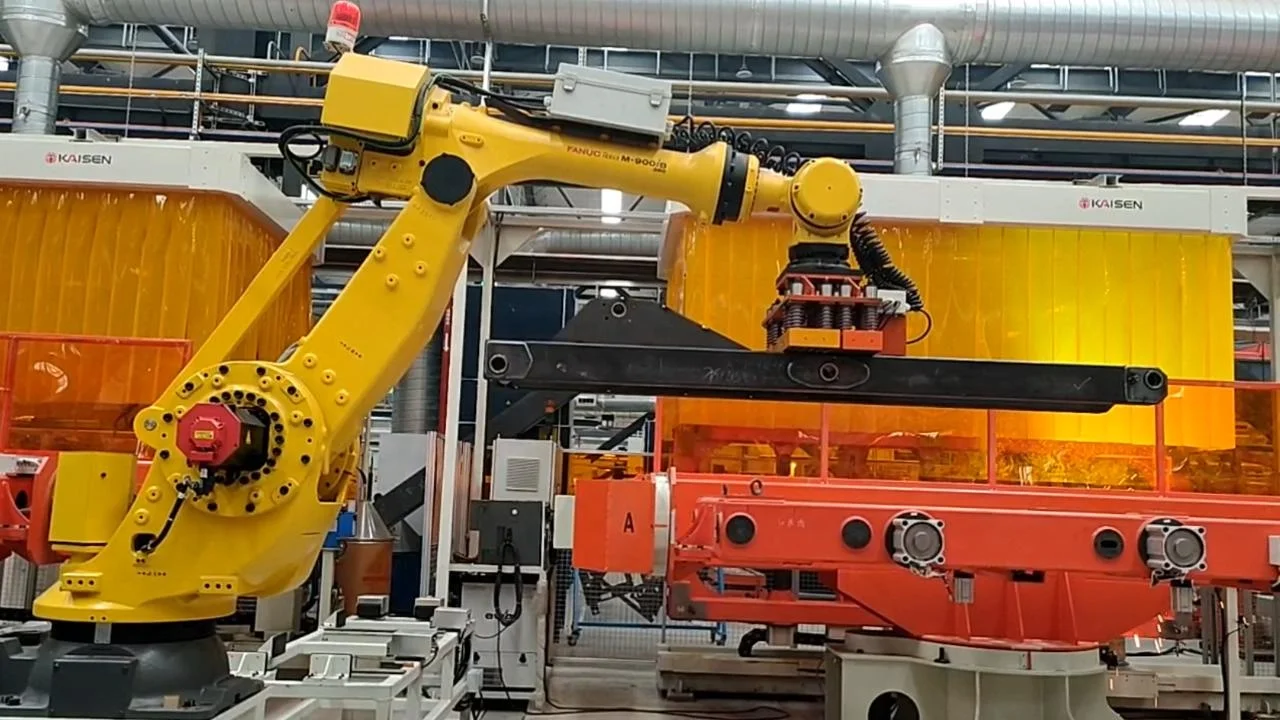

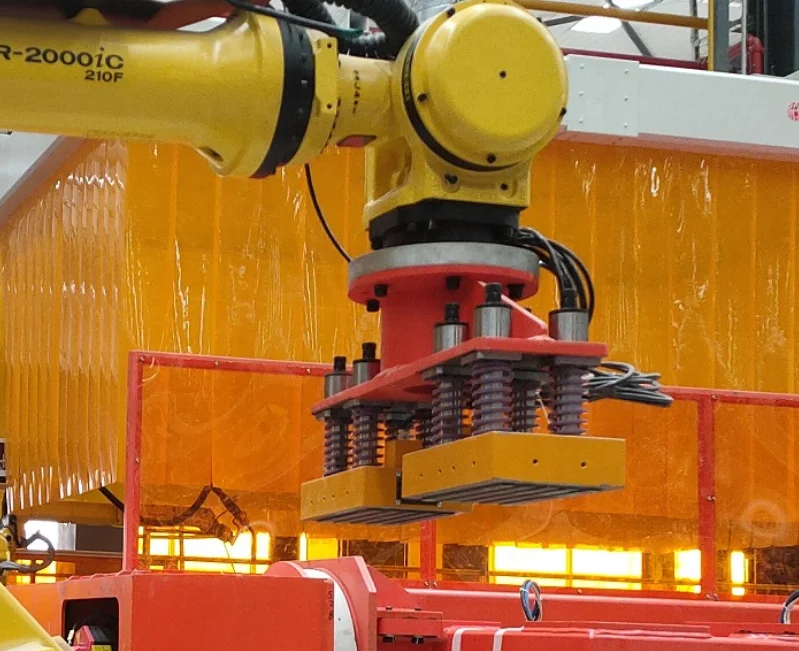

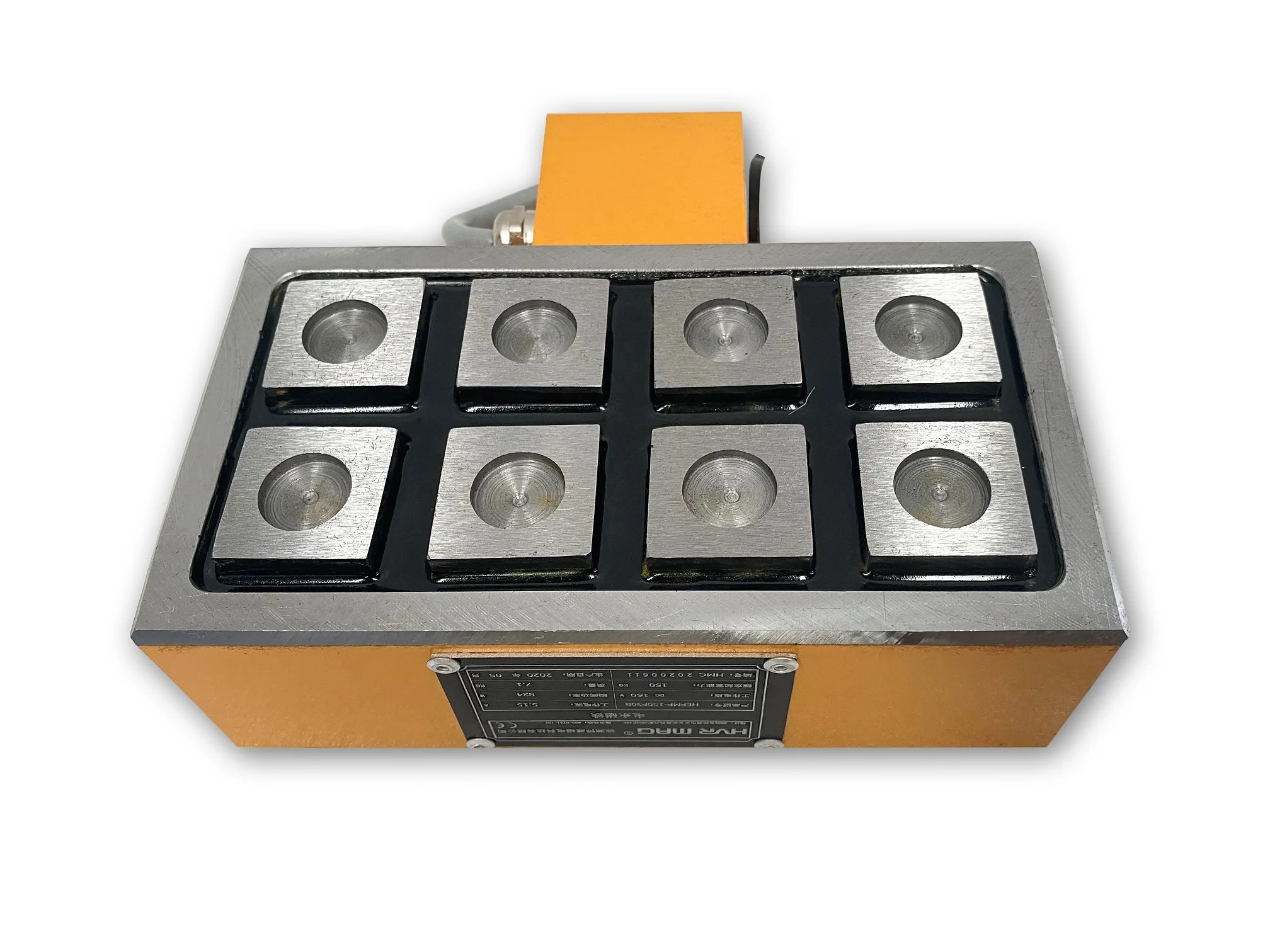

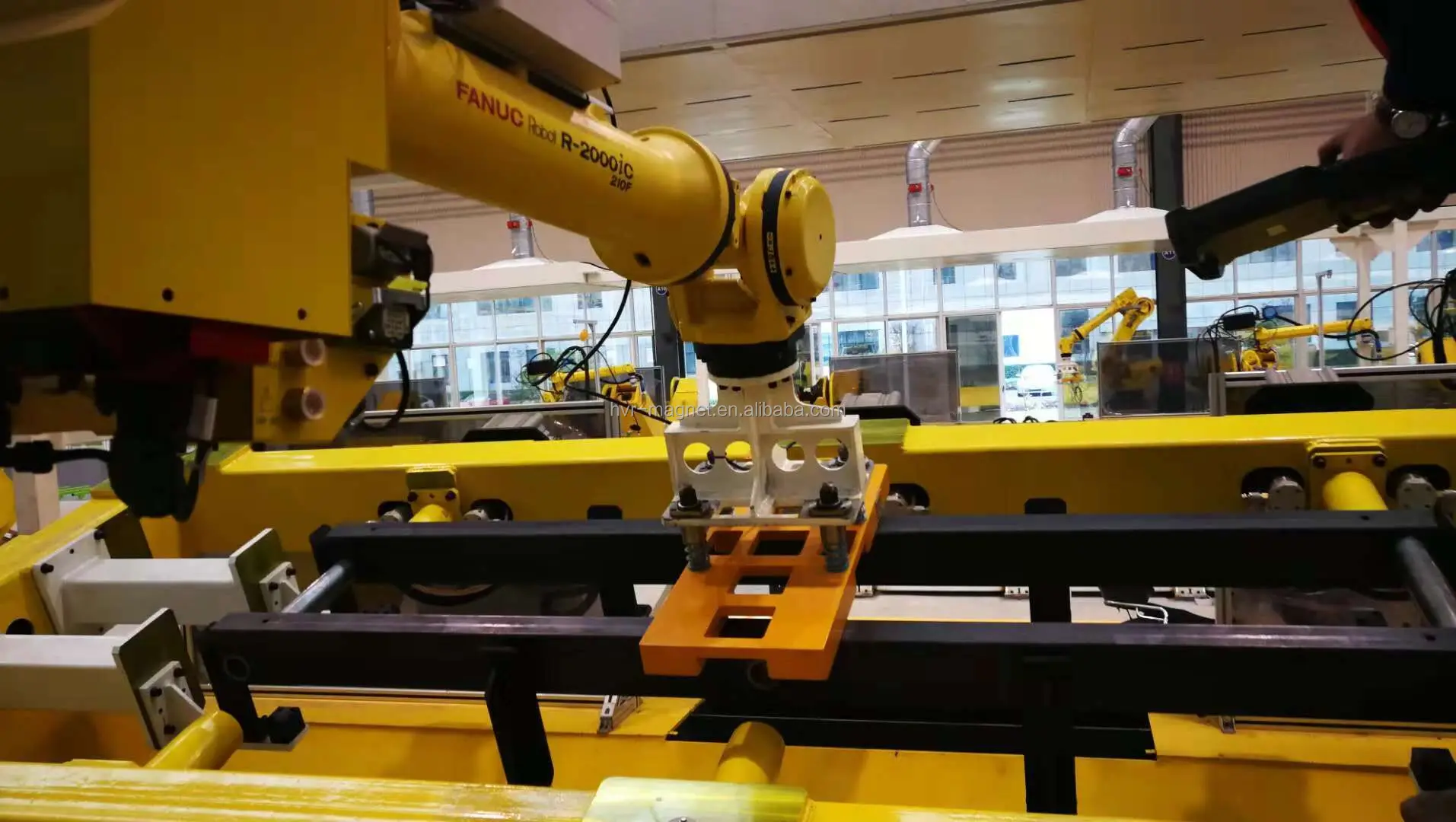

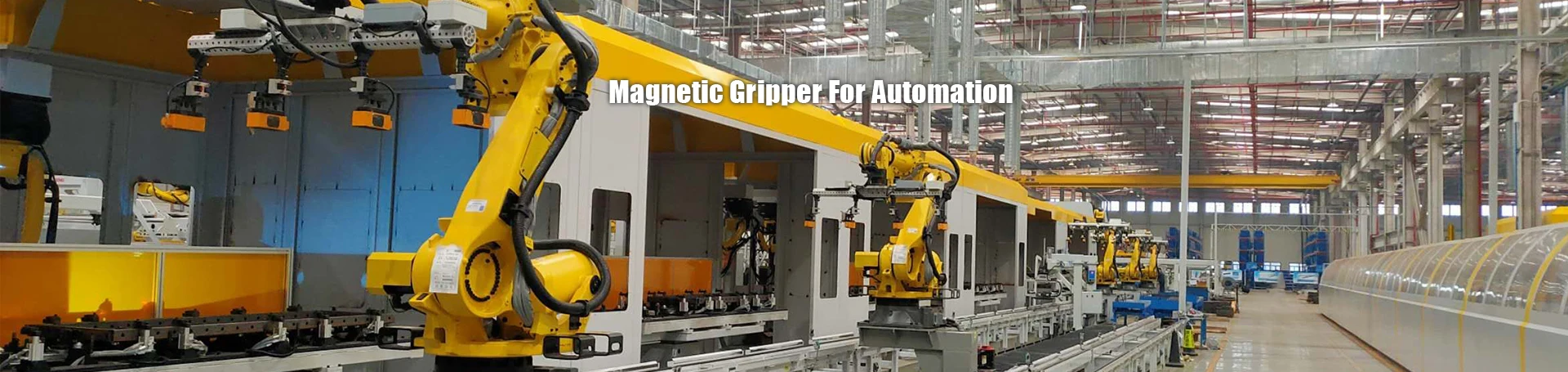

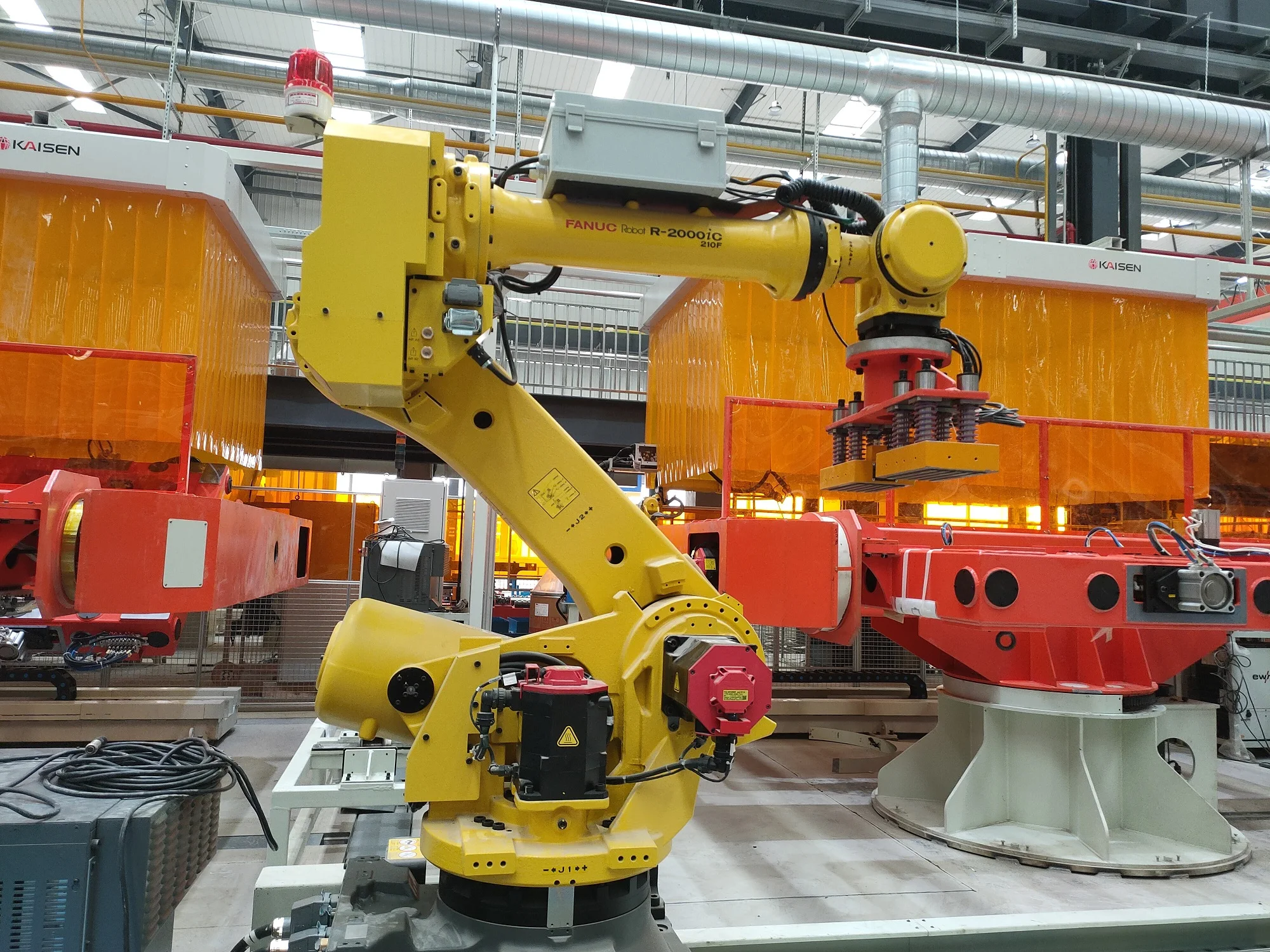

Electro-permanent Magnetic Gripper on Robotic Arm Pick and Place of Ferrous Workpiece
Custom Designed and Manufactured - provide the specific informations about the part you'd like to grip and the overall working conditions.
Products Description
Features:
1. It only needs electric power to control the magnetic force on/off, when working no need electric power.
2. Combine the safety of permanent and economic of electromagnet
3. with strong magnetic power
4. with PLC interface can work with ROBOT
5. small control box optional
2. Combine the safety of permanent and economic of electromagnet
3. with strong magnetic power
4. with PLC interface can work with ROBOT
5. small control box optional
Application:
Powerful electro permanent magnets for robotic automation can be widely used for all types of steel holding and handling with robot arms, the magnet pole will be design by application.
Advantage:
Simple operation: Handling the electric motor rotor quickly, save human source, just need user to press buttons, the lifting and releasing ferrous load could be realized.
No deformation: Without compressing or deforming the load, keep the loads in high quality.
High safety: because no electric power is required during the working period , avoid the risk of falling accident when sudden power failure
Energy saving : monre than 95% energy could be saving compare traditional lifting electromagnet, since it only needs electricity with less than 3 seconds, no energy consuming during the handing period.
Maintenance free : There is no moving parts of the lifter, reducing the mechanical trouble, only needs electricity with less than 3 seconds, the inside copper coil no chance to became too hot to have trouble.
No deformation: Without compressing or deforming the load, keep the loads in high quality.
High safety: because no electric power is required during the working period , avoid the risk of falling accident when sudden power failure
Energy saving : monre than 95% energy could be saving compare traditional lifting electromagnet, since it only needs electricity with less than 3 seconds, no energy consuming during the handing period.
Maintenance free : There is no moving parts of the lifter, reducing the mechanical trouble, only needs electricity with less than 3 seconds, the inside copper coil no chance to became too hot to have trouble.
Product Paramenters
Model | Rated lifting force （≥16mm） | Plate thickness | Max. pulling-out force | L | W | H | Weight | Pole | Pole number |
HEPMP-1510P50 | 160kg | ≥6mm | 650KG | 150mm | 100mm | 72mm | About 8kg | 50X50 | 2 |
HEPMP-320P50 | 320kg | ≥6mm | 1300kg | 180mm | 180mm | 72mm | About 17kg | 50X50 | 4 |
HEPMP-500P50 | 500kg | ≥6mm | 1950kg | 250mm | 180mm | 72mm | About 23kg | 50X50 | 6 |
HEPMP-720P50 | 720kg | ≥6mm | 2925kg | 250mm | 250mm | 72mm | About 32kg | 50X50 | 9 |
HEPMP-2012P70 | 320kg | ≥8mm | 1100kg | 190mm | 110mm | 72mm | About 12kg | 70X70 | 2 |
HEPMP-2020P70 | 640kg | ≥8mm | 2200kg | 200mm | 200mm | 72mm | About 22kg | 70X70 | 4 |
Packing & Delivery

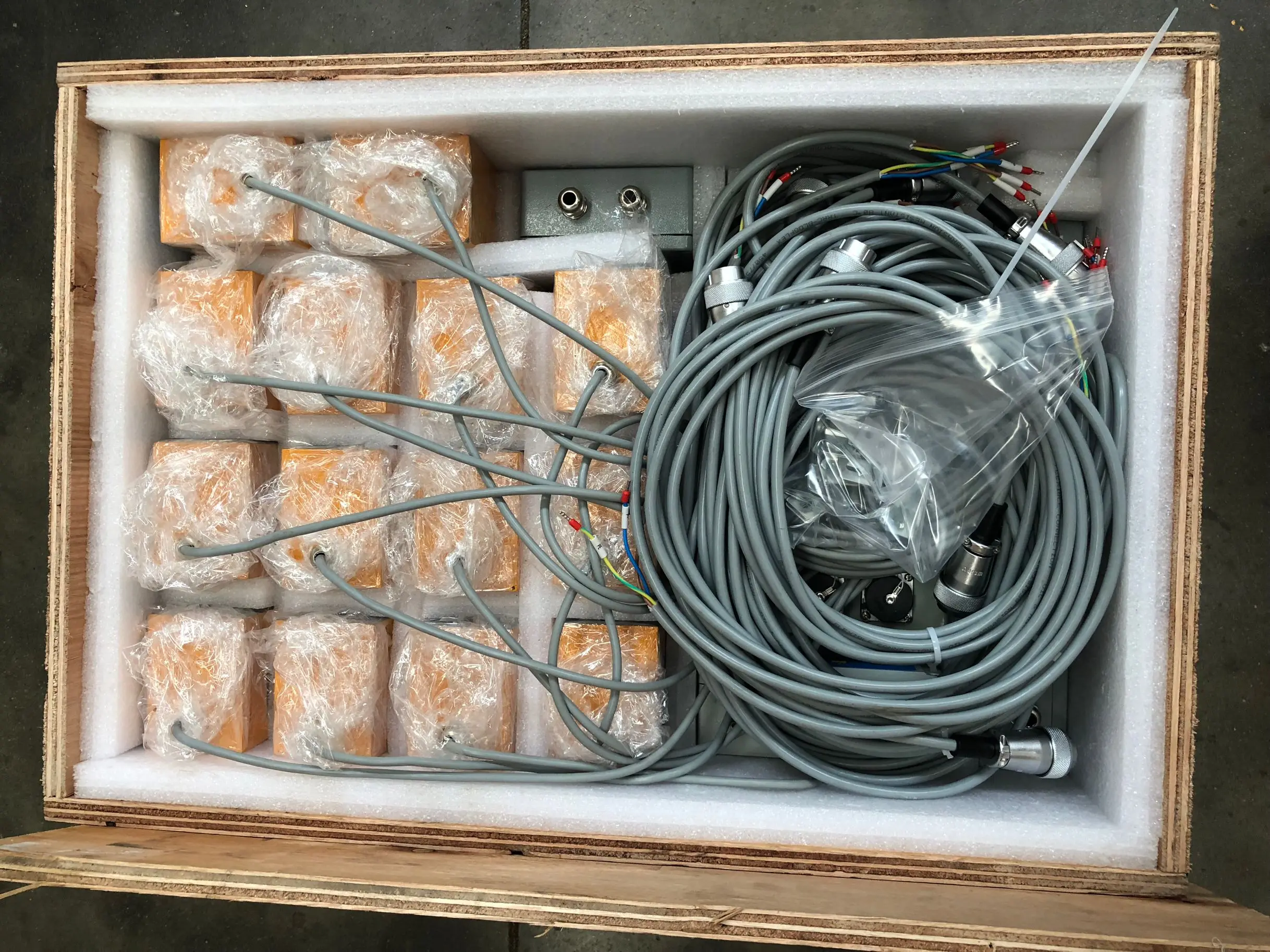

* Customized wooden case for all-round protection
Company Profile
About HVR MAG
HVR Magnetics Co., Ltd is a high-tech enterprise that mainly researches and develops electro permanent lifting magnet, magnetics quick mold change system and electro permanent magnetic chuck .We have built stable cooperation with some famous companies as ABB, BOSCH, HITACHI, FUJISTU, FOXCONN and SUMITOMO.
Professional
30 Engineers, 20 years of working experience.
6 Invention patens.30 utility model patents. 2 appearance 38 patents.
Quality
High quality with input material inspection and final inspection.
Certification
CE&ISO 9001;:2015
TUV CE certification
Guarantee
Standard 12 months quality guarantee
Global Ping An Insurance for your working operator
Production

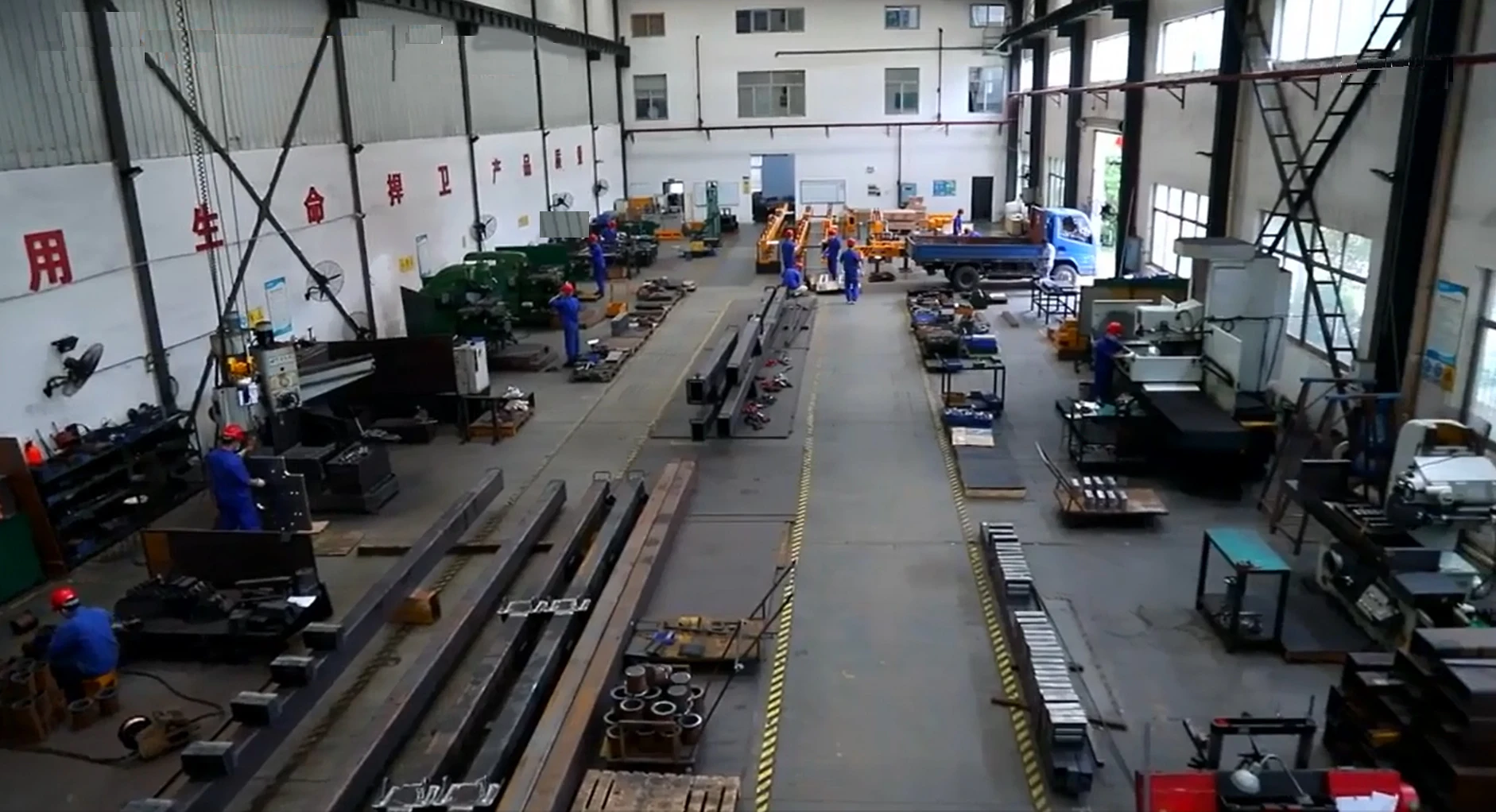

Modern factory with high production capacity
Service
On-site installation and online technical support are available
HVR Magnetics Co., Ltd is a high-tech enterprise that mainly researches and develops electro permanent lifting magnet, magnetics quick mold change system and electro permanent magnetic chuck .We have built stable cooperation with some famous companies as ABB, BOSCH, HITACHI, FUJISTU, FOXCONN and SUMITOMO.
HVR MAG designs and manufactures electro permanent lifting magnets for a wide range of applications. Our heavy duty lifting mangnets are designed for applications such as steel plate handling, coils, strips, profiles, piples, Billets, round bar, rail and more. These magnets are commonly used in steel structure shipyard. Metal cutting workshops. Warehouses , foundries, coil and pipe distributors, and other users of applicable steel products.
Professional
30 Engineers, 20 years of working experience.
6 Invention patens.30 utility model patents. 2 appearance 38 patents.
Quality
High quality with input material inspection and final inspection.
Certification
CE&ISO 9001;:2015
TUV CE certification
Guarantee
Standard 12 months quality guarantee
Global Ping An Insurance for your working operator
Production
Modern factory with high production capacity
Service
On-site installation and online technical support are available
FAQ
Q：HVR is a Factory or Trading company?
A: Zhuzhou HVR Magnetics Co.,Ltd is a professional manufacturer of magnetic products over 10 years, We bring the best clamping solution for robot arm safely handling various parts for machining based on our innovative technology and superior product quality.
Q: How to guarantee the quality of products.
A: 1. Any goods go through strict inspection procedures before they leave the factory.
2. There is a global product liability insurance provided by Pingan of China for our products.
Q: Where is the factory?
A: Building C-3, Gaoke Industrial park, Tianyuan district Zhuzhou,Hunan ,China
Q: How about quotation?
A: Before our exact quotation, we need confirm the usage scenario, Size, Grade, Coating, Magnetization Direction and Quantity , only when the model is confirmed can we give a quotation.
Q: What’s the electro permanent magnet?
A: Electro permanent magnet is a magnet which can be controlled by electricity. It only needs electricity when it is magnetized or demagnetized, and then it can maintain magnetism without electricity. An electropermanent magnet is a combination of a permanent magnet and an electromagnet.
Q: Why should you buy from us not from other suppliers?
A: 1. 31 R&D engineers, 20 years technology accumulation, 29 R&D patents .
2. CE & ISO 9001:2015 standard .
3. Quality controller : 14 years experiences QC technicians.
4. 24 hours online service.
A: Zhuzhou HVR Magnetics Co.,Ltd is a professional manufacturer of magnetic products over 10 years, We bring the best clamping solution for robot arm safely handling various parts for machining based on our innovative technology and superior product quality.
Q: How to guarantee the quality of products.
A: 1. Any goods go through strict inspection procedures before they leave the factory.
2. There is a global product liability insurance provided by Pingan of China for our products.
Q: Where is the factory?
A: Building C-3, Gaoke Industrial park, Tianyuan district Zhuzhou,Hunan ,China
Q: How about quotation?
A: Before our exact quotation, we need confirm the usage scenario, Size, Grade, Coating, Magnetization Direction and Quantity , only when the model is confirmed can we give a quotation.
Q: What’s the electro permanent magnet?
A: Electro permanent magnet is a magnet which can be controlled by electricity. It only needs electricity when it is magnetized or demagnetized, and then it can maintain magnetism without electricity. An electropermanent magnet is a combination of a permanent magnet and an electromagnet.
Q: Why should you buy from us not from other suppliers?
A: 1. 31 R&D engineers, 20 years technology accumulation, 29 R&D patents .
2. CE & ISO 9001:2015 standard .
3. Quality controller : 14 years experiences QC technicians.
4. 24 hours online service.
