Automatic Marble And Granite Tile Chamfering Machine CNC Wire Saw Machine

Product Overview

Description

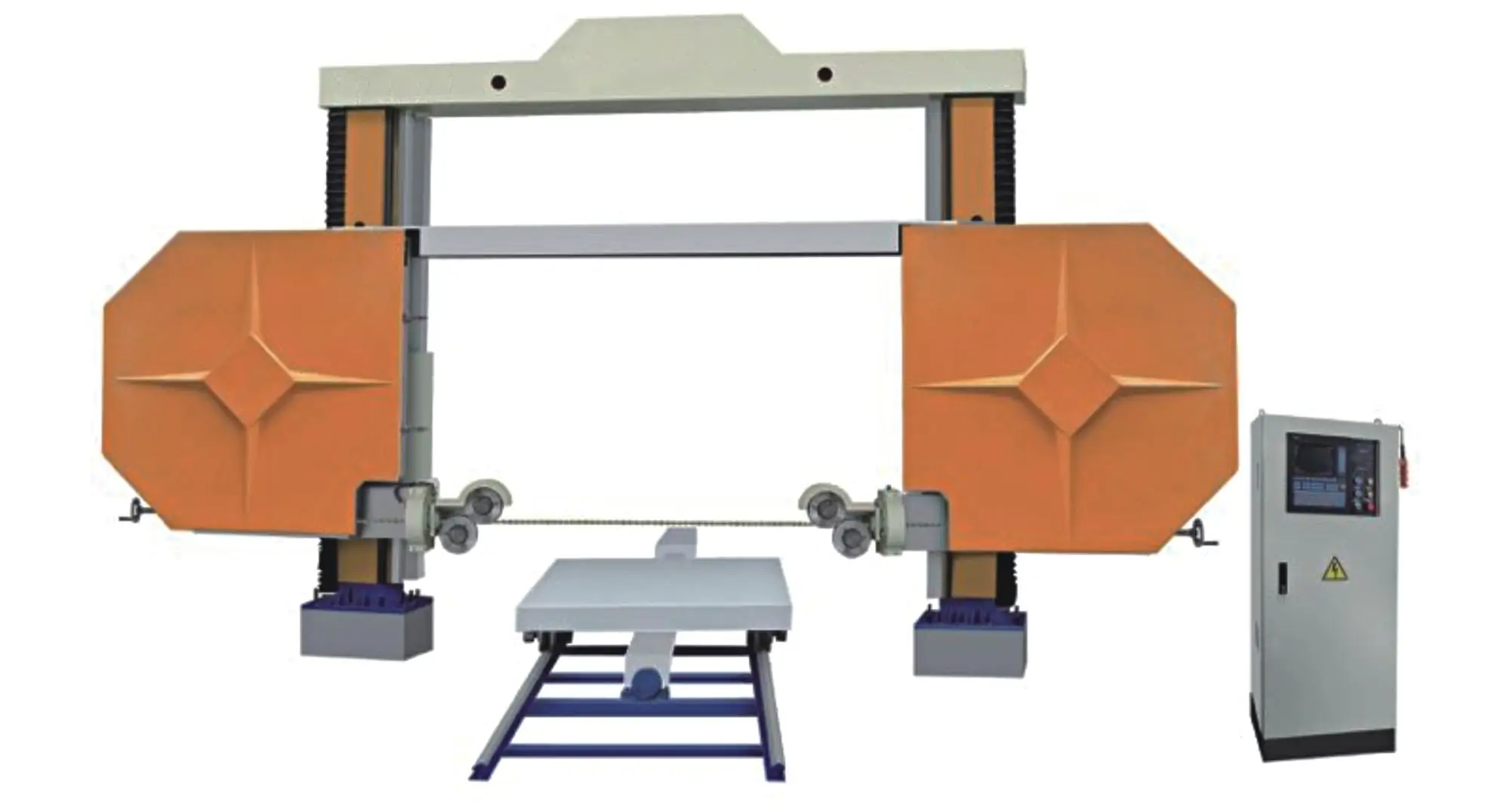

Automatic Marble And Granite Tile Chamfering Machine CNC Wire Saw Machine



This machine adpots computer digital control, four-spindle linkage, stable cutting, has the automatic cycle function of cutting and processing slabs with mobile vertical moving and automatic cutting slab by slab, which is the ideal equipment for mining, automatic cutting and trimming stone.



Technical parameters:

Model		TJXJ-3500B
Max. Processing Size	mm	3500*3500*2100
Dimension Of Worktable	mm	2500*2000
Wire Cutting Speed	m/s	25~30
Main Motor Power	kW	11
Water Consumption	m3/h	4
Overall Dimension	mm	6800*8900*4700
Total Weight	kg	8000



Operating:

1 stone on the worktable should pad steady, do not let the mobile wire saw touch the stone.

2 keep the wire saw be tension, adjust the guide wheel (Note: the guide wheel just touch with the wire.)

3,with the hand button box to adjust wire saw tuned to the cutting part.

4 set the size to be cut in the text

5 put the water in the cutting feed position.

6 Start the automatic cutting, trimming potentiometer, to observe the wire saw and host current.

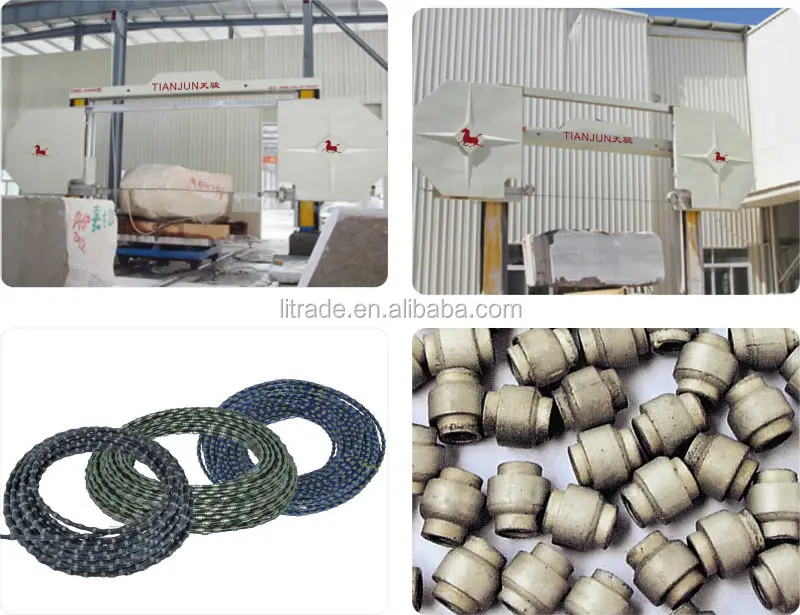

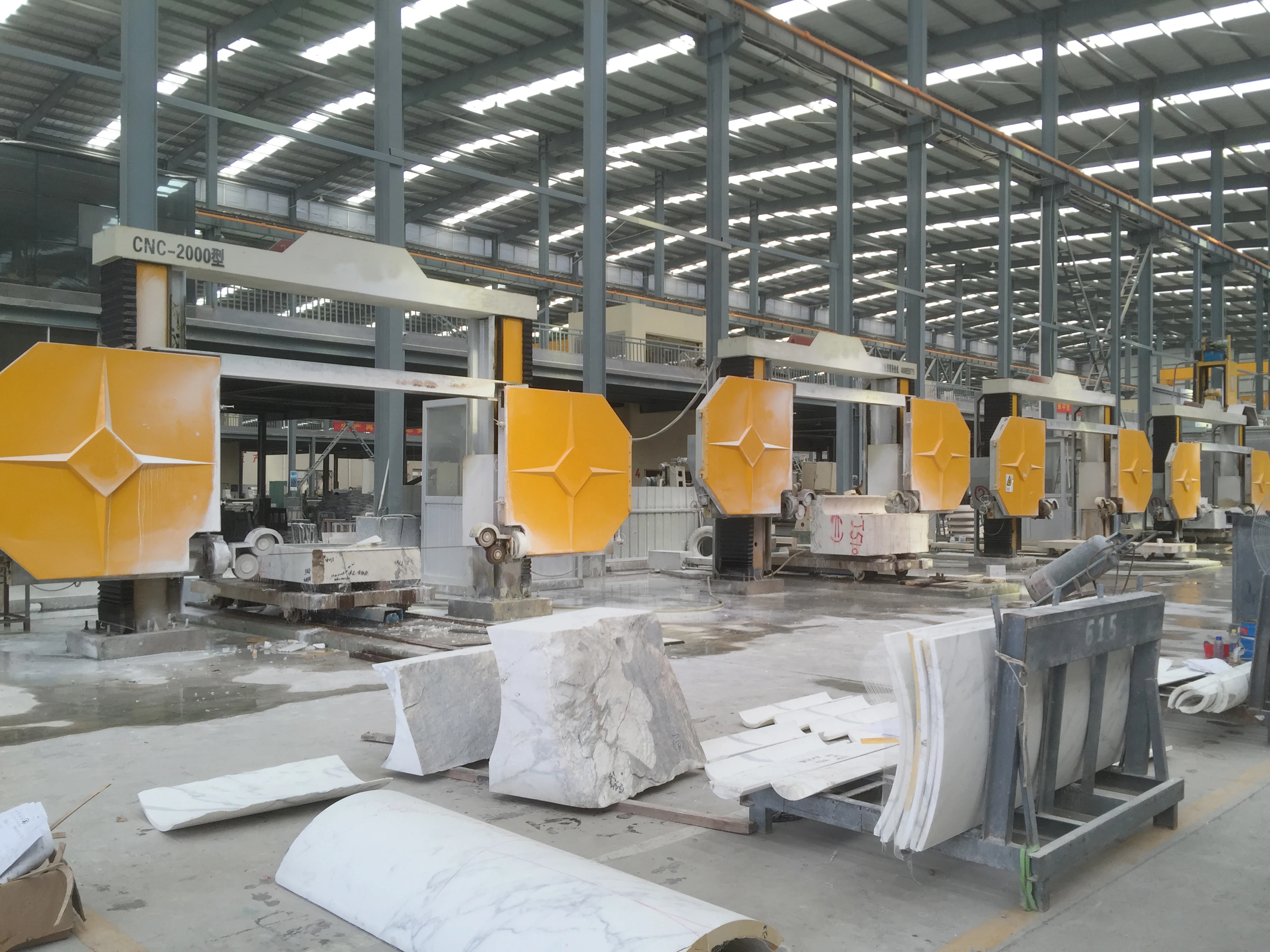

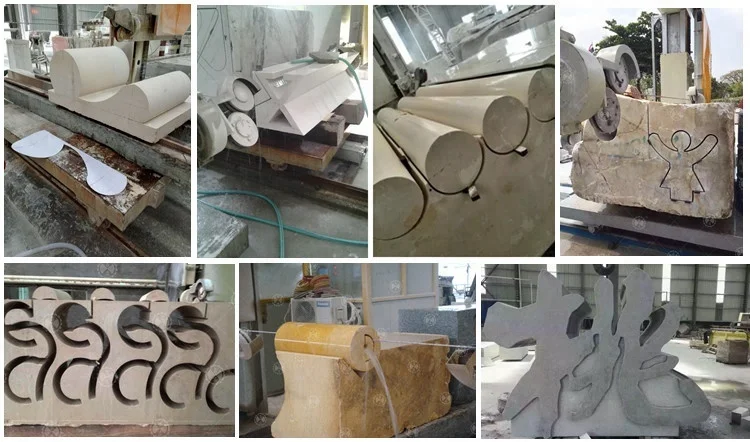

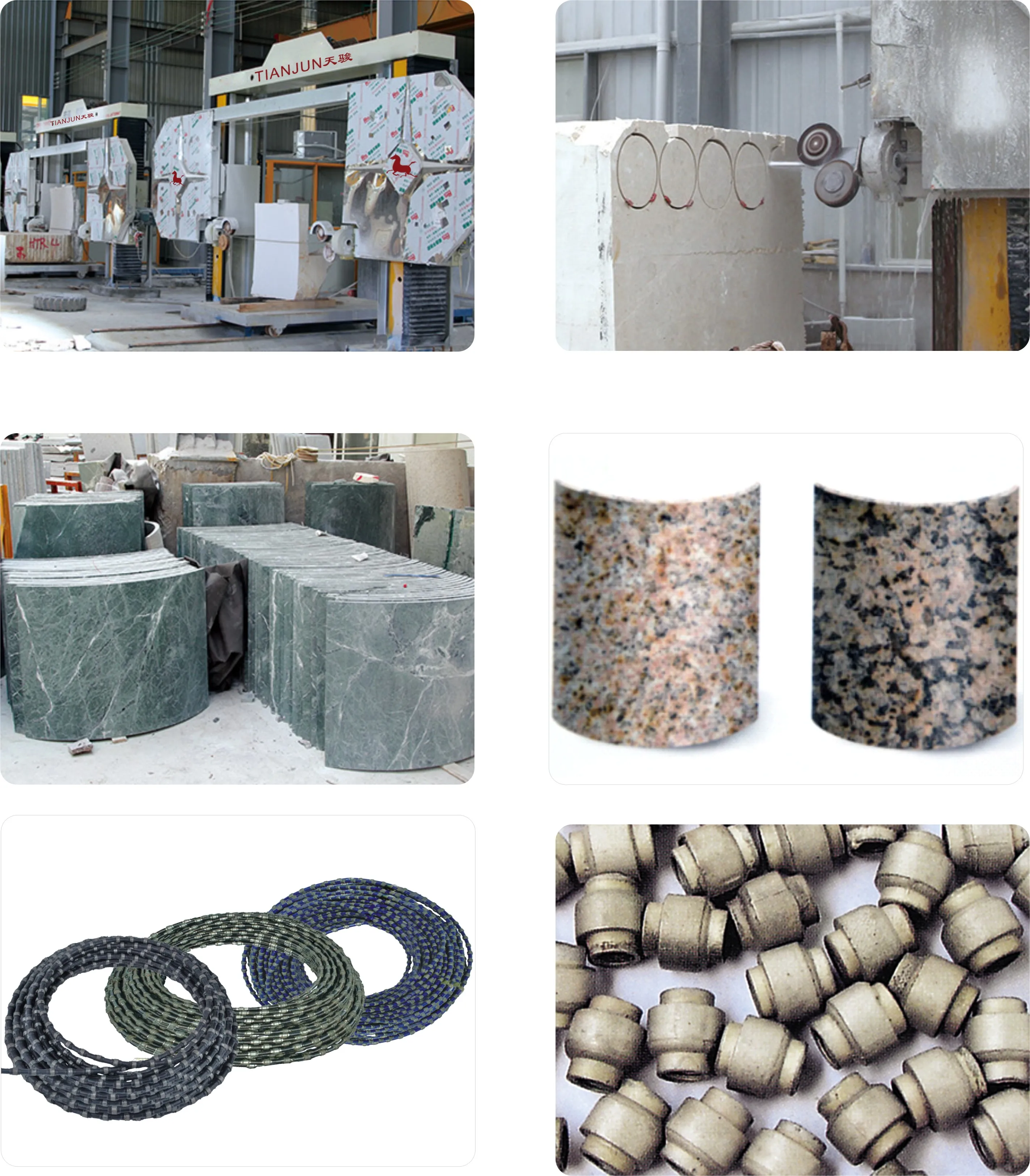

Wire saw machine photos:
