Product Description
Product Application
This machine is designed for making Rat traps on boards with hot melt adhesive.
| Specification: | |
| Board size Min. and Max. | 10" max. width and 4" min. width |
| Coating size | 210mm (Max.) X 100mm (Min.) |
| Max. Machine Speed | 30 Pcs/min @ 28gms per pad |
| Main Motor | 2 KW (VFD adjusted speed) |
| Max Gluing Width | 210 mm |
| Glue Tank Capacity | 30 kg |
| Machine Size | 1000x700x1400mm |
| Power Requirement | 10 Kw, 380V, 50HZ, 3 Phase |

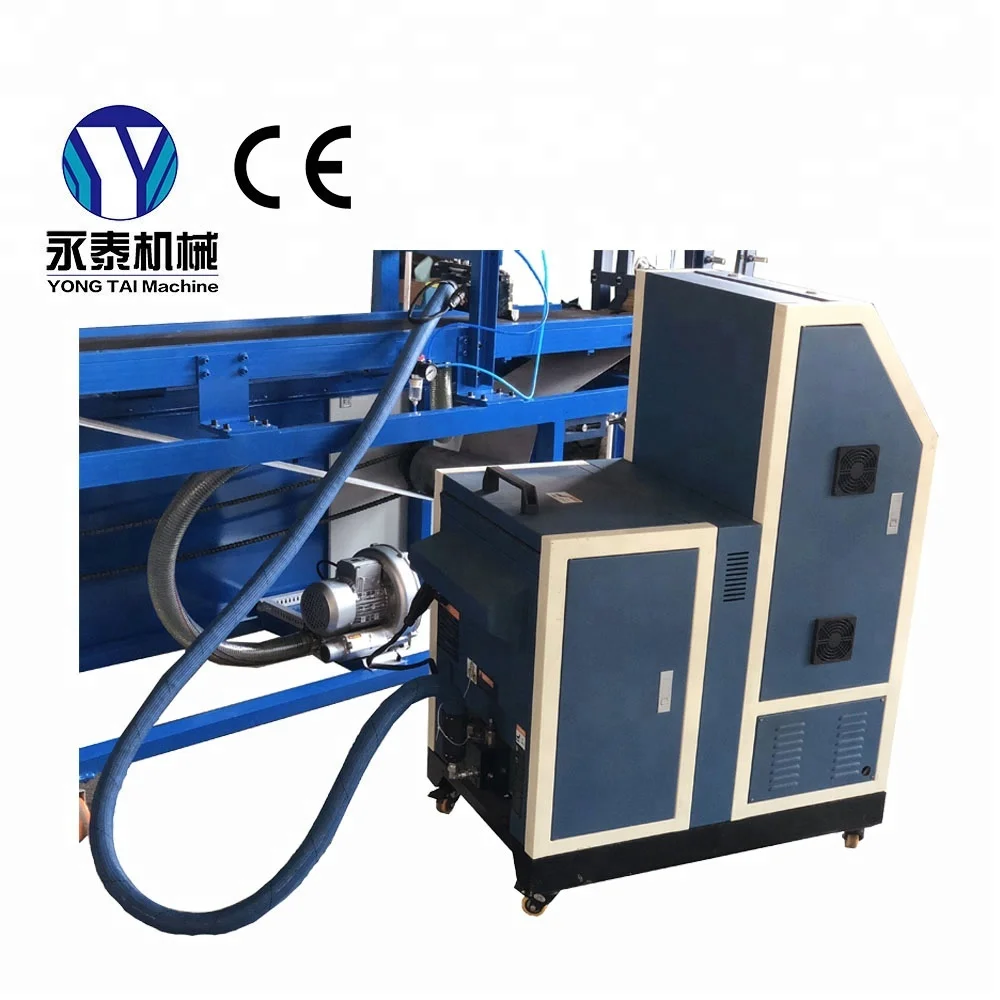

a) Glue melt tank
1. The glue pump speed is controlled by gear motor
2. Temperature of each layer is controlled by PID system independently
3. Max. temperature is 220℃
4. Melt glue speed: 45kg/hr
5. Heating power: app. 6 KW
6. Main Motor:0.4KW
b) Hot Hose
1. A 3m length hot melt hose provided.
2. 220V AC , 900 w power.

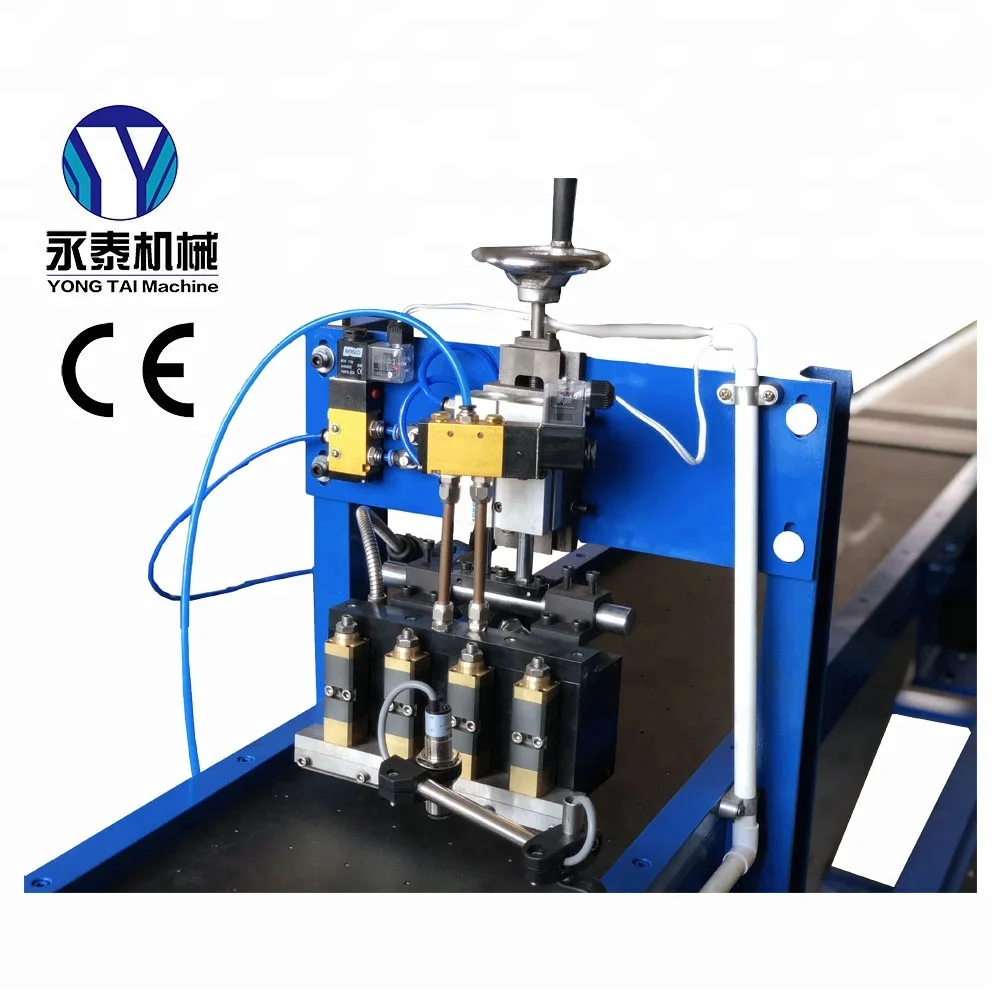

c) Slot die 210mm
1. Coating head: use 3 valves Independent control
2. Mounted on Pneumatic piston for up – down moment
3. Coating width adjustment with shimps insert
4. Levelling in transfers direction to conveyor is provided.
d) Auto Feeder
1. An automatic system for feeding one board at a time is provided.
2. An adjustable edge guiding scale provided for change in size.
3. A PVC belt conveyer belt provided for carrying the board.
e) Transmission part
1. Main motor: 2 KW 1 set
2. Negative pressure fan power: 1.1KW 1 set
3. Main machine driven by use of belt, chain and gear to transmit.
f) Pneumatic control part
1. Cylinder on slot die, feeding and stopping with head: diameter 50mm for each
2. Suitable solenoid valves, flow control and connectors.

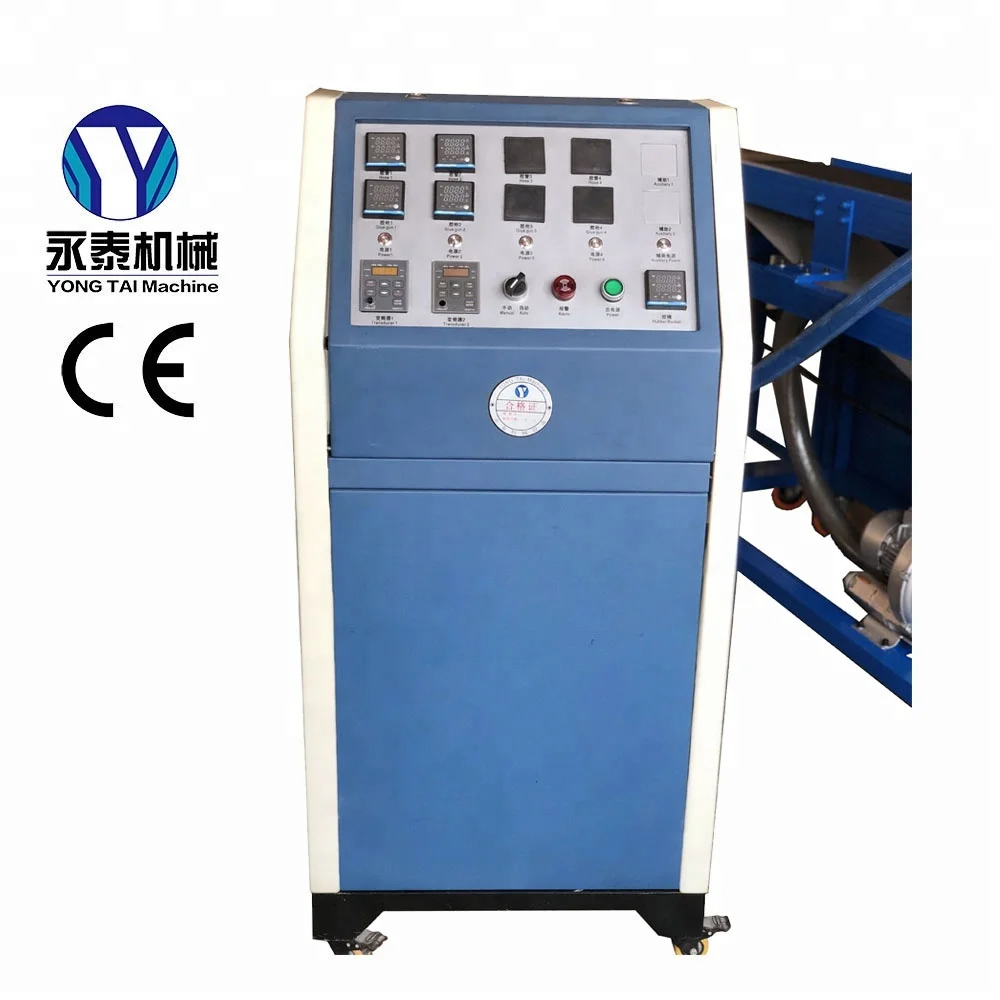

g) Electric part
1. Main machine VFD: 2 KW; 1 piece
2. Glue tank VFD: 1 KW; 1 piece
3. Temperature controller: digital PID
4. Heaters: 8KW
5. Touch screen: 10" 1set
6. PLC: 1 set
Certifications
Detailed Images
Machine Parts
Name:YT-LS210
Brand: YONGTAI MACHINE
Original: Fujian,China
Main Features
Name:YT-M20P2
Brand: YONGTAI MACHINE
Original: Fujian,China
Machine Parts
Name: YT-M30P2
Brand: YONGTAI MACHINE
Original:Fujian,China
Main Features

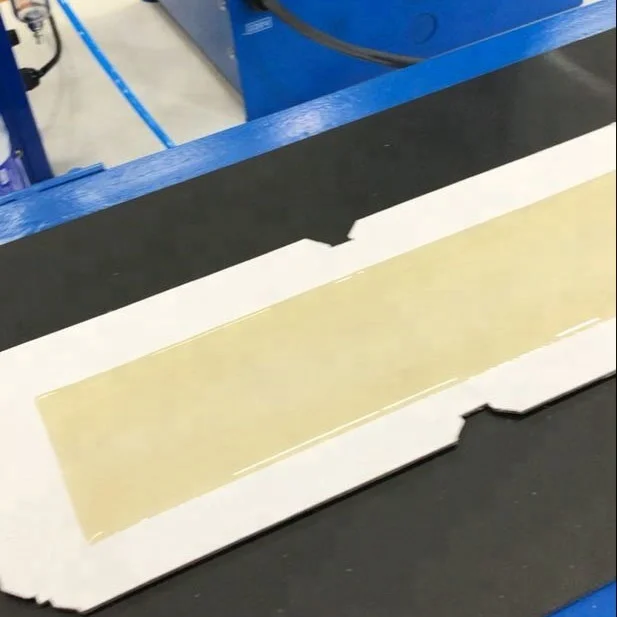

Name: Rats trap board
Brand: YONGTAI MACHINE
Original: Fujian,China
