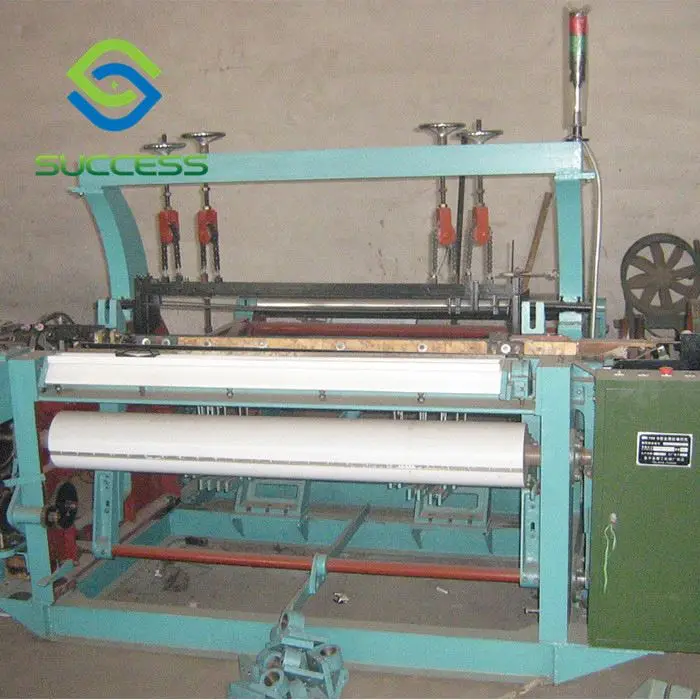

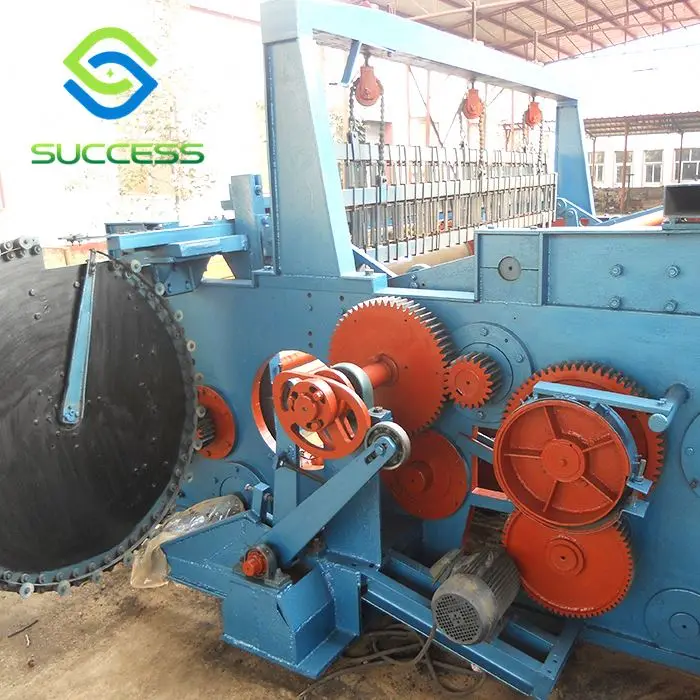

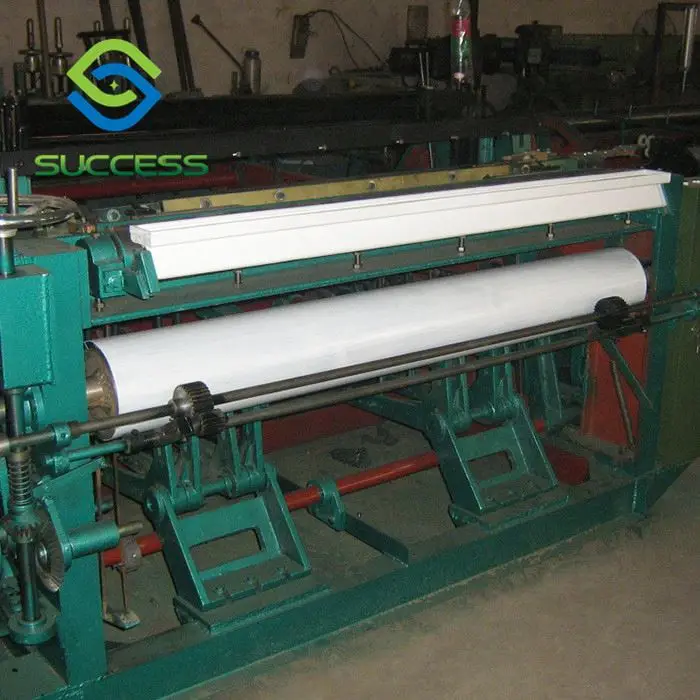

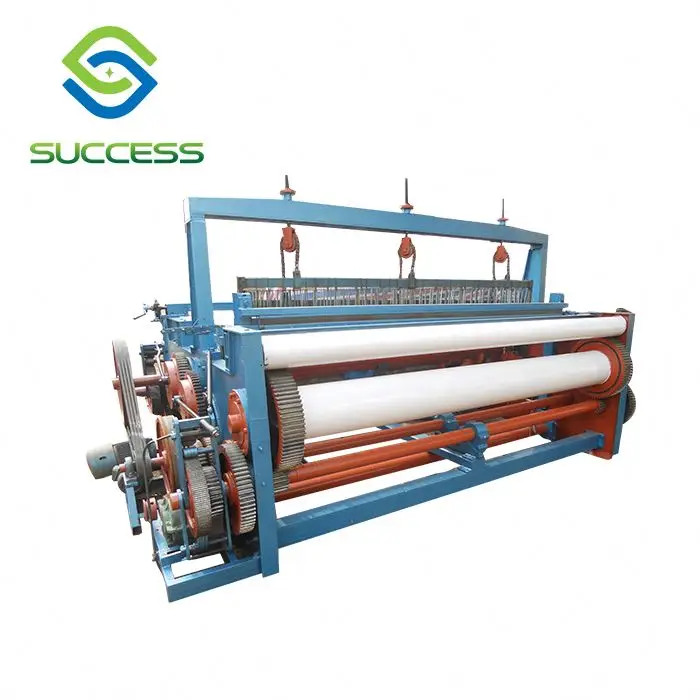

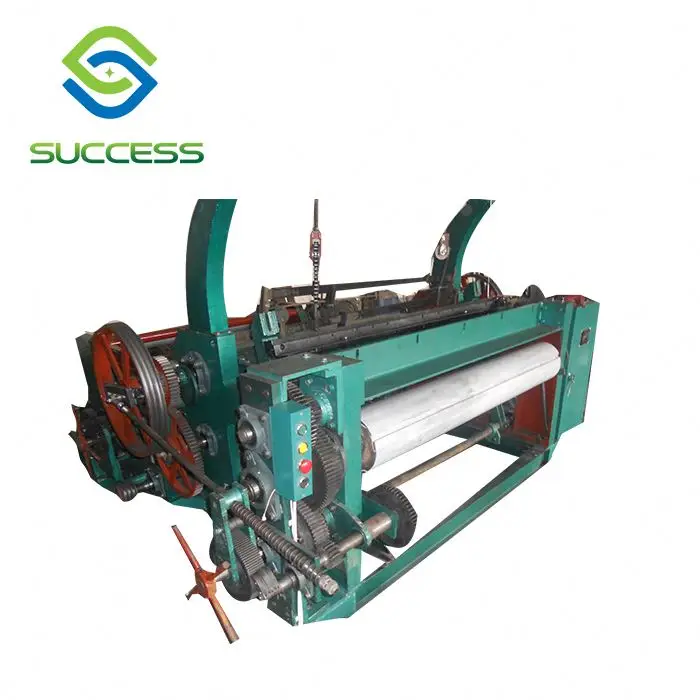

Metal Wire Mesh Weaving Shuttleless Rapier Loom Machine
- Category: Wire Mesh Making Machines >>>
- Supplier: Anping Success Wire Mesh Equipment Co. Ltd.
Share on (60797316467):
Product Overview
Description
Metal Wire Mesh Weaving Shuttleless Rapier Loom Machine
Heavy Duty Shuttleless Weaving Machine
Model | Width | Opening density | Wire diameter(mm) | Rotating speed of crank shaft (r/minute) | Motor power(KW) |
ZWJ1300 | 1300MM | 2-20mesh | 0.2-1.0 | 60-65 | 4 |
ZWJ1600 | 1600MM | 2-20 | 0.2-1.0 | 55-60 | 5.5 |
ZWJ2000 | 2000MM | 2-20 | 0.2-1.0 | 35-40 | 5.5 |
Shuttle Weaving Machine
Specifications | Weaving Breadth | Knitting Density | Weaving Wire Diameter | Weft Insertion Method | Heald Frame Quantity | Crankshaft Speed |
ZWJ-1300Z | 1300(1350) | 2-80 Mesh Customization | ≤0.8 | Metal Shuttle | 2 | 40 |
NWJ-1600Z | 1600(1650) | 2-80 Mesh Customization | ≤0.6 | Metal Shuttle | 2 | 30-35 |
NWJ-2000Z | 2000(2050) | 2-80 Mesh Customization | ≤1 | Metal Shuttle | 2 | 28-30 |
NWJ-2600Z | 2600(2700) | 2-80 Mesh Customization | ≤0.6 | Metal Shuttle | 2 | 28-30 |
NWJ-2600TW | 2600(2700) | 10-80 Mesh | ≤0.6 | Metal Shuttle | 2 Heald or Dobby | 28-30 |
NWJ-3000TW | 3000(3100) | 10-80 Mesh | ≤0.6 | Metal Shuttle | 2 Heald or Dobby | 28-30 |
Item | Type | Parameters |
Maximum Screen Width | ZWJ-1300A | 1300 |
ZWJ-1300B | ||
ZWJ-1300C | ||
ZWJ-1600Q | 1600 | |
| ZWJ-1300A | 40 ~400 Square opening screen Square Hole Mesh |
ZWJ-1300B | ||
ZWJ-1600Q | ||
ZWJ-1300C |
| |
Rotating Speed OF crank Shaft | ZWJ-1300A | 65 ~ 90 Stepless Variable Speed |
ZWJ-1300B | ||
ZWJ-1300C | 60 | |
ZWJ-1600Q | ||
| ZWJ-1300A |
|
ZWJ-1300B | ||
ZWJ-1300C | ||
ZWJ-1600Q | ||
Total machine weight (kg) | ZWJ-1300A | 2700 |
ZWJ-1300B | 2800 | |
ZWJ-1300C | 3000 | |
ZWJ-1600Q | 3200 | |
Dimensions of machine(mm) | ZWJ-1300A | 2600 × 2800 × 1200 |
ZWJ-1300B | ||
ZWJ-1300C | 2700 × 2800 × 1260 | |
ZWJ-1600Q | 2630 × 3200 × 1360 |
1. High adaptability to metal wire: Apply to imported and domestic metal wires
2. Large adjusting range: Weave 14-400 mesh square hole mesh or 2600 mesh special mesh with various lines, such as plain weave, twilled weave, satin weave, taper contrast thick mesh weaving, superior to other models
3. It adopts shuttleless straight line weft insertion weaving and mechanical automatic let-off and take-up, has small opening amount and smooth wire side, can weave microgroove mesh without bright spot or bright channel and produce high-grade screen mesh, and conforms to national standard.
4. Low center of gravity, good stability, low noise, less energy consumption, high efficiency
5. Reasonable design, simple structure, convenient operation, easy regulation and repair
