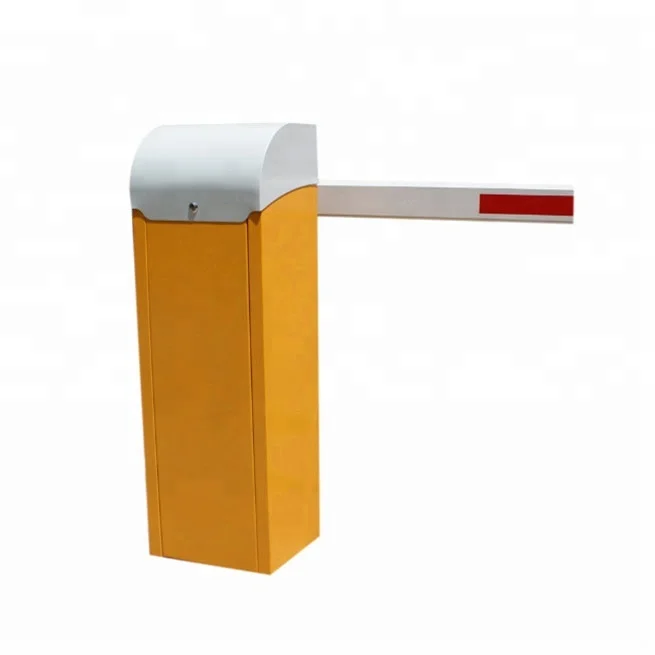

Road Safety Barrier Boom Barrier Gate Car Park Barrier for Access Control System

Product Overview

Description

Road Safety Barrier Boom Barrier Gate Car Park Barrier for Parking Lots

 IBG-109 Road Safety Barrier Boom Barrier Gate Highlights



• Machine core with strong and double springs, make the machine core works more steadily.
• The high and low-temperature operation is more adaptable, up to minus -35℃to 85℃
• Die-casting aluminum alloy motor, precise and good at thermal radiation.
• RS485 Communication module (optional)
• Crank and rod structure makes the boom run placidly

IBG-109 Road Safety Barrier Boom Barrier Gate  Function&Feature

• Double safety limit switches(photo electricity limit switch and motor memory sensor)
• The left and right directions can be flexibly exchanged, no longer worrying about on-site construction and ordering inventory.

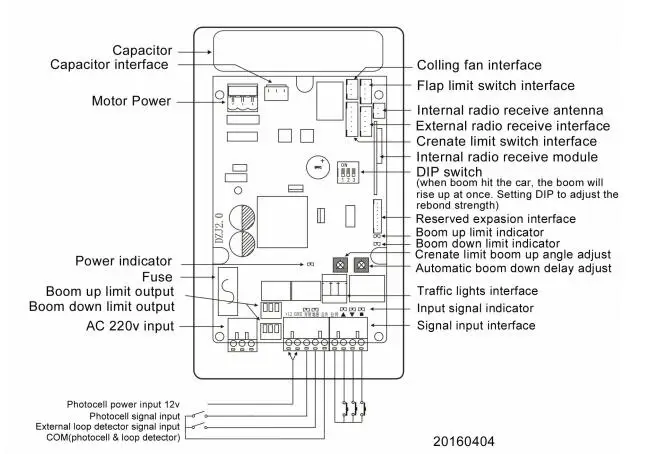

• More powerful supply control system, with function setting such as lever angle, time delay, and running seconds.
• Traffic light interface (AC220V, can support lamp with 40w)
• Support the infrared photocell for anti-bumping function (optional)
• Support external and internal vehicle loop detection (optional)

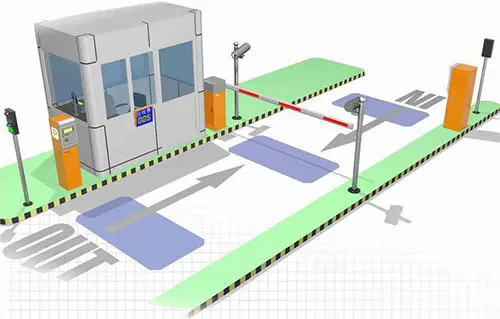

Application

• Parking lots.
• Toll gates.
• Goods yards.
• Railway crossings.
• Commercial premises.
• Apartment block access.



Technical Parameter



	108-11	108-13	108-16	108-23	108-26	108-33	108-36	108-46	108-56
Running time	1.5 sec	3 sec	6 sec	3 sec	6 sec	3 sec	6 sec	6 sec	6 sec
Boom type	straight			90°folding		180 folding		2 fencing	3 fencing
Max Boom length	3m	4.5m	6m	3	5	3	5	4.5	4
Boom demension	45x80mm	45x100mm
Boom Weight	3kg	4.5kg	6kg	6.5kg	8kg	9kg	11kg	7kg	7.5kg
Voltage	220V / 110V
Frequency	50 / 60 HZ
Motor voltage	220V
Power	80W
Working temperature	-35℃~ +60℃
Protection grade	IP44
