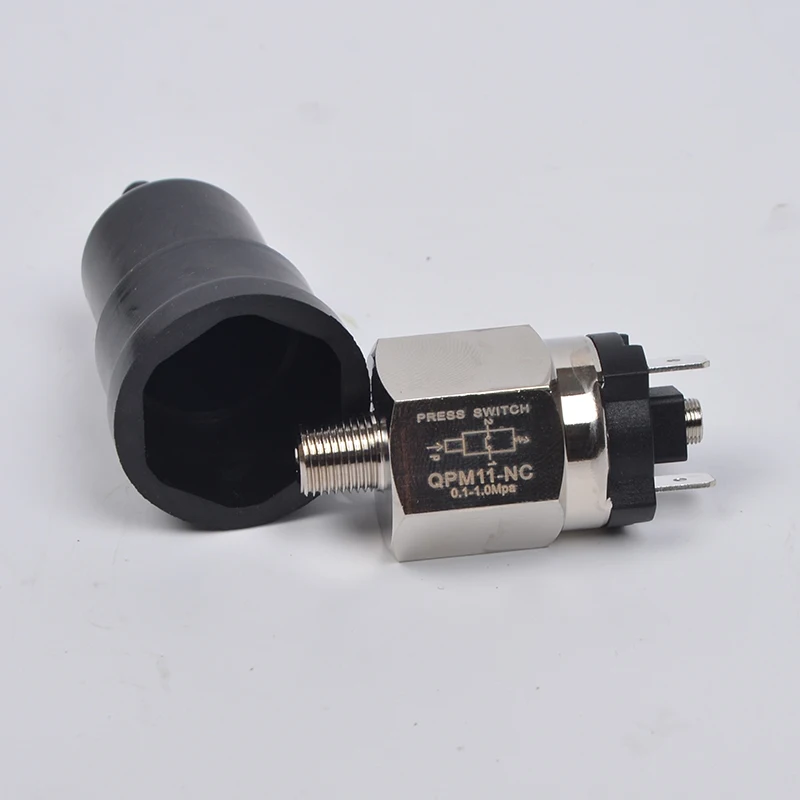

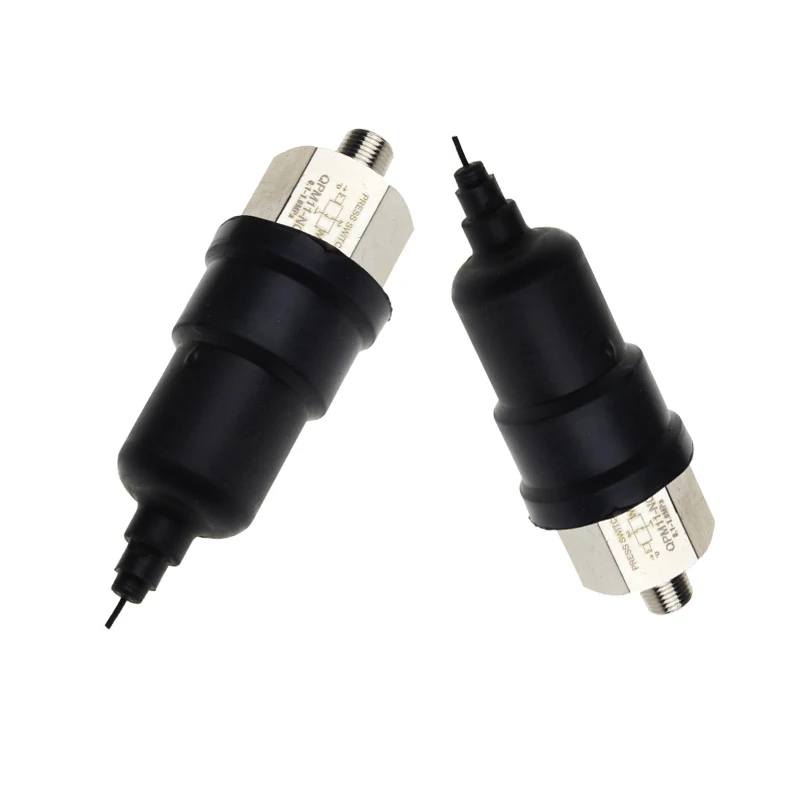

QPM11 NC 1/8 external thread normally close air pressure control switch

 Model:1/8'' adjustable pressure control switch QPM11-NC
Use medium: air
Working Form: Pressure Adjustable
Installation Connection: external thread
Pressure range: 0.1-1.0 MPA (1-10bar)
Work tempertature range: -5-60 degree
Connection: 1/8'' and 1/4" thread,
Work voltage: 220V/AC,110V/AC,24V/DC,12V/DC
Maximum power: 24VA, 100VA
Insulation voltage: 500V, 1500V
Rated working current: 500mA
Max pulse count: 200T/min
Service life: 100 millions cycles
Protection class: IP54

NC: normal closed, when air pressure up to a control level, the circuit break.

NO: normal open, when air pressure up to a control level, the circuit connect,
