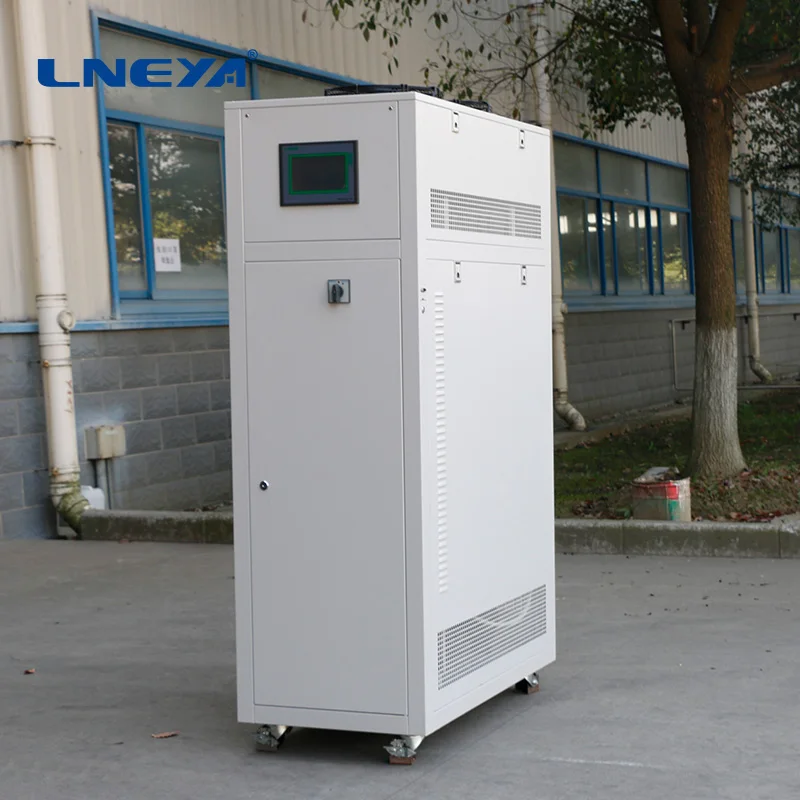

Lab Heating Cooling Low Temperature Hot Circulator Recirculating Chiller

Share on (60798661173):


Price:

Quantity:


Product Overview

Description


Lab Heating Cooling Low Temperature Hot Circulator Recirculating Chiller



Product Description




Main product parameters of refrigerated heating circulator:


We support customization services, pls consult us for details.







































































































ModelHR-25NHR-35NHR-50NHR-70NHR-100NHR-150NHR-250N
Temperature Range-25ºC~200ºC
Temp. Accuracy±0.5ºC
Heating Power2.5kW3.5kW5.5kW7kW10kW15kW25kW
Cooling Capacity200ºC2.5kW3.5kW5.5kW7kW10kW15kW25kW
100ºC2.5kW3.5kW5.5kW7kW10kW15kW25kW
20ºC2.5kW3.5kW5.5kW7kW10kW15kW25kW
-5ºC2kW3kW4.5kW6.6kW8kW12kW19kW
-20ºC1kW1.8kW2.8kW3.8kW4.6kW7kW12kW
PowerAC 220V 50HZAC 380V 50HZAC 380V 50HZAC 380V 50HZAC 380V 50HZAC 380V 50HZAC 380V 50HZ
4kW5.5kW (max)7.5kW (max)10kW (max)14kW (max)21kW (max)35kW (max)









































































































ModelHRT-25NHRT-35NHRT-50NHRT-70NHRT-100NHRT-150N
Temperature Range-45ºC~250ºC
Temp. Accuracy±0.5ºC
Heating Power2.5KW3.5KW5.5KW7.5KW10KW15KW
Cooling Capacity250ºC2KW3.5KW5.5KW7.5KW10KW15KW
100ºC2KW3.5KW5KW7KW10KW15KW
20ºC2KW3.5KW5KW7KW10KW15KW
0ºC1.8KW3KW5KW7KW10KW15KW
-20ºC0.85KW1.5KW2.8KW4.2KW6KW11KW
-40ºC0.25KW0.45KW0.9W1.5KW2KW3.75KW
PowerAC 220VAC 380VAC 380VAC 380VAC 380VAC 380V
4.5kW5.5kW9kW9kW16kW23kW


Main component parameters:

























































EvaporatorPlate heat exchanger

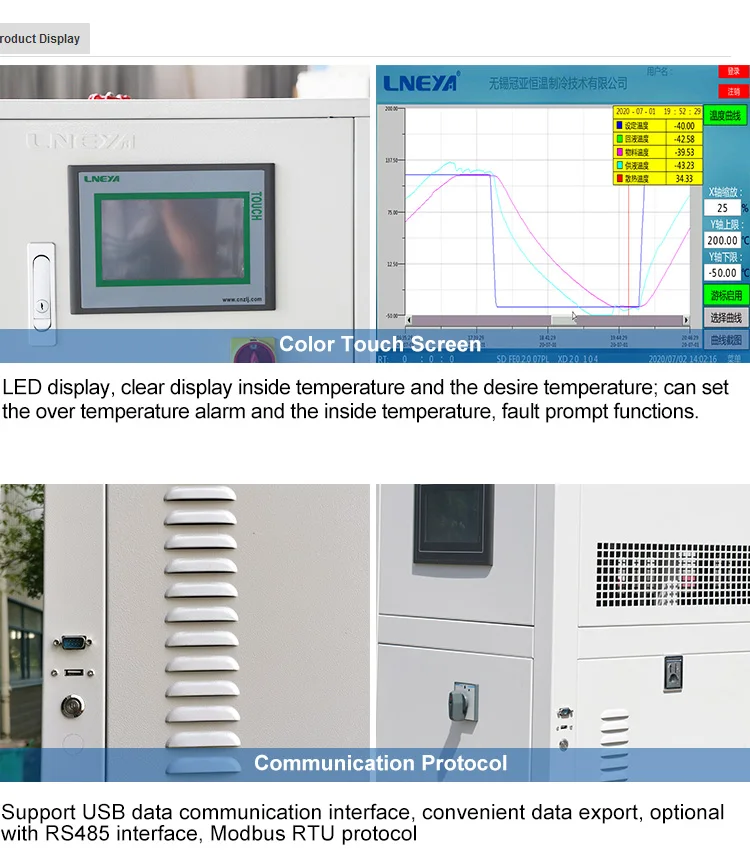

Operation panelDisplay setting temperature and testing temperature; Touch key display

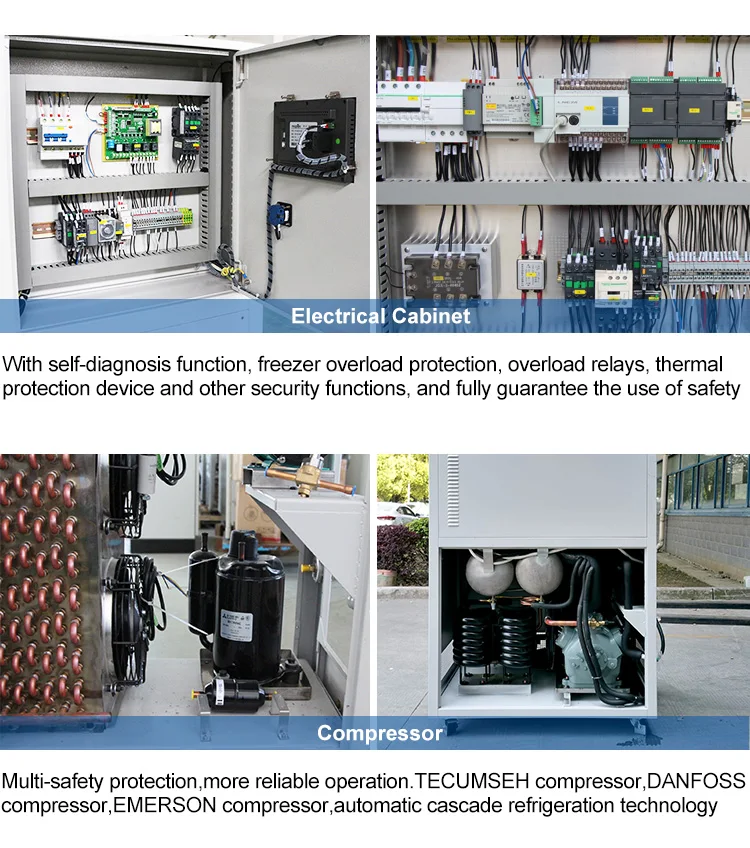

Safety protection

Self-diagnosis function; freezer overload protection; high pressure switch, overload relay,


thermal protection device, liquid low level protection, high temperature protection and temperature fault protection.


Closed circulation system

The whole system is full closed circulation, there is no oil mist at high temperature and no water vapor at low temperature,


pressure do not rise up when system is running. The system will supplement oil automatically at low temperature.


RefrigerantR-404A
Connection sizeDN-15
Connection size (air-cooled)35*56*80~125*100*205
Weight (air-cooled)125KG~360KG
Power

220V 50HZ OR 380V 50HZ


Case materialCold rolled steel
OptionalOptional 7-inch color touch screen controller, temperature curve record, data export to excel format.
OptionalSUS304 case material
Optional power220V 60HZ three-phase, 440V~480V 60HZ three-phase



Package &delivery


_13








Company Information


_05



Wuxi Guanya Refrigeration Technology Co., Ltd. specialized in the industrial chiller, environmental chamber, industrial freezer, thermostatic bath, multi-reactor chiller (TCU), recirculating air control system and ultra-low temp. water-cooled chiller.We are the technology leader for high precision thermoregulation solutions in research and development industry. Our products ensure precise temperature control throughout the whole world in the semiconductor industry, chemical/pharmaceutical industry, biotechnology industry, research/lab/university, food/medical/hospital(health)and laptop/Mobile Phone. Our products offer temperature control solutions for applications from -152 to +350℃.





Certificate


_07





As an enterprise certified by ISO9001, LNEYA has reached international standards in the integration of various management systems.


The products of LNEYA, CE is used as a permit for the product to enter the European market.


So far, LNEYA has 11 patents of utility model authorized certificate.
