Clean-In-Place (CIP) systems are automated systems used to clean the interior surfaces of food and beverage process pipes, processing vessels, tanks, spiral freezers, mixers, blenders, homogenizers, roasters and associated fittings, without disassembling the process. Thorough, repeatable in-place cleaning is critical to the quality of your product, the safety of consumers-and your bottom line.
Tiantai designed CIP Systems are engineered to your specific plant application, layout and utility requirements for effective and efficient sanitary process equipment cleaning. Our application-specific CIP design and sizing ensures sufficient flow. As a result, appropriate pressure is available to thoroughly remove residue, rinse effectively, shorten cycle times and promote worker safety.
Specifications
Capacity
100L
Design
Caustic tank and Sterilization Tank
Heating
Electric
Control
Pump On/Off, Temperature Control, Heating On/Off
Configurations
Caustic Tank
Function:Caustic liquid heating and mixing Tank Capacity: As demands Dimension: Design as capacity Interior Shell: SUS304 full welded; TH=2mm Exterior Shell:SUS304 full welded; TH=2mm Exterior Finish: Oil brushed finish Interior full polished to 0.2~0.4 μm without dead corner Double wall with rockwool insulation TH=80mm Heating: Steam (Electric for optional) Steam Jacket: Dimple plate on bottom and side Cone top and bottom Top mounted stainless steel manhole Thermole meter on side wall
Sterilization Tank
Function: Sterile water store Tank Capacity: As demands Dimension: Design as capacity Shell: SUS304 full welded; TH=2mm Exterior Finish: Oil brushed finish Interior full polished to 0.2~0.4 μm without dead corner Single wall without insulation Cone top and bottom Top mounted stainless steel manhole
Liquid Transfer
Portable cart with wheels and handle 2pcs centrifugal Pump: 5M3/Hr; 1.5kw Electromagnetic starter for pump on/off Hard pipings: Sanitary SUS304; Self-draining Every weld to a smooth sanitary finish Complete circulation piping and fitting
CIP Controling Cabinet
Function: CIP controling Cabinet Material: Anti-power Plastic painting Assembling Style: Wall mounted Type Electrical Components: World wide brand CE certificated CIP pump on/off Temperature Auto/Manu heating Control Auto on/off Timer for heating VFD control for CIP pump for special request

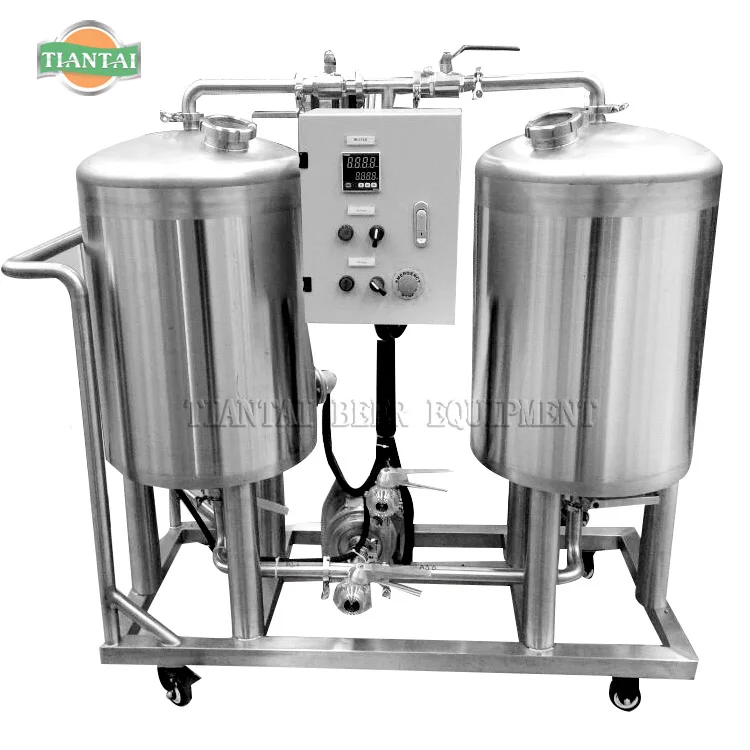

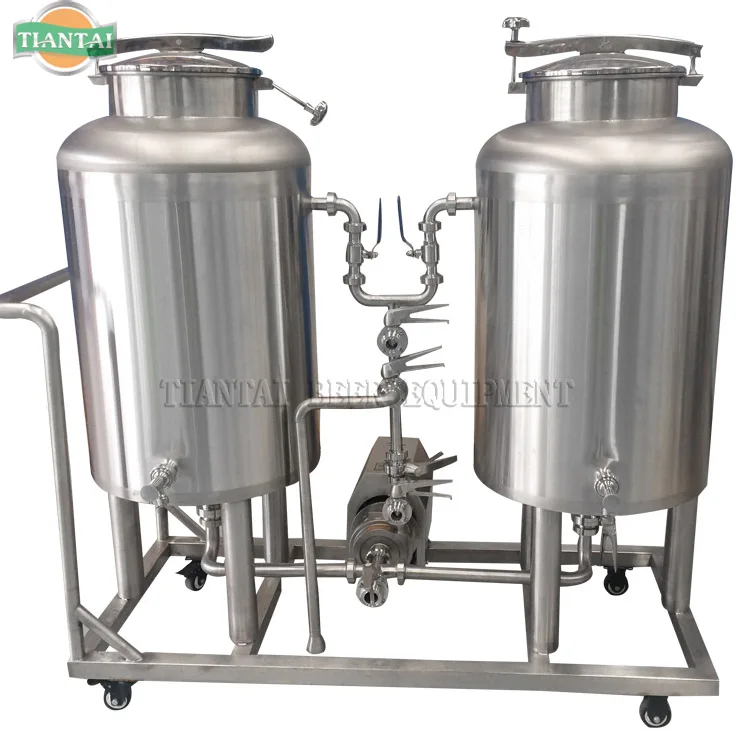

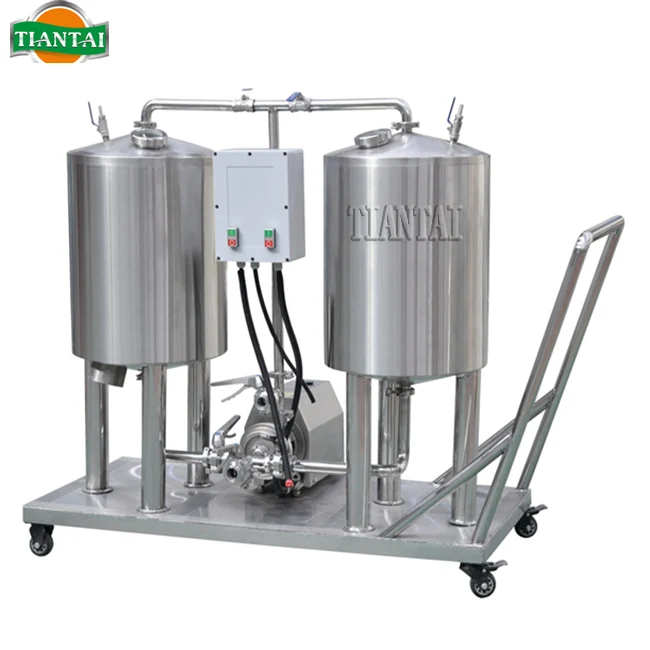

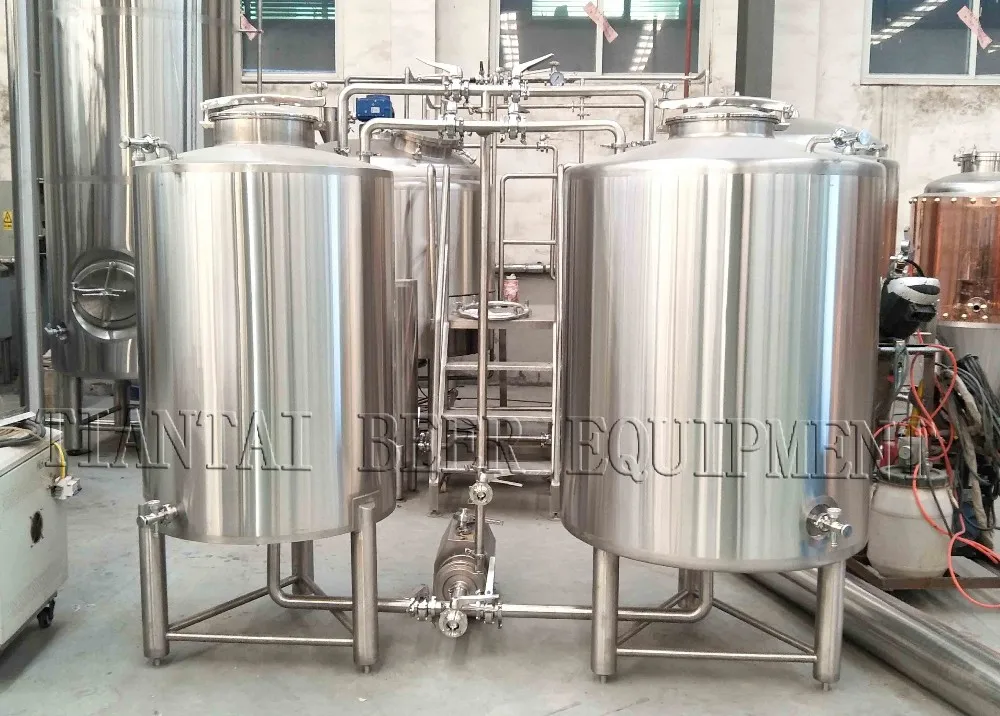

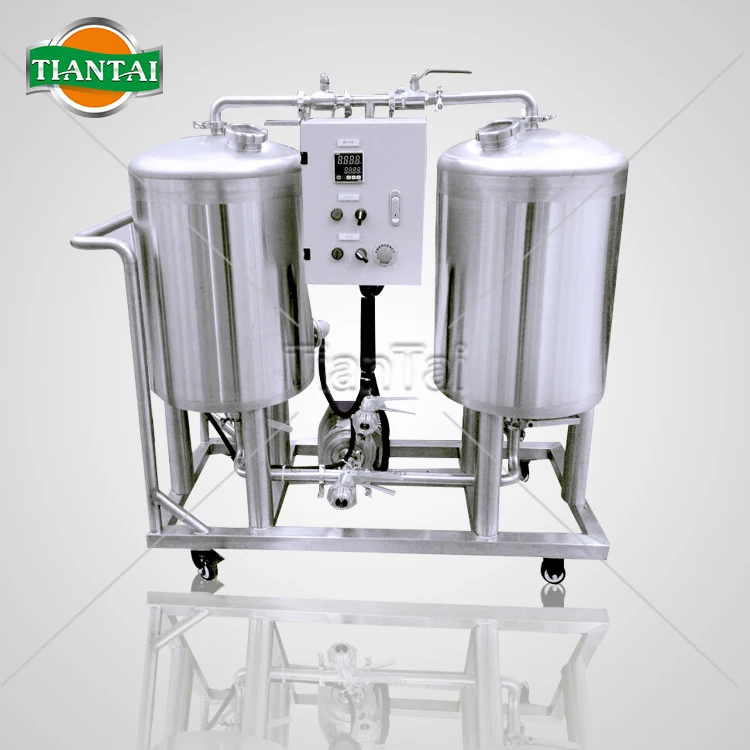

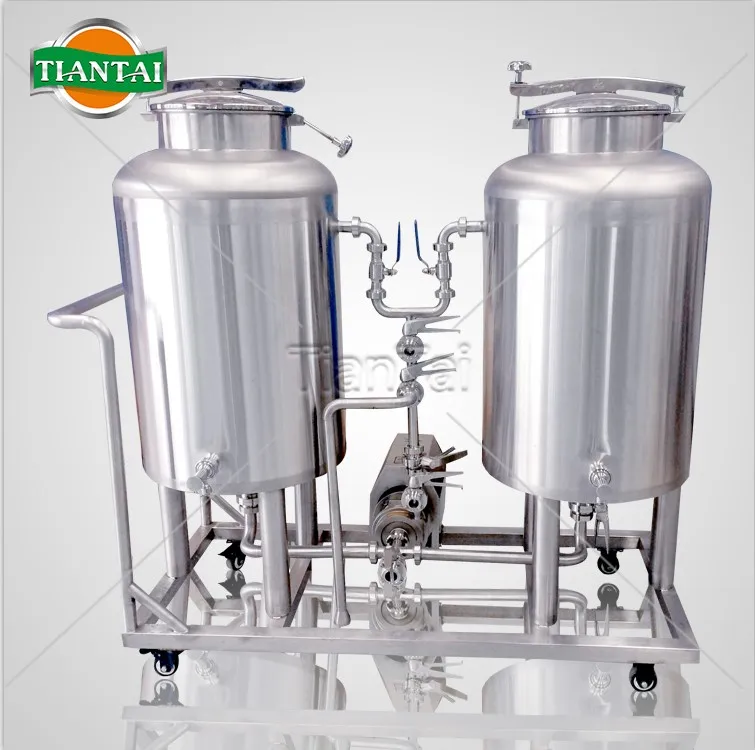

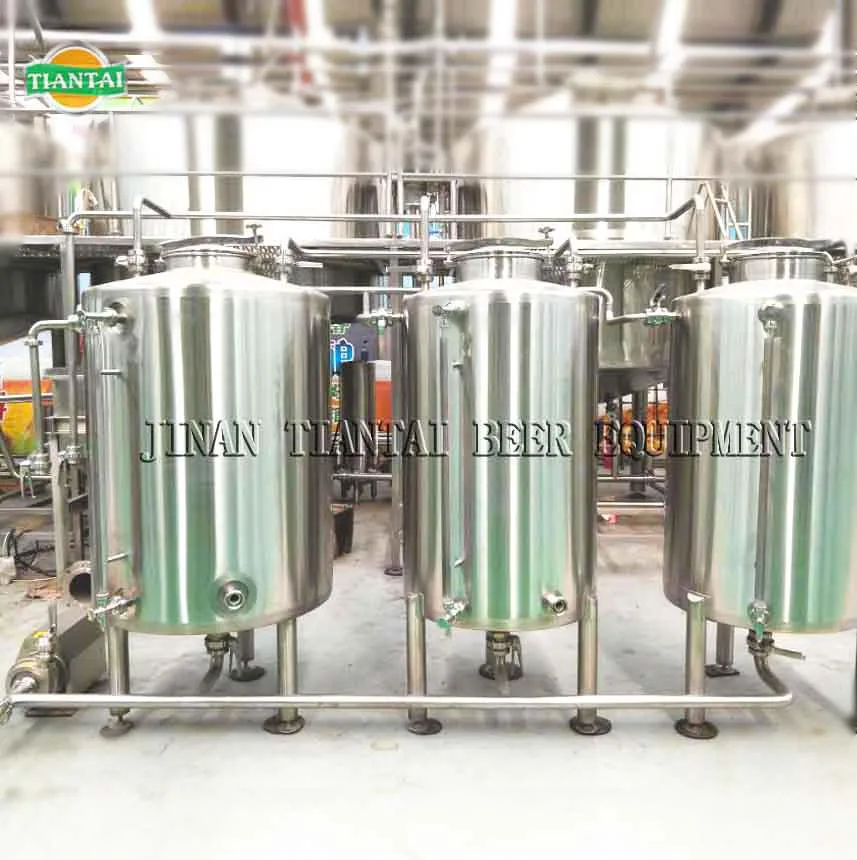

Products Show
Our Service
Service&Guarantee a.) Free consultation service before, during, and after sales; b.) Project planning and design services; c.) Free debugging instruction of equipment until everything is functional; d.) Management of equipments' long distance shipping from seller's factory to named port or station by buyer; e.) Training of equipment maintenance and operating personally; f.) New production techniques; g.) Provide 36 months complete warrantee for tanks body and life-time maintenance service; All of the accessories and auxuliaries facilities are guaranteed for one year; The seller is responsible for the nature damage of the machinery in the warranty period except for man-made damage. All spare parts and wearing parts are attached with the machinery for free.
