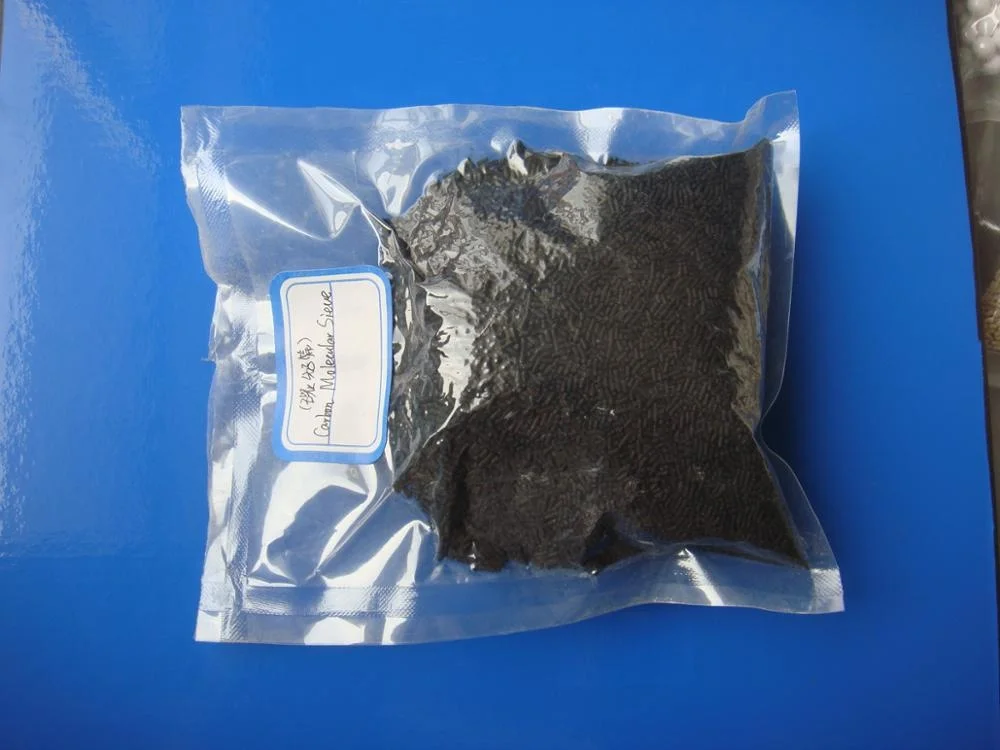

99.999% N2 purity cylindrical zeolite 1.3mm 1.6mm CMS 260 280 adsorbent carbon molecular sieve for nitrogen generator

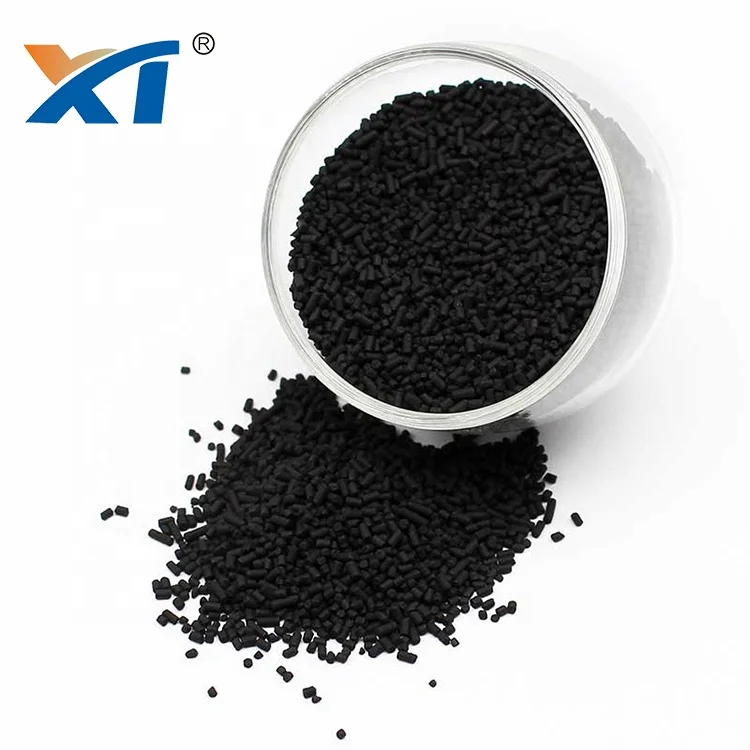

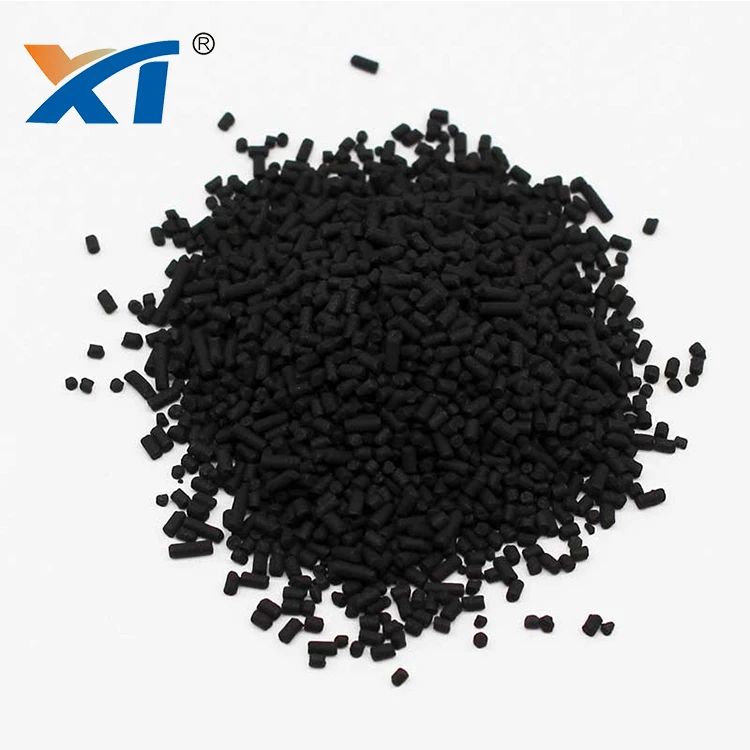

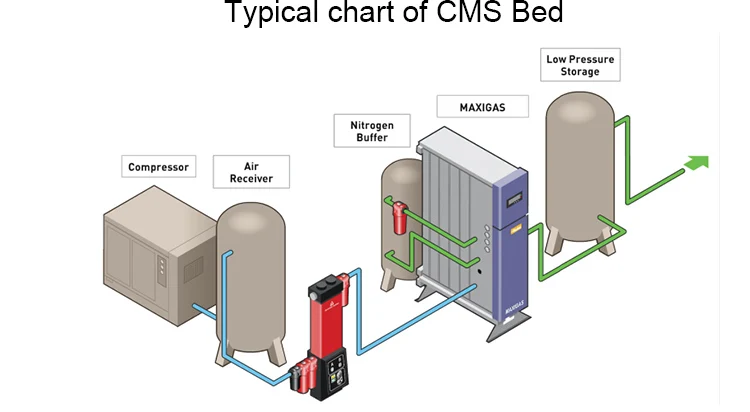

Guangdong Xintao Carbon Molecular Sieve takes the appearance of cylindrical black solid, contains countless 4 angstrom fine pores. It can be used to separate air into nitrogen and oxygen. In industry, carbon molecular sieve can concentrate nitrogen from air with PSA systems. Our carbon molecular sieve products have the character of large nitrogen yield capacity; high nitrogen recovery. It can meet the requirement of all types of PSA nitrogen systems. The carbon molecular sieve is widely applied in petroleum chemical industry, the heat treatment of metal, the electronic manufacture and food preservation industries.
| Model | Carbon Molecular Sieve | |||
| Appearance | Black, extruded(pellet) | |||
| Nominal pore diameter | 4 angstroms | |||
| Diameter (mm) | 0.95mm 1.1-1.3mm, 1.3-1.5mm, 1.5-1.8mm | |||
Crushing strength (N/PC) (The test temperature≤20℃) | >50 | |||
| Bulk density (KG/M3) | 630-680 | |||
| Dust level | 100PPM Max | |||
Adsorbent time (S) (The test temperature≤20℃) | 2*50(can be adjusted) | |||
| Type | Adsorption Pressure | N2 Purity (%) | N2 quantity (M3/T.MT) | Air/N2 (%) |
| CMS-220 | 0.75-0.8 | 99.999 | 55 | 6.8 |
| 99.99 | 100 | 4.8 | ||
| 99.9 | 145 | 3.7 | ||
| 99.5 | 220 | 2.6 | ||
| 99 | 260 | 2.4 | ||
| 98 | 300 | 2.3 | ||
| 97 | 340 | 2.2 | ||
| 96 | 380 | 2.1 | ||
| 95 | 420 | 2.0 | ||
| CMS-240 | 0.75-0.8 | 99.999 | 65 | 6.6 |
| 99.99 | 110 | 4.6 | ||
| 99.9 | 160 | 3.5 | ||
| 99.5 | 240 | 2.5 | ||
| 99 | 280 | 2.3 | ||
| 98 | 320 | 2.2 | ||
| 97 | 360 | 2.1 | ||
| 96 | 400 | 2.0 | ||
| 95 | 440 | 1.8 | ||
| CMS-260 | 0.75-0.8 | 99.999 | 75 | 6.5 |
| 99.99 | 120 | 4.6 | ||
| 99.9 | 175 | 3.4 | ||
| 99.5 | 260 | 2.3 | ||
| 99 | 320 | 2.2 | ||
| 98 | 350 | 2.1 | ||
| 97 | 390 | 2.0 | ||
| 96 | 430 | 1.9 | ||
| 95 | 470 | 1.7 | ||
| CMS-280 | 0.75-0.8 | 99.999 | 90 | 6.4 |
| 99.99 | 135 | 4.5 | ||
| 99.9 | 190 | 3.4 | ||
| 99.5 | 280 | 2.3 | ||
| 99 | 335 | 2.2 | ||
| 98 | 365 | 2.1 | ||
| 97 | 410 | 2.0 | ||
| 96 | 455 | 1.8 | ||
| 95 | 500 | 1.6 | ||


Nitrogen Usage Areas:
1-) In ammonia synthesis
2-) In providing inert atmosphere in chemistry, textile, food, paint industry
3-) In the transfer of extremely flammable liquids under nitrogen pressure
4-) In the electronics industry, in the manufacture of light bulbs
5-) In the food industry, freezing of food and long-term storage and transportation.
6-) In nuclear reactors
7-) In the prevention of oxidation of edible oils
8-) Cleaning of tankers, pipelines and refineries
9-) In grain silos
10-) In providing controlled atmosphere in heat treatment furnaces
11-) In glass and steel production
12-) In the safety of coal mines and fire extinguishing
13-) Fermentation
14-) Packaging of food and sensitive objects
15-) In the propulsion of oil and gas wells
16-) Tissue freezing and storage
17-) Interlocking of metals
18-) As a coolant in molding, film extrusion and process equipment
19-) Recovery of process solvents
20-) As a chemical reagent and a reagent carrier
21-) Fire prevention in the warehouses of paper and paper products factories.
22-) Fire prevention in chemical warehouses.
23-) In military ammunition and fuel tanks.
24-) In pharmaceutical production factories.

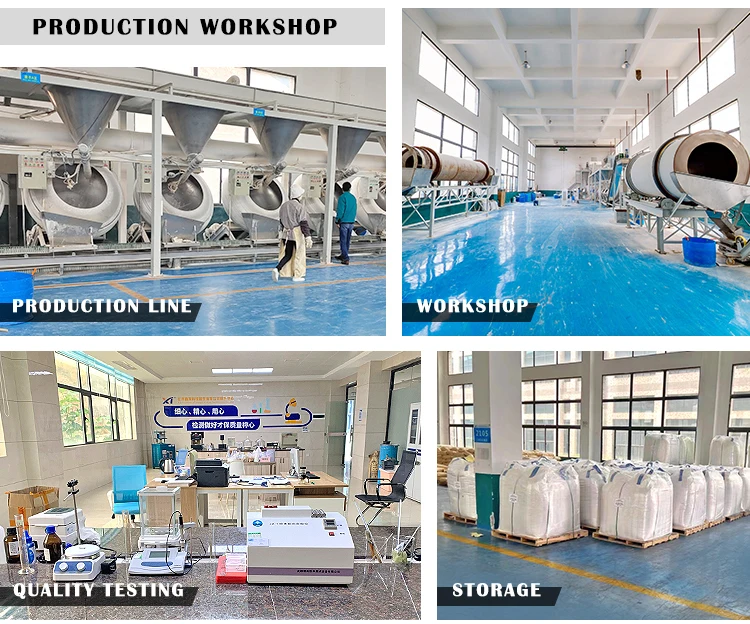

Established in 2002, XINTAO is a leading manufacturer and exporter in China that specializing in analyzing, developing and manufacturing Adsorbent, Tower Support Media and Tower Packing. Our factory and headquaters is located in Pingxiang city, Jiangxi province, China with convenient transportation access. Covering an area of 42,000M2, we have professional R&D team and our annual production capacity reached 20000 tons. Our fully automatic production line and intelligent warehouse as well as excellent quality control system throughout all stages of production enables us to guarantee customer satisfaction.
