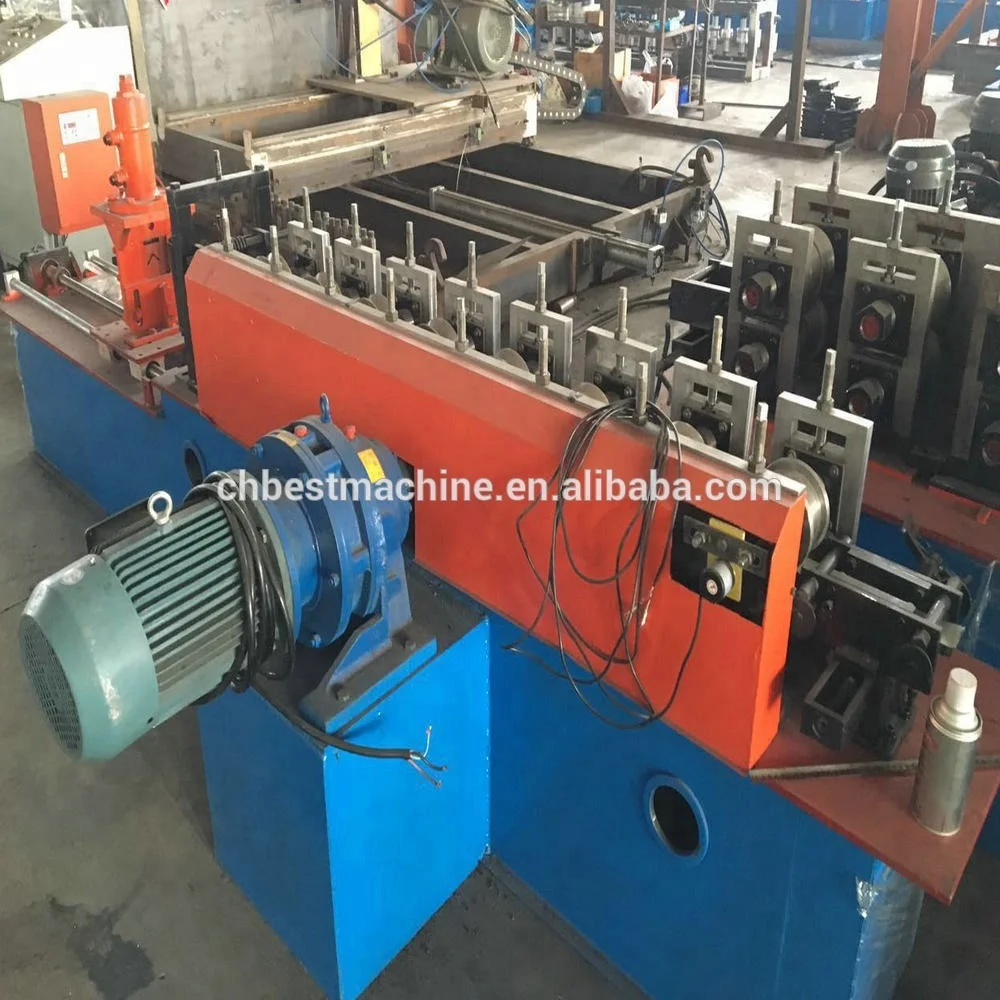

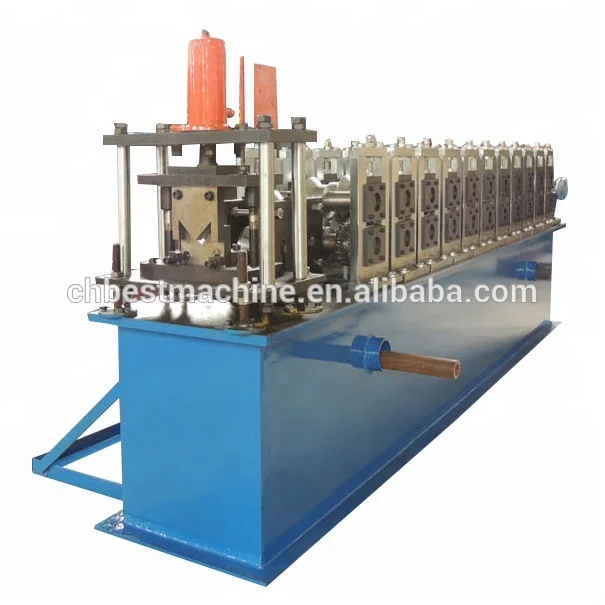

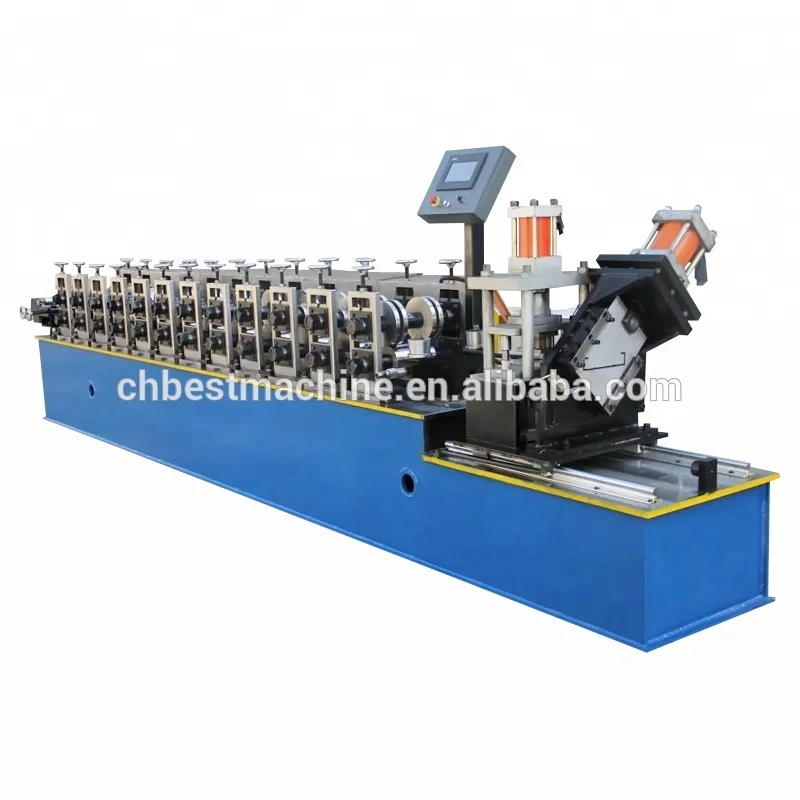

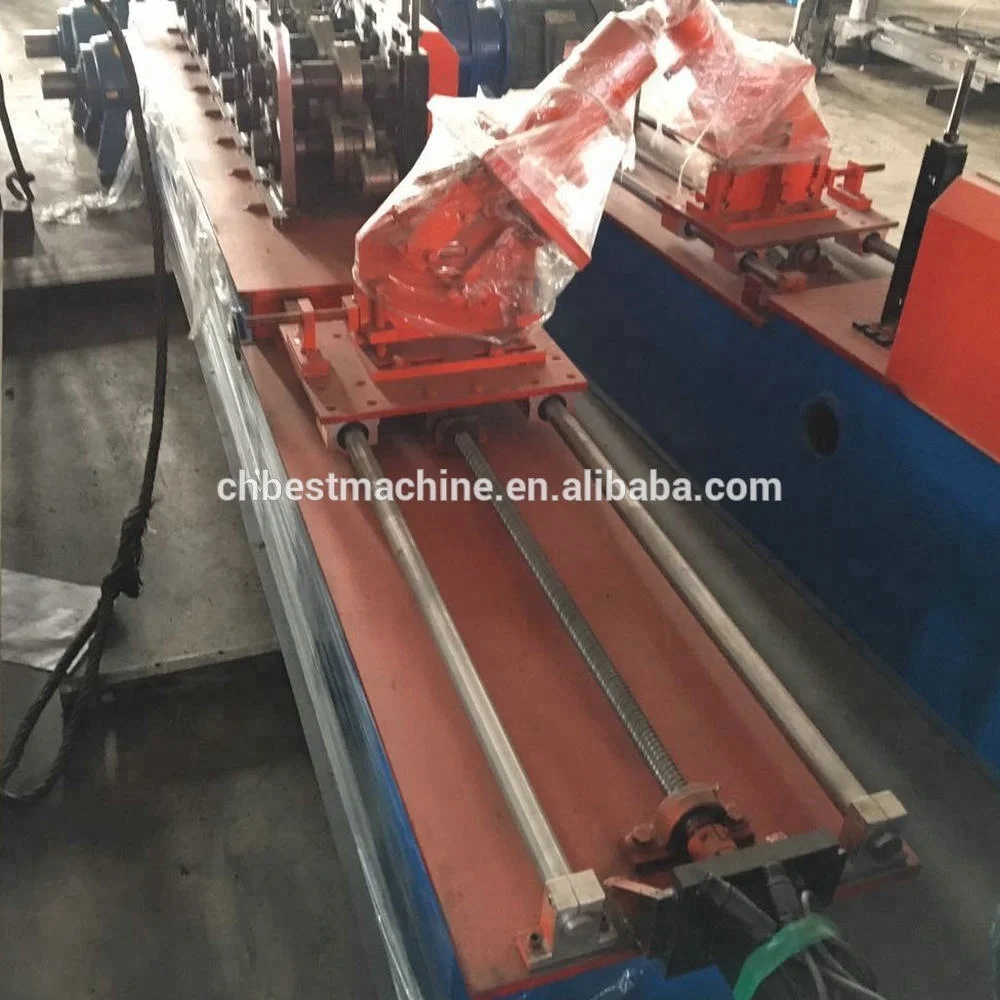

High quality suspended slotted ceiling t grid roll forming machine

Ceiling T Grid, Metal T bar and wall angle roll forming machine

Structural concept: Multi-storey buildings in the light steel structural system most commonly used as a framework structure,according to the needs of the construction concept is sometimes also used suspension system. Column and Beam used Hot roller or welding shaped H section and sometimes it can be box-section column. Due to limited section of H beam , mainly use of welded Beam . Framework structure in flexible layLayout , every parts stiffness is relatively uniform , simple structure, easy construction.simple structure, easy construction. Its Its natural cycle is longer, lighter weight, for earthquake-insensitive.

Main Features

1) Simple structure in linear type ,easy in installation and maintation.

2) PLC control length and quanity.

3) Easy manitance.

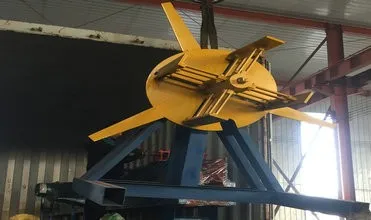

Decoiler

(1) Max. Width: 500mm

(2) Inner Diameter: Φ450 – Φ550 mm

(3) Out Diameter: 1500 mm

(4) Max. Loading Capacity: 5000 kgs

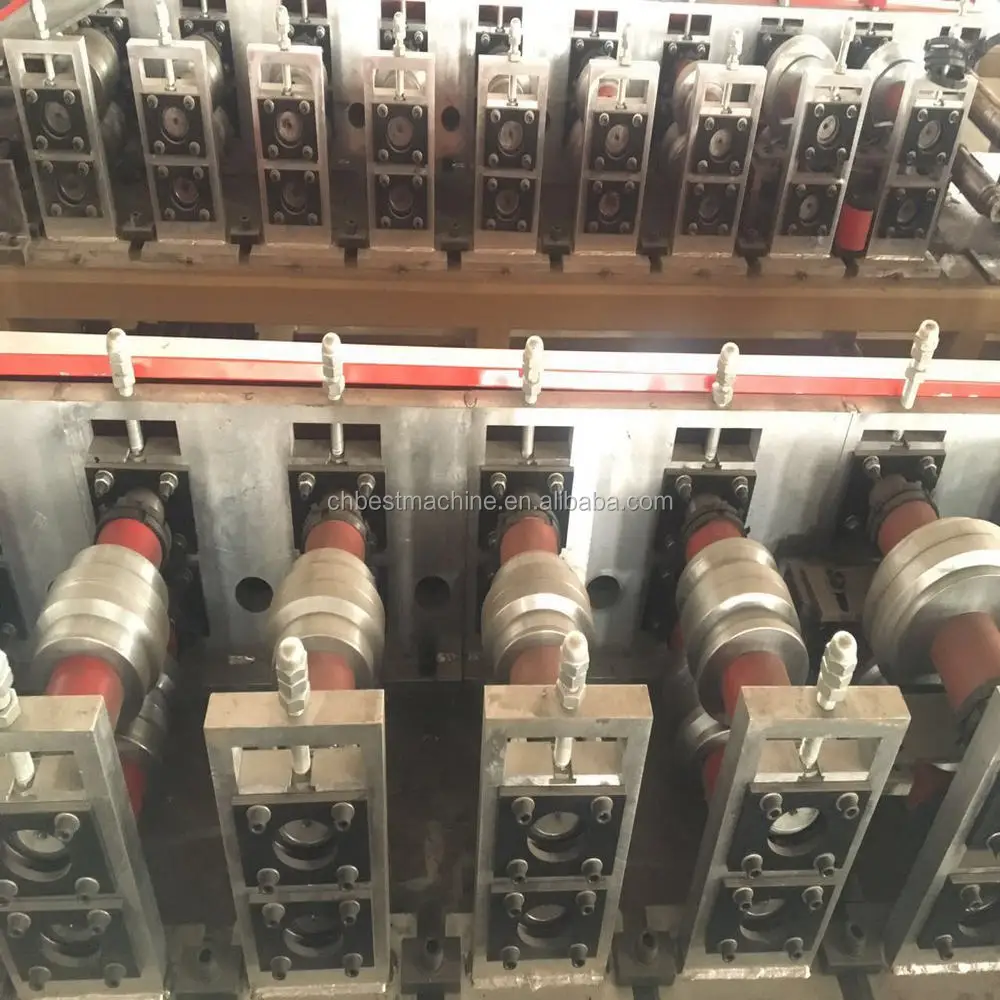

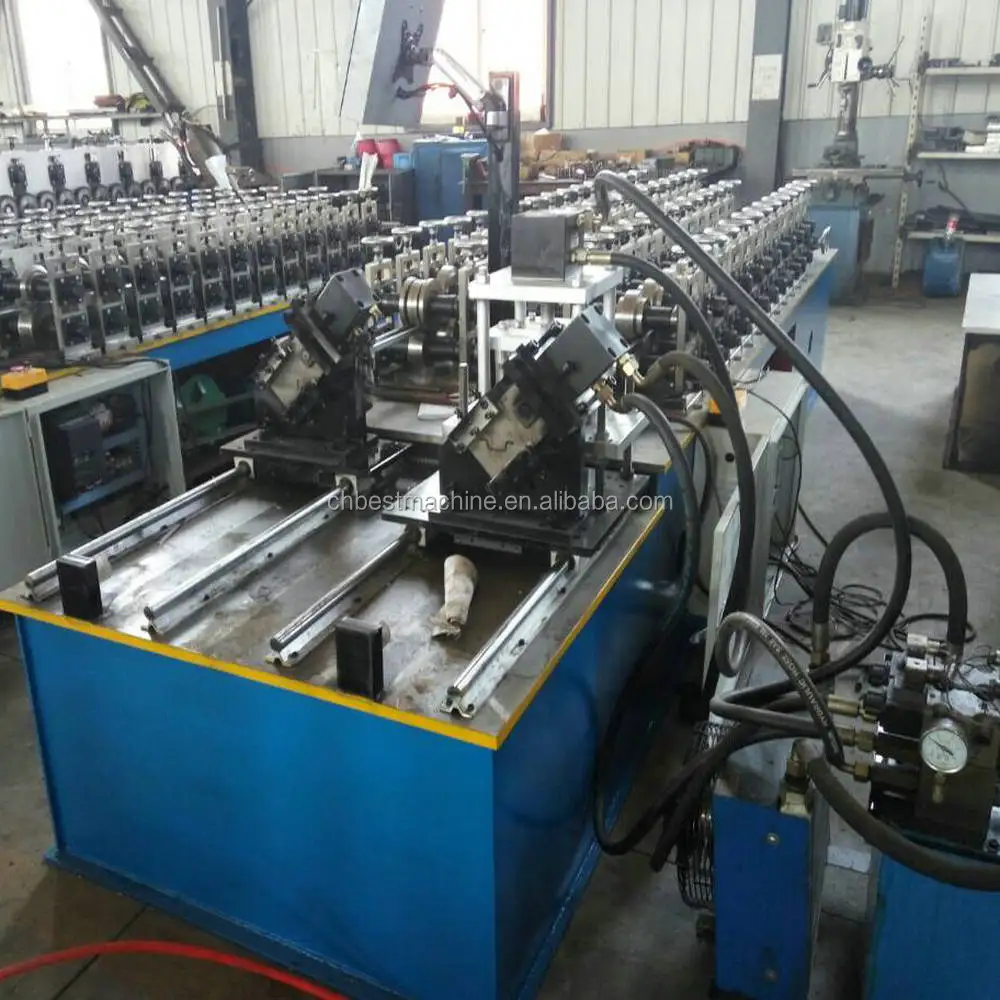

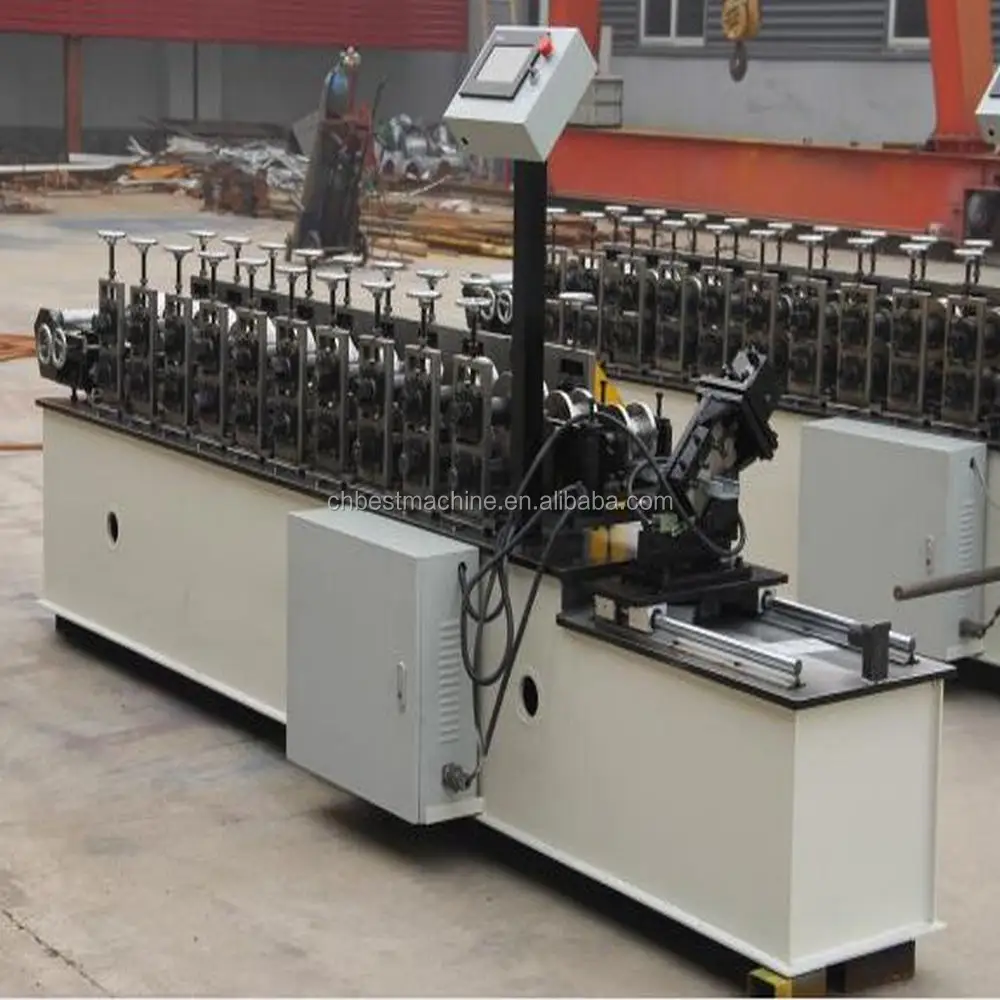

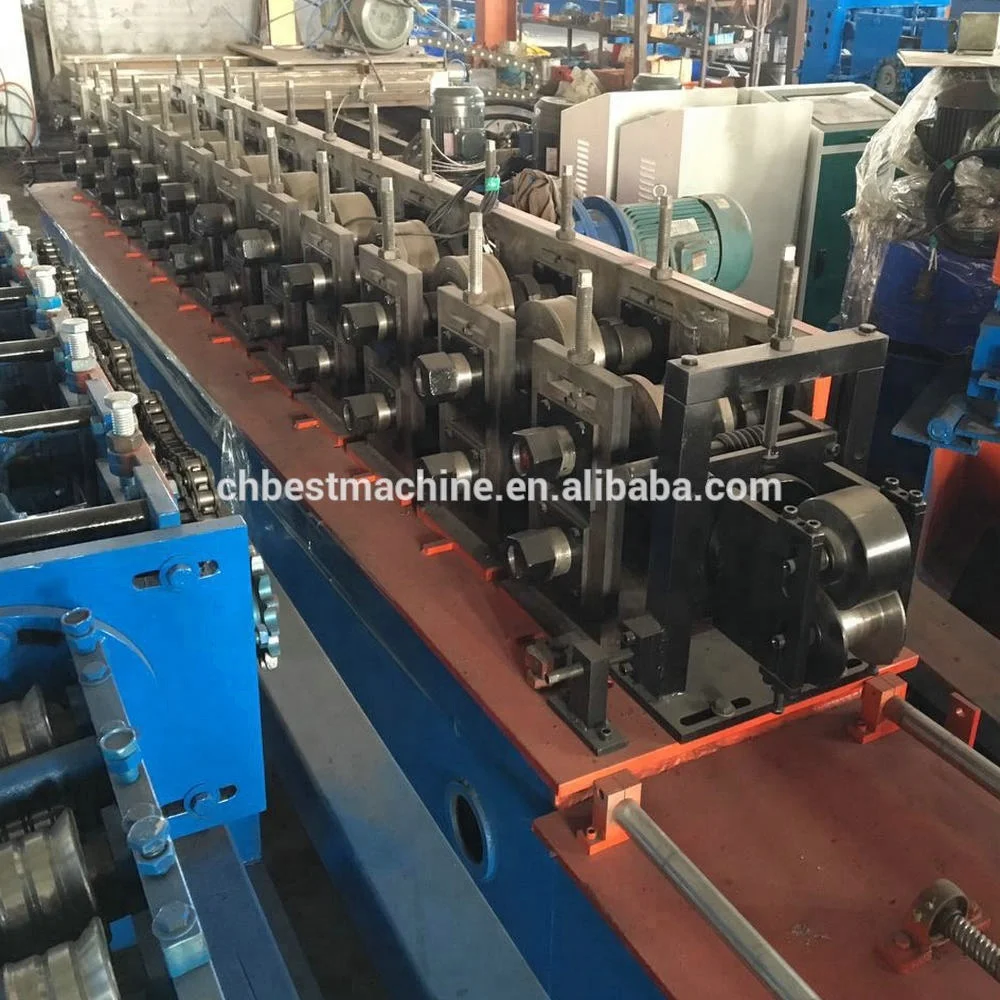

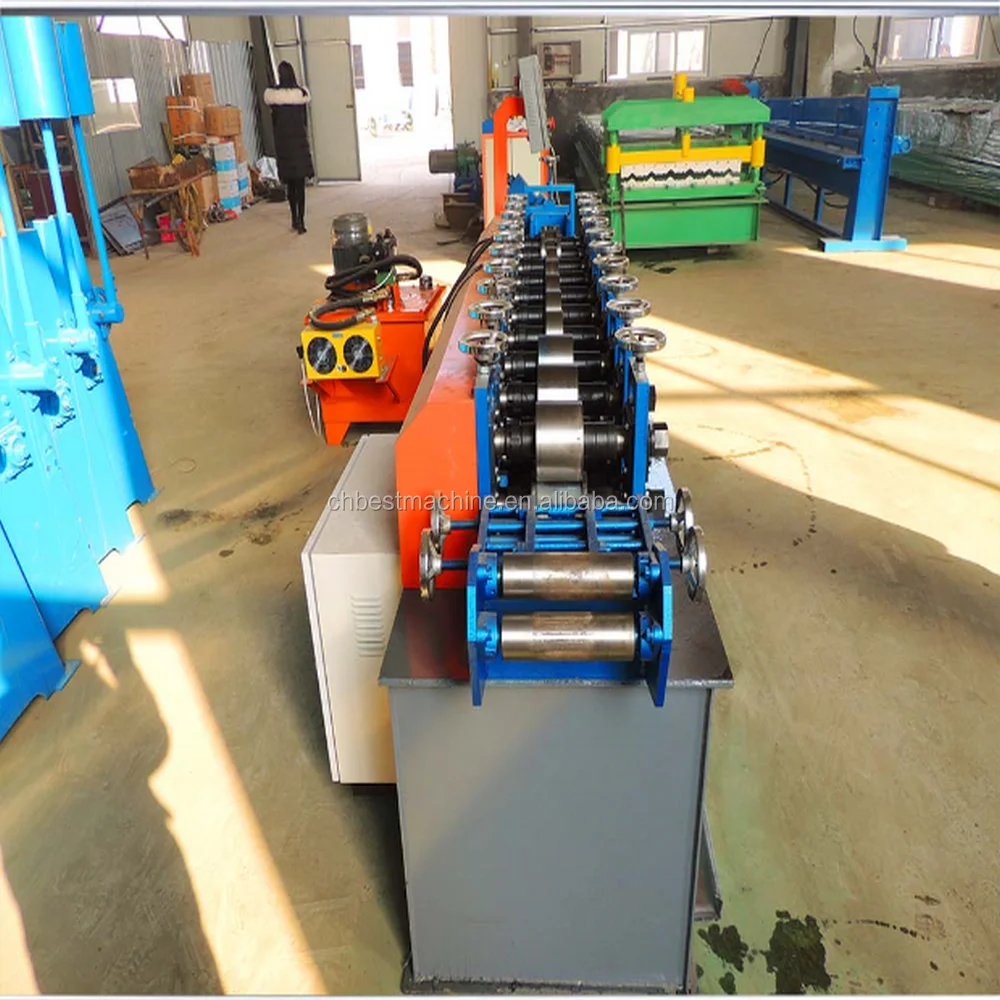

ROLL FORING MACHINE

(1)Rolled Material: Galvanized steel
(2)Material Thickness: 0.6-1.2mm
(3)Rollers: 11Groups
(4)Material for Rollers: Cr12 steel after treatment
(5) Hardness for Heat Treatment: HRC55 – 60
(6)Frame panel thickness: 20mm
(7)Bottom frame: 36# H-section steel
(8)Motor Power: 5.5kw
(9)Rolling Speed: 15m / min(don't include punching)
(10)Driven type: double sides double row 1"Chain

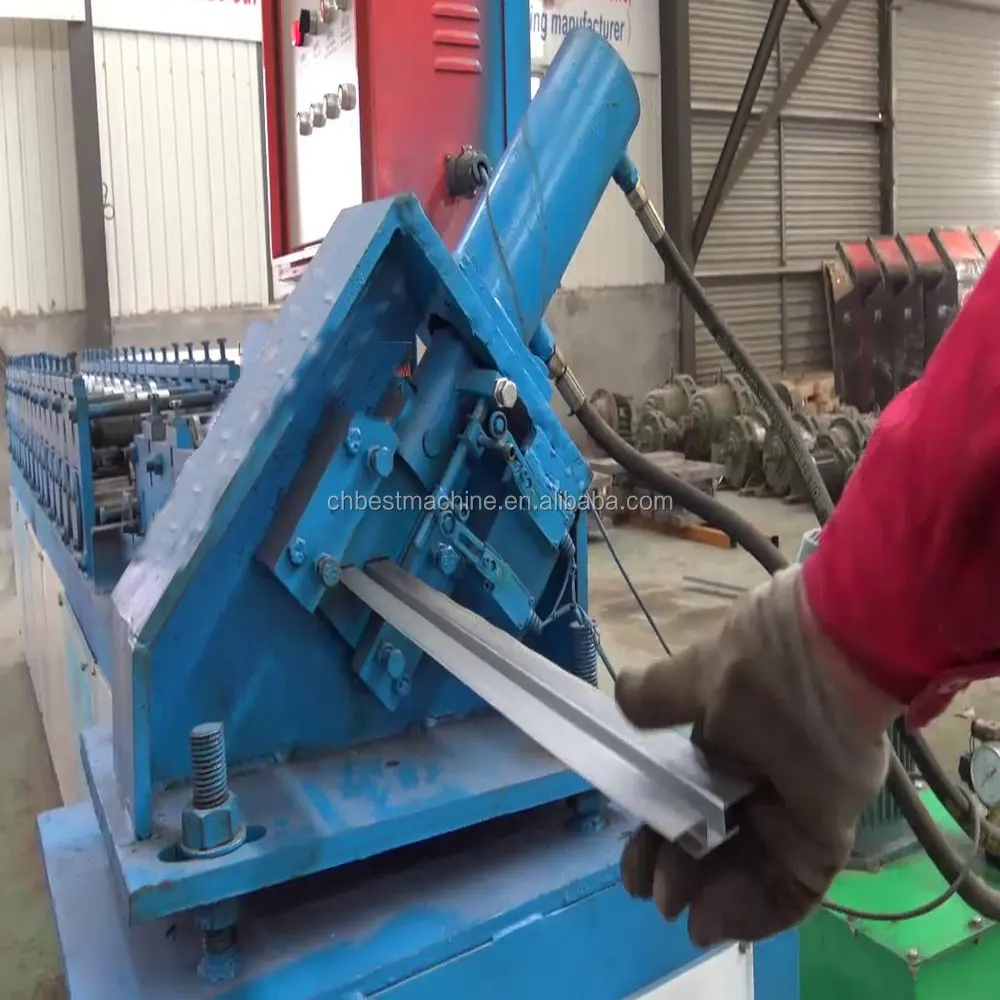

(11)Hydralic cutting type

Control system

(1) Type: PLC Frequency Control System with double touch screen
(2) PLC Brand: DELTA
(3) Encoder Brand: Omron
(4)Length Error: ±2mm
(5) Transducer: Changzhou TongLi
(6)Language: English and Chinese
(7)Voltage: 380v/50HZ, 3Phases (it depends on customer requirement)

Hydraulic oil pump

(1) Oil type: 46# hydraulic oil
(2) Pump brand: China brand
