LMHZ 1200 12000 Автоматической дуговой стальных конструкций, h образная балка, портальный сварочный аппарат
- Category: Other Welding Equipment >>>
- Supplier: Jiangsu Tewei Machine Tool Manufacturing Co. Ltd.
Share on (60801276373):
Product Overview
Description
Product Description
Feature:

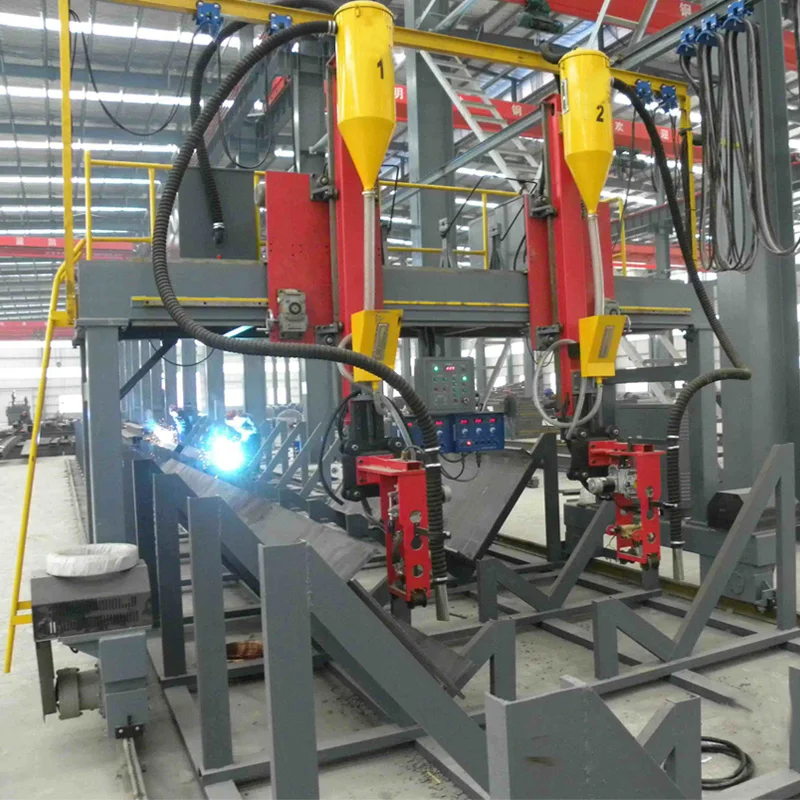

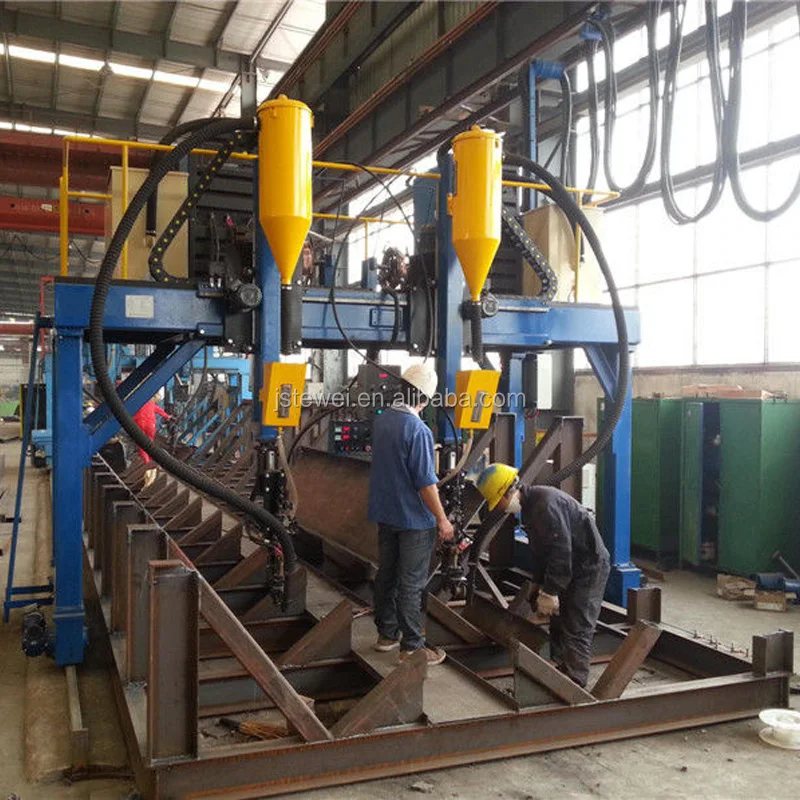

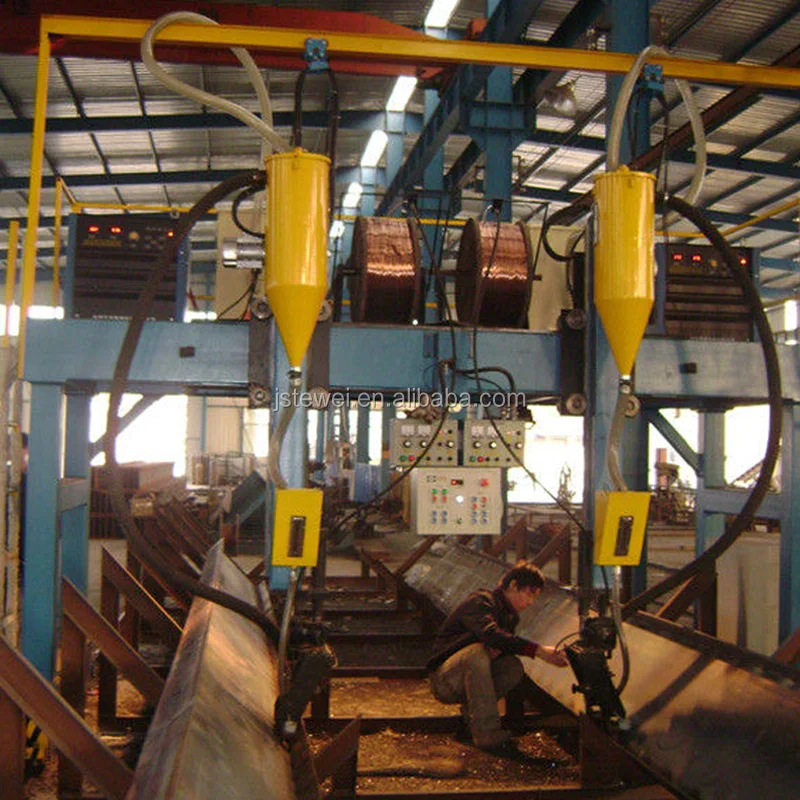

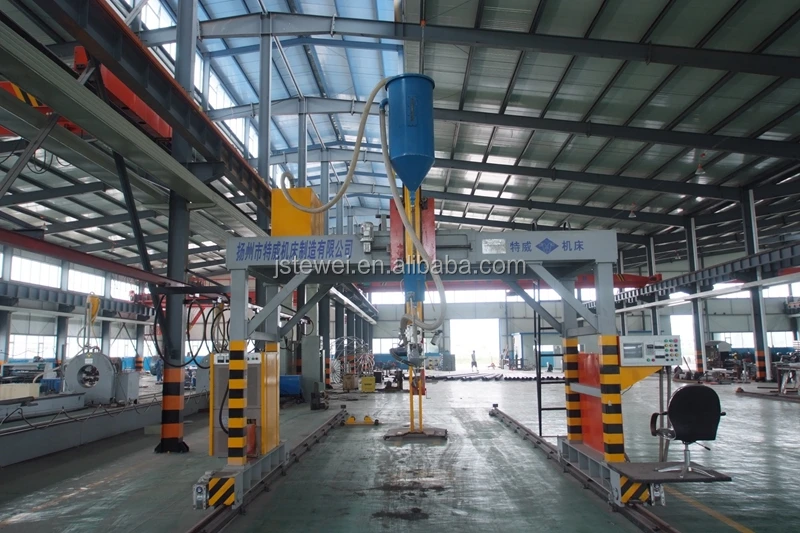

1.The series gantry SAW machine for large diameter submerged arc welding of sheet bar, H-beam steel plant welding.
2.rack standard rectangular steel tube welded together, light weight, high strength. Automatic-linear guide rail installations,
high tracking accuracy, small size, able to weld dynamic tracking, and two-way reciprocating welding, weld quality assurance,improve work efficency.
3.Using flux recovery sent automatically vaccum devices, the high flux recovery efficiency, cutting smoothly, and to be effective in cost savings, ease of manual labor intensity.
4.AC unit operating motor inverter import tools, and speed adjustment range wide, running stability.
5.Welding wire feeding power and nose using advanced technology and DC arc welding and hanging nose and outstanding performance welding, arc stability, weld quality, beautiful molding.
6.Single or double wire-arc welding function effectively enhance the welding efficiency.
1.The series gantry SAW machine for large diameter submerged arc welding of sheet bar, H-beam steel plant welding.
2.rack standard rectangular steel tube welded together, light weight, high strength. Automatic-linear guide rail installations,
high tracking accuracy, small size, able to weld dynamic tracking, and two-way reciprocating welding, weld quality assurance,improve work efficency.
3.Using flux recovery sent automatically vaccum devices, the high flux recovery efficiency, cutting smoothly, and to be effective in cost savings, ease of manual labor intensity.
4.AC unit operating motor inverter import tools, and speed adjustment range wide, running stability.
5.Welding wire feeding power and nose using advanced technology and DC arc welding and hanging nose and outstanding performance welding, arc stability, weld quality, beautiful molding.
6.Single or double wire-arc welding function effectively enhance the welding efficiency.
Specification
SN | Specification | parameter |
1 | Height of web | 200-2000mm |
2 | Height of flange | 200-800mm |
3 | Length of H beam | 4000-15000mm |
4 | Welder model | MZ-1000 SAW welding power, (m/min) |
5 | Welding form | arc |
6 | Welding speed | 0.15-2.5 |
7 | Back speed | 3(m/min) |
8 | Rail distance | 1400mm |
9 | Power (Kw) | 13(welder is exclude |
10 | Welding Length | 12m |
11 | Welding Thickness | 5～24mm |
12 | Welding Diameter | Ø300～Ø1200mm |
13 | Welding Current | 1000A |
14 | Welding Speed | 1～2m/min |
15 | Weight | 4500kg |
Packing & Delivery
Certifications
Customer Photos
Company Profile
Our company is located in Jiangdu of Yangzhou City, on the side of Jianghang Channel, the cross point of Jinghu and Ningtong Expressway. We are engaged in forging machinery manufacturing industry. We specialize in producing plate benders, plate bevel shearing lines, mechanical scribing machines, hydraulic scribing machines, pipe straighteners, pipe benders, semi-automatic submerged arc welding lines, hydraulic plate cutting machines, mechanical plate cutting machines, three-roll bending machines, and large milling machines, as well as common type plate processing in the fields of light pole, electrical pole, machinery, electron, automobile, shipbuilding, electrical home appliance, cooking equipment, and building decoration.
Our company has a strong technical force and advanced processing equipment, and attained ISO9001 international quality system certification in 2003. All our products are manufactured according to the national advanced standards. Our technicians develop many new products meeting the needs of markets, and fill in our national gaps, especially in the fields of light poles and electrical poles manufacturing equipment.
Our aim is "quality competition, price competition, and service competition". Sincerely welcome you to negotiate and cooperate with us.
Our company has a strong technical force and advanced processing equipment, and attained ISO9001 international quality system certification in 2003. All our products are manufactured according to the national advanced standards. Our technicians develop many new products meeting the needs of markets, and fill in our national gaps, especially in the fields of light poles and electrical poles manufacturing equipment.
Our aim is "quality competition, price competition, and service competition". Sincerely welcome you to negotiate and cooperate with us.
FAQ
Q: Are you a factory or trading company ?
A: We are a factory with export licence.
Q: Where is your factory located ? How can I visit your company ?
A: In Yangzhou City, Jiangsu Province, China. There is airport in our city, about half an hour's drive. And our factory is near
Nanjing and Shanghai. Transportation is very convenient.
Q: If I want to start a light pole factory, can I get a whole machine line from you ?
A: Yes, we can make the whole light pole production line.
Q: What is your machine price level ?
A: Price is reasonable with good quality.
Q: What is your machine warranty ?
A: One year.
Q: Is engineer available to provide service abroad ?
A: Yes, we will provide installation and commissioning, also training.
A: We are a factory with export licence.
Q: Where is your factory located ? How can I visit your company ?
A: In Yangzhou City, Jiangsu Province, China. There is airport in our city, about half an hour's drive. And our factory is near
Nanjing and Shanghai. Transportation is very convenient.
Q: If I want to start a light pole factory, can I get a whole machine line from you ?
A: Yes, we can make the whole light pole production line.
Q: What is your machine price level ?
A: Price is reasonable with good quality.
Q: What is your machine warranty ?
A: One year.
Q: Is engineer available to provide service abroad ?
A: Yes, we will provide installation and commissioning, also training.
