Product Overview

Description


Product Description

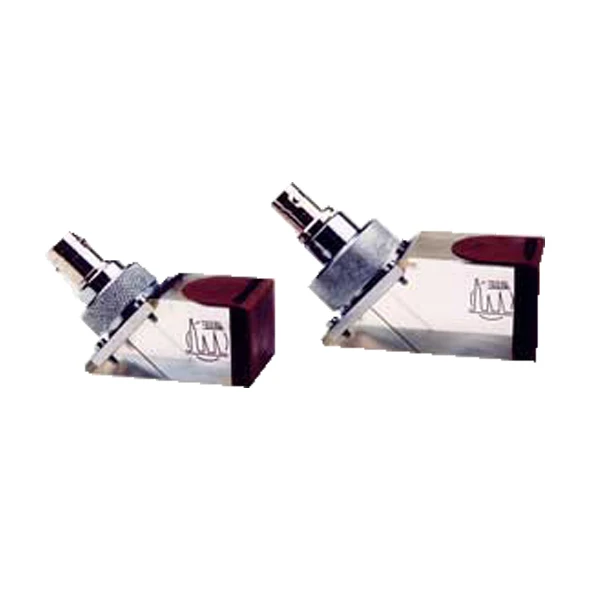

Disassemble beam probes consist of wedges, piezoelectric elements, sound-absorbing materials, cases, receptacles and other components suitable for transverse wave flaw detection.



Feature:

 The schematic representation of the disassemble probes:

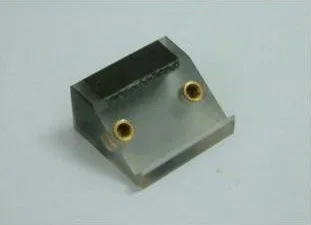

Wedges:


Models:



Frequency(MHz)Element size(mm)TypeReceptacle
2.5202.5P20 K1.0C5
2.5P20 K1.5
2.5P20 K2.0
2.5P20 K2.5
2.5P20 K3.0
2.5P20 30°
2.5P20 36.5°
2.5P20 40°
2.5P20 45°
2.5P20 50°
142.5P14 K1.0
2.5P14 K1.5
2.5P14 K2.0
2.5P14 K2.5
2.5P14 K3.0
2.5P14 30°
2.5P14 36.5°
2.5P14 40°
2.5P14 45°
2.5P14 50°
5205P20 K1
5P20 K1.5
5P20 K2.0
5P20 K2.5
5P20 K3
5P20 30°
5P20 36.5°
5P20 40°
5P20 45°
5P20 50°
145P14 K1
5P14 K2.5
5P14 K2
5P14 K2.5
5P14 K3
5P14 30°
5P14 36.5°
5P14 40°
5P14 45°
5P14 50°
