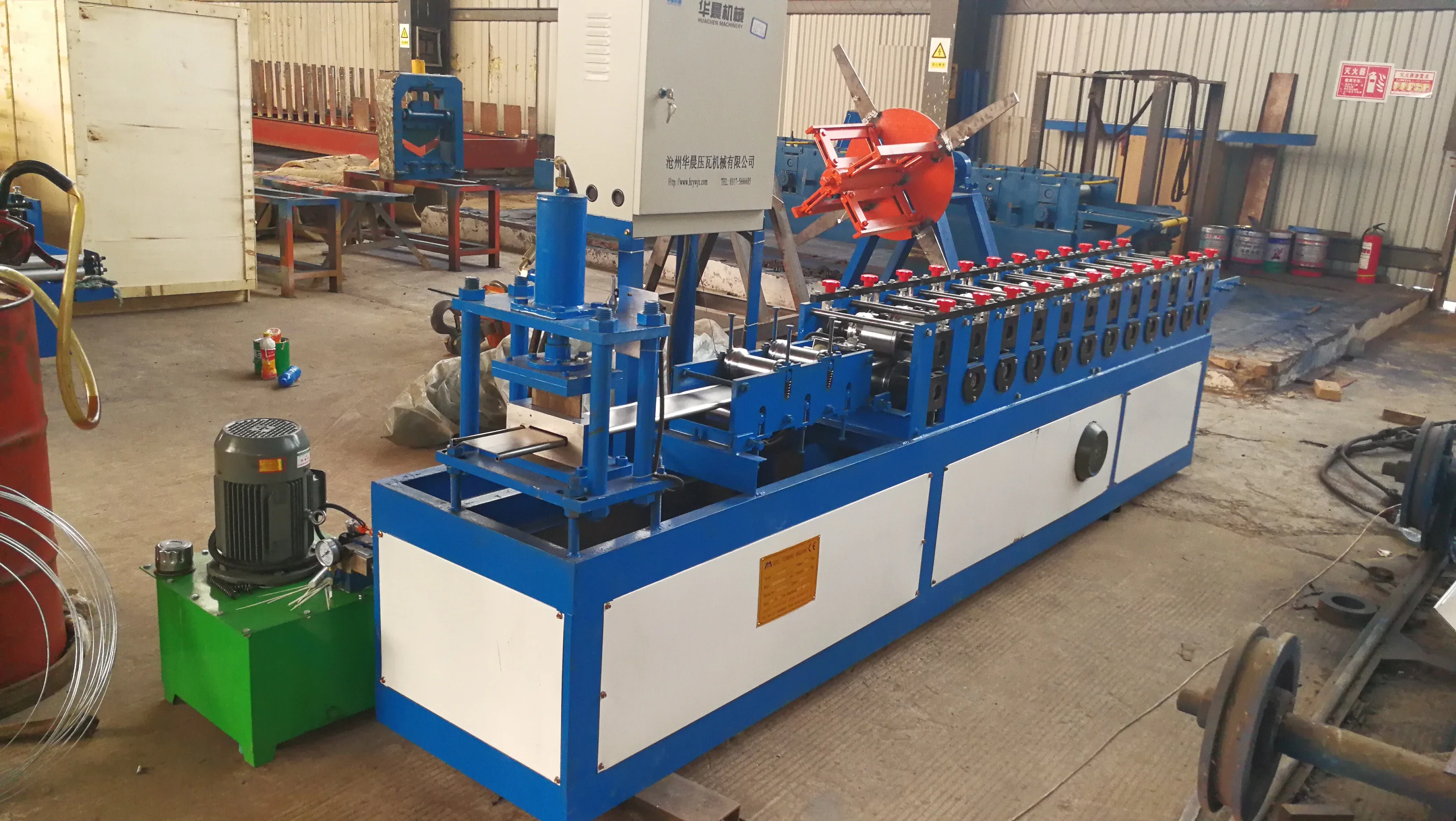

15*125 новые продукты, оцинкованная стальная роликовая Направляющая для затвора, профильная роликовая дверная формовочная машина
- Category: Window and Door Making Machine >>>
- Supplier: Botou Xianfa Roll Forming Machine Factory
Share on (60801520446):
Product Overview
Description
Roll Forming Machine
Machine Including Components
Electric Decoiler--Feeding Platform--Forming--Hydraulic System--Computer Control Cabinet--Hydraulic Cutting--Receiving Platform

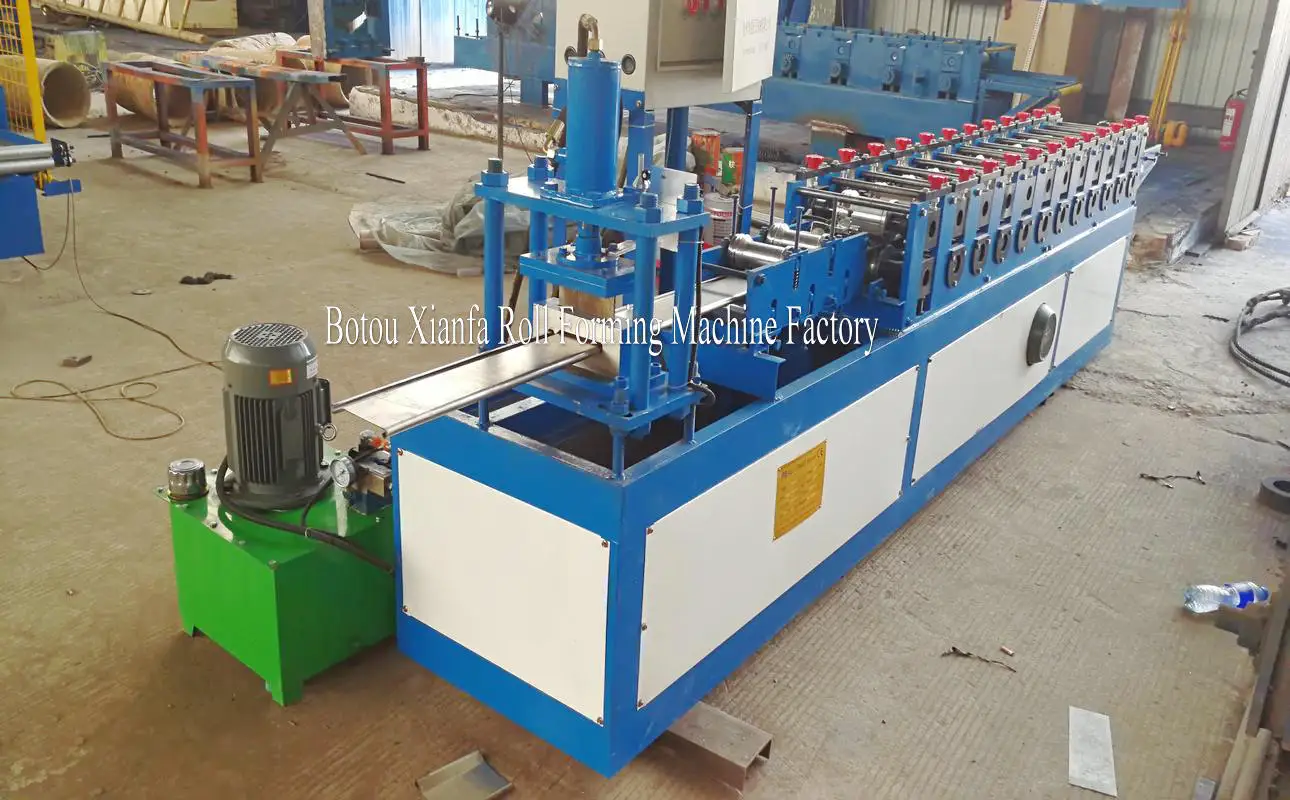

Machine Pictures
Machine Main Parameters
1.Suitable Material:GI/PPGI/Aluminum
2.Width Of The Raw Material:165mm
3.Rows Of Rollers:12Rows
4.Productivity:0-15m/min
5.Appearance Size:About 3600*1050*1550mm
6.Sidewall thickness :16mm
7.Machine Frame:350 H Steel
8.Total Power:4+4KW
9.Thickness Of Raw Material:0.4-0.6mm
10.Diameter Of Shaft:50mm
11.Voltage:380V 50Hz 3phases
1.Suitable Material:GI/PPGI/Aluminum
2.Width Of The Raw Material:165mm
3.Rows Of Rollers:12Rows
4.Productivity:0-15m/min
5.Appearance Size:About 3600*1050*1550mm
6.Sidewall thickness :16mm
7.Machine Frame:350 H Steel
8.Total Power:4+4KW
9.Thickness Of Raw Material:0.4-0.6mm
10.Diameter Of Shaft:50mm
11.Voltage:380V 50Hz 3phases
Machine Parts Description

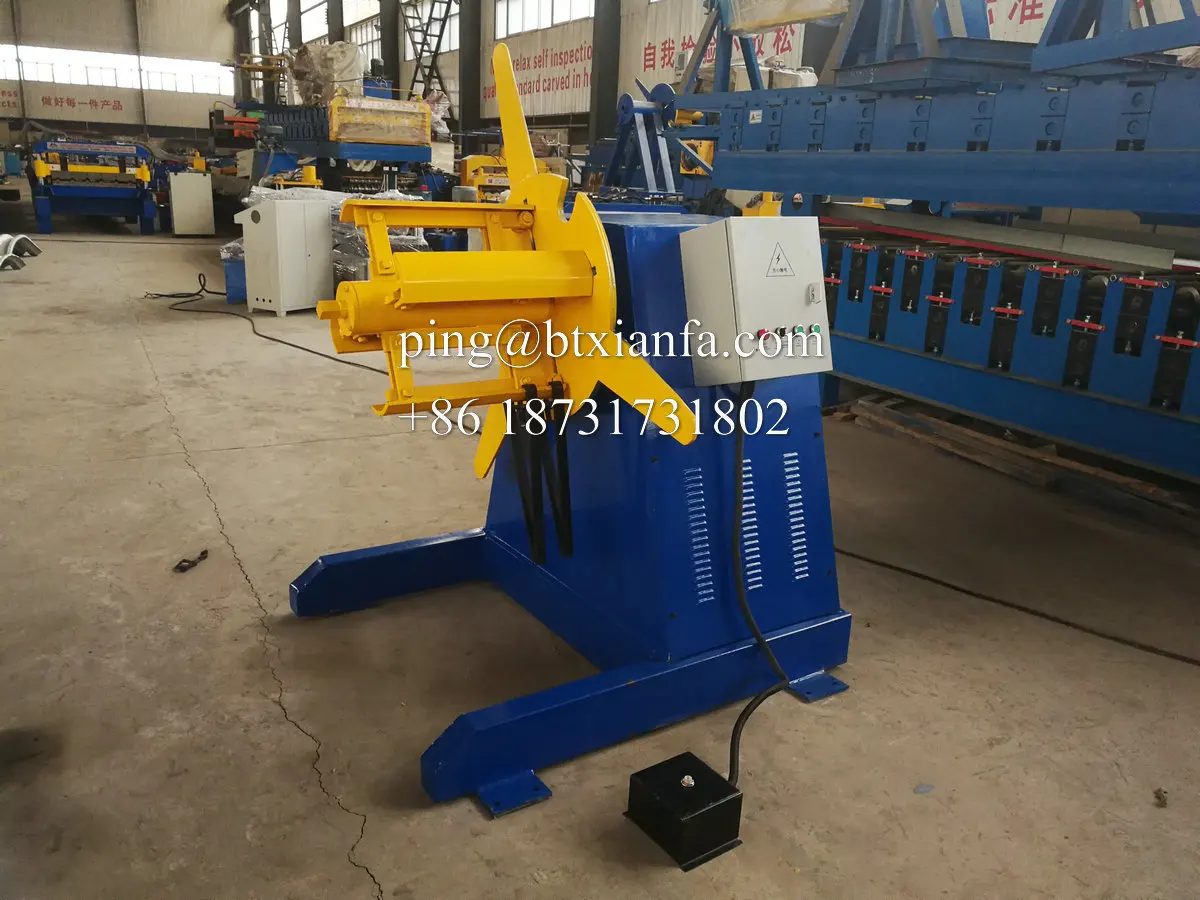

Electric Decoiler
Loading capacity:4T
Inner diameter: 480-520mm
Motor power: 3+3KW
Frequency converter power: 4KW
Inner diameter: 480-520mm
Motor power: 3+3KW
Frequency converter power: 4KW

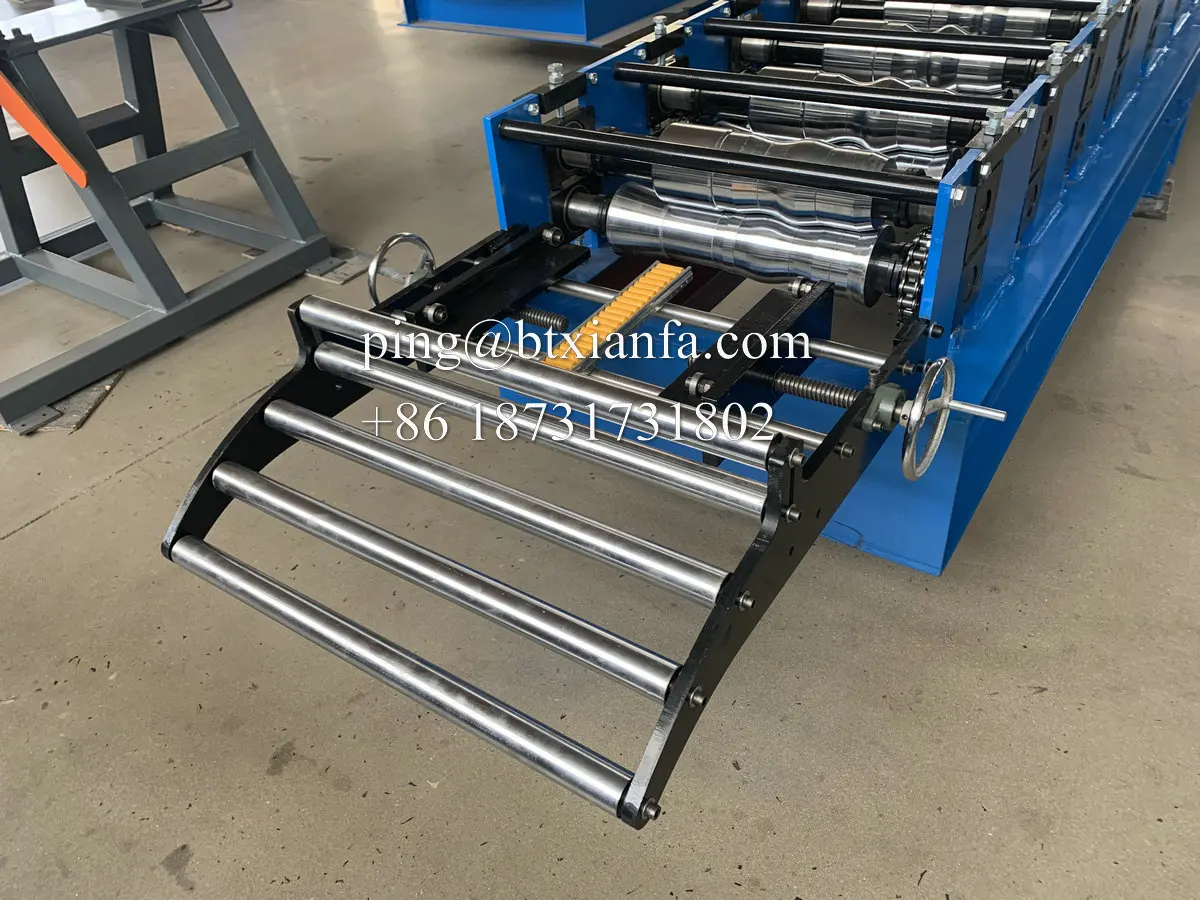

Manual Pre Cut AND Feeding Platform
Manual precut steel plate, smooth surface without burr
Feeding Platform,Ensure smooth& precise
material feed.steel plate platform, two
pitching rollers, position stopping block.
The coil is guided in the correct position and passed to the roll forming
Feeding Platform,Ensure smooth& precise
material feed.steel plate platform, two
pitching rollers, position stopping block.
The coil is guided in the correct position and passed to the roll forming

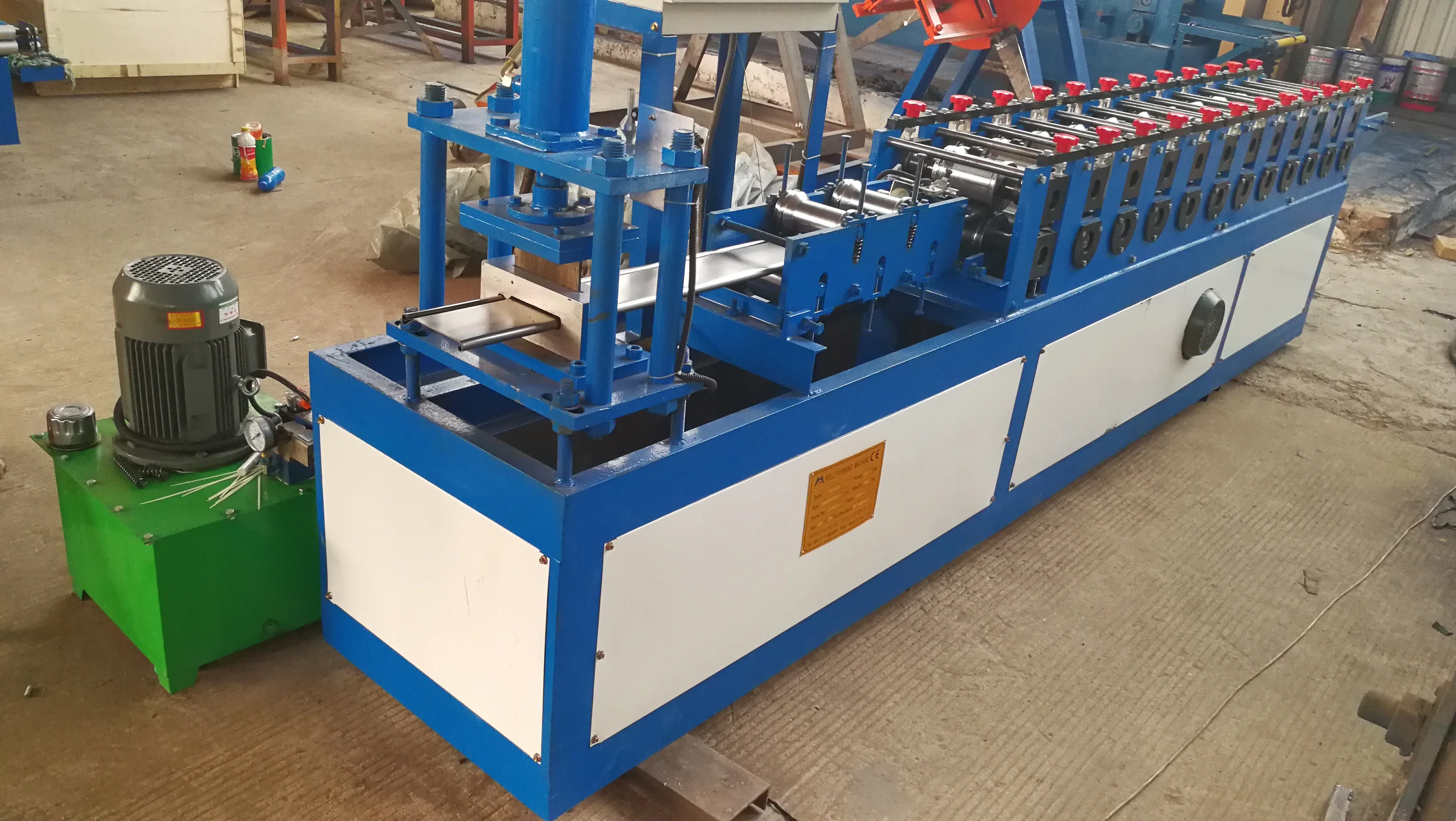

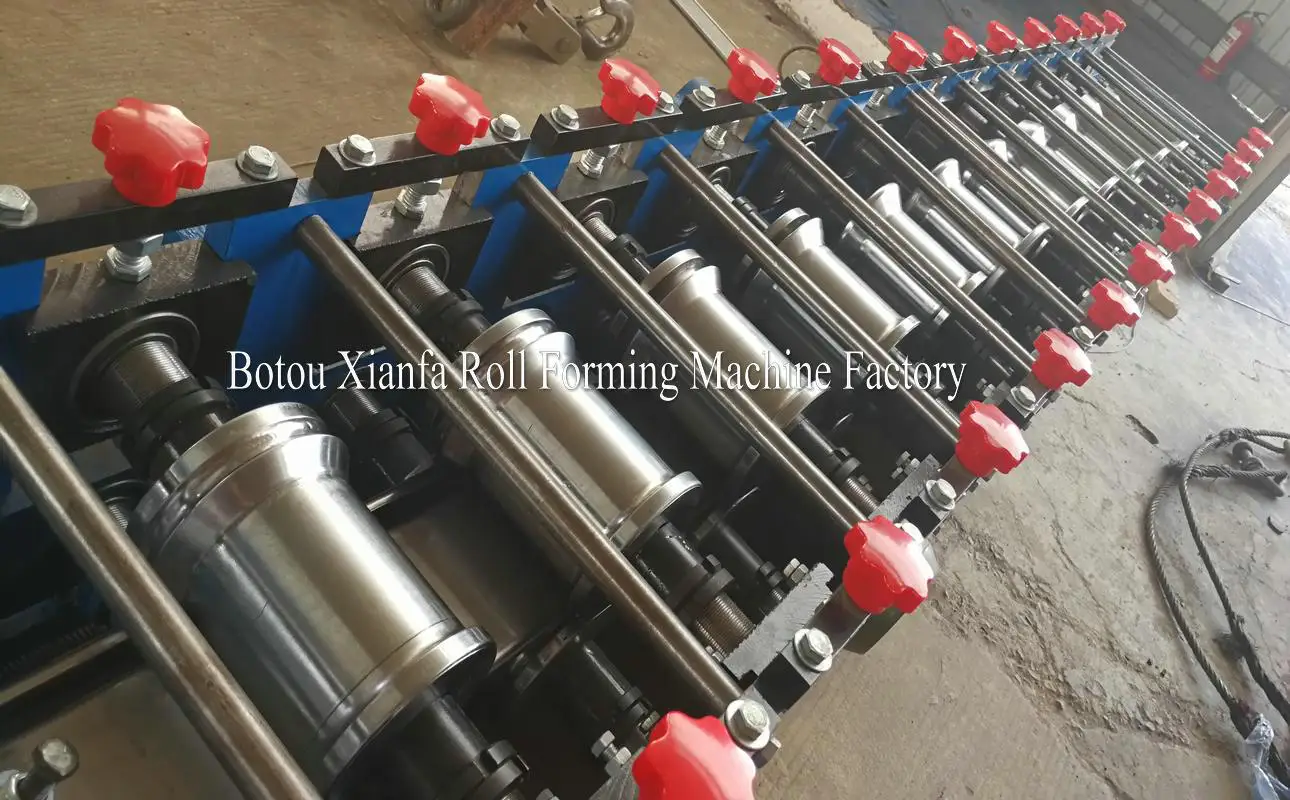

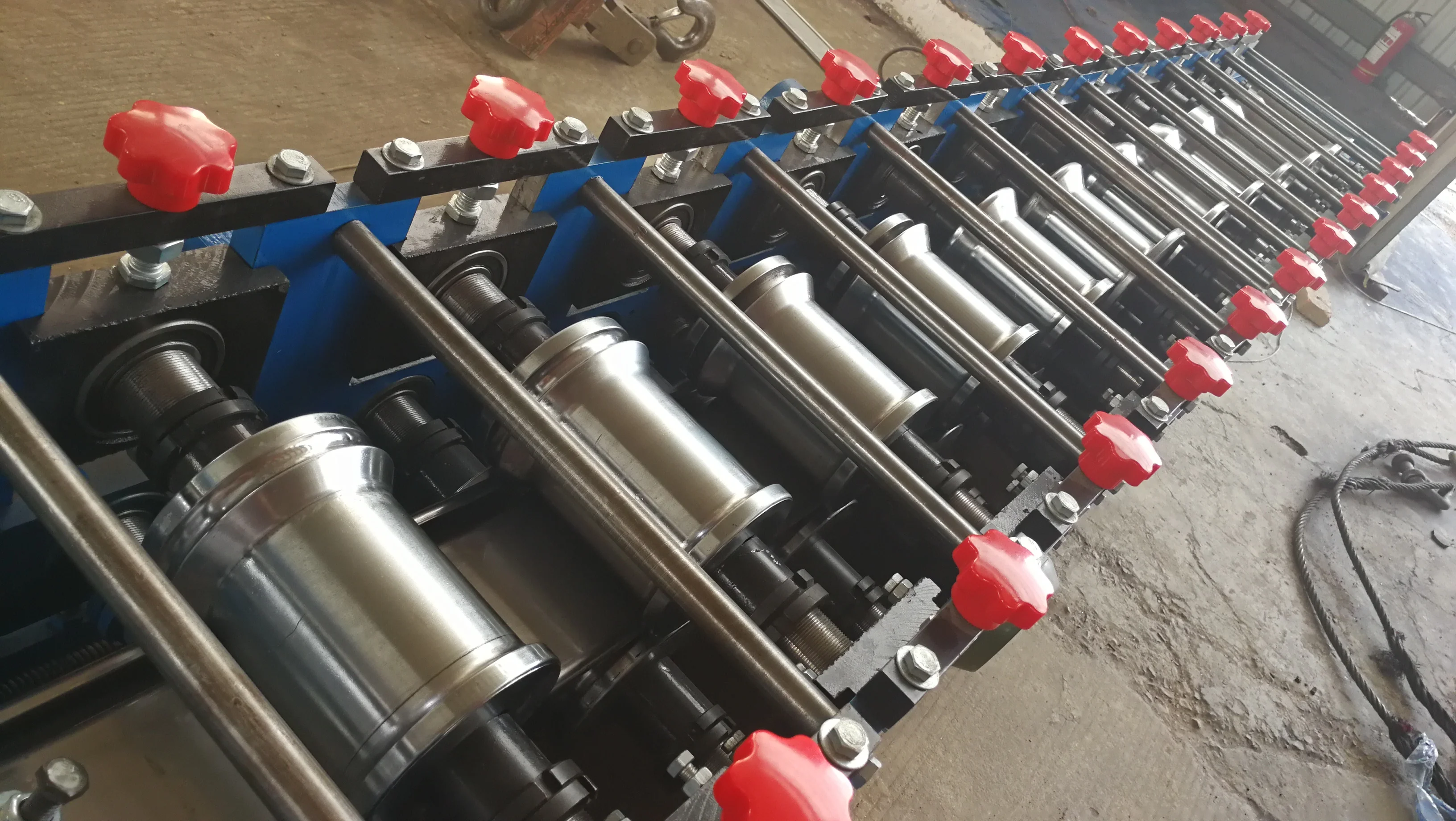

Main Roll Forming Machine
Material of rollers:45# steel，roller surfaces polishing, hard plating , The polished surface and the heat treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped.

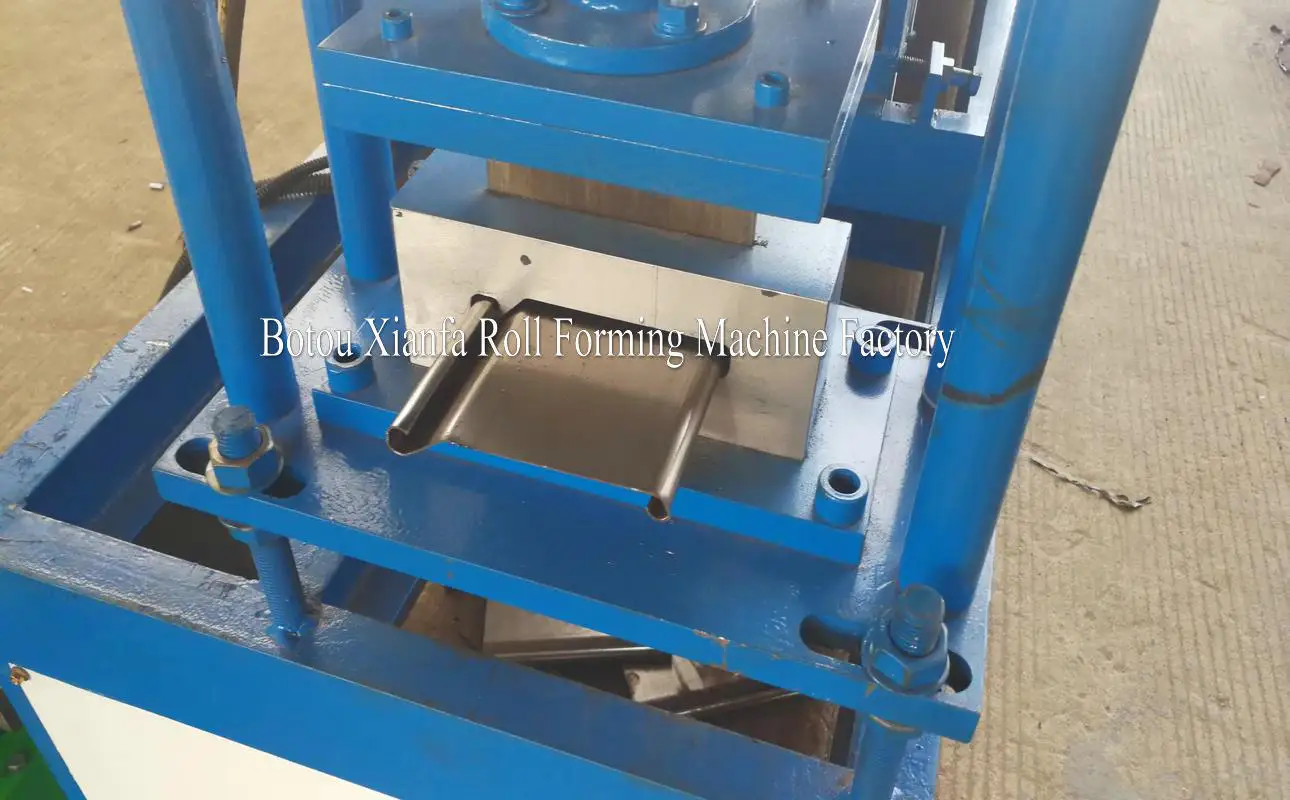

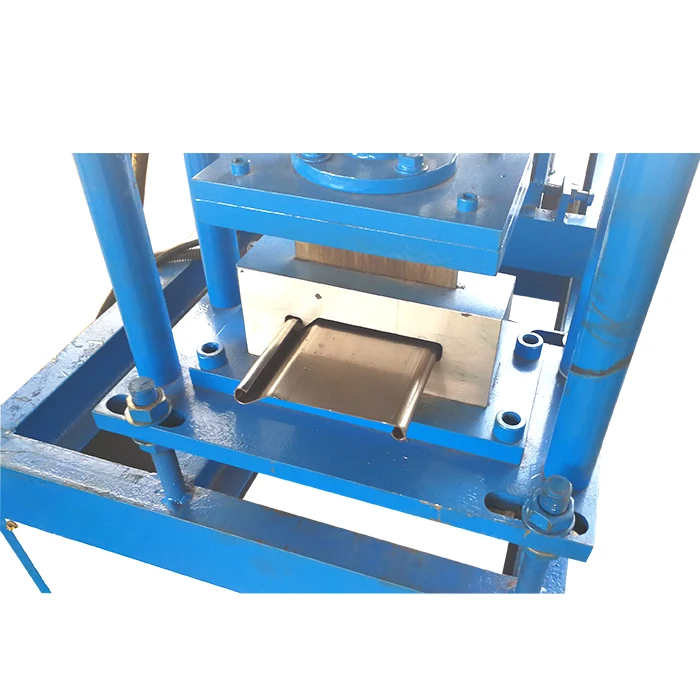

Shearing Mechanism
It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.
Material of blades: Cr12,quenching treatment
Finished tile fall automatically
Material of blades: Cr12,quenching treatment
Finished tile fall automatically

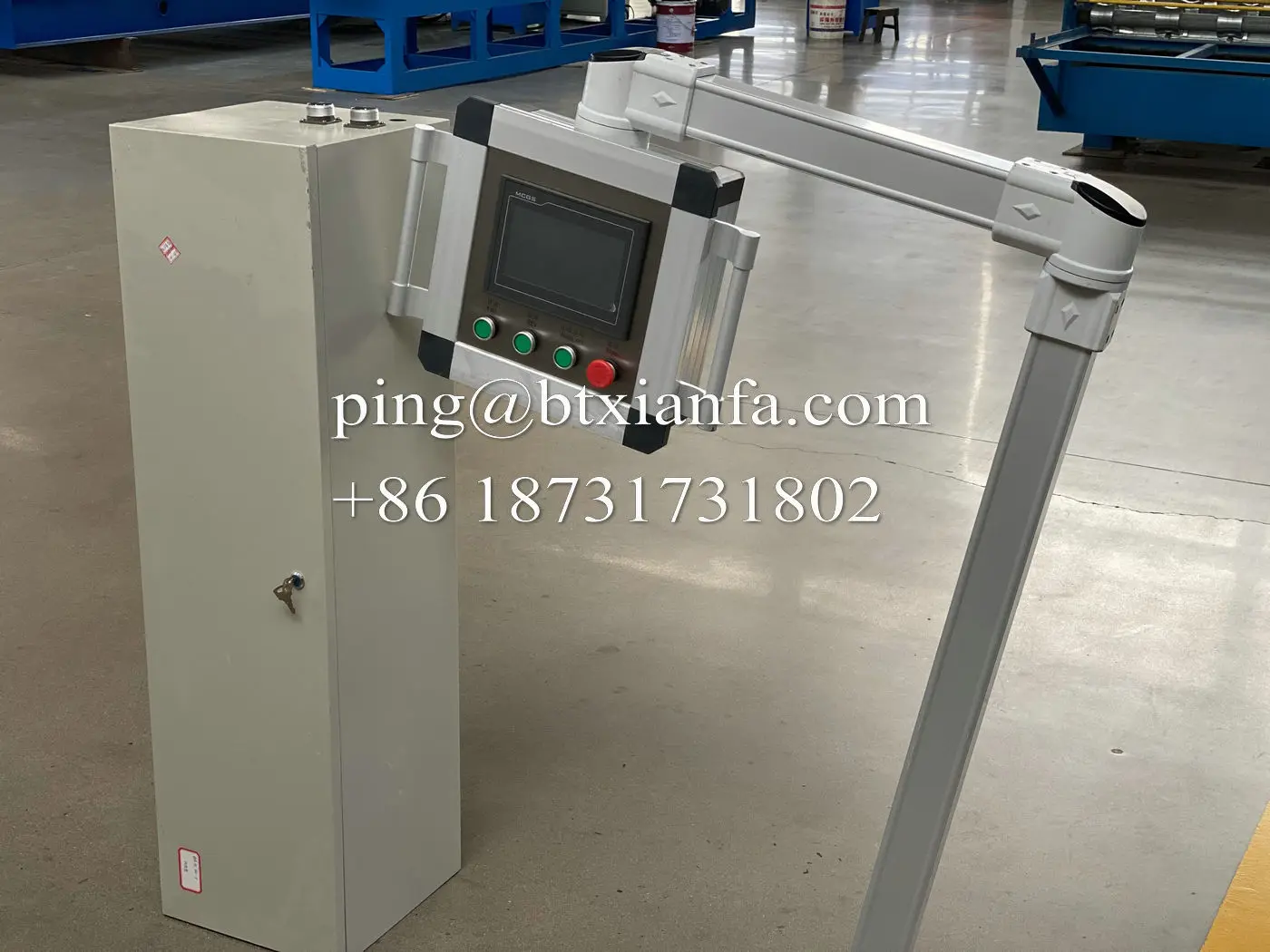

Computer Control Cabinet
Function
The whole line is controlled by
PLC and touch screen operation
PLC system is with high-speed
communication module, it is
easy for operation.
The technical data and system
parameter can be set by touch
Operation
Length is adjustable and digit of it can be adjusted.
Computed mode has two modes: automatic and manual one.
The system is easy to operate and use
The whole line is controlled by
PLC and touch screen operation
PLC system is with high-speed
communication module, it is
easy for operation.
The technical data and system
parameter can be set by touch
Operation
Length is adjustable and digit of it can be adjusted.
Computed mode has two modes: automatic and manual one.
The system is easy to operate and use

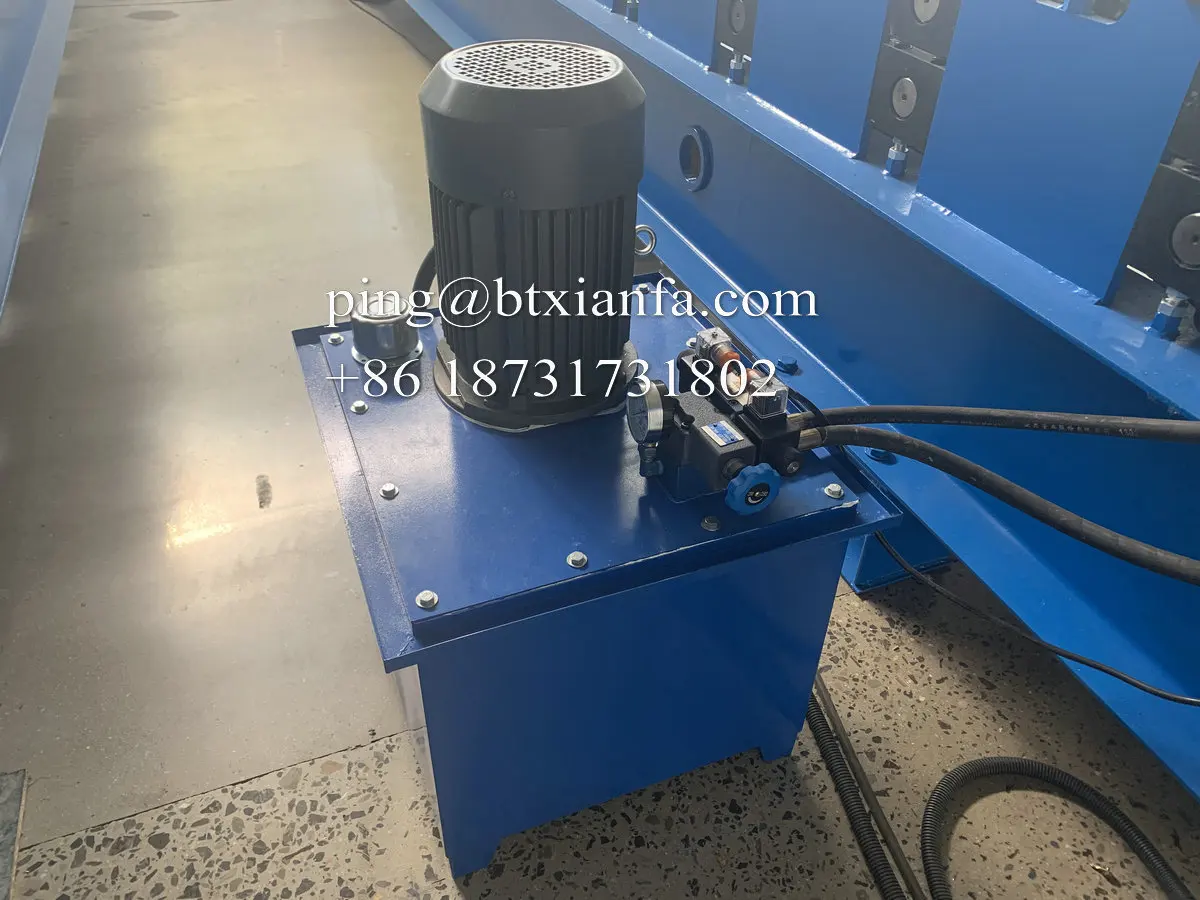

Hydraulic System
Adopted top brand hydraulic
system components to
ensure the stability and
lifetime, avoid leakage.Supplies the initial power to
the cuter through a closed oil
tank. It is off without cutting,
which can save the power
Servo Motor
The hydraulic pump station has a heat dissipation system
system components to
ensure the stability and
lifetime, avoid leakage.Supplies the initial power to
the cuter through a closed oil
tank. It is off without cutting,
which can save the power
Servo Motor
The hydraulic pump station has a heat dissipation system

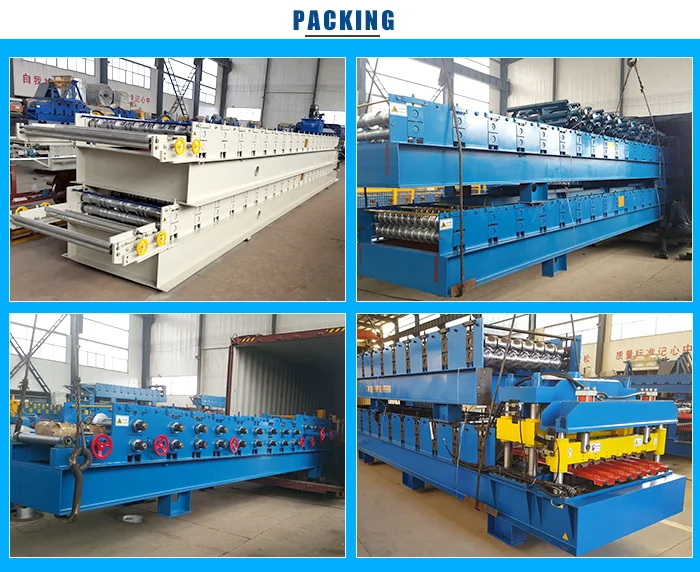

Packing Method AND Transportation
1.All machines need one 40 feet container
2.Main machine is nude,the computer control box is packed by carton
box.The loading machine is operated by professionals and will not
cause any damage to the machine during sea transportation
2.Main machine is nude,the computer control box is packed by carton
box.The loading machine is operated by professionals and will not
cause any damage to the machine during sea transportation
3.Payment Term 30% deposit by T/T ,Making machine Provide photos and videos of the machine to the customer after the machine is
finished After the qualified The customer will pay all the balance after confirmation
4.Delivery Time 50Working days after
receiving the deposi tcomplete 3.Warranty Free warranty for 12 months, lifetime maintenance service
receiving the deposi tcomplete 3.Warranty Free warranty for 12 months, lifetime maintenance service
