11 motors Lifting system glass mirror beveling edge grinding machine price
- Category: Glass Production Machinery >>>
- Supplier: Foshan Addtech Glass Machinery Co. Ltd.
Share on (60801601890):
Product Overview
Description
Product Description
ADXM371SJ

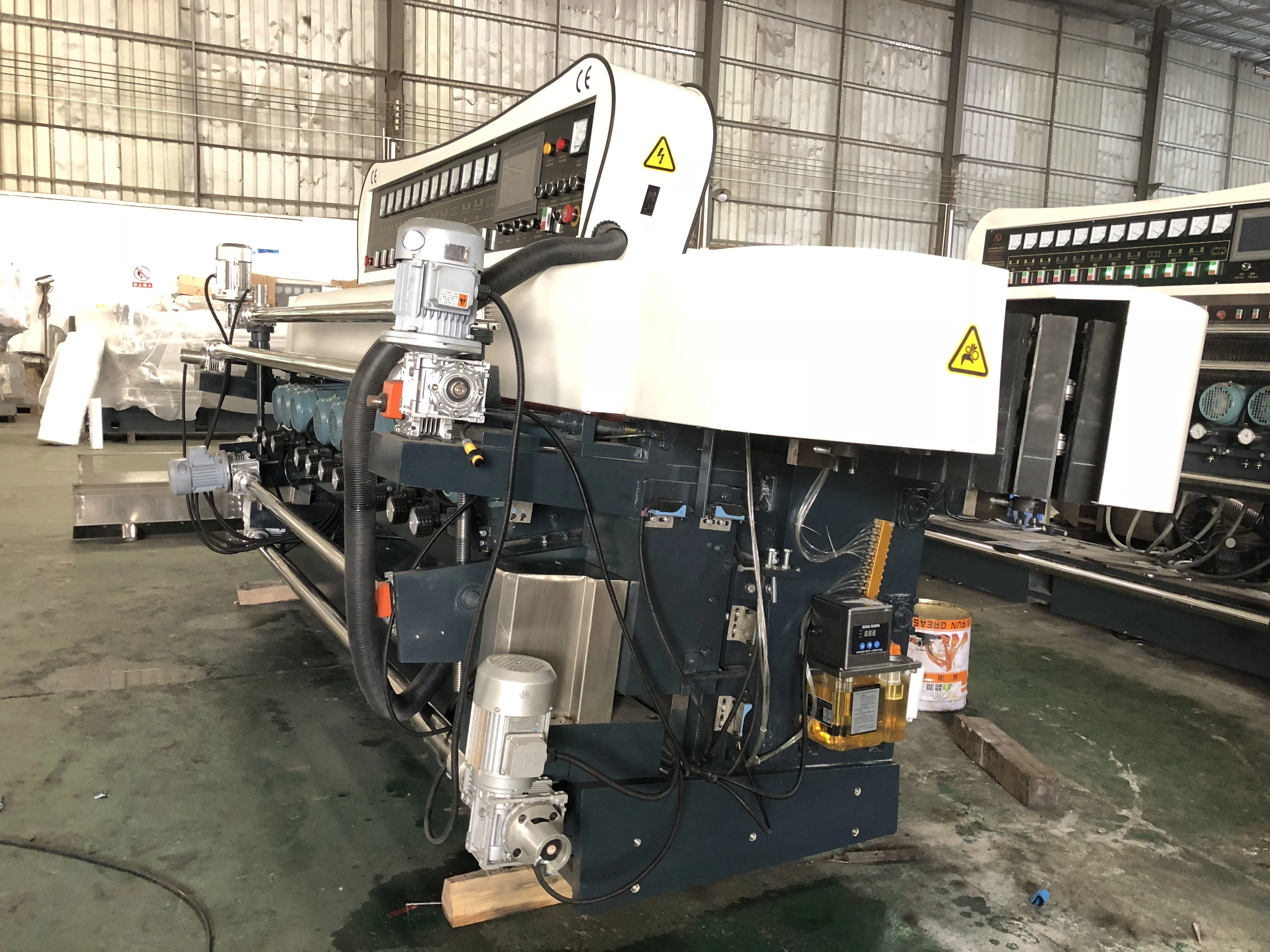

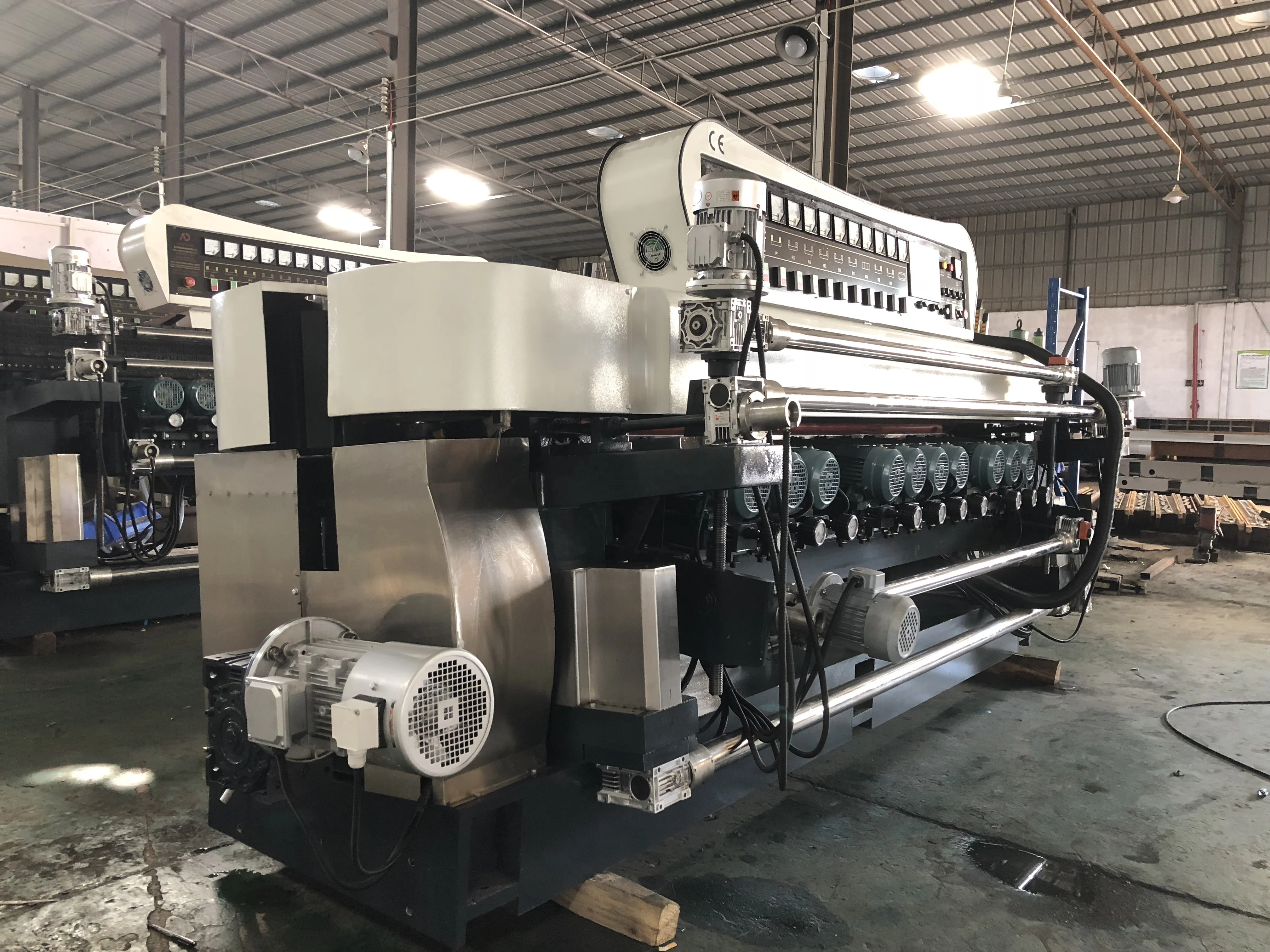

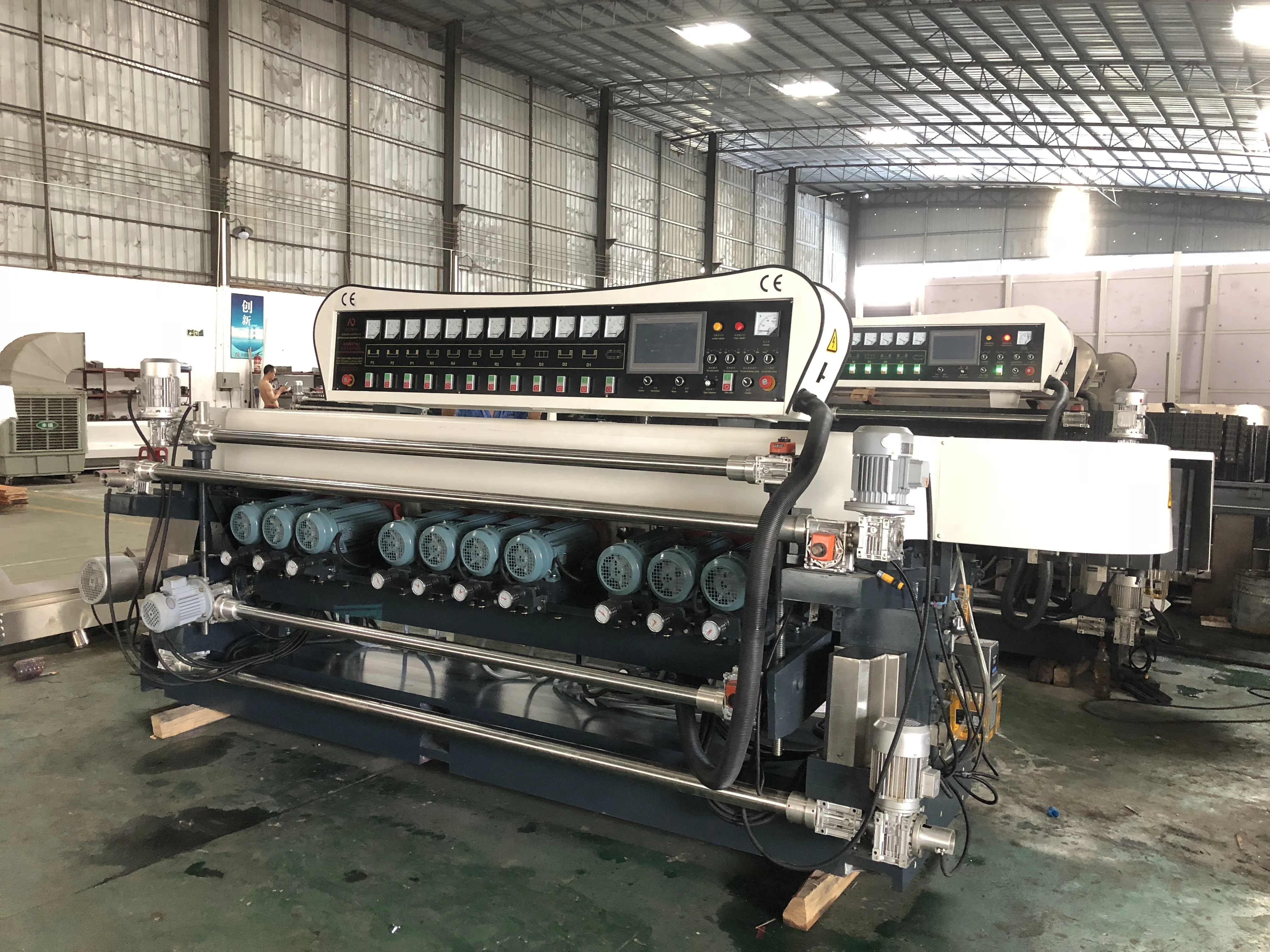

11 motors Glass Lifting beveling machine with PLC
I. INTRODUCTION:
1. Using PLC to control glass processing thickness, angle and height.
2. Suitable for beveling various sizes flat glass.
3. The front beam and grinders can be adjusted up and down simultaneously to grinding the bottom edge and bevel edge of the flat glass.
4. The coarse grinding, fine grinding and polishing process are finished at one time.
5.All the pressing plates are using with thicker steel plate, which make machine more stronger, transmit steadier and in higher working precision.
6. The working speed adopts frequency motor, easy operation and high practicality
II. TECHNICAL SPECIFICATIONS:
|
TECHNICAL SPECIFICATIONS |
|||
|
voltage |
Power |
Bevel angle |
Max bevel width |
|
380v/50Hz |
24.8kw |
0°-45° |
55mm |
|
Glass thickness |
Feeding speed |
Min size |
Weight of machine |
|
3-19mm |
0.5-9m/min |
20x20mm |
55000kg |
|
Overall size(LxWxH) |
7000x1300x2500mm |
Packing size(LxWxH) |
3900x1400x1900mm |
III. CE certification
IV. Machine detail:
1. Stainless steel appearance (Customized by customers)

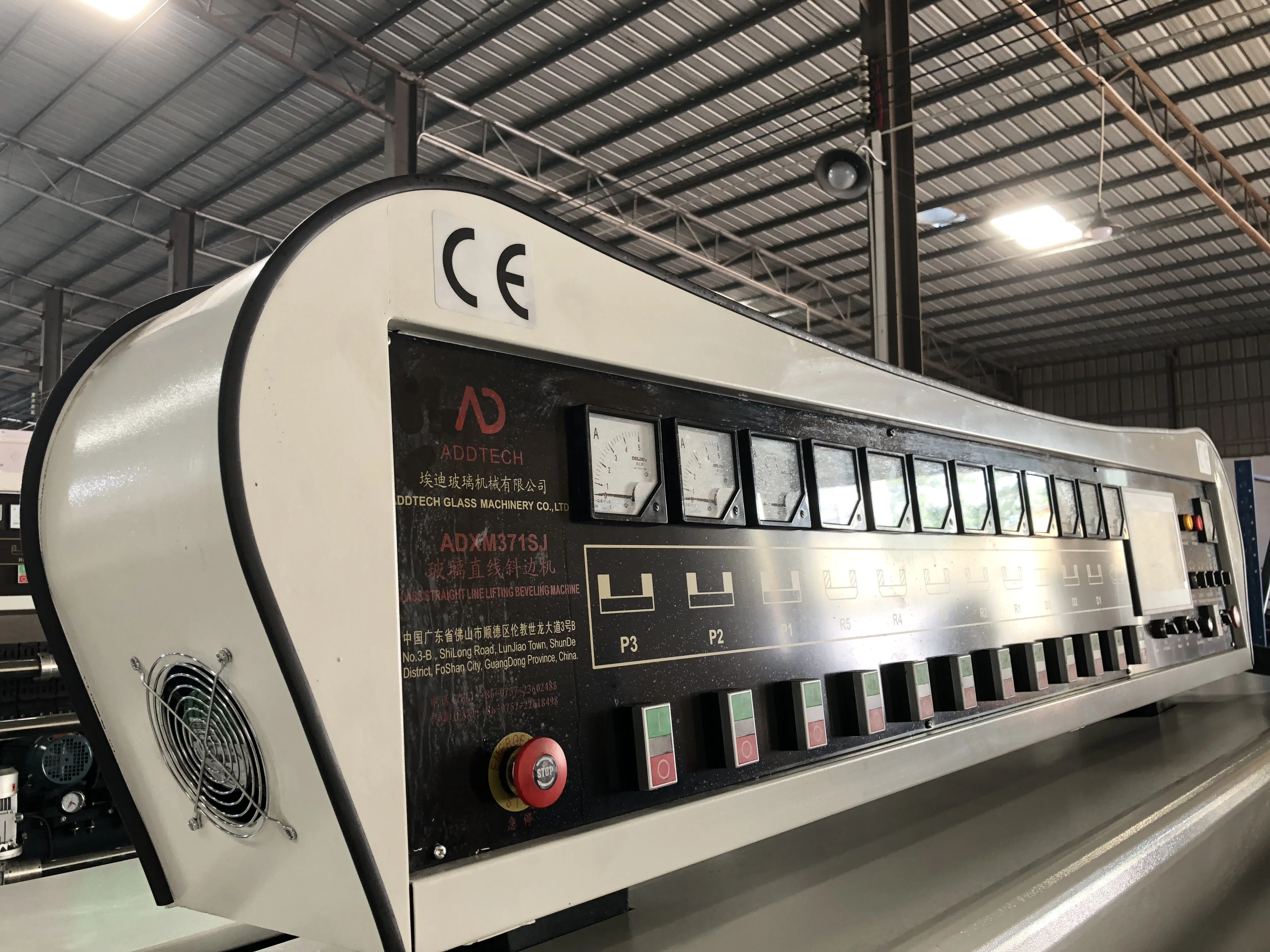

2. Mitsubishi PLC control system
3. Heavy duty foundation & beams: cast steel,annealing treatment;
4. Electric device: Schneider or Delixi electrical optional;
5. ABB MOTOR 380V/50Hz, 380V/60Hz, 220V/60Hz, 400V/50Hz, 415V/50Hz, optional;
6. Various high quality import grinding wheels.
Suit for grind mirror, mosica, spell mirror,Low-e glass, float glass, laminated glass, tempered glass etc,.
V. Packaging & shipping :
VI. Guarantee And After-sale Service:
- One year guarantee for whole machine.
- 24 hours technical support by e-mail.
- Ues-friendly English software,use manual and detailed Videos/CD.
-
We will provide all spare parts needed for maintenance of the equipments.
-
Professional after-sales service team support face-to-face training and installation to customer's factory.
VII. Company Information :
- ADDTECH GLASS MACHINERY CO.,LTD was established in 2007.
- Edging & beveling machine , washing machine , drilling machine , irregular machine MANUFACTURER
- Automatic oil lubrication of pulling plate is our original innovation, great helpful to improve stability and maintainability
- About 200-300 set machines be exported to about 20 countrys every years with good quality and reasonable price
VIII. India / Turkey glass exhibition 2017
