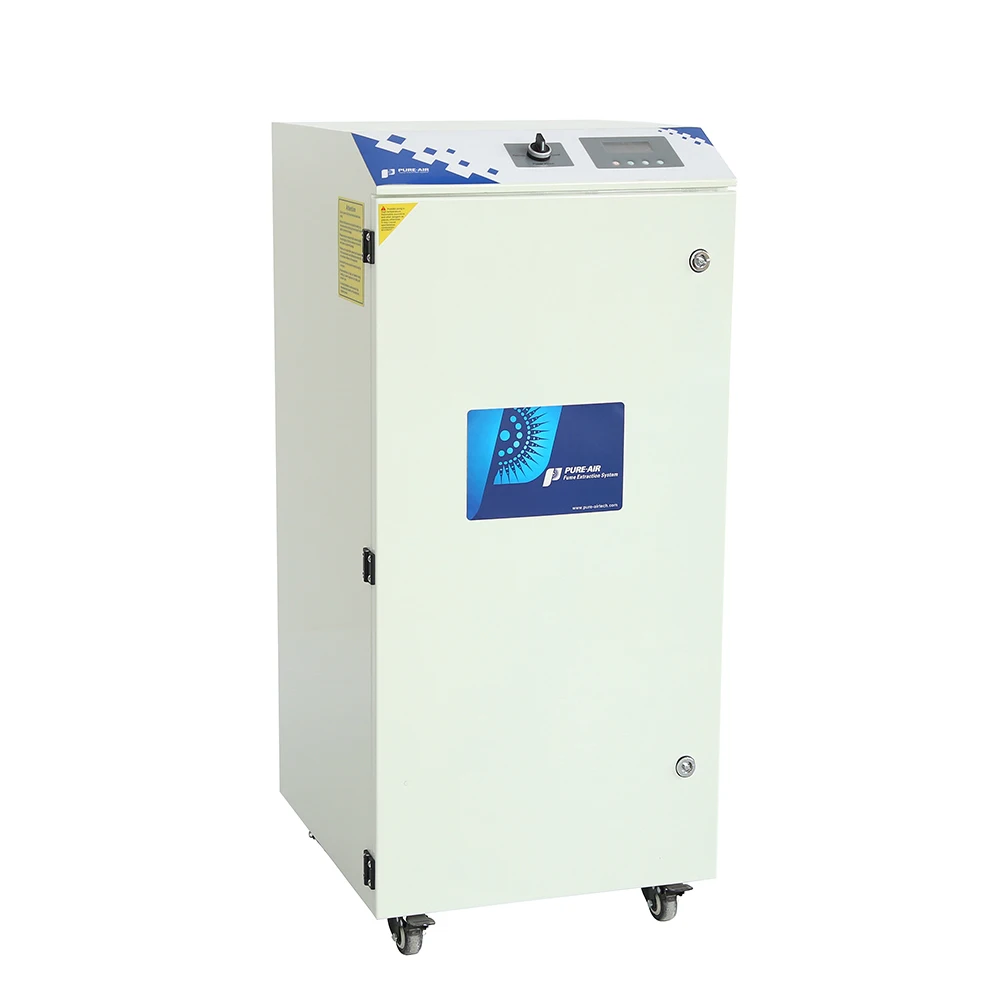

SpringAir CO2 Laser Engraving and Cutting Machine and Fiber Laser Marking Machine Smoke Purifier Industrial Smoke Filter

Spring Air Laser Fume Extractor suitable for air purification, fume filtration and dust collection for CO2 Laser processing non-metal and small fiber laser marking metal. We have full machine range from small power unit to bigger one, from SA-300TS to SA-2400FS,max air flow from 300m3/h to 2400m3/h. This is enough to cover the application range for major kinds of CO2 laser machine.

Our fume extractor SA-300TS, SA-500FS, SA-700FS, SA-1000FS, SA-1500FS, SA-2400FS has very good performance for filtrate fumes, collect dust and adsorb strong smell during different laser processing, laser cutting/engraving/marking, with both metal or non-metal like PVC/Acrylic/paper/plastic/wood/plywood/mdf/rubber/PU/PET/ABS/Marble/stone/leather, etc. It suitable for below different laser machine:

1) CO2 Laser cutting machine with 1600mm*1000mm working area;

2) CO2 Laser cutting machine with 1300mm*900mm working area;

3) CO2 Laser cutting machine with 900mm*600mm working area;

4) CO2 laser cutting machine with 600*400mm working area;

5) CO2 Laser engraving machine with 1600mm*1000mm working area;

6) CO2 Laser engraving machine with 1300mm*900mm working area;

7) CO2 Laser engraving machine with 900mm*600mm working area;

8) CO2 laser cutting machine with 600*400mm working area;

9) Fiber laser marking metal

Main Features:

1) Strict welding and painting technology achieve to high tightness and corrosion resistance cabinet.

2) Specific sound-absorbing materials reduce operating noise to improve operation efficiency.

3) This fume extractor use China blower, high pressure, low noise. It can effectively absorb particle and extend filter life of less power.

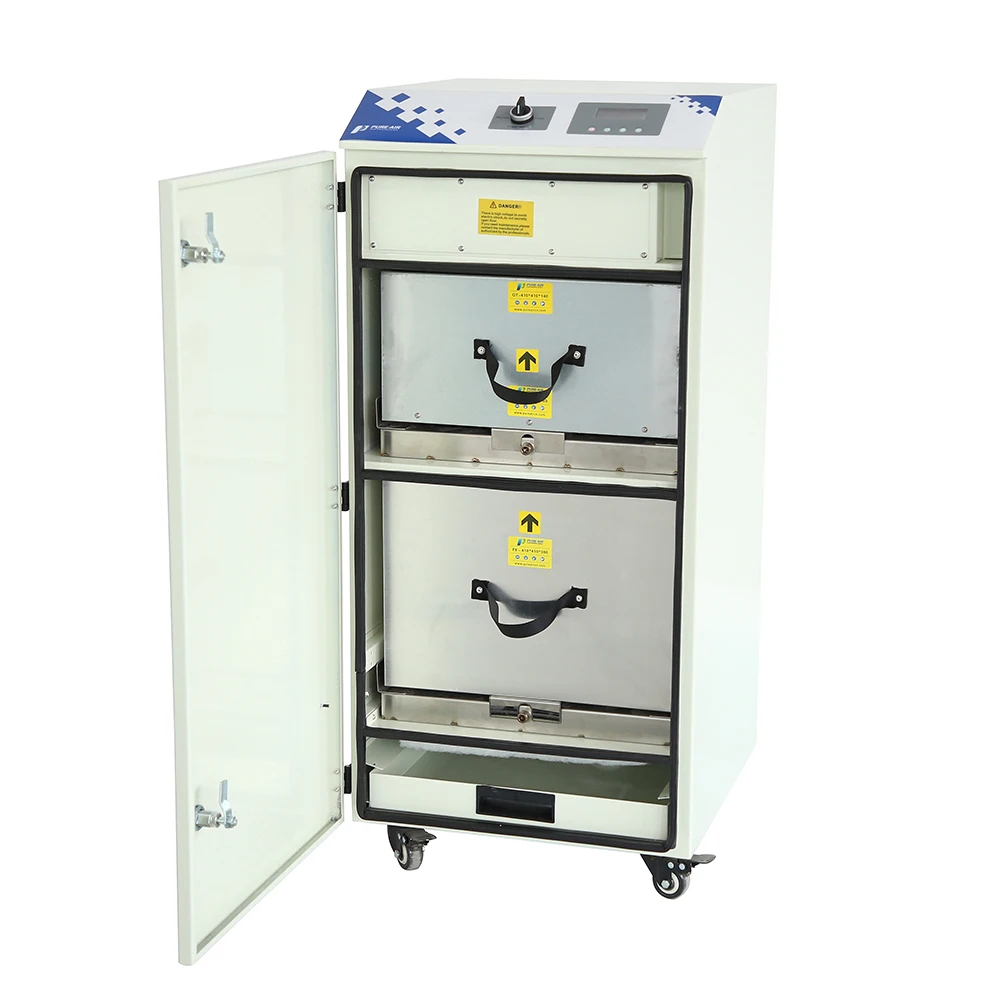

4) Spring Air fume extractor consist of five parts, they are metal filter, G3 primary filter, F8 class bag filter, HEPA main filter and activated carbon filter.

5) Well-proportioned holes to ensure that large dust particles are trapped on the metal filter, to prevent them block the pre-filter.

6) F8 class bag filter comprised by non-woven fabrics full-thickness adhesive, can be adsorbed middling particles in the air to avoid main filter is blocked.

7) Main filter consists of efficient HEPA element, in independent tests, these filters remove 99.997% of all particles above 0.3 microns and 95% down to 0.01 micron.

8) Gas filter layer formed by the chemical materials can effectively remove harmful gases and pungent odor in the air.

Product Function:

1) Air Purification, dust collection and fume filtration for different industry, suitable for single workstation;

2) This range including Air flow is from 300m3/h to 24000m3/h, blower capacity is from 200W to 2.2KW;

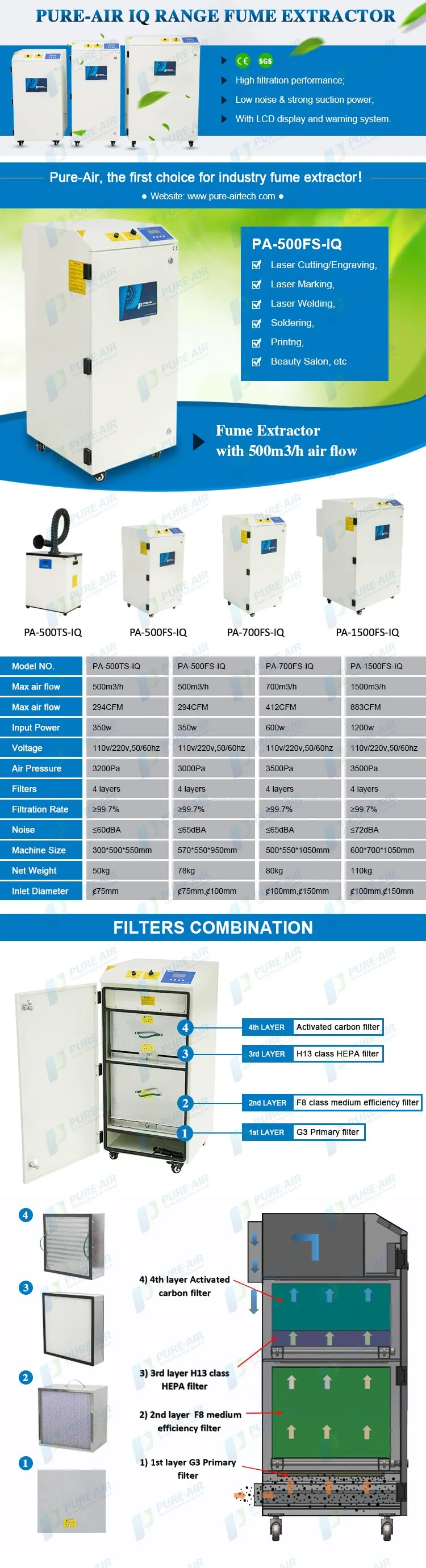

3) 4 layers filtration to ensure filtrate harmful material of the fumes completely, to achieve room air quality standard, protect environment and people's health, It included below 4 layer filters to make sure the high air purficiation performance:

a) 1st layer is G3 Primary filter for remove big and heavy particles/smoke/dust(>=5Micron)

b) 2nd layer is F8 medium efficiency bag filter for remove big particles/smoke/dust(>=1Mircron).

c) 3rd layer is H13 class HEPA filter to remove small particles (>=0.01Mircron) and smoke.

d) 4th layer is Activated carbon filter to adsorb smells and toxic gas.

Specification

	Item	Technical Data	Remark
Filter Elements Data	G3 Primary filter	G3 Primary filter	For remove big and heavy particles/smoke/dust(>=5 Micron)
		Medium efficiency filter	F8 medium efficiency filter	F8 medium efficiency filter for remove big particles/smoke/dust(>=1 Mircron).
		HEPA Filter	H13 class HEPA filter	Filter can remove 99.997% of all particles above 0.3 microns and 95% down to 0.01 micron.
		Gas Filter	Activated carbon filter	Chemical molecular, Oxidant & Active carbon adsorb noxious gas.
		Average filtration rate	≥99.7%	It will be a little fluctuation according to different materials.
Blower Technical Data	Running period	more than 30,000h	One year guarantee
		Max. air flow	500m³/h	/
		Input capacity	350W blower	Low capacity
		Air Pressure	3000pa	High filtration rate
		Running sound	≤65dBA	/
		Input power	110/220V, 50/60Hz	International standard

Our Company

Exhibition

Package

Dimension	640*595*1300mm
G.W	103KG
Details	1PC SpringAir CO2 Laser Engraving and Cutting Machine and Fiber Laser Marking Machine Smoke Purifier Industrial Smoke Filter will pack in 1 strong plywood box, box dimension is 640*595*1300mm, G.W: 103KG
