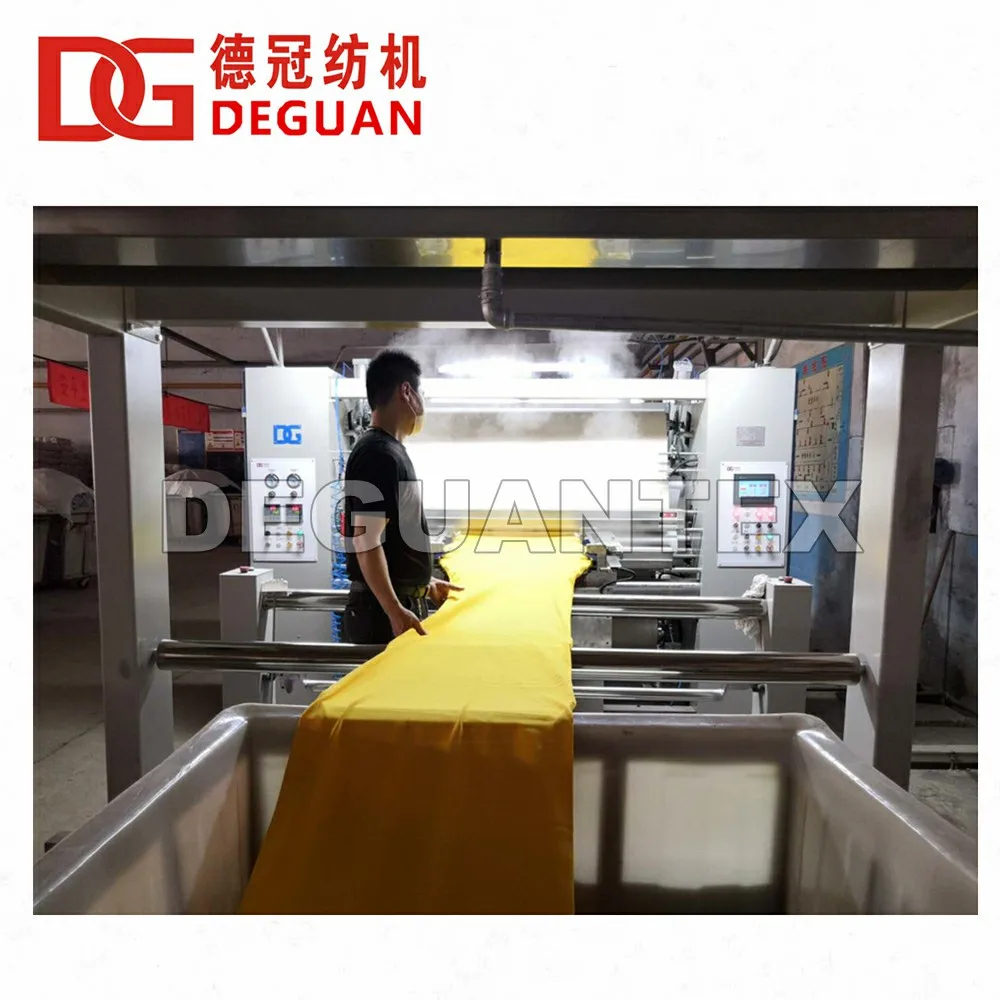

DGYS450 Blanket Tubular Compactor with single/double pass for knitted tubular cotton fabric
- Category: Textile Dyeing Machines >>>
- Supplier: Dezhou Deguan Textile Machinery Co. Ltd.
Share on (60802056742):
Product Overview
Description
Product Description
Tubular Compactor
1.\tMethods of Heating: 1.Steam 2. Thermal Oil 3. Recycle Oil
2.\tThis machine is used for tubular cotton knitted fabric and preshrinking process, and the tubular compactor is equipped with 20mm Nomex carpet, magnetic shuttle, hydraulic lifting platform.
3.\tThe temperature of machine could reach 180℃ max based on different heating source.
4.\tOur machine blanket is 20mm thickness, which could resist high temperature and not pollute the fabric. After the process of preshrinking, the fixed size of tubular fabric could be achieved.
5.\tThe width of fabric: 1450 mm Max.

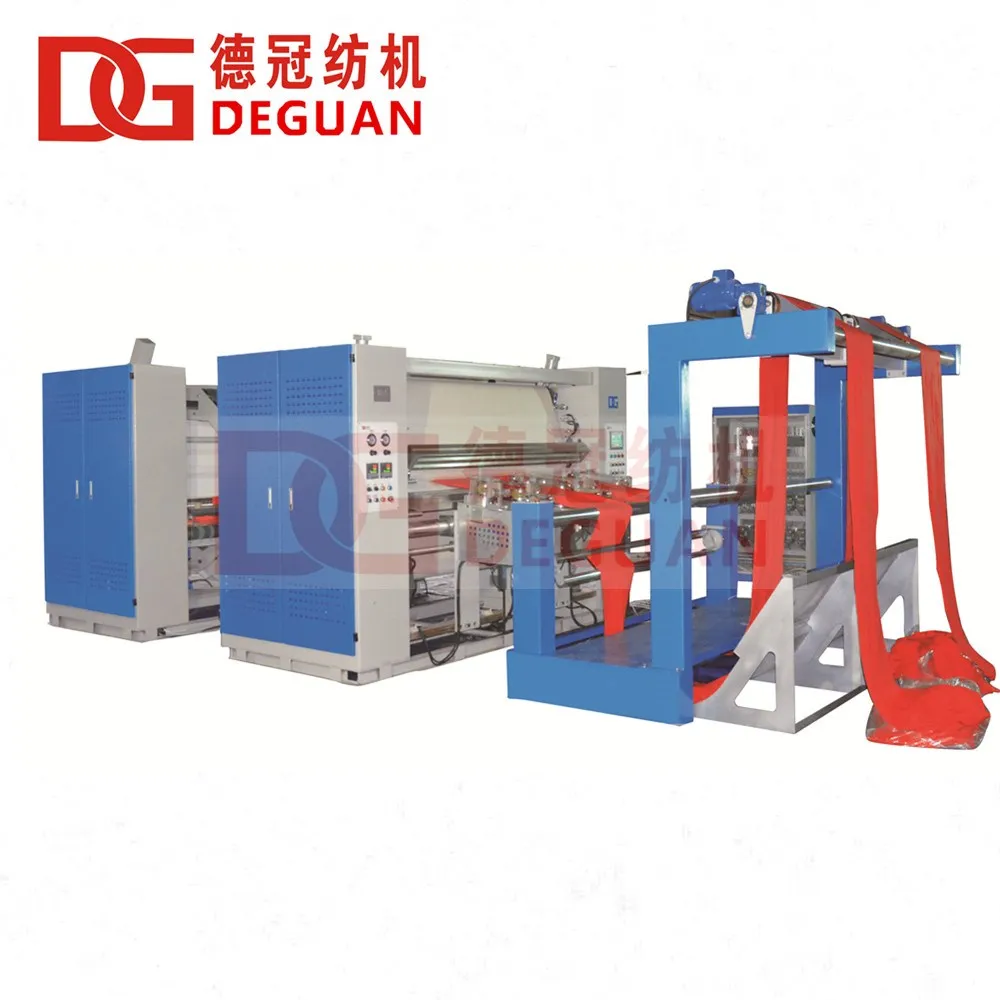

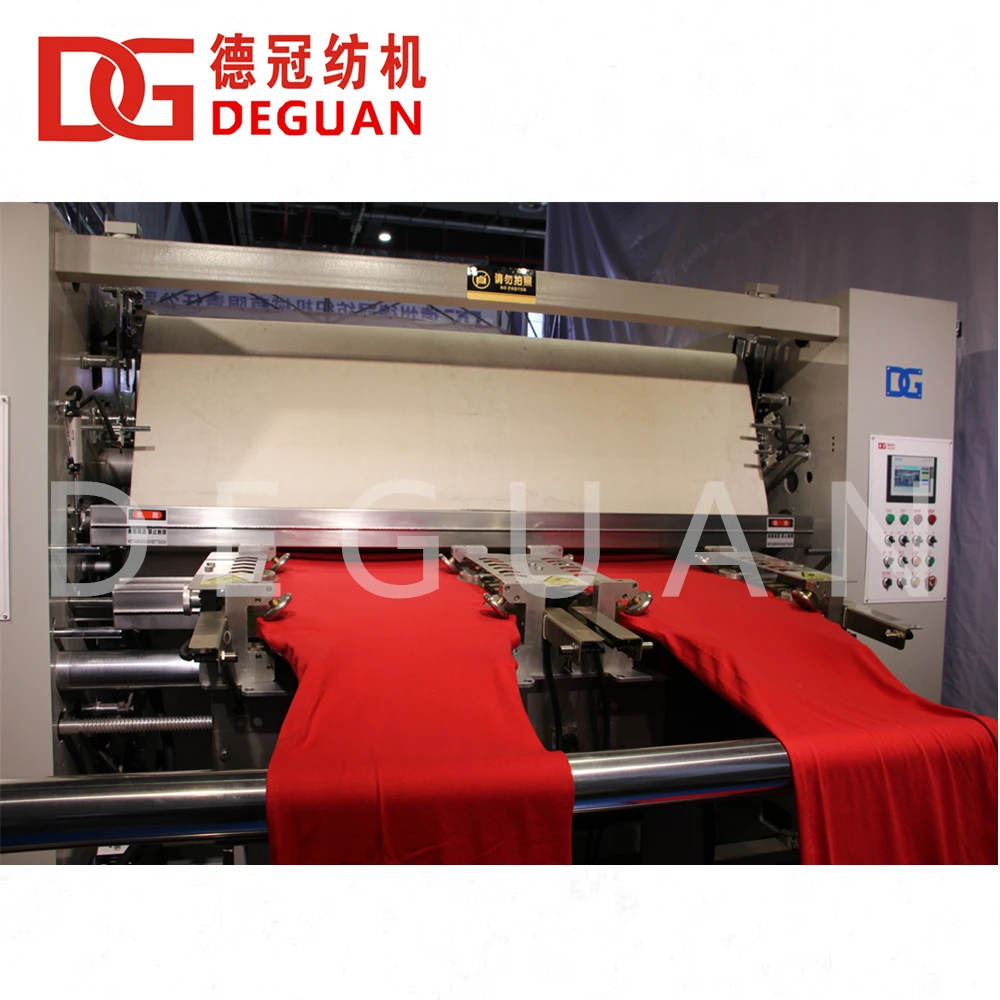

****single pass or double pass
****Standard diameter of Cylinder is 450mm.
Technical Specification | ||
Model | DGYS450 | |
Name | Tubular Fabric Compactor machine | |
Application | Textile-finishing(shrinkage rate:2-5%) | |
Suitable Fabric | Tubular knitted Fabric Pure cotton,wool,blended fabric(cotton content>65%) | |
Main Matching Fabric | Tubular fabric of above 65% cotton content | |
Heat source | Thermal Oil | |
Pre-shrinking type | 20mm Nomex compacting | |
Supporting Plate type | Maglev separated shuttle | |
Fabric Outfeed type | Auto precisely plaiter | |
Max fabric width | 1450mm | |
Working speed | 5-30m/min | |
Max temperature of | Electricity, Thermal Oil <180℃,Steam<140℃ | |
Breadth Adjustment type | Semi-automatic | |
Capacity of machine | 10kw | |
Standard machine power supply | 380V/3P/50HZ | |
Control power supply | 220V/24V | |
Compressed air | 0.35-0.6MPa | |
Dimension | 7450mm*2740*2100mm (L*W*H) | |
Parts Details

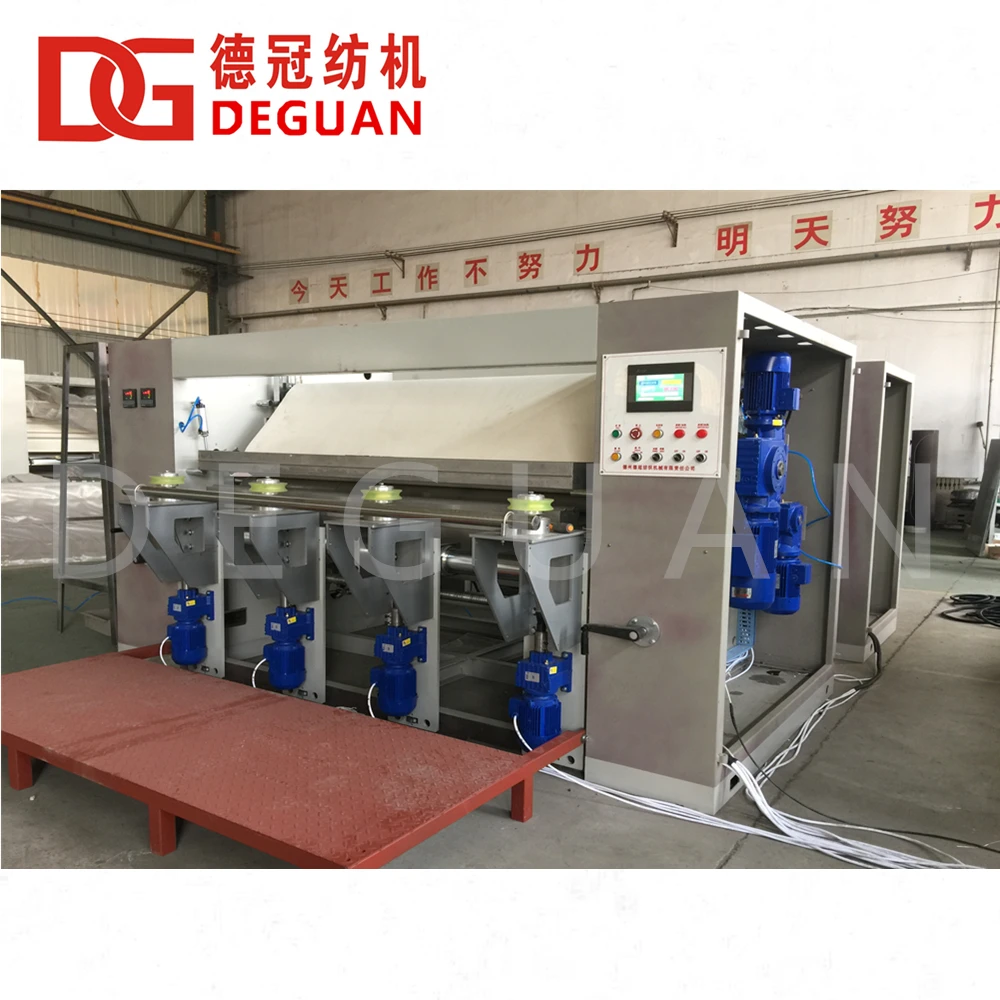

From the Magnetic Shuttle, you can see the auto entry's operation will be easy to grasp and save your labour, increase the production.
Meanwhile, the sensor could detect the potential broken fabric and stop the entry automatically.
The exit of fabric is equipped with precision folding machine, one button one press will done. We'd like to show you how to operate our tubular compactor when we face to face.
Machine Drawing
Detailed Images
Machine Parts
Name: Magnetic Shuttle
Brand: Deguan
Original:China
High effciency and advanced technology applied, manufactured by our factory.
Main Features
Name: Blanket
Brand: With Nomex materia
Original: China
The blanket made of by imported material and has high ltemperature resistance. Reliable quality and 20mm thickness could last for 10years at least.
Machine Parts
Name: Frame
Brand: Deguan
Original: China
Stainless Steel frame in Tubular Compactor, high quality could make you use this machine without any problem.
Main Features

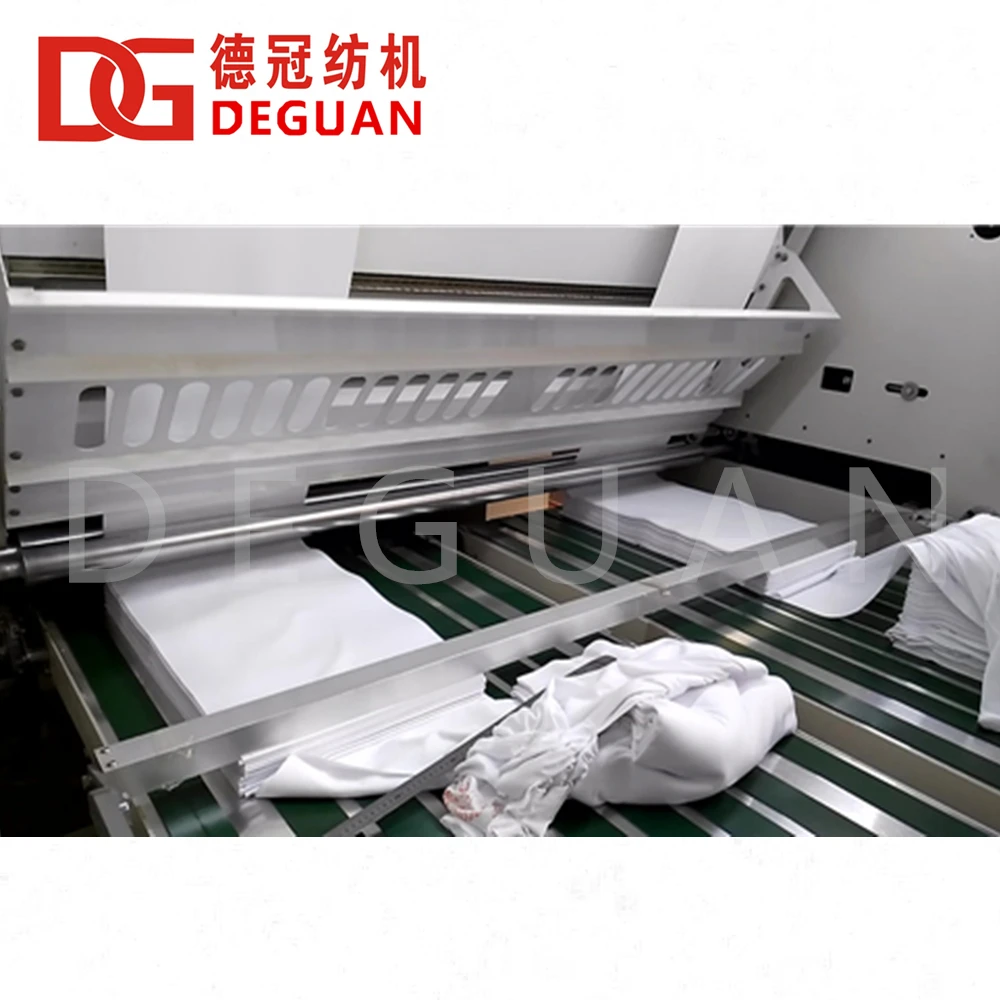

Name: Precision Folding machine
Brand: Deguan
Original: China

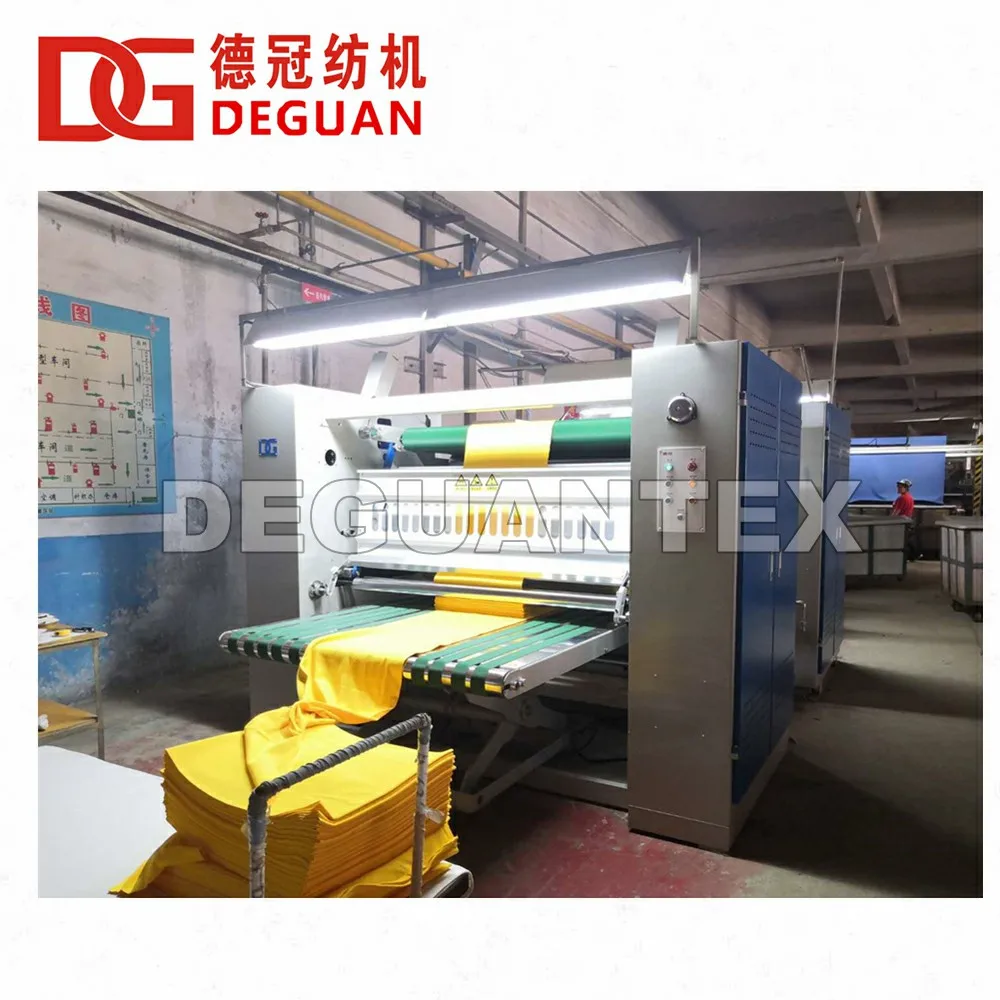

The exit of fabric of Tubular Compactor is Folding mode. Our Precision Folding machine could deal with the tubular fabric in excellent order and easy to collect after processing.
Packing & Delivery
Packaging | ||
Packaging Details | Our market and clients come from Southeast Asia, Middle-East Asia, East Europe, Middle Asia, South America and Africa. Deguan takes pleasure in offering textile finishing machine products series with excellent quality and the best service. High standard textile finishing machines along with warm service, we hope your choice will never let you down, and we cherish every opportunity to cooperate with you. | |
Packaging | ||
Packaging Details | 1.The normal package is Naked. 2. If export to european countries,the wooden box will be fumigated. 3. If container is too tigher,we will use pe film for packing or pack it according to customers special request. 4. All of your requirments could be considered and met upon your early notice. | |
Deguan Factory
Our Service
Production Superviser
The production base of Textile Machinery is founded by the professional technicians and stuff, who have more than ten years' experience in this industry.
Sales Superviser
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
Service Superviser
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas
