RK100 01 Pulse 4 20mA 0 5v RS485 Weather Station Metal Cup Anemometer Wind Speed Sensor
- Category: Speed Measuring Instruments >>>
- Supplier: Hunan Rika Electronic Tech Co. Ltd.
Share on (60802072927):
Product Overview
Description

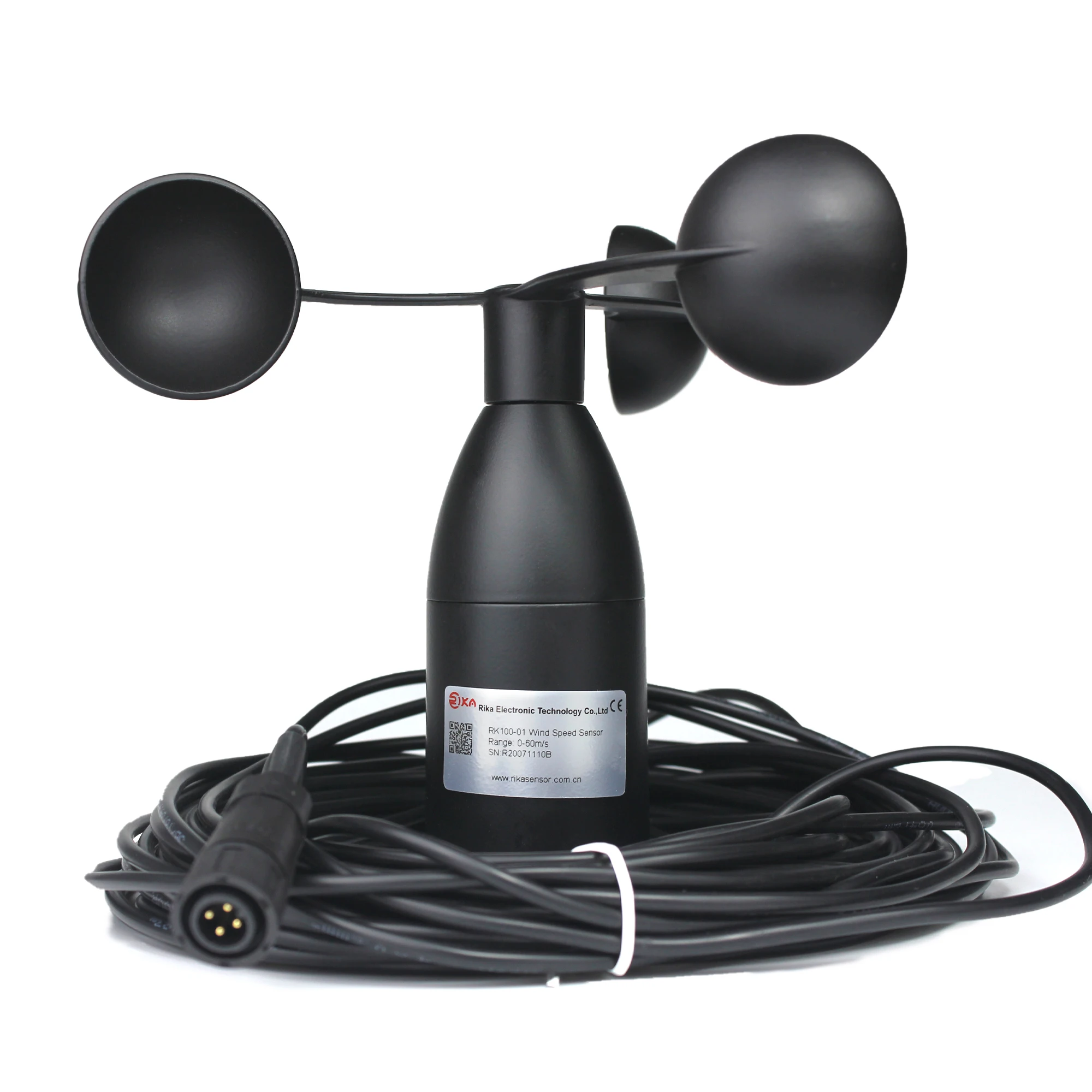

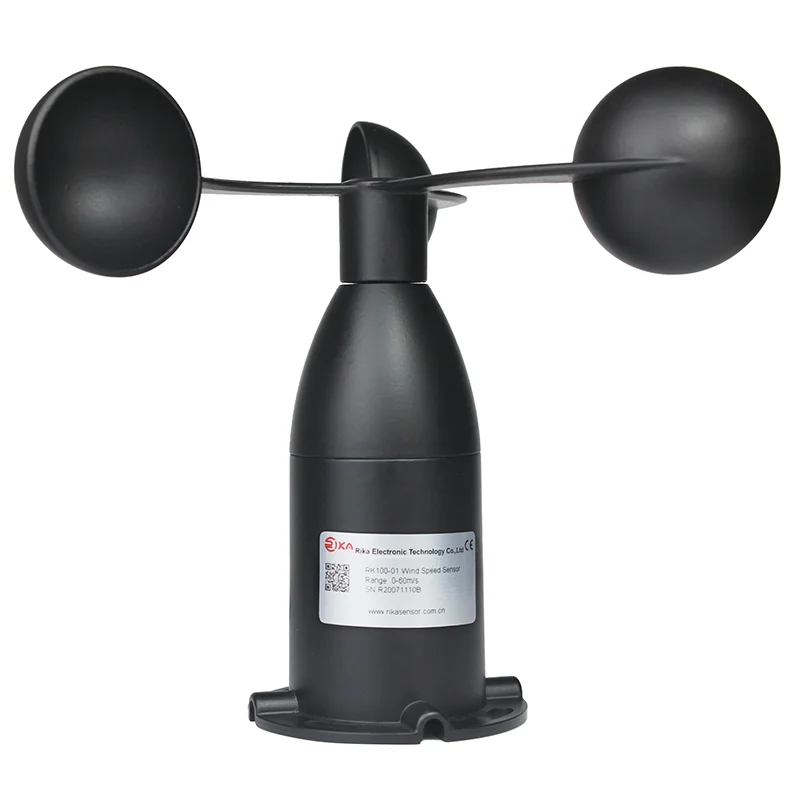

RK100-01 Pulse 4-20mA 0-5v RS485 Weather Station Metal Cup Anemometer Wind Speed Sensor
Product Description

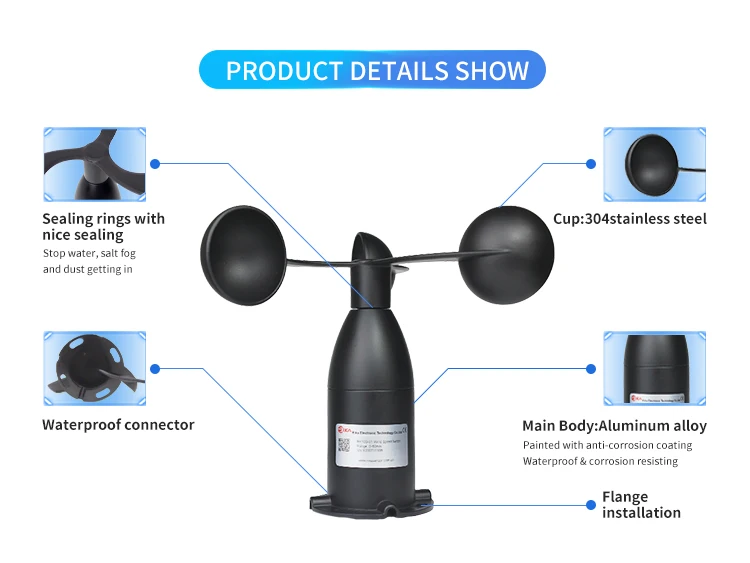

The RK100-01 Wind Speed Sensor is specifically designed to accurately and reliably measure wind speed under the adverse environmental conditions. Shell is made of high-strength aluminum alloy, the wind cup is made of 304 stainless steel, the PCB board is painted with conformal coating. The RK100-01 Wind speed sensor has good performance in harsh environment.
Features
- Low starting threshold
- Massive all-metal construction
- Strong corrosion resistant ability
- Wide range, good stability
- Various output signals optional
- Easy Installation
Applications
- Weather monitoring stations
- Safety monitoring of high altitude equipment
- Ports
- Solar and wind power generation
- Mobile weather monitoring vehicles
- Marine vessels
- Remote airports & helipads
- Road & rail tunnels
Technical Specification
Output | Pulses | 4-20mA | RS485 | 0-2V/0-5V/0-10V |
Supply Voltage | 5-24VDC | 12-24VDC | 12-24VDC | 12-24VDC |
Load Capacity | >2kΩ | <500Ω(typ 250Ω) |
| >2kΩ |
Range | 0-30m/s,0-60m/s | |||
Accuracy | ±(0.3+0.03V)m/s | |||
Response time | <1s | |||
Starting Threshold | <0.3m/s | |||
70m/s | ||||
Ingress Protection | IP65 | |||
Operating Temperature | -30℃-+70℃ | |||
Weight(unpacked) | 240g | |||
Dimension | Cup rotor:ø220mm,Height:175mm | |||
Main material | Cup:304stainless steel, Main Body:Aluminum alloy | |||
Finish | Polyester powder electrostatic spraying(black) | |||
Storage Condition | 10℃-60℃@20%-90%RH | |||
Product Overviews
Related Products
In order to recommend proper products to you, please tell me your information below:
1. Does RK100-01 support wireless transmission?
--- Yes, wireless transmission is optional
2. Do you have the suited wind speed indicator for this model?
--- Yes,our model RK150-01 is recommende
3. What specification of your connector ?
--- It is 4-pin M14 aviation connector.
4. What is your signal output ?
--- We have pulses, 4-20mA, 1-5v,RS485 output optional, and we can customize 0-5V, 0-10V output products for you.
5. Quantity?
6. Price items: CIF or Exw or FOB ? -- If CIF please tell us your detail shipping address for freight calculation.
7. Your complete company name,address, post code,contact person, tel, fax etc.
Relative Products:
 |  |  |
| Crane wind speed & controller | Metal Wind Direction Sensor | Wind Speed & Direction Sensor |
 |  |  |
| Ultrasonic Wind Speed & Direction Sensor | Plastic Wind Speed Sensor | Automatic Weather Station |
Applications
Testmonial
Company Information
FAQ
Q: Are you the final manufacturer?
A: Yes, We are SENSOR manufacturer and exporter in china with 10+ years experience and with the factory authorized by SGS.
Q: Do you offer the OEM service?
A: Yes, we can offer OEM service and design the logo marking for you. But the minimum quantity is 10pcs for the first order .
Q: Do you offer free samples?
A: Sorry , we do not offer free samples . You should pay for the samples and freight cost.
Q: What payment ways do you accept?
A: You can pay us by T/T , PayPal , and West Union .
Q: What is your delivery time?
A: It is in 6-8 working days since the payment confirmed . If quantity is more than 100pcs /order, it will need extra 3-5 working days .
Q: What is your normal delivery way?
A: Goods will be sent by DHL / FEDEX / UPS / EMS / TNT / or other proposed forwarders.
Q: How is your quality assurance service?
A: Our service is free exchange within one month and 12 months quality guarantee
Q: Could we make a visit to your factory?
A: Yes, you are welcomed . But before that, we will do the visiting investigation.
