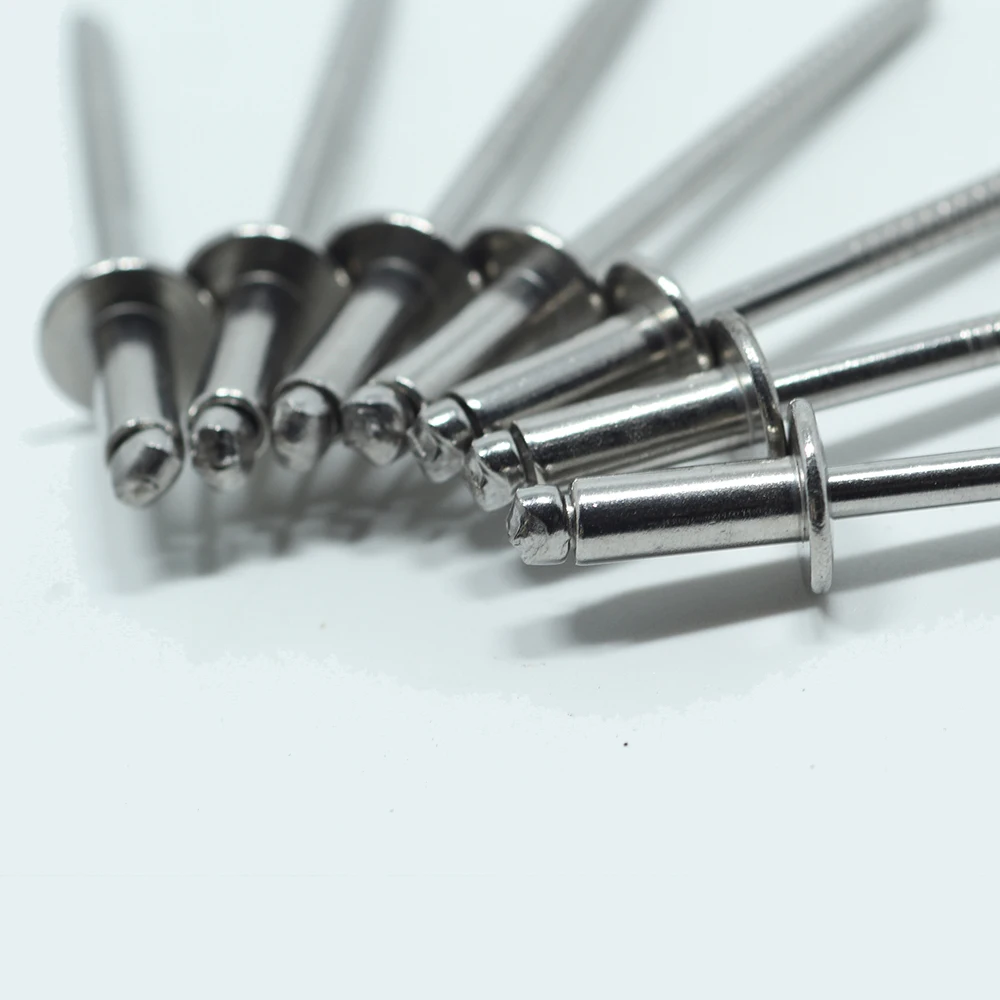

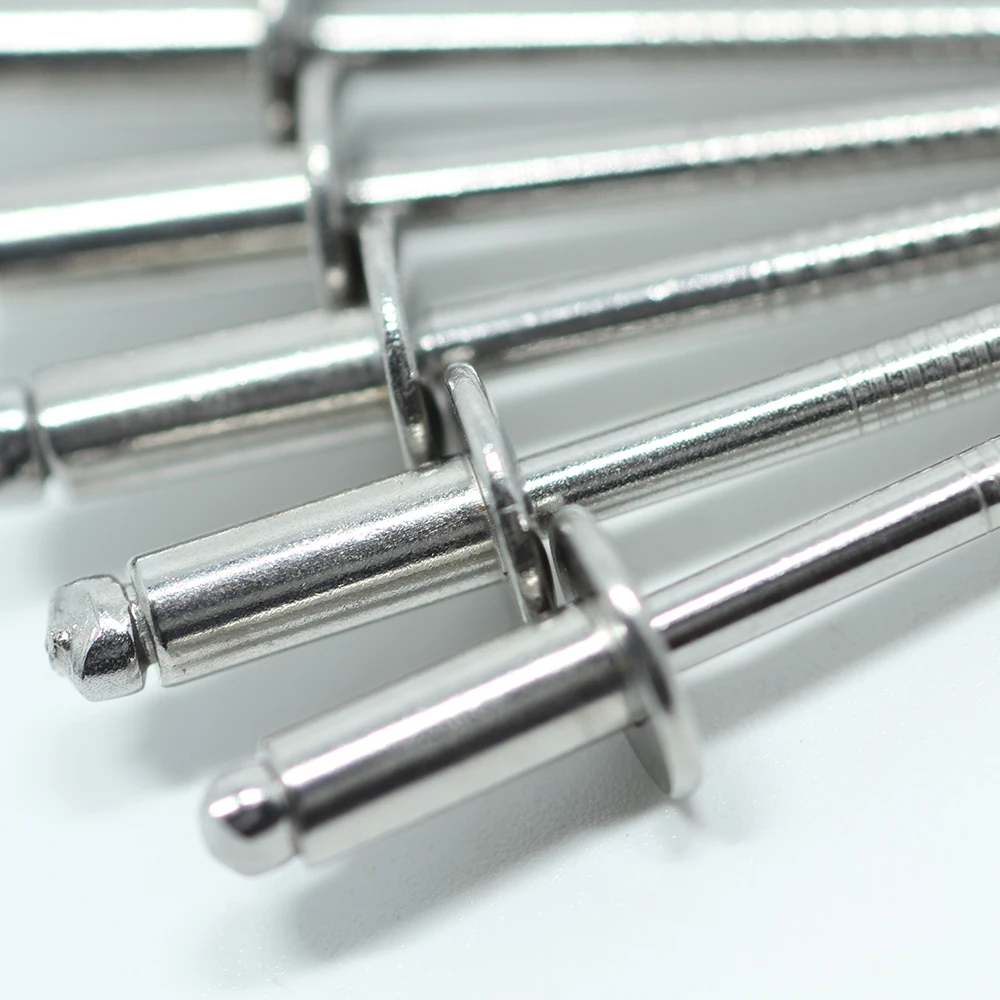

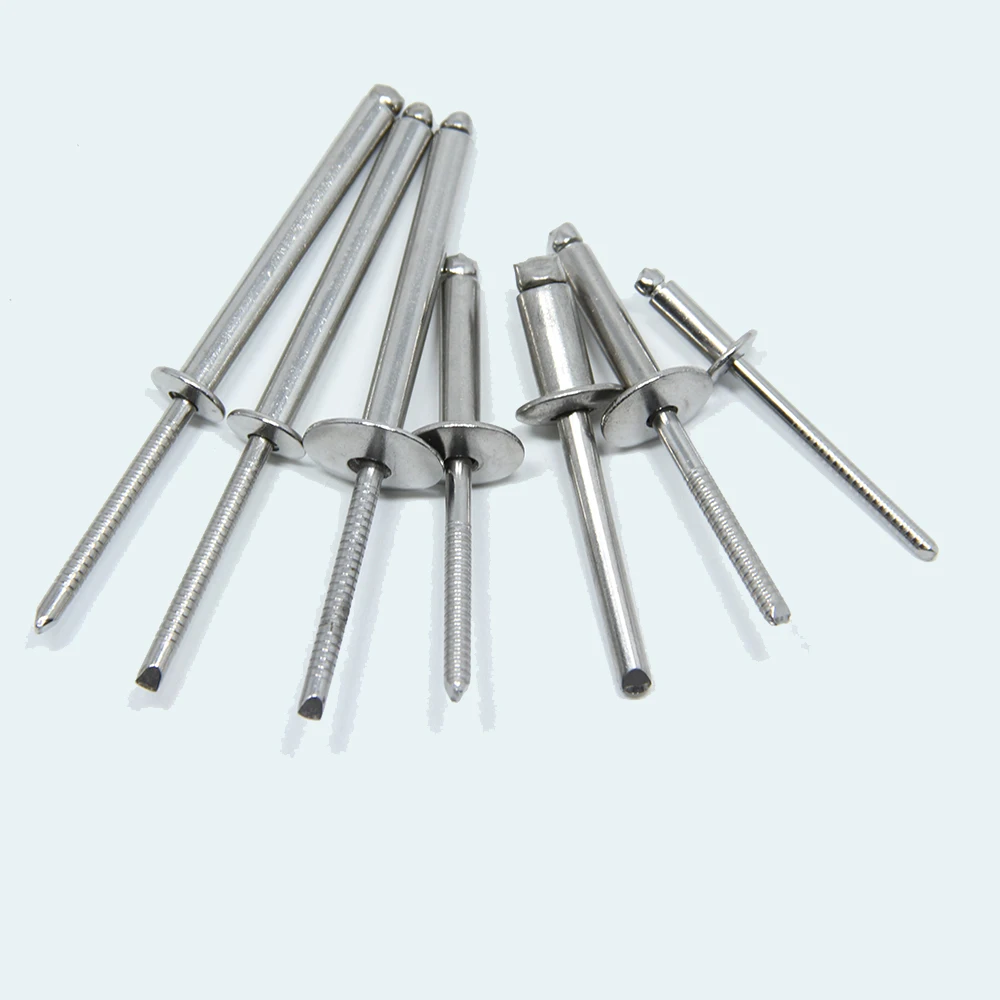

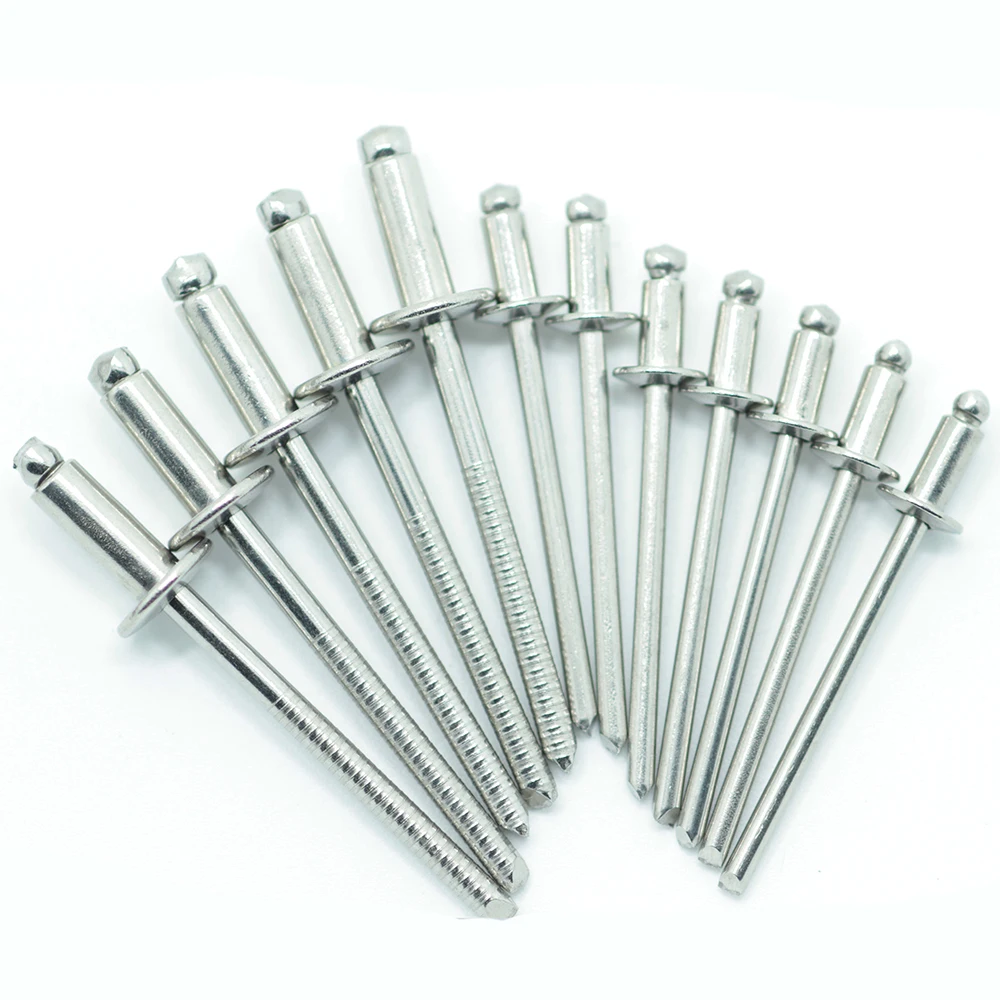

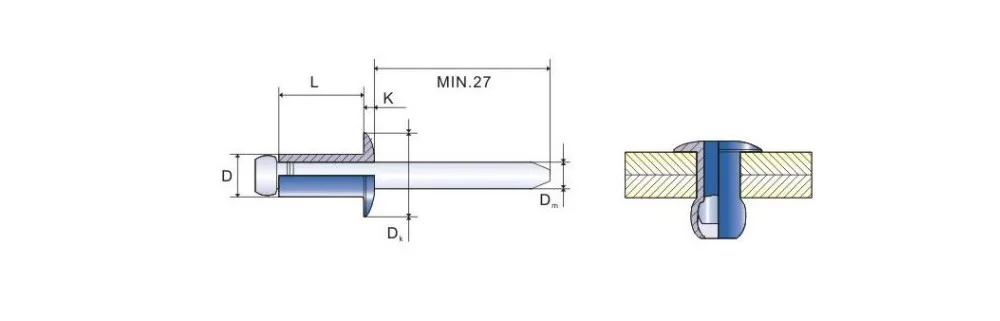

Rivets provide a way to join parts together when you don't have access to both sides. They consist of a rivet (a hollow body with a head) and a mandrel (a thin nail with a bulbed end). Rivets require a setting tool for installation. Riveted joints are strong, tight, and extremely reliable.
Insert the rivet through a hole that passes through both materials being joined. |
Using a rivet tool with the same size nosepiece as the rivet diameter, grip the mandrel and pull the trigger or lever. |
The tool pulls the mandrel through the rivet, deforming the rivet's body and breaking off the excess mandrel. |
