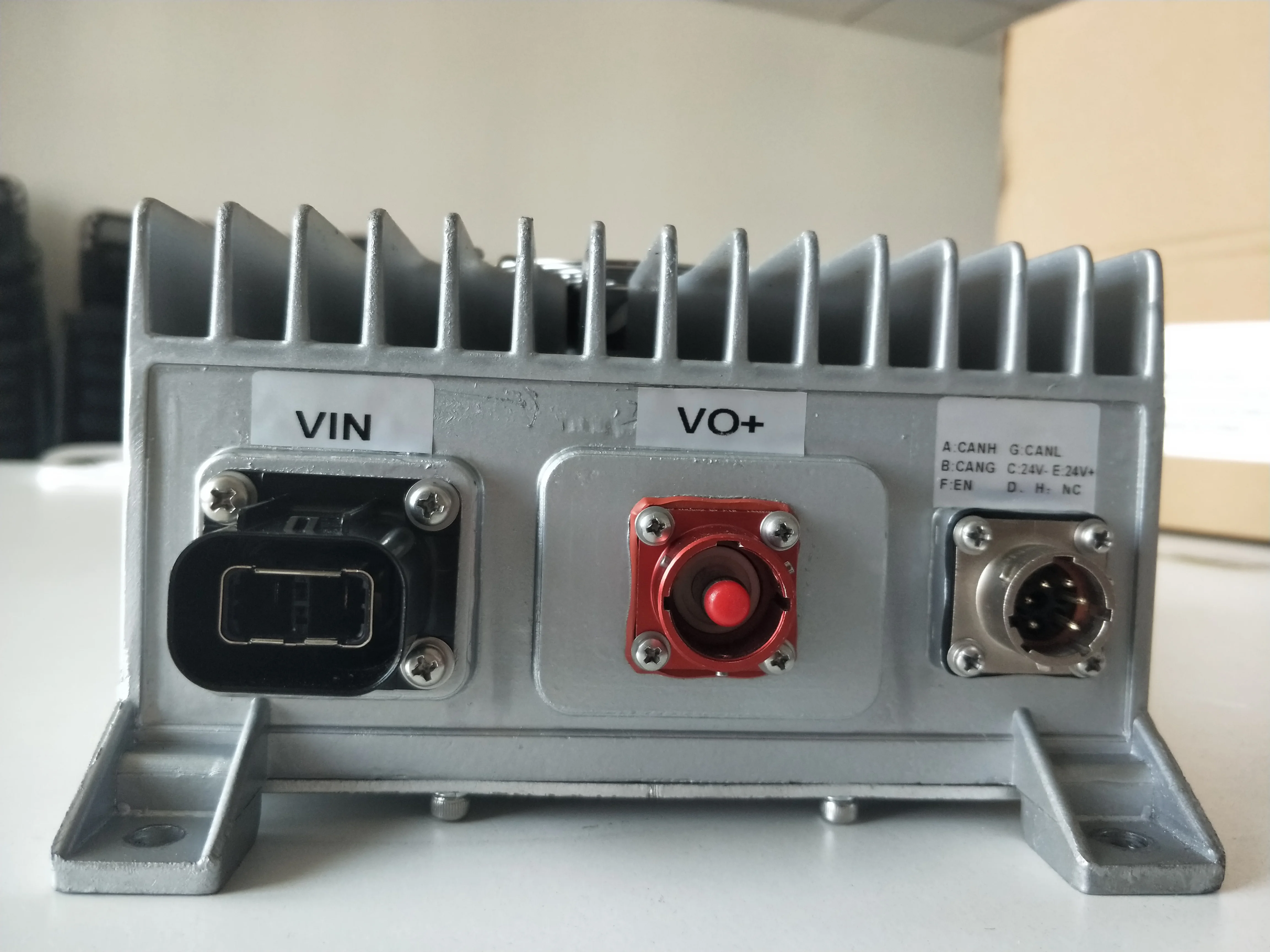

Преобразователь постоянного тока в постоянный ток 1000 Вт 2000 Вт 3000 Вт 4000 Вт 5000 Вт 6000 Вт

Input

Rated input voltage

560Vdc

Input voltage range

200Vdc ~750Vdc

Max input current

10A @Vin=270V (Peak power)

Start the rush current

<7A@DC560V

Static high-voltage input power

<1.5mA @DC560V

Output

Rated input voltage

14VDC

Rated output current

142A

Input 270V ~ 750V full power, input 270V ~ 200V current drop to 70A

Peak output current

170A

Input 300V ~ 750V work 6 minutes

Rated output power

2000w

Input 270V ~ 750V full power, input 270V ~ 200V power drop to 1000W

Peak output power

2400W

Input 300V ~ 750V work 6 minutes

Constant current point

171A-180A First limiting current, Then shut down

Heavy over-current protection

180A

Shutdown protection

Regulator accuracy

≤±1%Vo

Input 270V ~ 750V, output 10% -100% load

Load effect

≤±0.5% Vo

Rated input, output 10% -100% load condition test

Source effect

≤±0.5% Vo

Input 270V ~ 750V, rated output condition test

Output ripple

≤500mv

20M bandwidth, twisted pair plus 250V / 10u-CBB capacitor

Efficiency

≥95%

η_max

Functional protection

Input under-voltage protection

DC185~198V

Automatic recovery

Input over-voltage protection

DC755~765V

Automatic recovery

Output over-voltage protection

DC16V~18V

Automatic recovery

Over-temperature protection

≥95℃

85℃-95℃ Shut down,

70℃ restore

Input reverse protection

Input reverse, DC does not work

Output reverse protection

No (Reverse will cause permanent damage!)

Signal & Alarm

Power switch signal (continuous)

1. Access 10V-16V activation signal, DC standby

2. CAN enabled

Power status signal

According to the communication protocol reported power status, waiting for the boot command

Safety protection

Isolation voltage

Input-Output

2800V_DC/1min

Leak current≤1mA

Input-Frame

2800V_DC/1min

Leak current≤1mA

Output-Frame

500V_DC/1min

Leak current≤1mA

Insulation resistance

>10MΩ

Use environment

Operating temperature

-40℃~85℃

Storage temperature

-40℃~105℃

Operating humidity

5%~85%RH

Store humidity

5%~95%RH

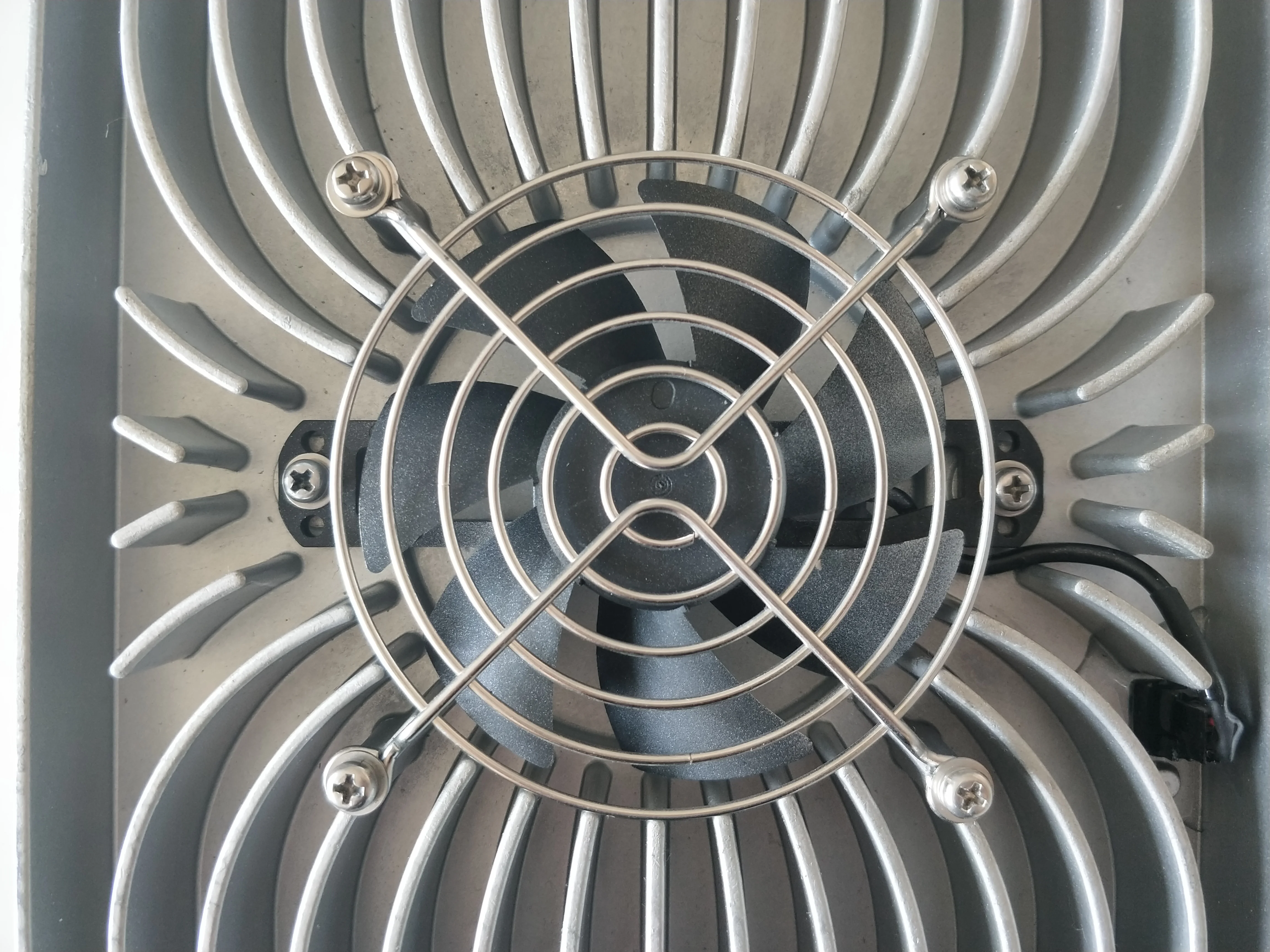

Cooling method

Air-cooled

Degree of protection

IP67

vibration

QC/T413-2002

volume

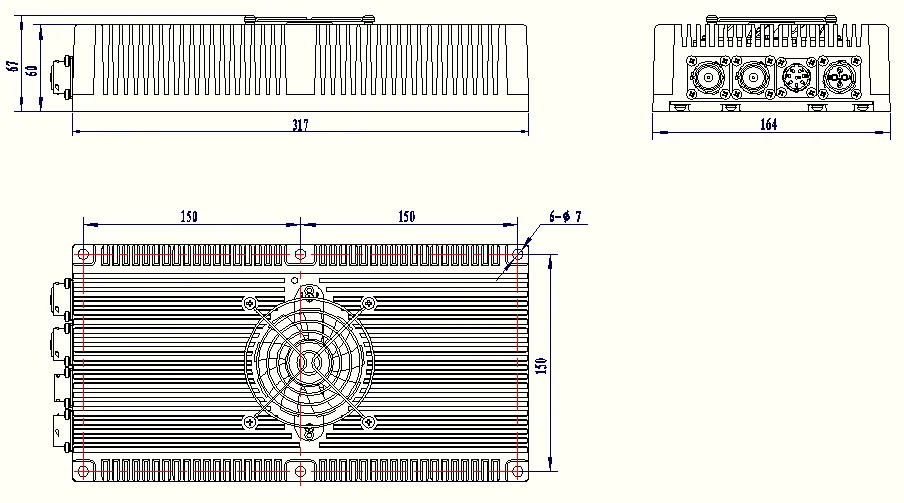

316*194.5*108.5 mm

weight

≤5Kg
