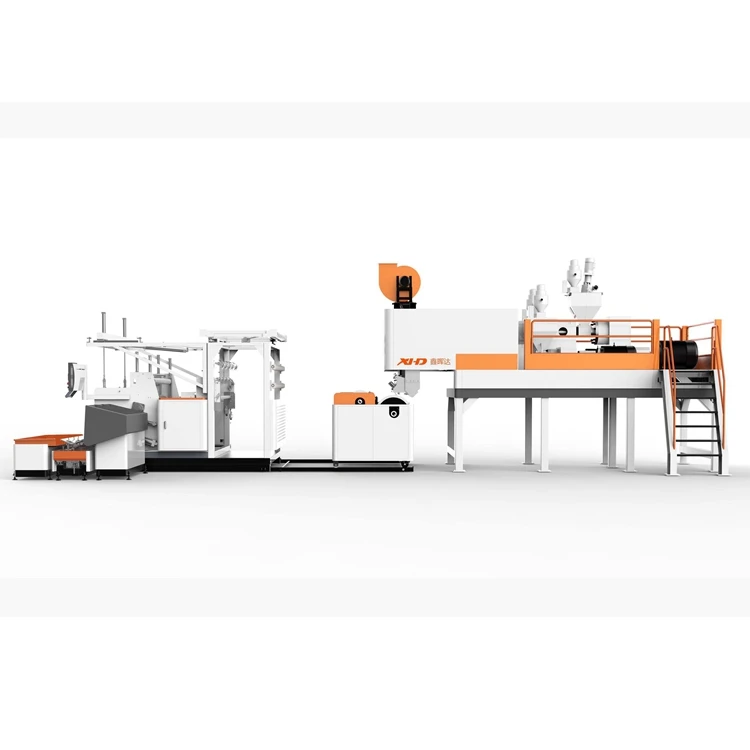

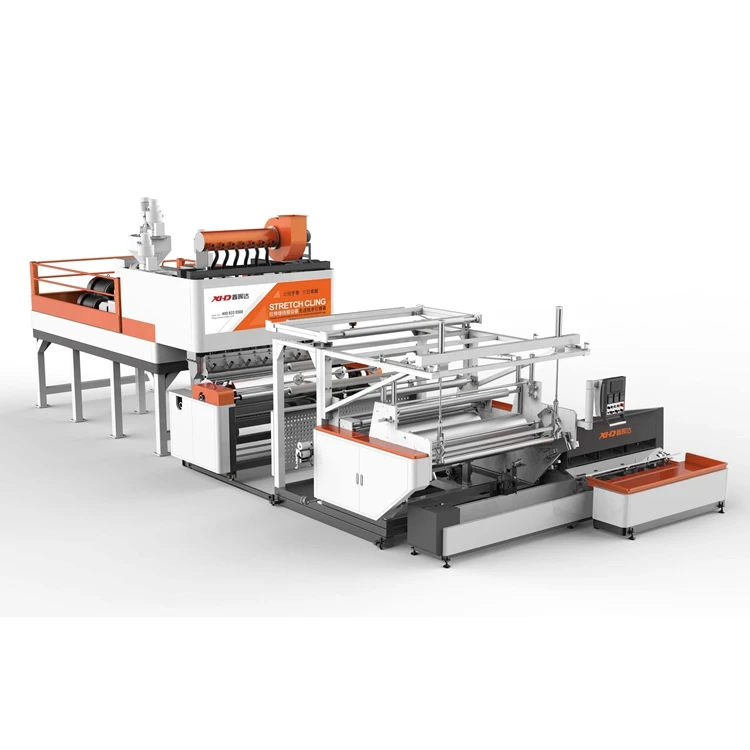

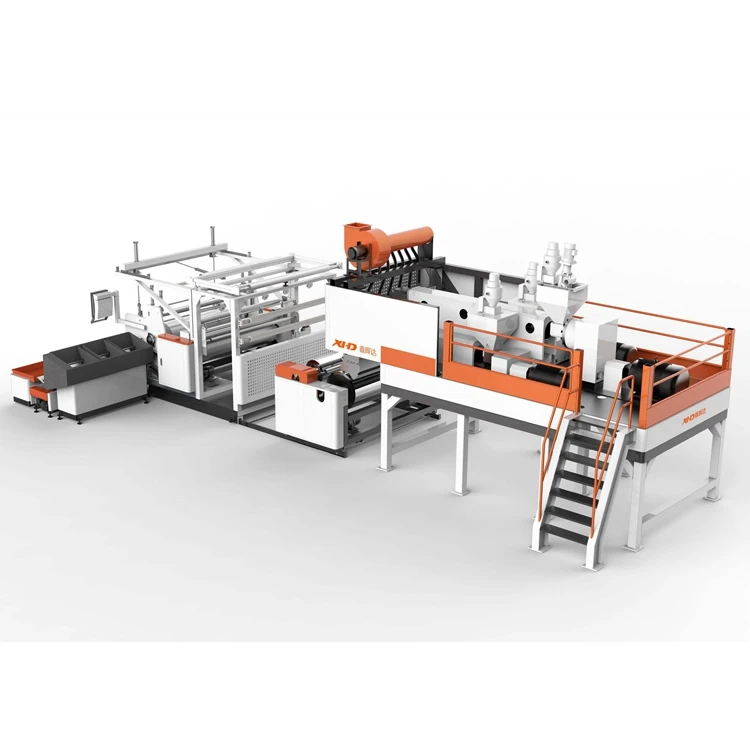

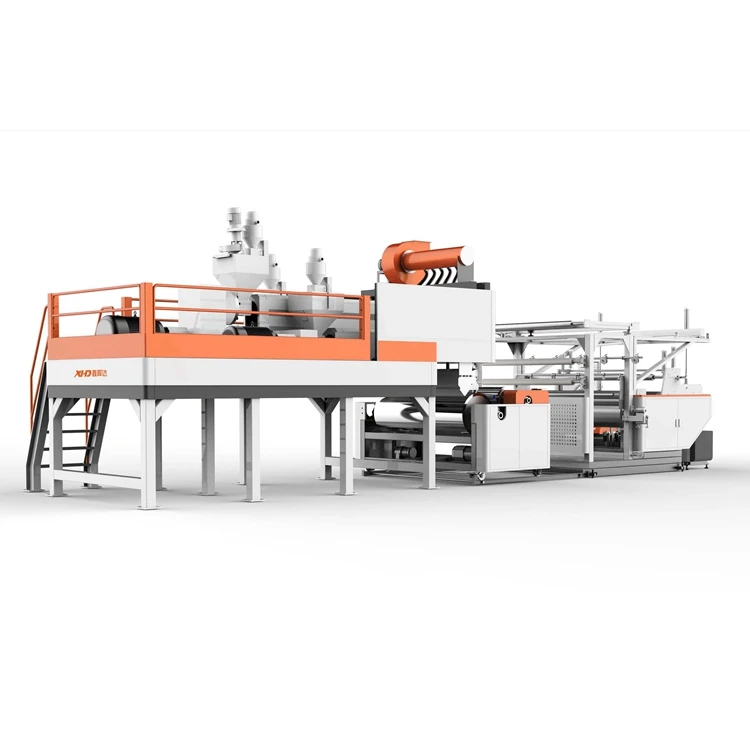

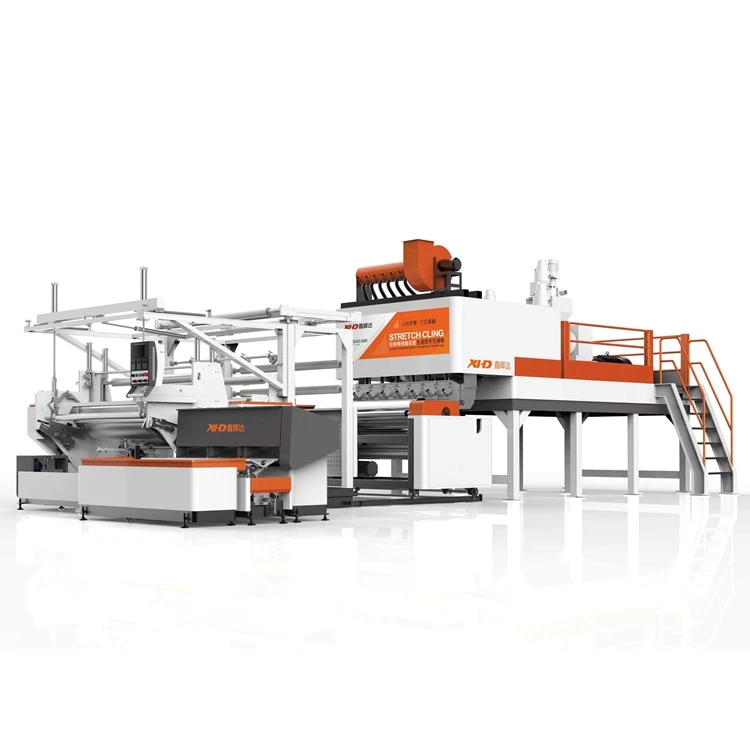

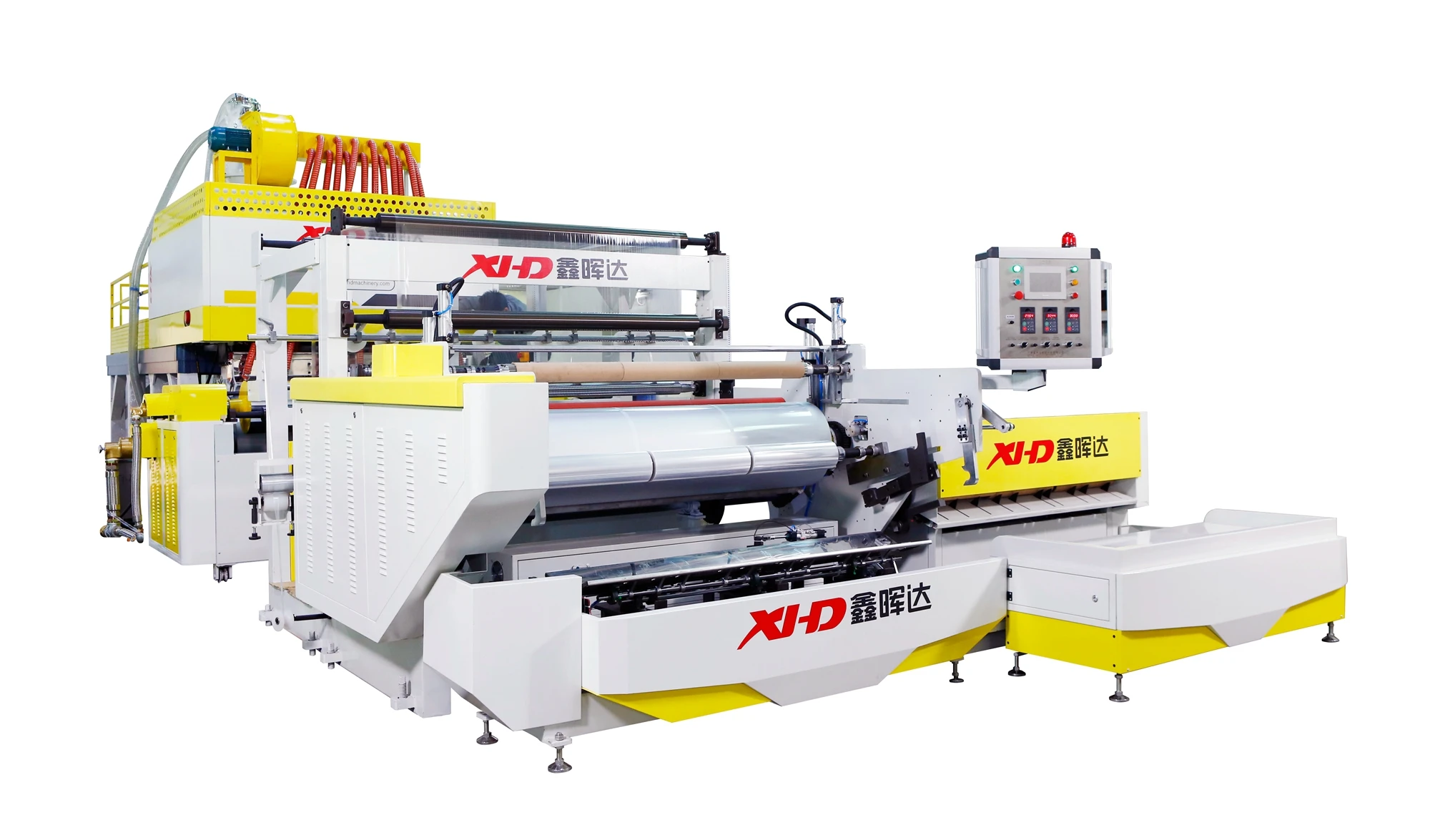

strech film making machine
Products Description
NO. | ITEM | DESCRIPTION |
1) | Model: | XHD-65/90/65-1850 |
2) | Industrial Power Supply: | 3 phases industrial power supply |
3) | Total Installation Power: | 190 KW (for the machine only) |
4) | Pneumatic drive requirement: | 0.8 MPA |
5) | Main Raw Material: | LLDPE, LDPE (few) & MLLDPE |
6) | Thickness of Film: | 12-50 μm (the minimum thickness can be 8 microns). |
7) | Width of the Useful Film: | Maximum width 1500 mm |
8) | Film Thickness Tolerance: | <=5% |
9) | Film Layer Structure: | Three or five layers |
10) | Designed Linear Speed: | 200 M/min |
11) | production capacity: | 150-280 Kg/H |
12) | Dimensions (L×W×H): | 12.5*5.5*4.6 M (for reference only!) |
13) | Gross Weight: | 15,000 KGS (for reference only) |
XHD-65/90/65-1850 is one of the most popular models among our customers and it is mainly used for producing:
1) stretch film rolls with below specs
* 2~5 KGS/roll small hand use stretch film rolls.
* 10~18 KGS/roll machine use stretch film rolls.
* Medium size rolls with roll weight around 33.5 KGS at 500 mm film width.
2) 8~10 microns 250~500 mm PE cling film rolls.
3) 30~35 microns 250 mm/300 mm/500 mm/750 mm silage film rolls (UV protective film rolls).
stretch film rolls
PE cling food (wrap) film
silage film (UV protective) film
Highlights on configuration and performance
Highlights on machine performances:
***Remarks: we also have the winder design for the jumbo rolls (up to 50 KGS per roll at 500 mm film width).
1. High speed design: up to 200 M/min (standard) or 250 M/min (optional).
2. High working speed: 140~160 M/min (standard) or 160~200 M/min (optional).
3. High production capacity: 250~280 KGS/H (depends on the film thickness and line speeds).
4. Quality stretch film which can compare with the film produced by European machines.
5. Excellent production capacity and power consumption ratio: around 0.4 KWH/KG.
8. One man is enough to manipulate the whole machine!
9. Automatic paper cores unloading, finished rolls unloading, standby air shaft loading.
2. High working speed: 140~160 M/min (standard) or 160~200 M/min (optional).
3. High production capacity: 250~280 KGS/H (depends on the film thickness and line speeds).
4. Quality stretch film which can compare with the film produced by European machines.
5. Excellent production capacity and power consumption ratio: around 0.4 KWH/KG.
8. One man is enough to manipulate the whole machine!
9. Automatic paper cores unloading, finished rolls unloading, standby air shaft loading.
***Remarks: we also have the winder design for the jumbo rolls (up to 50 KGS per roll at 500 mm film width).
149 M/MIN run by our Mexican customer
1500 mm MC bought by Mexican customer
160 M/min run by our domestic customer
Highlights on machine configuration:
1) Coupling with rubber type of element is used to connect the main motor and the gear box.
2) Alloy screws and barrels with good nitrogen treatment.
3) Automatic screen changers powered by hydraulic station.
4) Top quality XHD T-die (standard) or JC-TIMES T-die (optional).
5) Big diameter (standard 720 mm/optional 800 mm) and quality cooling rollers from professional suppliers.
6) Silicone-coated roller is installed for cleaning the primary cooling roller.
7) Synchronous wheels and belts, idle rollers with hardened surface are used for high speed production.
8) Automatic air shaft inflation and deflation, automatic spare air shaft loading.
9) Powerful crusher and new hopper design for recycled flakes feeding.
10) Patented automatic system for paper cores unloading and loading.
2) Alloy screws and barrels with good nitrogen treatment.
3) Automatic screen changers powered by hydraulic station.
4) Top quality XHD T-die (standard) or JC-TIMES T-die (optional).
5) Big diameter (standard 720 mm/optional 800 mm) and quality cooling rollers from professional suppliers.
6) Silicone-coated roller is installed for cleaning the primary cooling roller.
7) Synchronous wheels and belts, idle rollers with hardened surface are used for high speed production.
8) Automatic air shaft inflation and deflation, automatic spare air shaft loading.
9) Powerful crusher and new hopper design for recycled flakes feeding.
10) Patented automatic system for paper cores unloading and loading.
***Remarks:
We can use some certain brands for the machine parts if the customer agrees to pay extra cost.
Customized proposals are always available for top quality, higher speeds, higher output and higher benefits.
Service and warranty
Professional and customized proposal from our experienced sales team
Professional designs from our electrical and mechanical engineers
Professional and experienced fitters and after-sale service engineers
Countries we can find available engineer for after-sale service:
India, Vietnam, Thailand, Turkey, Azerbaijan, Russia ad Mexico
2) One (01) year’s warranty on receipt of the machine and equipment within Mainland China.
3) The Chinese engineer dispatch is only available when the epidemic is over or when it is safe for traveling.
3) The Chinese engineer dispatch is only available when the epidemic is over or when it is safe for traveling.
4) Any available local or nearby country engineer dispatch can be arranged on the condition that the buyer or the end user can accept the cost.
5) Online technical support is always available if the buyer or the end user wants to install the machine by themselves.
*** For more about the after-sale service, please feel free to contact with us, thanks.
Recommend Products
Customers and Exhibitions
Global Markets
Our stretch film machine equipment and cast film machines were sold to more than 60 countries. Some customers are more than customers and they are our friends so they will allow our potential customers to check the machine running in their factories.
Algeria, Argentina, Armenia, Azerbaijan, Bangladesh, Bahrain, Belarus, Bolivia, Brazil, Bulgaria, Cambodia, Cameroon, Colombia, Costa Rica, Czech, Ecuador, Egypt, Ethiopia, Fiji, Ghana, Greece, Guatemala.
Honduras, Hungary, India, Indonesia, Iran, Israel, Kazakhstan, Kenya, Korea (South), Kuwait, Latvia, Malaysia, Mexico, Morocco, New Zealand, Nigeria, Pakistan, Palestine, Panama, Peru, Philippines, Poland, Qatar, Romania, Russian Federation.
El Salvador, Saudi Arabia, Serbia, Slovakia, South Africa, Spain, Sri Lanka, Syria, Thailand, Turkey, Ukraine, United Arab
Emirates, United Kingdom, United States, Uzbekistan, Vietnam, Zimbabwe.
***There are lots of customers who had already bought more than 3 sets of stretch film machines from our company. Some of them even bought more than 10 sets and they are the top stretch film manufacturers in their cities or their countries. Names of our customers, photos and videos of their stretch film machines can be provided for your reference.
Our stretch film machine equipment and cast film machines were sold to more than 60 countries. Some customers are more than customers and they are our friends so they will allow our potential customers to check the machine running in their factories.
Algeria, Argentina, Armenia, Azerbaijan, Bangladesh, Bahrain, Belarus, Bolivia, Brazil, Bulgaria, Cambodia, Cameroon, Colombia, Costa Rica, Czech, Ecuador, Egypt, Ethiopia, Fiji, Ghana, Greece, Guatemala.
Honduras, Hungary, India, Indonesia, Iran, Israel, Kazakhstan, Kenya, Korea (South), Kuwait, Latvia, Malaysia, Mexico, Morocco, New Zealand, Nigeria, Pakistan, Palestine, Panama, Peru, Philippines, Poland, Qatar, Romania, Russian Federation.
El Salvador, Saudi Arabia, Serbia, Slovakia, South Africa, Spain, Sri Lanka, Syria, Thailand, Turkey, Ukraine, United Arab
Emirates, United Kingdom, United States, Uzbekistan, Vietnam, Zimbabwe.
***There are lots of customers who had already bought more than 3 sets of stretch film machines from our company. Some of them even bought more than 10 sets and they are the top stretch film manufacturers in their cities or their countries. Names of our customers, photos and videos of their stretch film machines can be provided for your reference.
Columbia Customer
Indian Customer-01
Indian Customer-02
Korean Customer
South African Customer
Mexican Customer
Ukraine Customer
Vietnamese Customer
Kenya Customer
Mexican Customer's workshop
Indian Customer's workshop
Turkish Customer's workshop
In the past 15 years, we had already attended numerous exhibitions. In order to show our machine quality and machine performances, we always take our machines to the exhibition. All the exhibition machines were sold before the exhibitions. For more information about our online exhibitions and international exhibition plans, please feel free to contact with us.
***Please check some exhibitions we had attended recently as below.
ChinaPlas 2021
SHENZHEN city, China.
Exhibition machine: 2100 mm cast PE film machine
The biggest Chinese rubber & plastic exhibition
SHENZHEN city, China.
Exhibition machine: 2100 mm cast PE film machine
The biggest Chinese rubber & plastic exhibition
PlastIndia 2020
Bombay city, India.
Exhibition machine: 1500 mm auto. stretch film machine
The biggest Indian rubber & plastic exhibition
Bombay city, India.
Exhibition machine: 1500 mm auto. stretch film machine
The biggest Indian rubber & plastic exhibition
Plastex 2020
Cairo, Egypt
Exhibition machine: XHD-55/75-1250 1000 mm machine
Cairo, Egypt
Exhibition machine: XHD-55/75-1250 1000 mm machine
Plastimagen 2019
Mexico City, Mexico
Standard booth, no exhibition machine
Mexico City, Mexico
Standard booth, no exhibition machine
Company Profile
Brief introduction of GUANGDONG XINHUIDA MACHINERY TECHNOLOGY CO., LTD.
Hard Power:
* Registered capital: 30 Million CNY (around 4.7 million USD).
* 60,000 square meters factory area.
* 2 modern factories which are suitable for cast film machine R& D and intelligent manufacturing.
* 2 big workshops for CNC processing and machine frame manufacturing.
* 3 big CNC processing equipment (each of them is more than 500K USD) and lots of other advanced equipment.
Soft Power:
* More than 16 years’ experience on cast stretch film machine manufacturing.
* More than 16 years’ experience on cast stretch film machine manufacturing.
* Member of the Chinese cast film standards association and one maker of the standards.
* 83 patents, CE CoC and ISO9001: 2015 certification.
* 83 patents, CE CoC and ISO9001: 2015 certification.
* An engineering team and and service team with an average 7-years' experience in the cast film business.
What we had done
* Manufactured 4000+ sets of stretch film machines.
* Manufactured 60+ sets of 2000 mm stretch film production lines in the past 3 years.
What we had done
* Manufactured 4000+ sets of stretch film machines.
* Manufactured 60+ sets of 2000 mm stretch film production lines in the past 3 years.
* Provided 70+ sets of high end cast film machines for CPEVA film, CPE film, CPP film and PE breathable film.
* Our machines are exported to 64 overseas countries.
* Our machines are exported to 64 overseas countries.
* Provided a lot of customized proposals for 3/4/5 extruders stretch film machines and cast film machines to famous enterprises.
Photo of our office
Gate of our company.
Photo of our first workshop
CNC processing machines

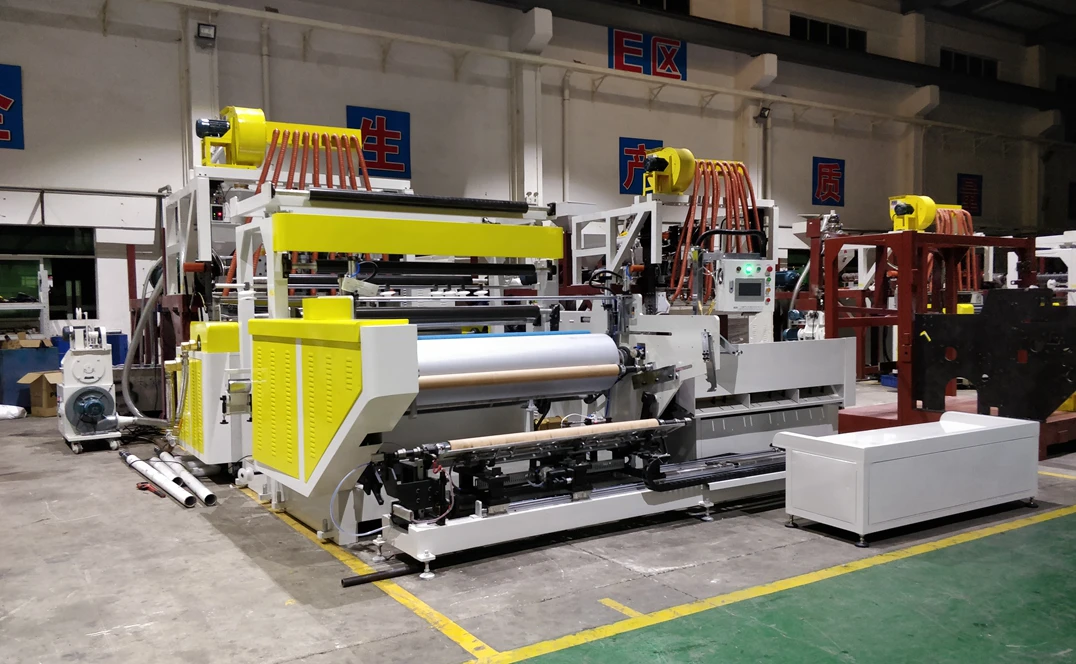

5 extruders 2000 mm machine testing
