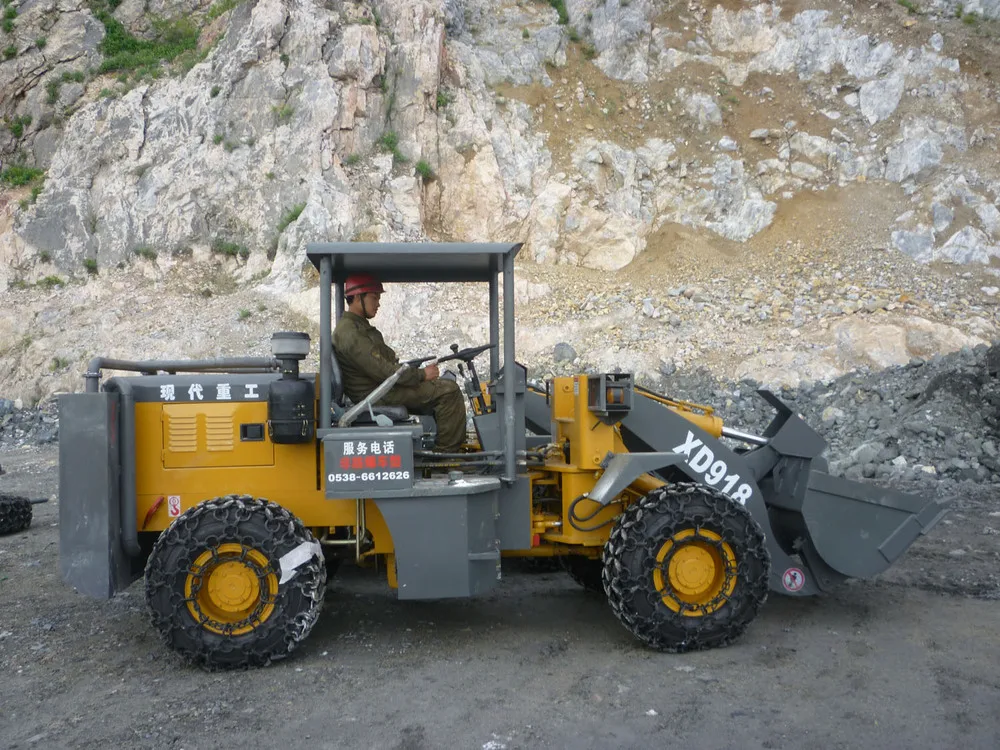

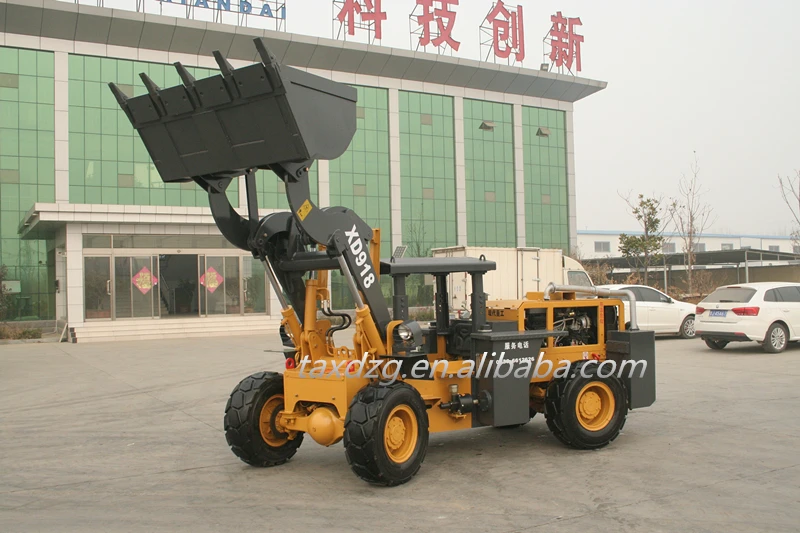

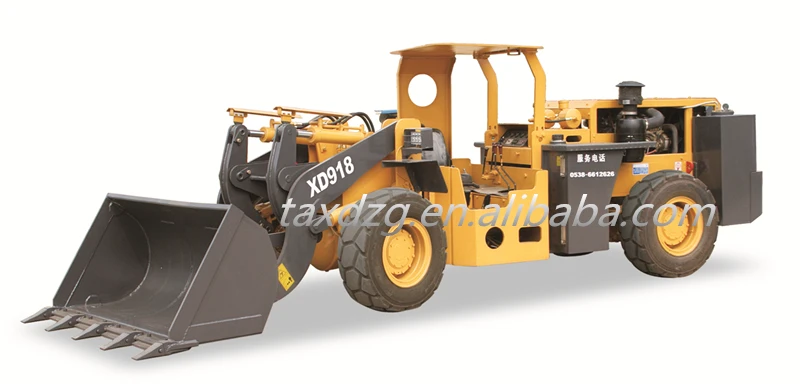

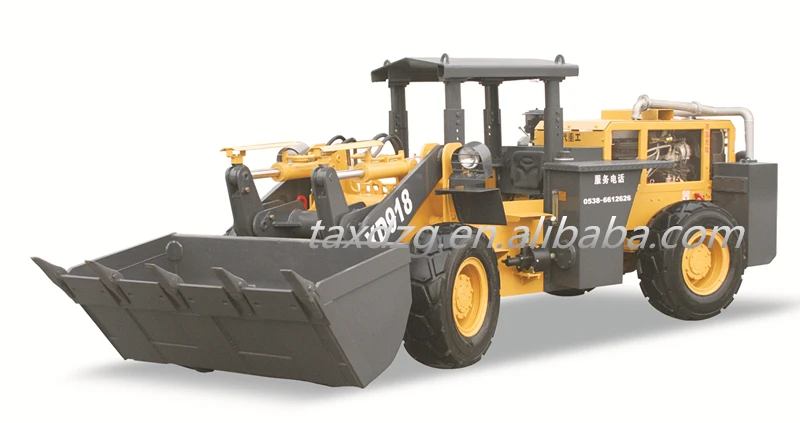

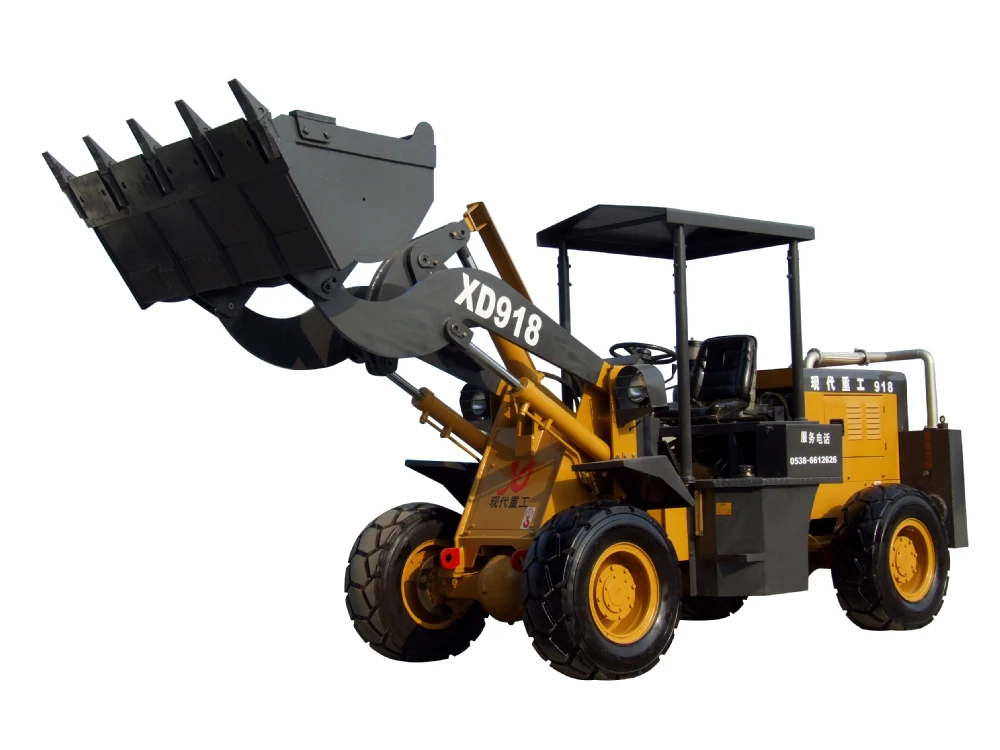

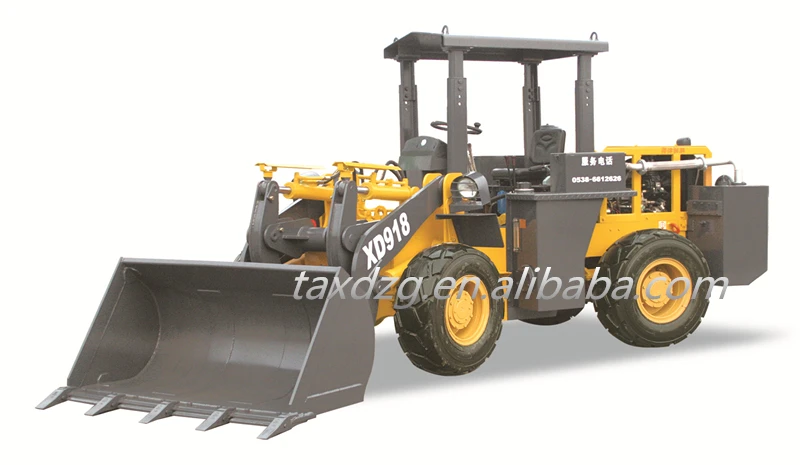

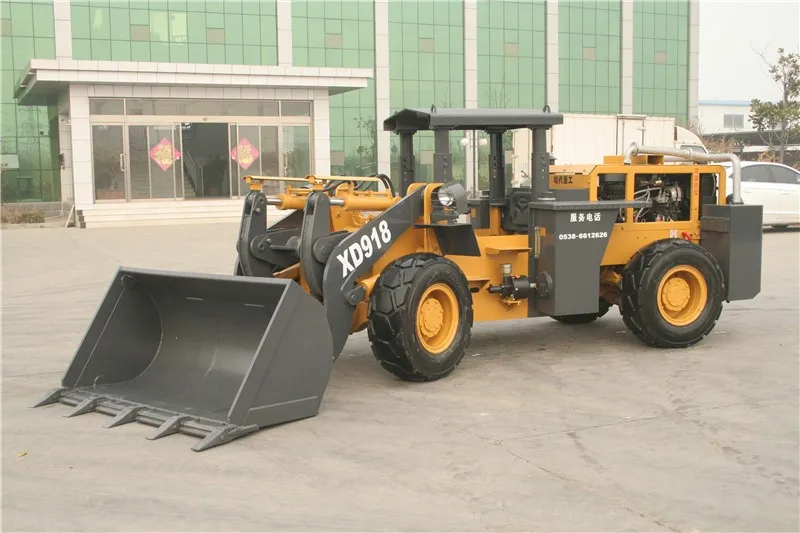

XD918 China mine construction equipment Mine dedicated wheel loader/underground mining loader/underground wheel loader
- Category: Other Mining Machines >>>
- Supplier: Taian Modern Heavy Industries Technology Co. Ltd.
Share on (60803543804):
Product Overview
Description
Our company
Taian Modern Heavy Industries Technology Co., Ltd (XIANDAI) is a corporation that focuses on underground mining loader, underground mining dumping truck and scooptram (LHD) in terms of research and development, manufacture and sales since 1998.Our products including:
Underground mining loader: 1.6 ton to 5.0 ton.
Underground mining dumping truck: 5.0 ton to 20.0 ton.

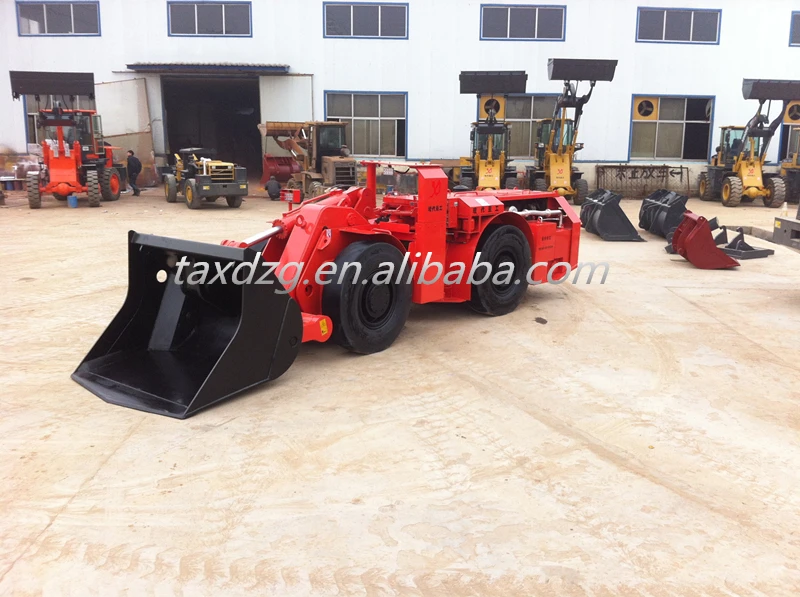

Scooptram (LHD): 0.6 cbm to 3.0 cbm.
Our company has expanded industrial scale of producing many kinds of products and annual output has reached about 1000 units, among 300 units were sold to East Europe,Latin America,Africa, Central Asia,South-East Asia, South Asia, etc, every year.
Product Description
1. Two turning cylinder design, make sure the wide view and reliability.
2.Specially designed bucket to load more ores.
3.Standard water–cycle system to clean exhaust and protect environment.
4.Optional: Three-way catalytic converter, wheel protection chains.
XD918(Low Type) | XD918(High Type) | |
Main specifications | ||
Bucket capacity (m3 ) | 0.6 | 0.6 |
Rated load (t) | 1.6 | 1.6 |
Weight (t) | 4.5 | 4.5 |
Lifting time of the arms (s) | ≤4 | ≤4 |
The sum of three items(s) | ≤8 | ≤8 |
Forward gear(km/h) | I 0-8 II 0-18 | I 0-8 II 0-18 |
Reverse gear | I 0-8 II 0-18 | I 0-8 II 0-18 |
Max. climbing gradient | 30° | 30° |
Demensions | ||
Overall dimension (L*W*H mm) | 5110*1600*1900 | 4720*1600*2300 |
Wheel base (mm) | 2502 | 2300 |
Wheel tread(mm) | 1250 | 1250 |
Max. dumping height(mm) | 1720/2100 | 1720/2100 |
Dumping reach (mm) | 937 | 937 |
Diesel engine | ||
Engine model | YUNNEI YN38 | YUNNEI YN38 |
Engine type | In-line,water-cooling,4-stroke,4cylinder,direct-injection | In-line,water-cooling,4-stroke,4cylinder,direct-injection |
Rated power(kw) | 60 | 60 |
Rated speed (r/min) | 2400 | 2400 |
Total exhaust of cylinder(L) | 3.8 | 3.8 |
Type of starting | Electric start | Electric start |
Transmission system | ||
Torque converter |
|
|
Model | YJ280 | YJ280 |
Type | Single stage, three elements | Single stage, three elements |
Gearbox |
|
|
Model | ZL20 | ZL20 |
Type | Fixed counter-shaft, power-shift | Fixed counter-shaft, power-shift |
Axle and tire |
|
|
Type of main reducer | Spiral bevel gear,single stage | Spiral bevel gear,single stage |
Type of final reducer | Single stage planetary | Single stage planetary |
Size of tire | 12-16.5 | 12-16.5 |
Working device of hydraulic system | ||
Model of working pump | CBG2050 | CBG2050 |
Nminal displacement(ml/r) | 50 | 50 |
Rated pressure(Mpa) | 16 | 16 |
Multi-way directional valve | ZL15 | ZL15 |
Pressure(Mpa) | 16 | 16 |
Steering system | ||
Type | Load-sensing hydraulic steering | Load-sensing hydraulic steering |
Displacement(ml/r) | 250 | 250 |
Max input pressure(Mpa) | 16 | 16 |
Brake system | ||
Type of traveling brake | Air over hydraulic brake | Air over hydraulic brake |
Type of parking brake | Band brake | Band brake |
