Drying machine hot air oven in Pharmaceutical Industry on sale

Product Overview

Description



The Dryer Machines are installed at the plant.





DO YOU HAVE ANY QUESTIONS IN DRYING PROCESS ?

IN CHEMICAL FIELD, IN FOOD FIELD, IN SLUDGE FIELD…..



ARE YOU ALSO HAVING ANY INTEREST IN DRYING PRODUCTION LINE?



ARE YOU LOOKING FOR A PROFESSIONAL DRYER MACHINE?



HOW ABOUT A PERSON TO SOLVE ALL QUESTIONS YOU CONCERNED?





Find me on WHATS APP:   +86-13651500952



Hi, I am Joanna, and now working for Changzhou ZHENXING Environment Technology Engineering Co., Ltd

I know you are looking for good quality dryer equipment, like this:







Contact me to get full technical support.

So our company can be a good choice, WHY?





TOP 500 WHO CHOOSE US, WE SPECIALIZE IN DRYING FIELD SINCE 1993,



Certificates such as SGS, CE, ISO can also be a proof of our quality



"our machinery has improved production capacity more than 50% in the regular process, not only in capacity but also in fine powder quality."







Product Description:

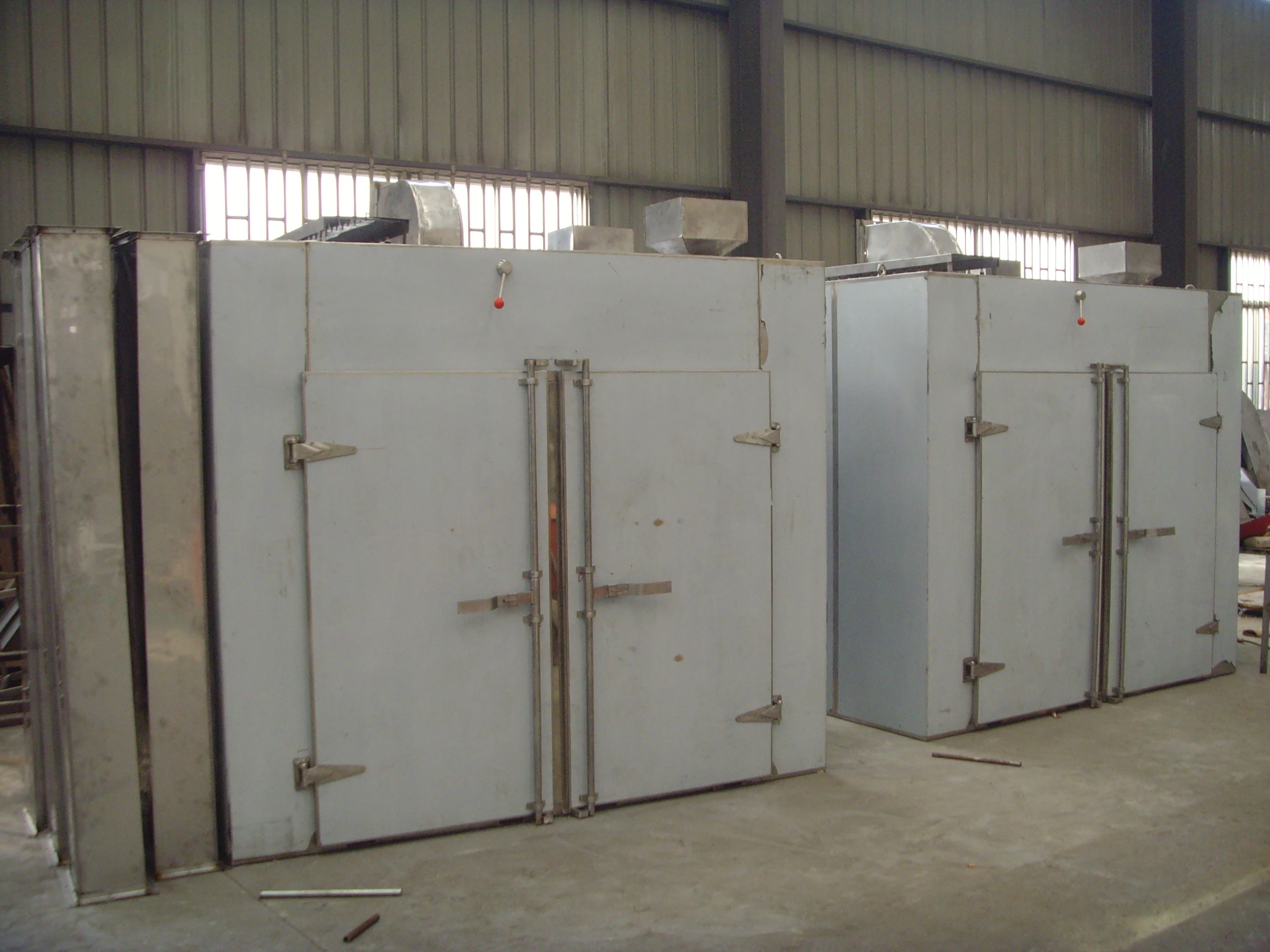

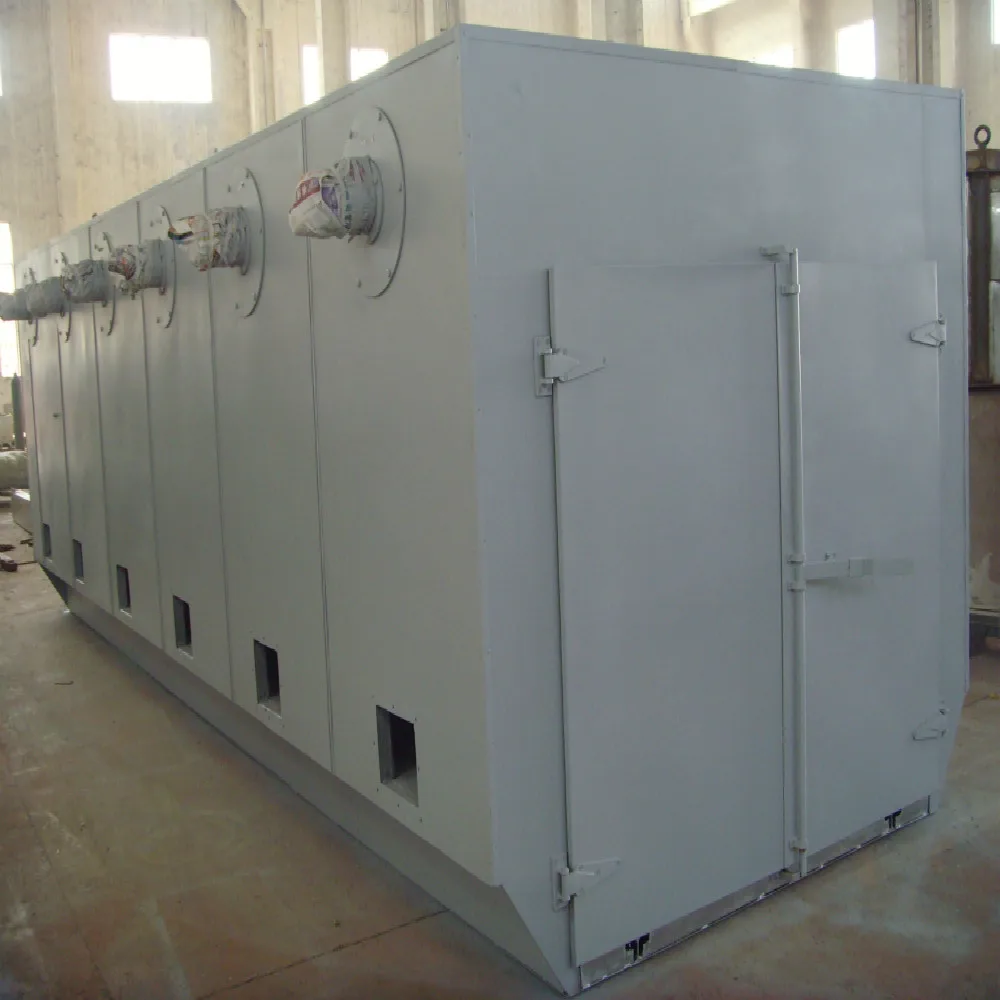

The CT-C Series Hot Air Circulation Drying Oven is a box-like shape which can be easily disassembled and fixed; it includes CT series (centrifugal blower) and CT-C series (axial flow blower). The heat source the drying oven can be steam and electricity.



This product is equipped with low noise, high temperature proof axial flow blower and automatic temperature control system. The entire circulating system is fully sealed and it increased the thermal efficiency (traditional ovens 3%-7%, current oven 35%-45%), the highest thermal efficiency can reached 70%. The technology of the hot air circulating oven is advanced level in world. It is an energy saving product and it has improved the economic benefits for a lot of Chinese manufacturers. In 1990, the Chinese Medical Management Bureau has issued the industry standard for the drying oven and the standard model number is RXH.







FEATURES

1. The hot air is circulated in the oven, high thermal efficiency, and energy saving.

2. It utilizes the forced ventilating function with adjustable air distribution plates inside of the oven so the raw material can be dried uniformly.

3. The heat source can be steam, hot water, electricity, and far infrared.

4. Low noise and stable operation. The temperature can be controlled automatically. Installation and maintenance are simple and easy.

5. It has a wide application. It can be used for drying all kinds of materials.





APPLICATION
The drying oven is suitable for drying and dehydration of material and product for pharmaceutical, chemical, food, agricultural, aquatic, light industry, heavy industry; such as medicine raw material, medicine, Chinese herbal medicine, extractum, granules, powder, pill, packing bottle, pigment and dyes, dehydrated vegetables, dried fruit, sausages, plastic, resin, electric elements, varnish, and etc.



WORKING CONDITIONS

1. Heat sources: steam, electricity, far infrared, steam + electricity.

2. Working temperature (steam heating): 50-140°C, Max 150 °C

3. Working temperature (when using electricity and far-infrared): 50-300°C

4. The drying oven is equipped with an automatic temperature control system and temperature recorder.

5. General steam pressure: 0.2-0.8 MPa (2-8kg/cm2).

6. Power for electric heating: use CT-1 as an example, the heating power is 15kw for starting and 5-8kw/h for constant temperature.

7. The special requirements should be indicated before placing an order.

8. The price for the non-standard oven should be consulted.

9. If the operating temperature is more than 140°C or less than 60°C, it should be indicated before placing an order.

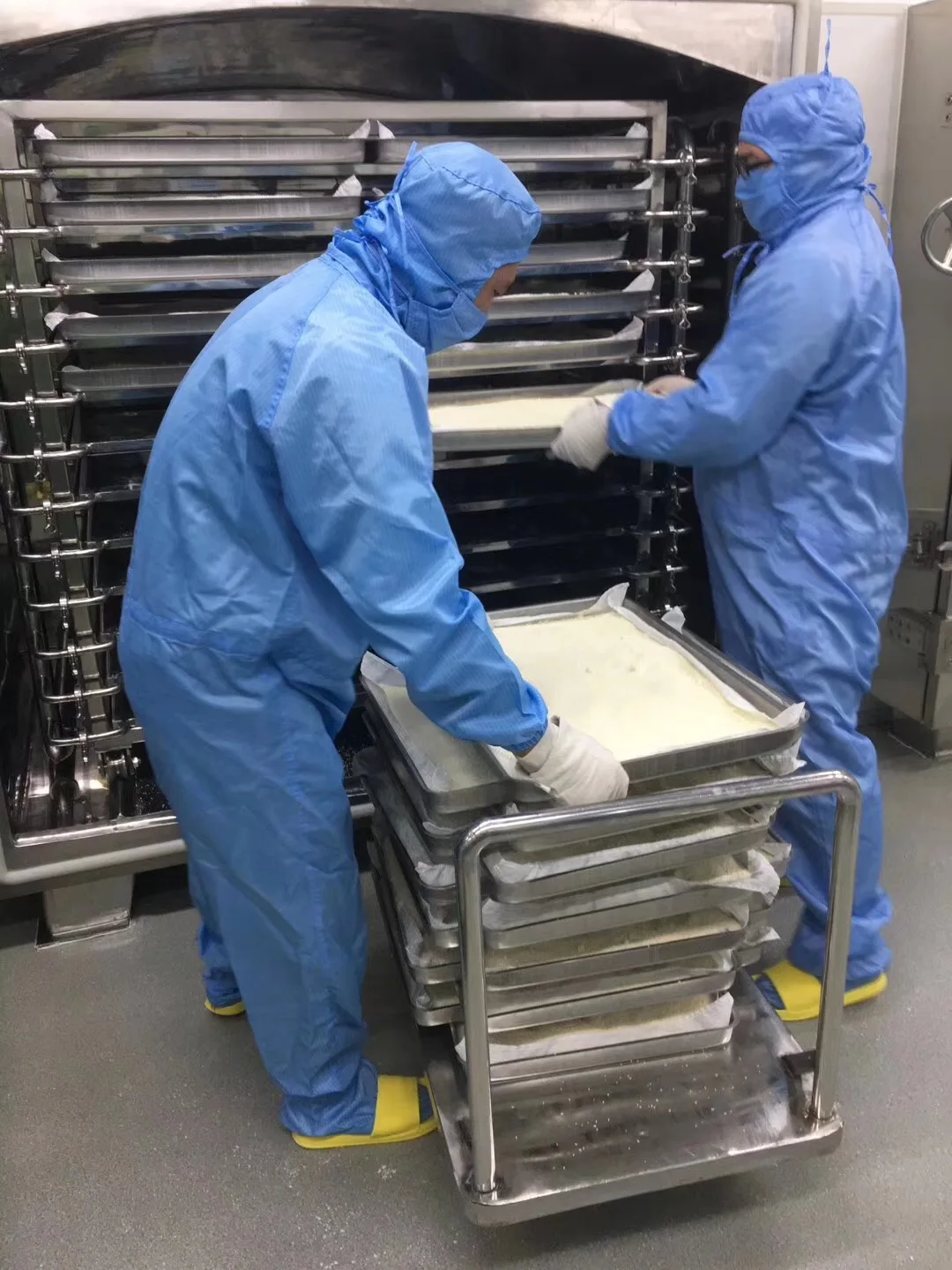

10. The trolley and baking trays are in uniform dimensions which can be exchanged with each other.

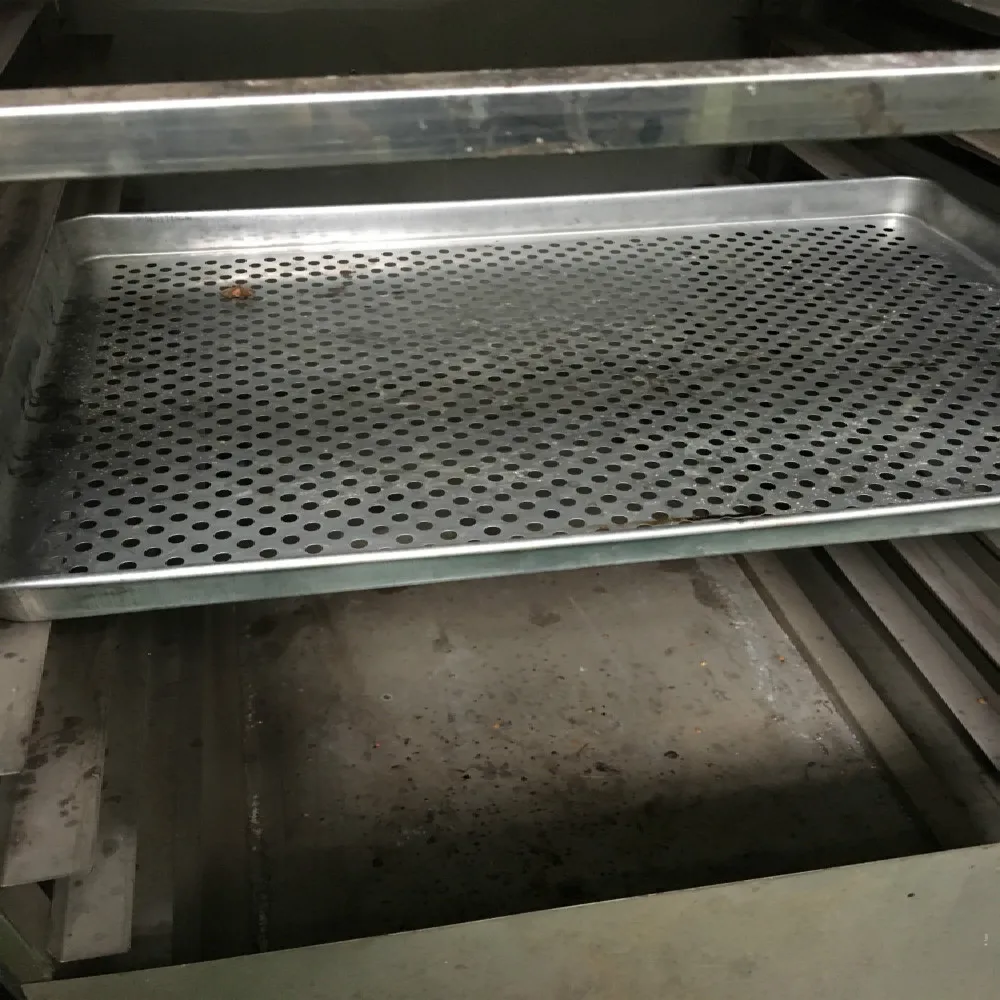

11. Baking tray dimensions: 460*640*45mm

12. Explosive-proof motor and control cabinet as optional.



Packing and Delivery:





Company Information

Changzhou ZHENXING Environmental Technology Engineering Co., Ltd., this is Drying Equipment manufacture. We are specialized in the development, manufacturing, and installation of dryers, mixers, granulators, grinders, conveyors, sieve and etc.

We follow a strict quality control procedure and we provide high-quality products with prompt after sales services and technical support.

Project Case



During the installation, we can send our engineer to help you instruct if you need.

If you have any other questions, please feel free to contact with me if you need.
