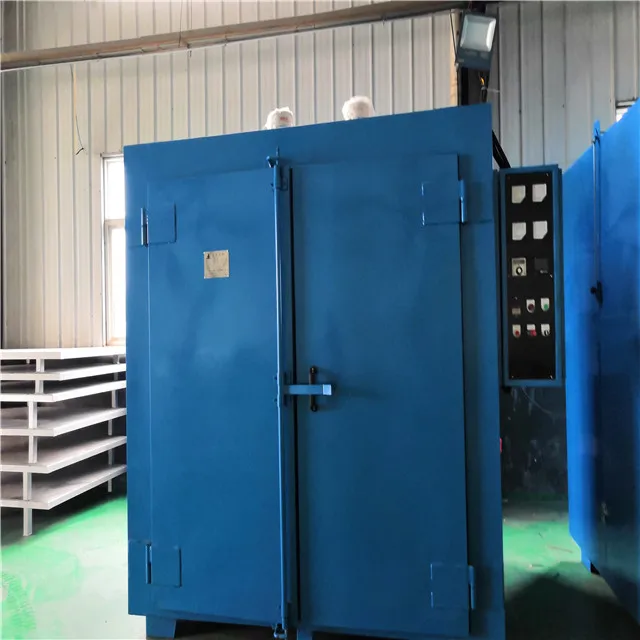

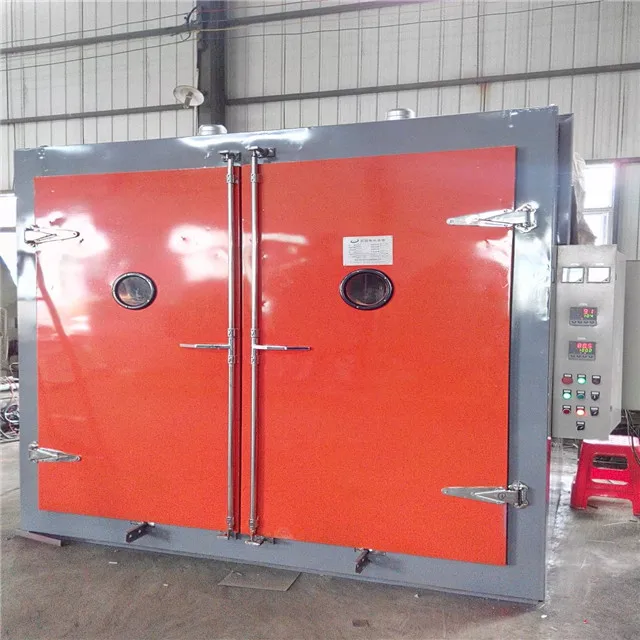

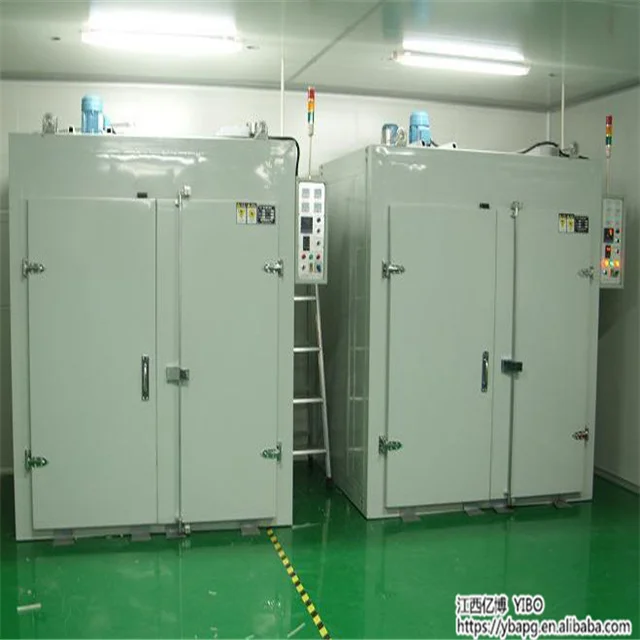

Высокочастотная печь трансформатора для сухих трансформаторов, печь для реактора, трансформатора, печь для отверждения горячим воздухом

Product Overview

Description

High Efficiency Customization automatic industrial curing oven

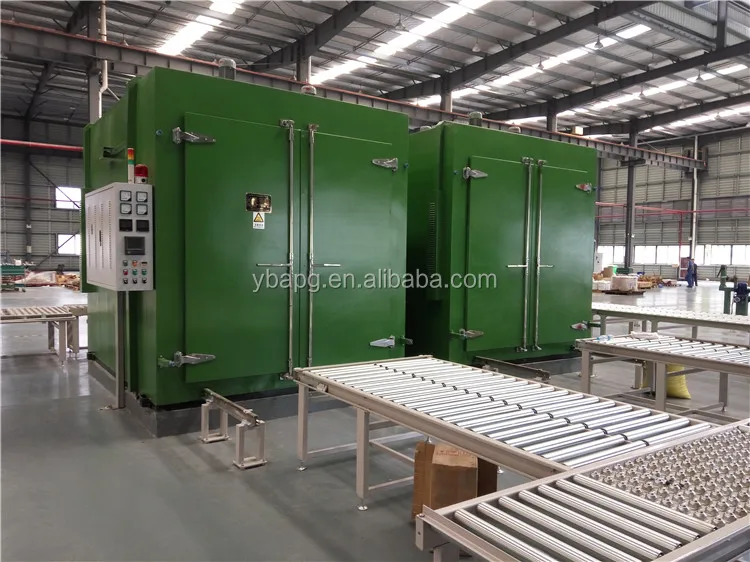

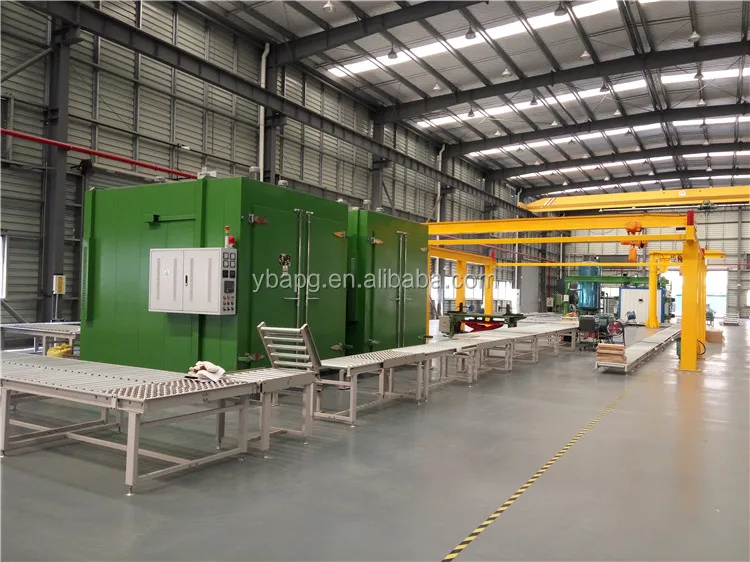

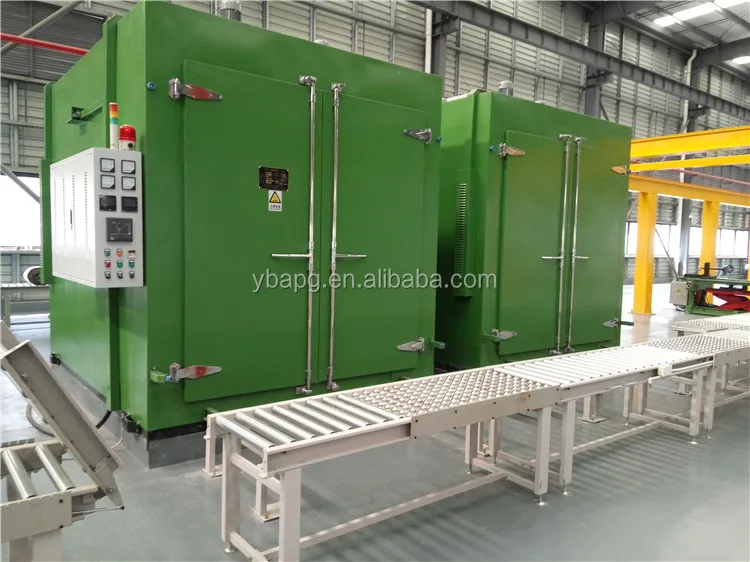

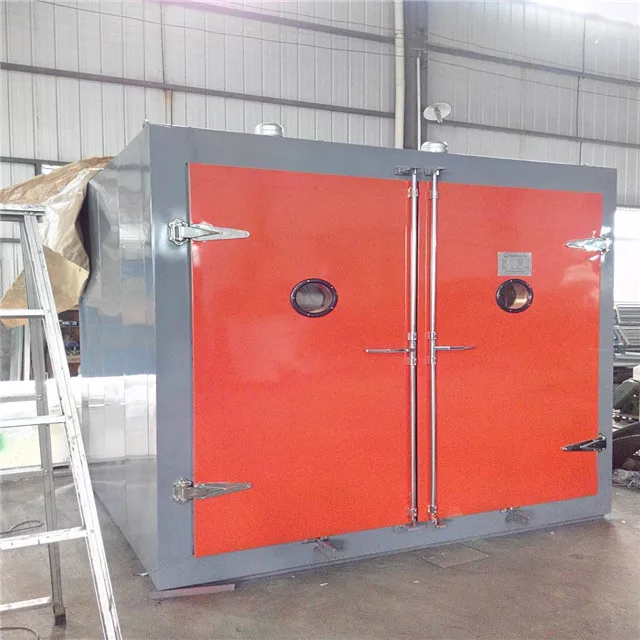

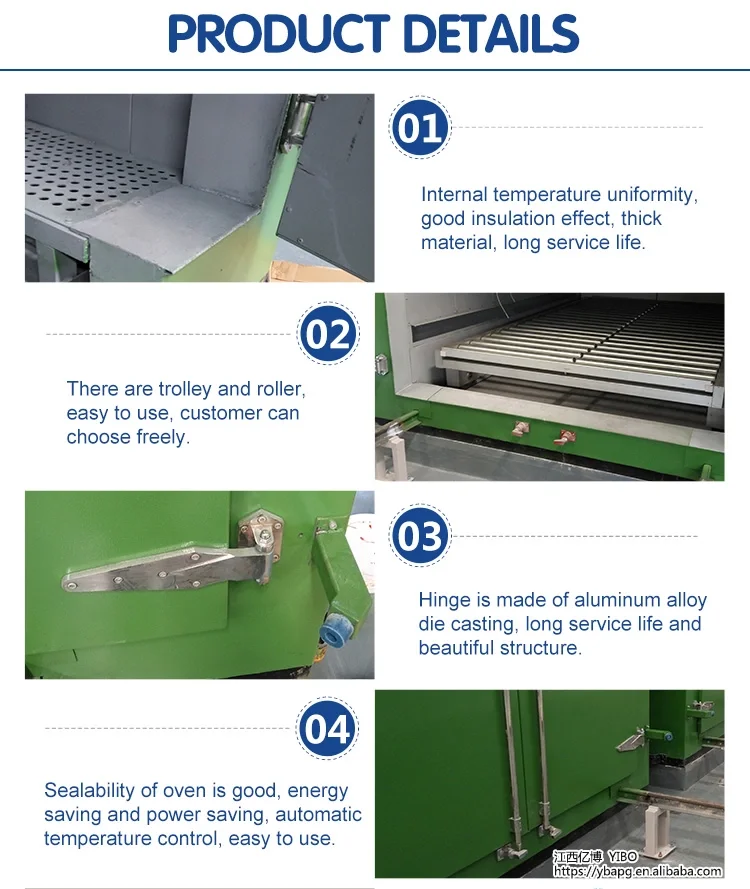

Hot air circulating curing oven

use

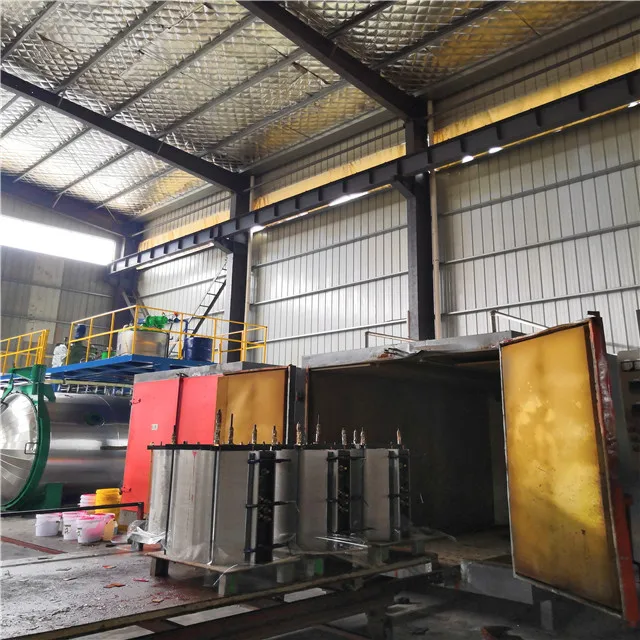

Used for drying and curing of transformers, reactors, transformers, insulators, etc.

Name	Technical parameters
Power supply	3 phase 380V 50HZ
Operating temperature range	Room temperature -200 ° C
Empty furnace heating space	40-100 °C / h
Temperature rise outside the furnace	≤ room temperature +25 ° C
Temperature fluctuation	≤ room temperature +25 ° C
Temperature uniformity	≤±1°C
Heating power	determined according to the volume of the oven
Air blast power	0.75kw/set(the quantity is to be determined)
Exhaust power	0.75/set

Dimension	1600*1800*2000mm(L*W*H), 2000*2000**3000mm(L*W*H) 2000*2000*3500mm (L*W*H), can be customized for non-standard size

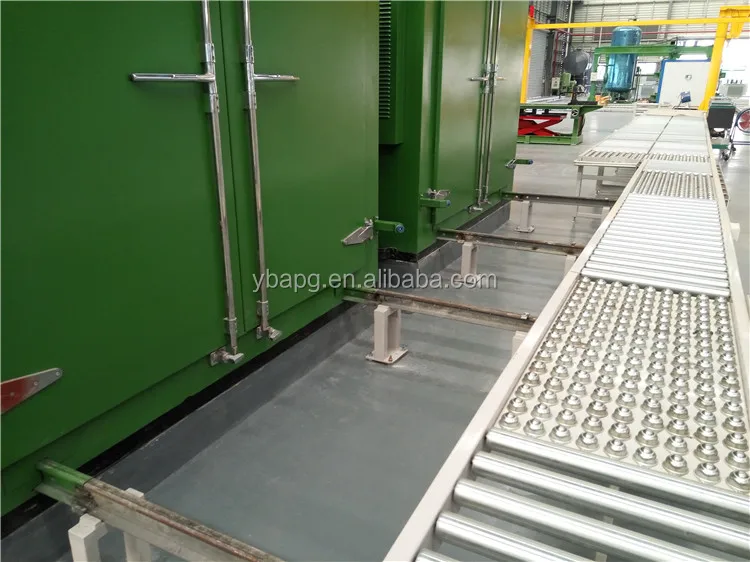

Trolley size	Matching with the hot air curing oven furnace
Furnace body	Overall frame structure, large oven on site
Furnace door	Manually open the door at the front of the furnace
Shell	Q235 cold-rolled steel sheet is sprayed with acrylic self-drying paint after anti-rust treatment
Liner	After the anti-rust treatment of Q235 cold-rolled steel plate, spray W61 series silicone heat-resistant paint
Shell frame	Q235 channel steel, angle steel rust treatment
Liner frame	After the rust and anti-rust treatment of Q235 angle steel plate, spray W61 series silicone heat-resistant paint
Hot Insulation Materials	High quality aluminum silicate cotton, rock wool or enamel insulation

Cyclic mode

After the fan blows the air through the heater, it is blown into the working chamber from the lower part of the left and right air ducts, and then inhaled by the heat exchange with the product, thereby forming a recurring hot air circulation. Due to the large air volume, the high pressure circulating fan performs hot air circulation to ensure good temperature uniformity in the working chamber.

Air blast motor	High temperature resistant long axis motor for curing oven
Intake valve	Set adjustable air volume manual valve
Exhaust	Intermittent automatic air exhaust device
Heating chamber location	Heating chamber is located below the curing oven
Heater	Star connection 220V 50HZ electric heating tube
Control cabinet	Connected control cabinet
Temperature control system	The intelligent temperature controller outputs a trigger signal and uses the products of Beijing Ximandun through a thyristor device (SSR).
Over temperature alarm system	When the temperature in the furnace exceeds the set alarm temperature value, the heating power is automatically cut off by heating the contactor of the main circuit, and an audible and visual alarm is issued.
Control of the air blast system	Set button on the control panel to turn the air blast system on or off through the contactor.
Accessibility and protection system settings	1. Lighting system 2. Protection of electrical components and circuits according to national electrical industry standards 3. Motor and heating interlock: first open the blower and then heat to prevent the heater from burning out.





Our company also develops special oven according to user requirements.

Such as: capacitor casing vertical oven, horizontal paper tray vacuum oven, vacuum oil injection oven, motor dedicated roller oven.
