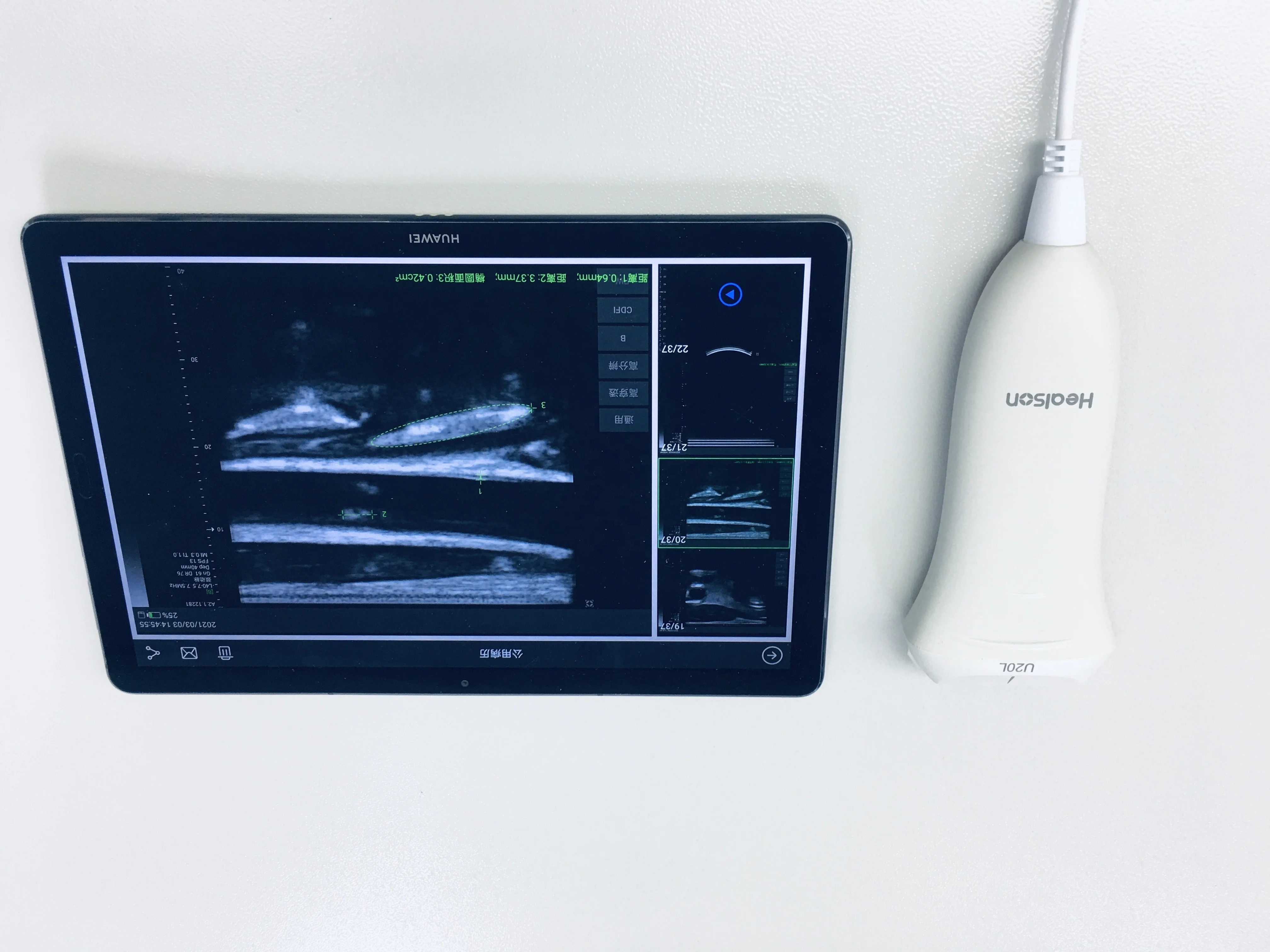

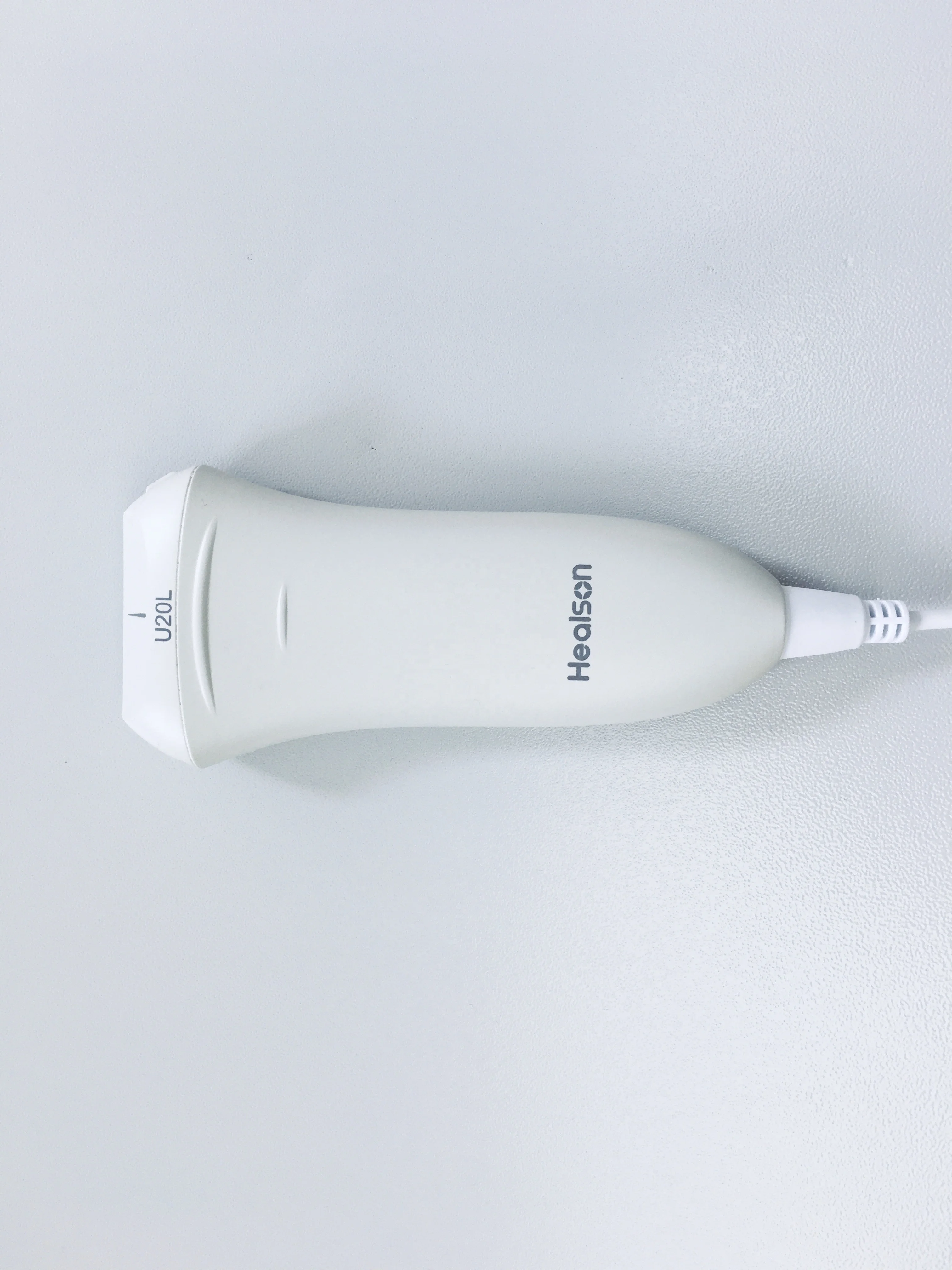

Healson U20L electric linear digital USB portable ultrasound machine

MODEL

U20L

Operating system

Win7/Win8/Win10

Scanning mode

electric linear

Display mode

B, B/B, B/M, 4B,M

Gray scale

256

Scanning depth

maximum 120mm

TGC

8TGC adjustments

Cine loop

512 frames

Gain

0-100dB adjustable

Language

English/Chinese

Central frequency

7.5MHz(5-10MHZ)

Probe port

USB

Pseudo Colors

9 Kinds

Image conversion

left/right, up/down

Application

Emergency.ICU,MSK,Small Parts,PICC,and Biopsy guide

Element

80

Pseudo color

9 Kinds

N.W

0.2KG
