full automatic cardboard carton sealer

Product Overview

Description

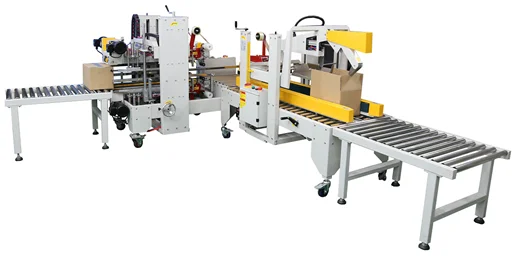

full automatic cardboard carton sealer

Features of BTF-50+BTG-50

1.     Using international advanced technology and imported components, electrical components and pneumatic components.

2.     Manually adjust the size of the carton, automatically seal the box with four corners and top and bottom at the same time.

3.     Easy to operate, easy to use, easy to adjust, fast sealing, high efficiency.

4.     Equipped with blade guard to avoid accidental puncture during operation.

5.     Lightweight, precise and durable performance, no vibration during operation, stable operation for long time, high efficiency.

6.     Using special design, adhesive tape, making it smooth, neat and beautiful. With printing tape, you can improve the image of new products. Can be used with automatic sealing machine and complete I-shaped sealing .

7.     Applicable to product packaging in various industries such as household appliances, textiles, food, daily necessities, pharmaceuticals, light industry, chemical industry, and carton sealing.



Technical Data

Model	BTF-50+BTG-50
Carton Size	(L)320~500x(W)200~500x(H)180~500mm
Conveying Speed	480-600 cartons/hour
Overall Dimensions	(L)2750 mm ×(W)1900 mm ×(H)1580 mm
Air Pressure	6~7KG
Electric Supply &Power	220V 50HZ 1.4kw
Applicable tape	W(48,60,75)mm×L1000y
Weight	380Kg

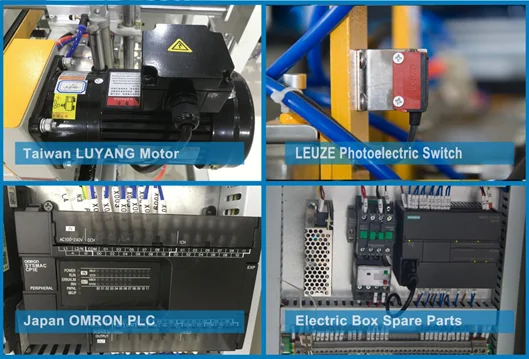

Component list

No.	Name	Brand
1	Motor	LUYANG(Taiwan)
2	PLC	Omron(Japan)
3	Photoelectric switch	LUEZE(Germany)
4	Switch and indicator	IDEC(Japan)
5	Cylinder and solenoid valve	SHAKO(Taiwan)
6	Bearing	HRB
7	Blade	SKD11(Japan)
8	Belt	Italian Imports
9	Double brake casters	EDL
10	AC contactor	SCHNEIDER

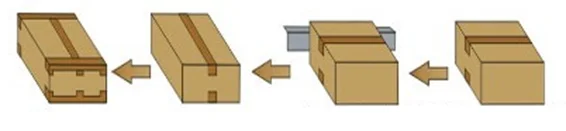

Carton forming diagram



Partial picture



Shippment and Factory

If you want to know more information about our carton sealer machine, welcome to contact us and visit our factory any time.
