Cracking in pavements occurs when a stress is built up in a surface layer that exceeds the tensile or shear strength of the pavement causing a fissure or crack to open.

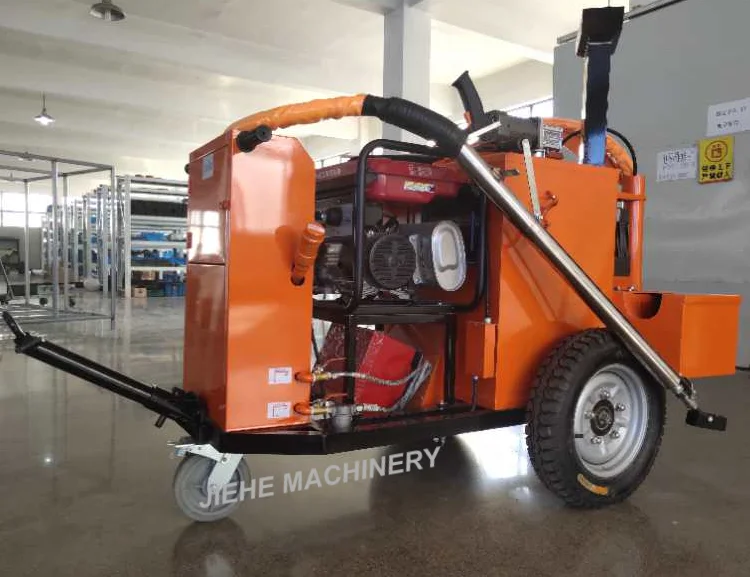

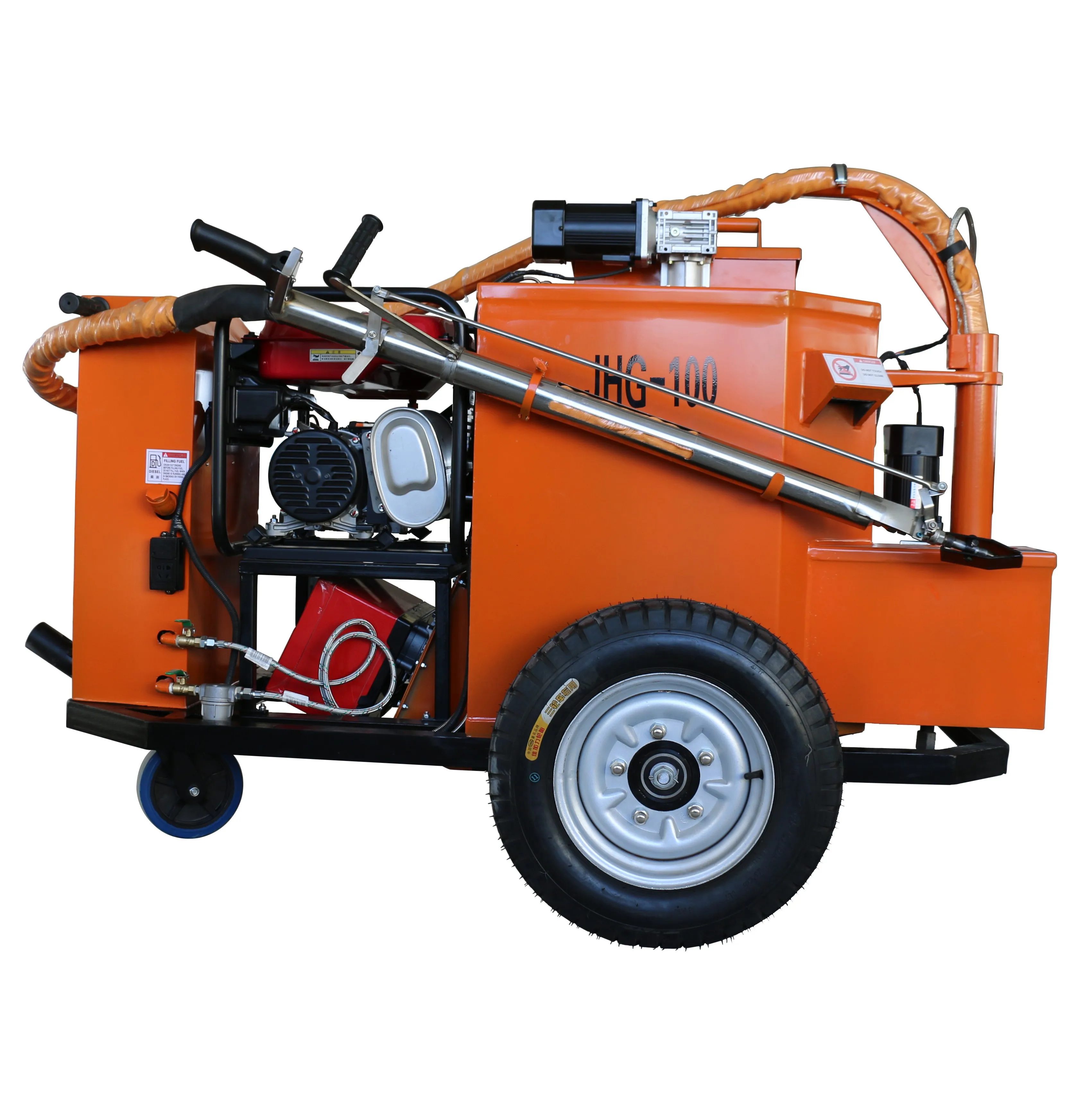

JIEHE JHG-100 road crack sealing machine adopts Italy Riello Heater, mainly used for irregular cracks of asphalt pavement,concrete pavement, bridge expansion joints, sewer, gas pipe buried and paving road links waterproof processing.
Product Detail:
Model
JHG-100
Generator
HONDA 2.2KW, 230V, 50Hz
Generator Speed(rpm)
4000
Length of Eletronic Heating Tube(m)
5
Themal Oil(L)
15
Mixing Type
Automatic
Melter Volume(L)
100
Pump
Gear Pump
Pumping System
Speed Controller on Control Panel
Controlling Pump Out or Back
Heater
50,000 kcal Italian Riello Heater
Temperature Controlling System
Automatic
Heating System
Diesel heat thermal oil, thermal oil heat material
1) Use imported Italian Riello heater, which has good performance. 2) Temperature Controlling System, Which protect the material and away from clogging. 3) With mixing system, the asphalt crack repair machine makes the heat even and fast. 4) Control Box control the asphalt crack filler machine is very easy and clear. 5) Constant temperature control, material output and input all by constant temperature control. 6) Chimney extends electronic heating tube life. 7) The material output speed is adjustable; 8) The discharge pipe adopts electric heating system, which effectively eliminates the condensation problem of the crack sealing material in the hose and reduce the clog.
