touch screen digital room thermostat for fan coil unit
- Category: HVAC Systems & Parts >>>
- Supplier: Shaoxing Honglin Controls Co. Ltd
Share on (60805992046):
Product Overview
Description
Product Overview

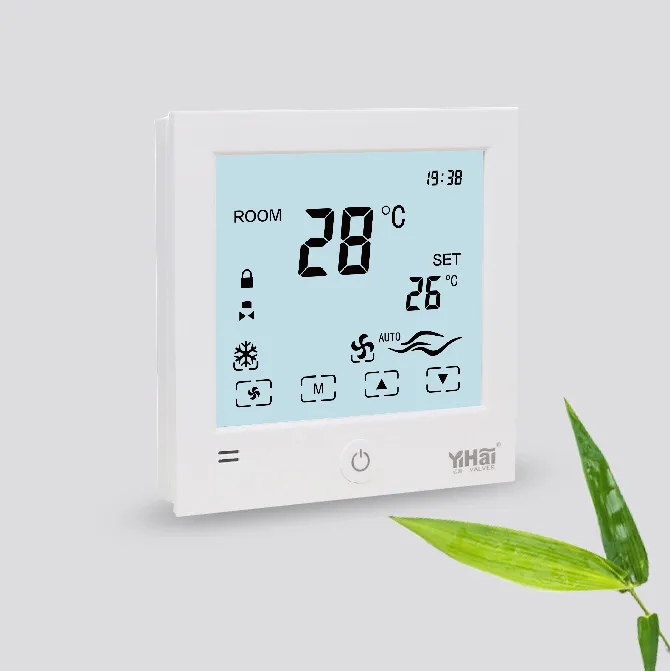

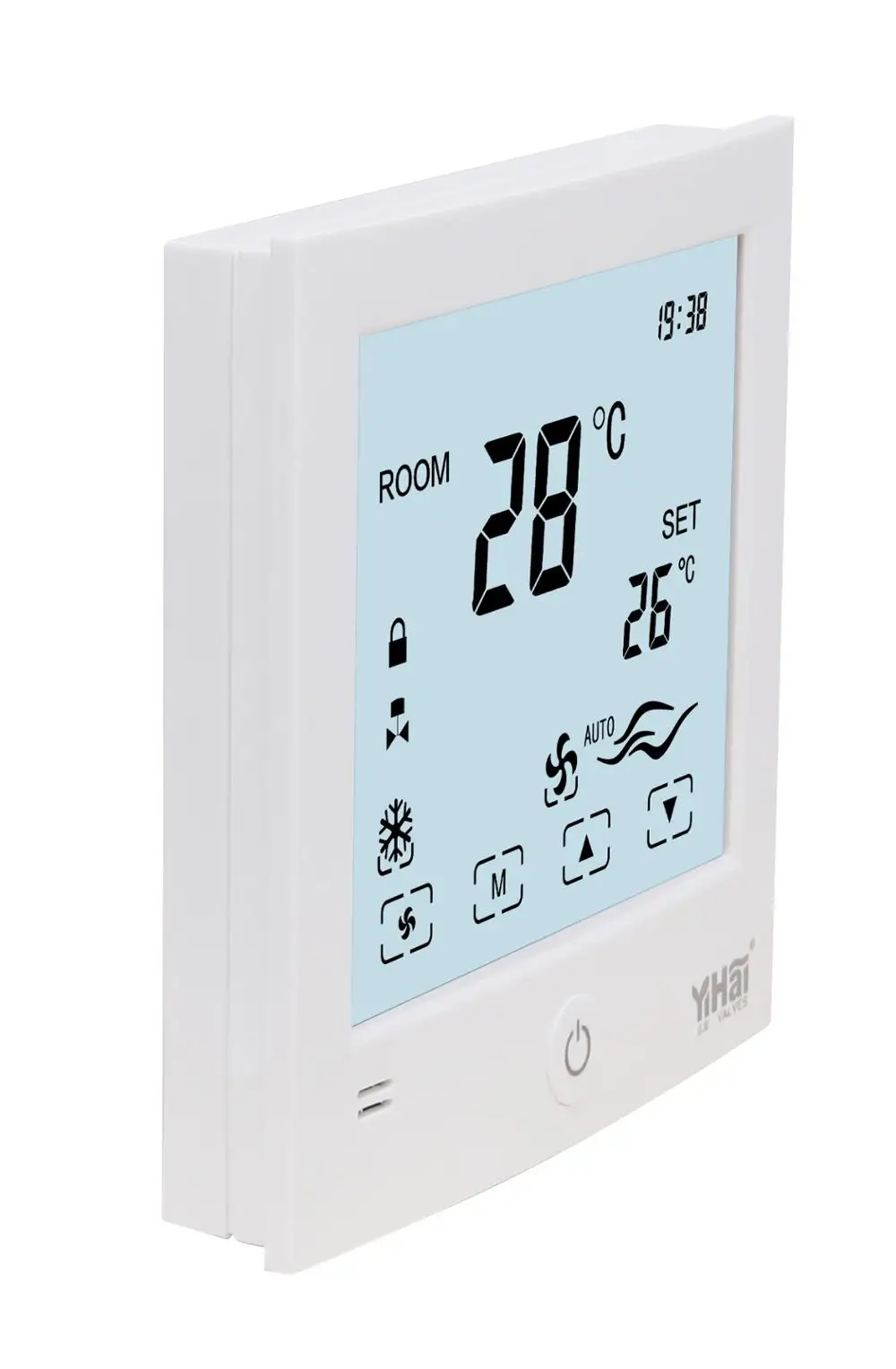

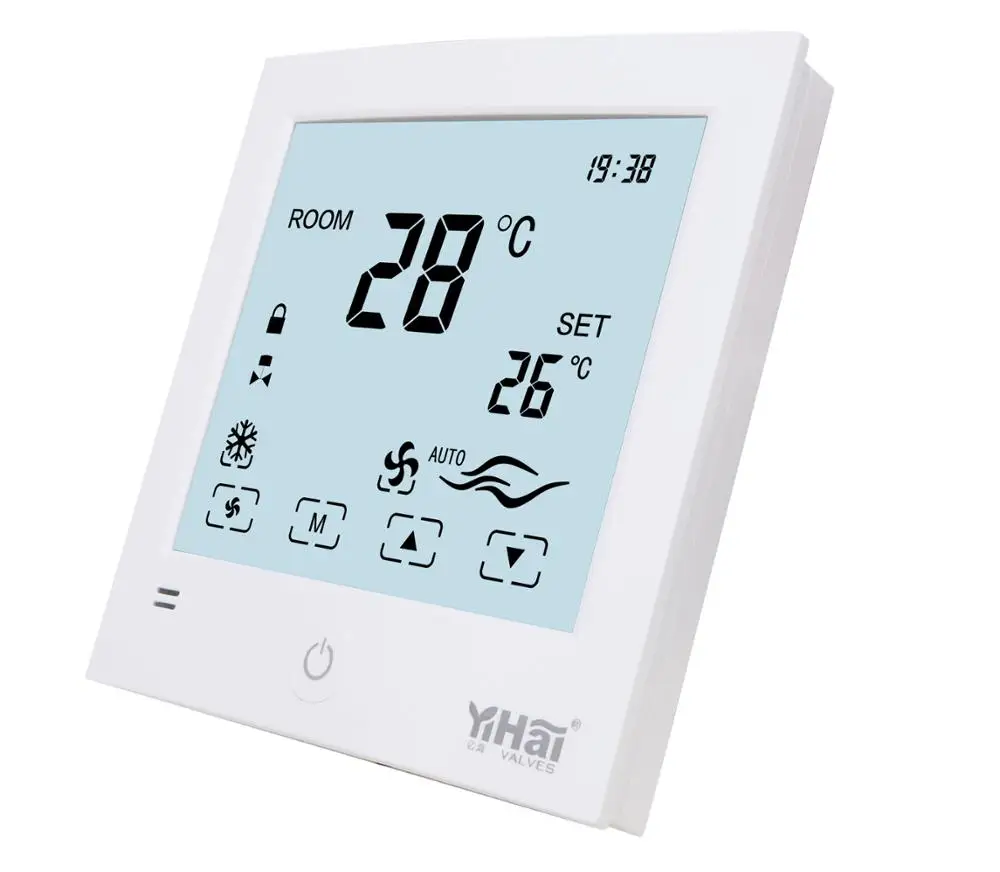

YH8006 LCD Touch Screen Room Thermostat
YH8006 series LCD touch screen room thermostat is a controller use advanced electronic elements to accuracy control the on/off
valve, speed of fan coil unit, air damper, to achieved set temperature. Which also can connect with BAS system through MODBUS and
RS485. Widely used in commercial and residential application.
valve, speed of fan coil unit, air damper, to achieved set temperature. Which also can connect with BAS system through MODBUS and
RS485. Widely used in commercial and residential application.
FEATURES AT A GLANCE
Adopt SCM, strong anti-interference
4 sets quality relay output, high reliability
Advanced electronic elements
Quality electric circuit
Fire retardant ABS and PC cover
Long life push button, quick respond
High quality transformer guarantee Voltage stable
4 sets quality relay output, high reliability
Advanced electronic elements
Quality electric circuit
Fire retardant ABS and PC cover
Long life push button, quick respond
High quality transformer guarantee Voltage stable
Attractive design, shiny button, easy installation and operation
Different colors housing is available (white, red, black, gray)
Big LCD display with white backlight
Different colors housing is available (white, red, black, gray)
Big LCD display with white backlight
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
Voltage Supply | AC220V±10%, 50/60Hz |
Set point Range | 10℃-35℃(50℉-95℉) |
Setting Unit | 1℃/step |
Accuracy | 1℃ |
Operation | Keypads |
Mode | Cooling, Heating, Ventilating |
Fan Speed | High, Medium, Low, Auto |
Thermostat Output | 4 Relay |
Current Rate | Resistive 2A, Inductive 1A |
Sensor | NTC Internal or External |
Housing | ABS+PC Fire resistant |
Room Temperature Range | 5℃-40℃ |
Mounting | Standard 86x86(mm) |
Working Ambient Temperature | 0℃-60℃（32℉-140℉） |
Application | FCU System, 2 wire or 3 wire on-off valve |

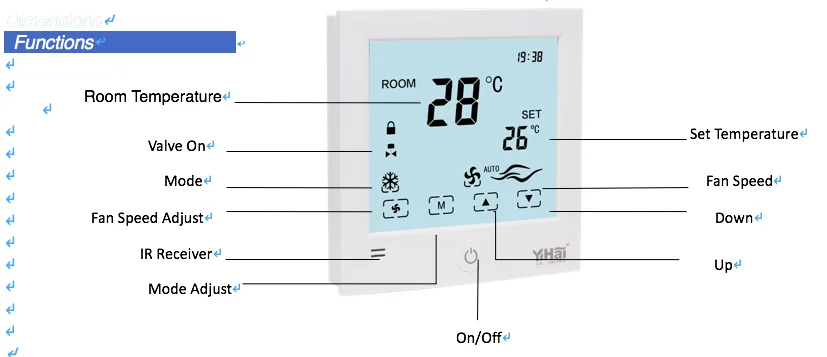

Function | Instruction |
On/Off | Press once to open, press again to close |
Mode | Press circulate from “cooling”, “ heating” to “ ventilating” |
Fan Speed | Press circulate from “High”, “Medium”, “Low” to “Auto” While in “Auto”, the fan speed will be adjusted automatically according with difference temperature between zoom and set point. |
Temperature | Press to up and down the temperature |
