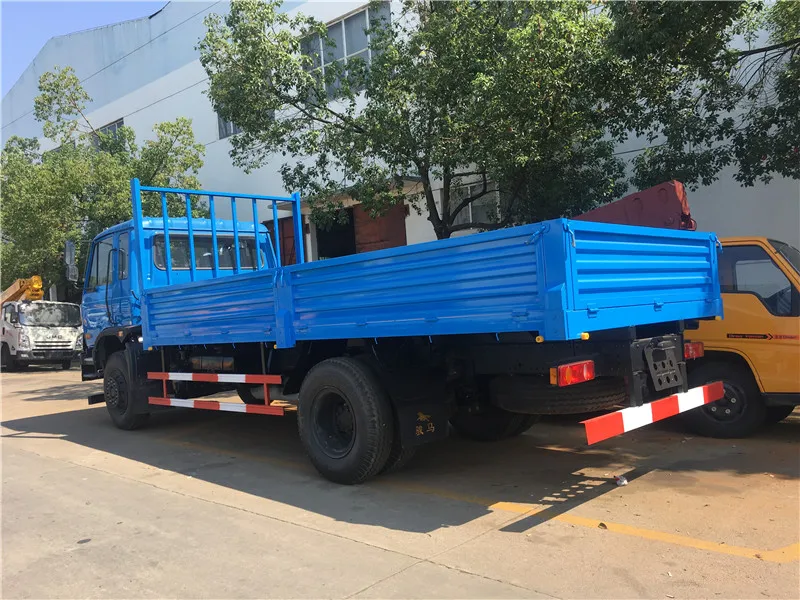

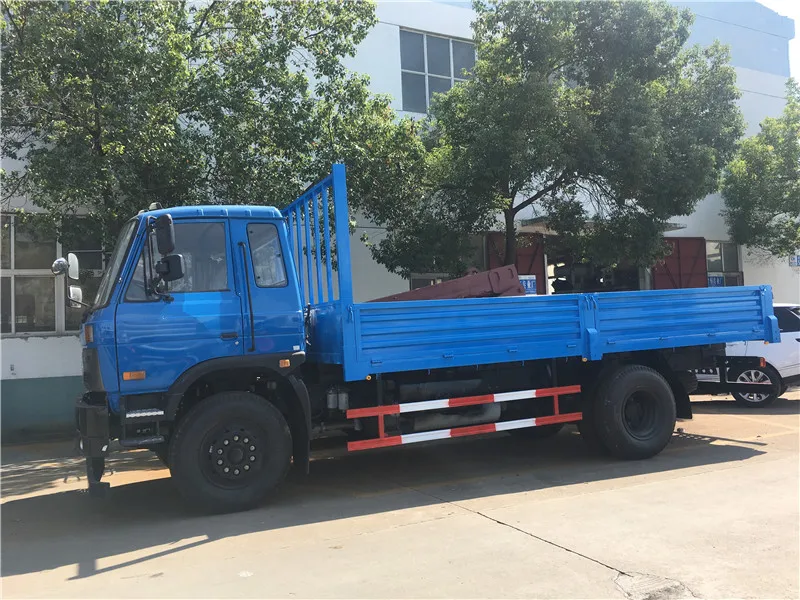

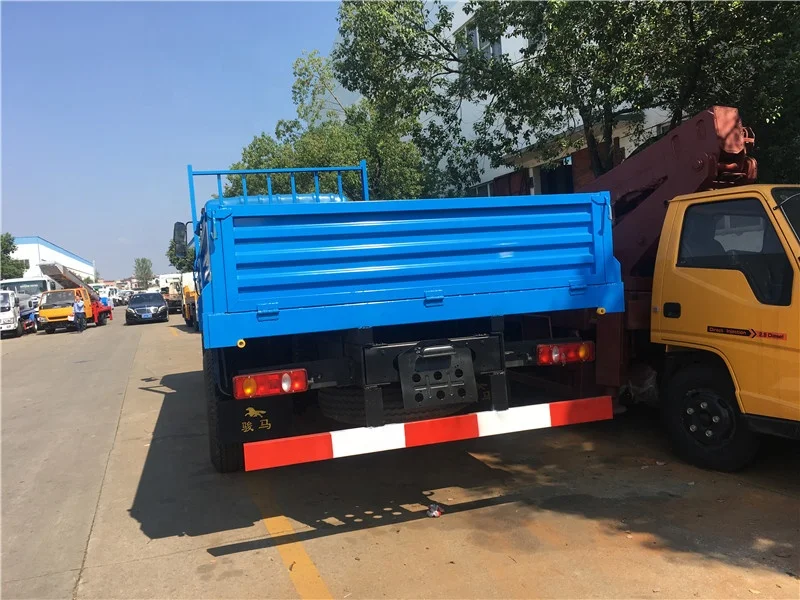

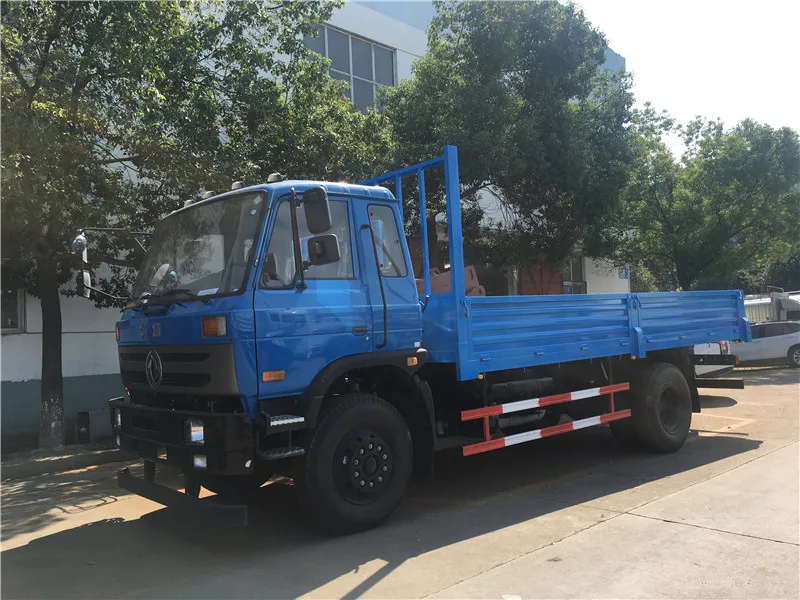

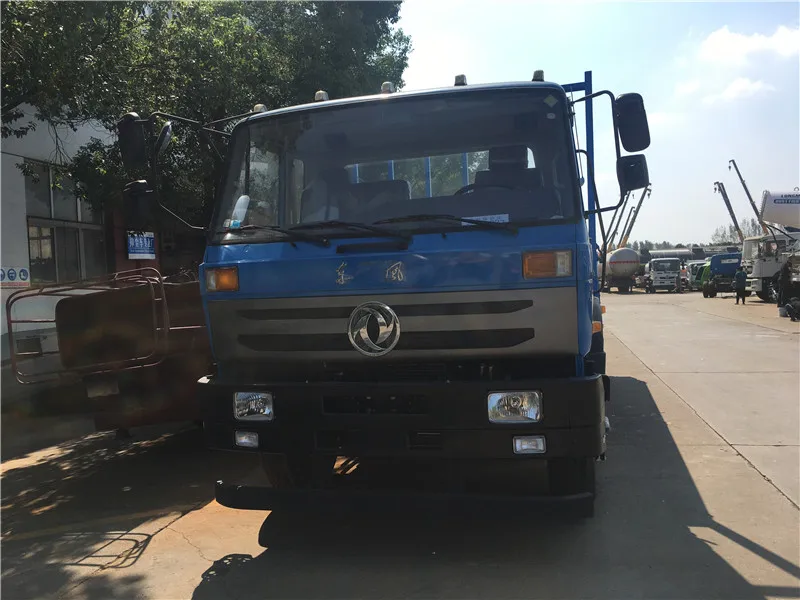

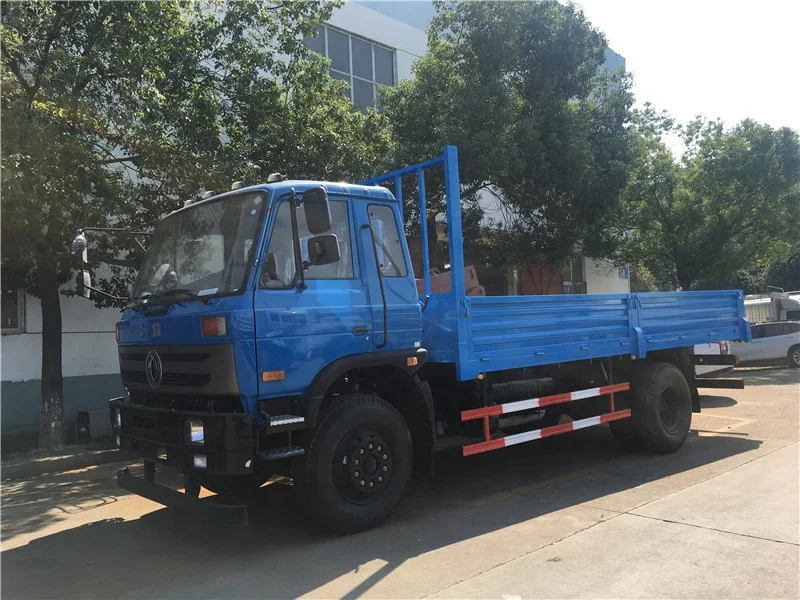

Used Dongfeng 145 non closed lorry van truck

[Main technical parameters]

Product name:

Lorry truck

Shape size:

9000,8500x2490x

3560(mm)

Chassis model:

EQ1160GJ1-40

Cargo box size:

6140,5800×2294×

550(mm)

Total quality:

15990(Kg)

Approach/departure Angle:

34/25(°)

Rated quality:

8200,8300(Kg)

Front suspension and back suspension:

1245/2655,1245/2555

(mm)

Quality of preparation:

7595,7495(Kg)

Maximum speed:

85(km/h)

[Engine parameters]

Engine model

Engine manufacturer

Displacement(ml)

Power(Kw)

YC4E160-41
YC6J180-42
ISDe185 40

Guangxi yuchai machinery co. LTD

Guangxi yuchai machinery co. LTD

Dongfeng cummins engine co. LTD

4260
6500
6700

118
132
136

Emission standards:

EURO IV

Shaft:

2

Front track:

1810,1940/1800,1860

(mm)

Wheel base:

3950,4700,5100

Rear track:

1800,1860(mm)

Tyre number:

6

Tire specification:

9.00R20,10.00-20,10.00R20

Fuel type:

diesel

Number of springs:

8/11+8

Axial load:

5990/10000

Number of bridge passengers:

3

Special performance:

EQ5160JSQG1-40 countries four lorry-mounted crane type dongfeng single bridge, the emissions of four lorry-mounted crane, the four dongfeng lorry crane 145, dongfeng automobile company lorry-mounted crane use special chassis EQ1160GJ1-40145 top half tall luxurious interiors, dongfeng cummins engine can choose according to user requirements ISDe185 40 four emissions + SCR exhaust gas treatment system (countries), or four engine, yuchai 180 horsepower countries shan 8 js85e small eight teeth gear transmission, 5100 mm wheelbase, rear axle, front axle / 10 t 5 t 10.00 R20 steel wire tire, Part 3 of 280mm girder. East wind brand eq5160jsqg1-40 is a qualified product for the real national fourth carrier crane.
