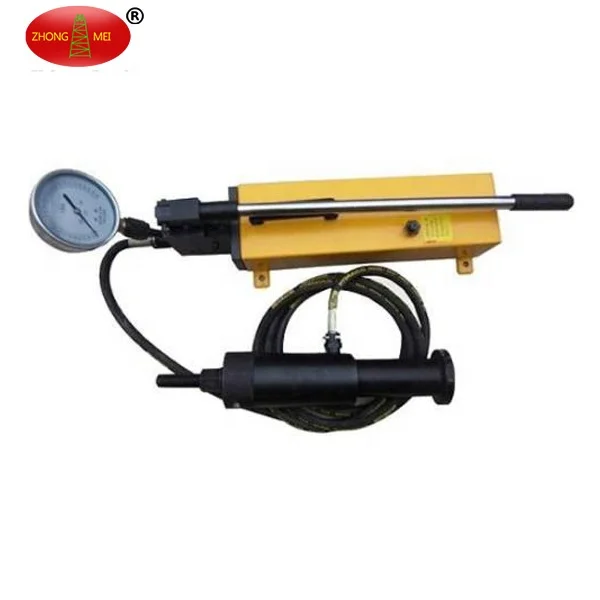

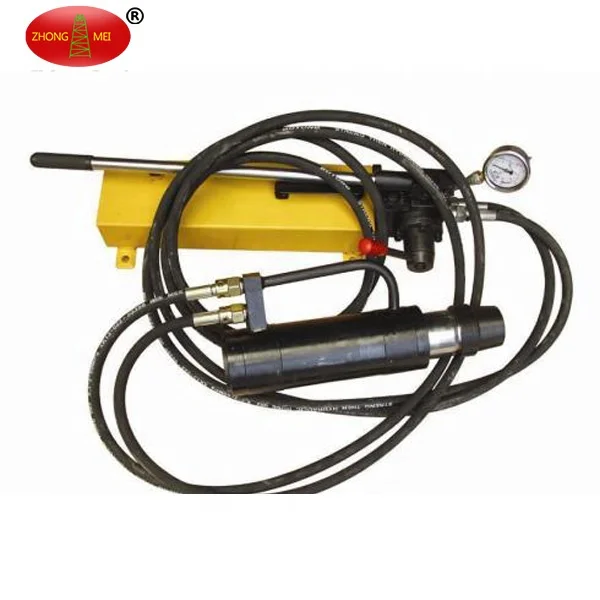

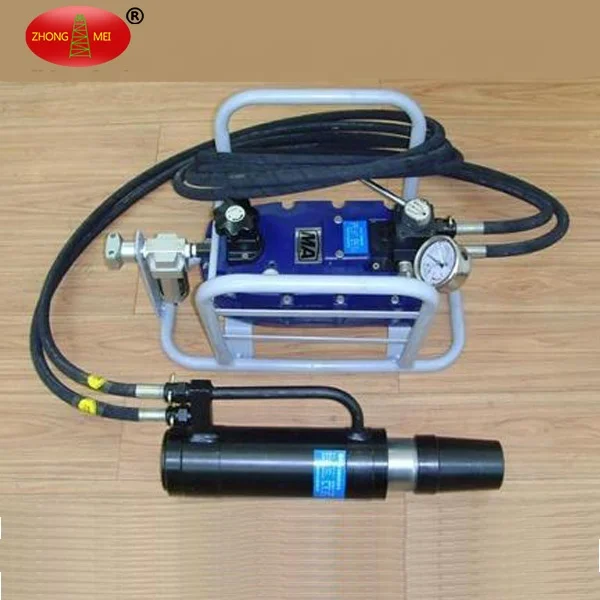

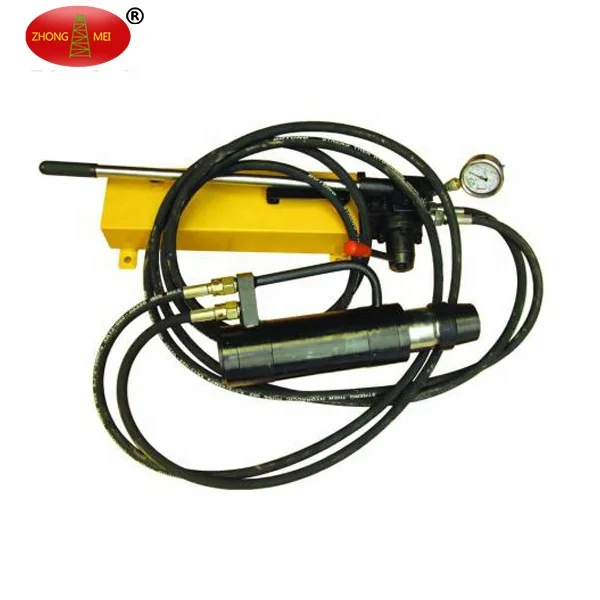

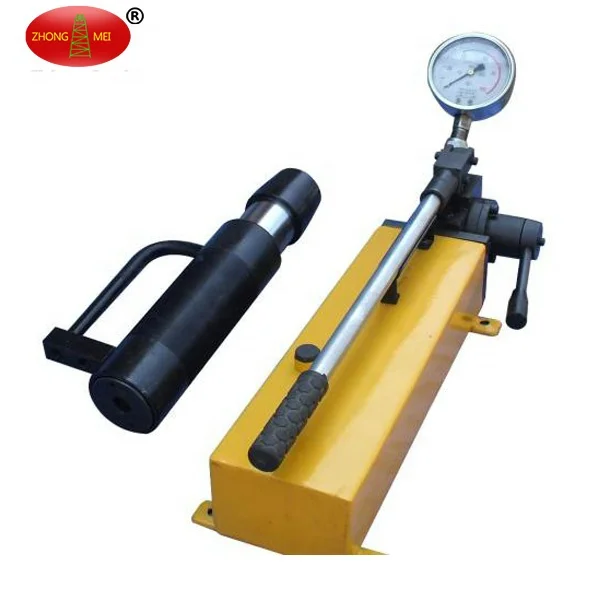

Ручная анкерная машина для натяжения кабеля
- Category: Other Mining Machines >>>
- Supplier: Shandong China Coal Industrial & Mining Supplies Group Co. Ltd.
Share on (60807027173):
Product Overview
Description
Product Description
Introduction of anchor cable tension machine
Mine anchor tension equipment is an essential tool for prestressing and tension installation of anchor cable in mine tunnel. It is an important tool to ensure the anchor cable to reach the prestressing index, which is the successful installation of anchor cable.

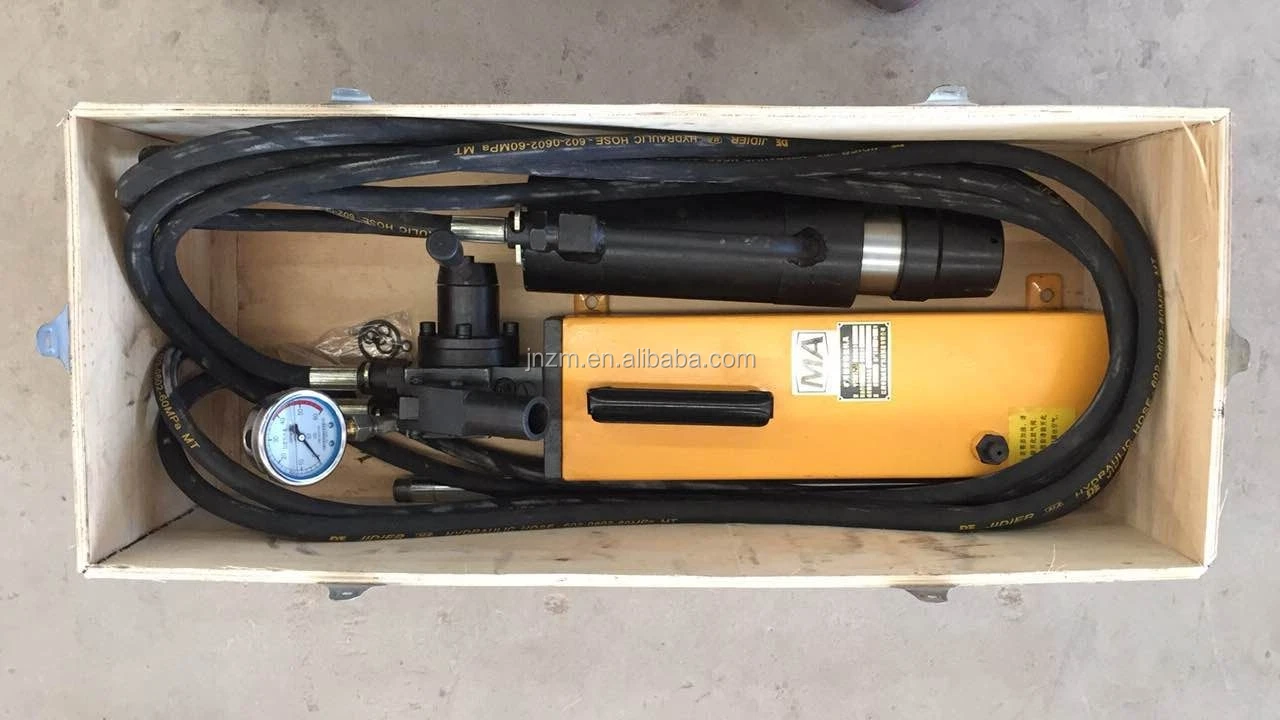

Packaging & Shipping
Main Parameter of anchor cable tension machine
Parameter/Model | MS15/18/19-180/55 |
MS15/18/19-230/55 | MS15-300/55 MS18-300/55 | MS22-300/55 MS19-300/55 | ||
Whole machine | Rated pulling force(kN) | 180 | 230 | 300 | 300 | |
Jack pressure(MPa) |
55 |
55 |
55 |
55 | ||
Anchor cable diameter (mm) | 15.24/17.8/18.9 | 15.24/17.8/18.9 | 15.24 17.8 | 21.6 18.9
| ||
error | ≤3% | ≤3% | ≤3% | ≤3% | ||
meter | Type | Pointer type | Point type | Point type | Point type | |
Model | YN60 | YN60 | YN60 | YN60 | ||
Measure range(kN) | 0~280 | 0~280 | 0~320 | 0~320 | ||
Accuracy level | 1.5 | 1.5 | 1.5 | 1.5 | ||
Jack | Cylinder diameter(mm) | 75 | 80 | 100 | 100 | |
stroke(mm) | 150 | 130 | 110 | 110 | ||
Center hole size(mm) | 18 | 20 | 20 | 24 | ||
Weight(kg) | 18 | 19 | 25 | 25 | ||
Hydraulic station | Rated pressure mpa | 63 | 63 | 63 | 63 | |
output (ml/time) | Low pressure | 14.5 | 14.5 | 14.5 | 14.5 | |
High pressure | 2.3 | 2.3 | 2.3 | 2.3 | ||
Oil capacity (L) | 4 L | 4 L | 4 L | 4 L | ||
Weight (kg) | 11.5 | 11.5 | 11.5 | 11.5 | ||
Type | Double exit,manual | Double exit,manual | Double exit,manual | Double exit,manual | ||
Hand force | 500 N | 500 N | 500 N | 500 N | ||
Our Services

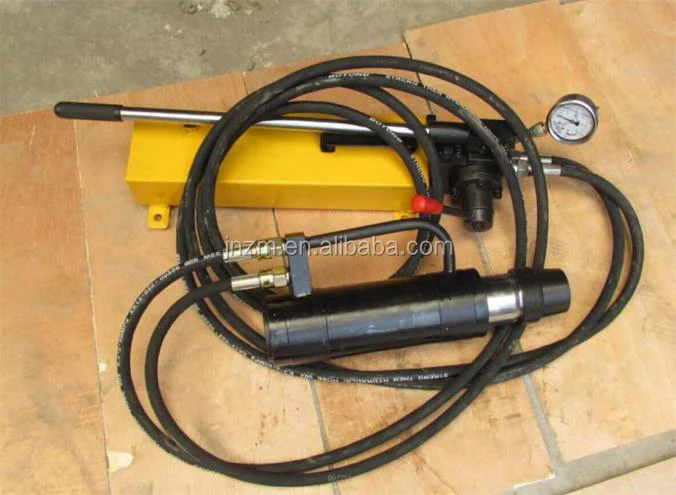

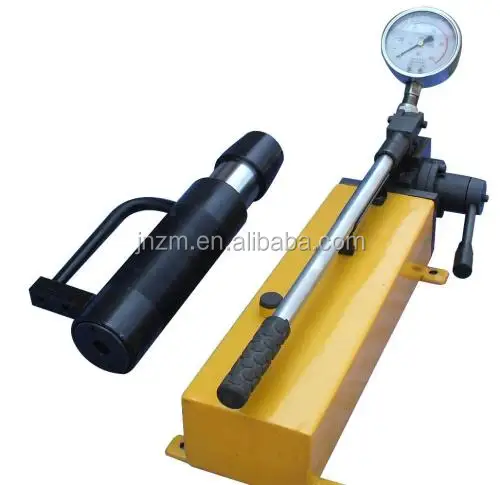

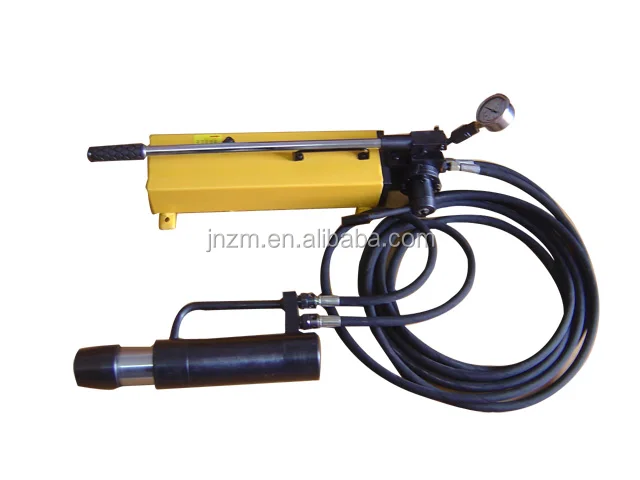

Figure Images of anchor cable tension machine
