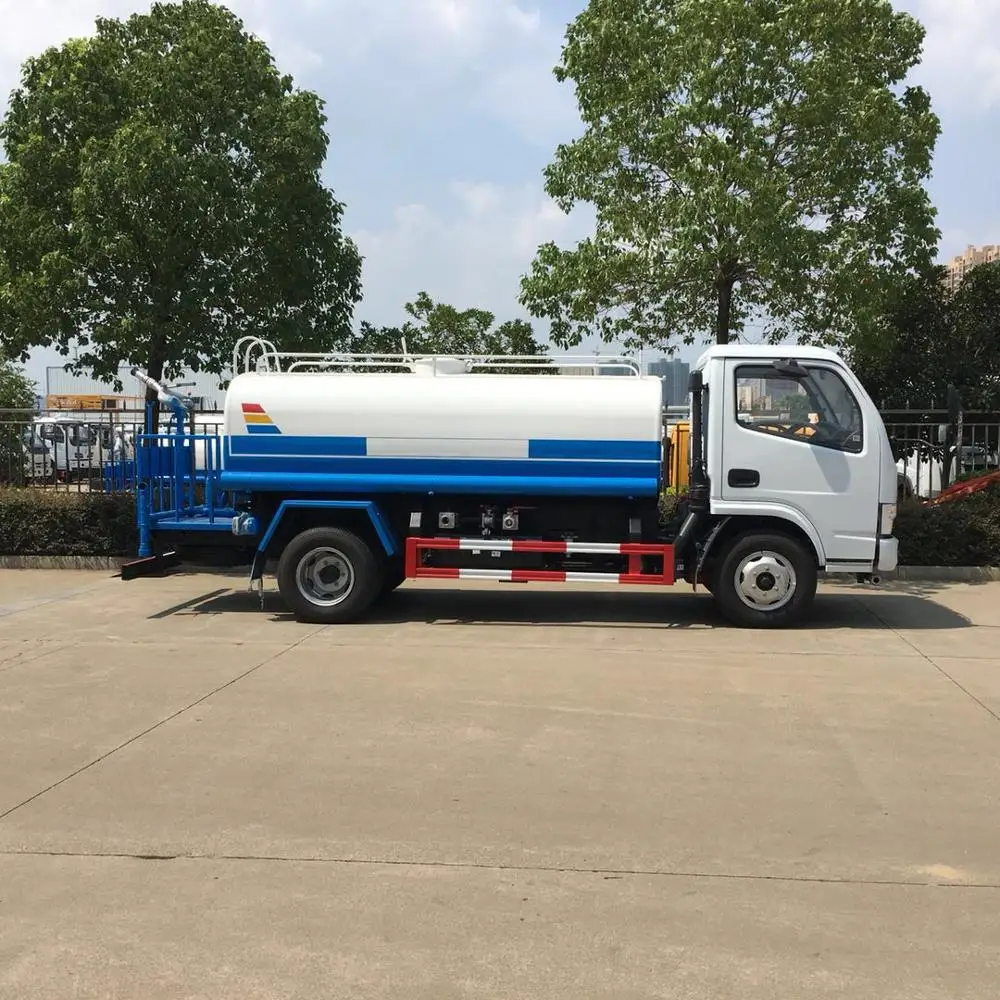

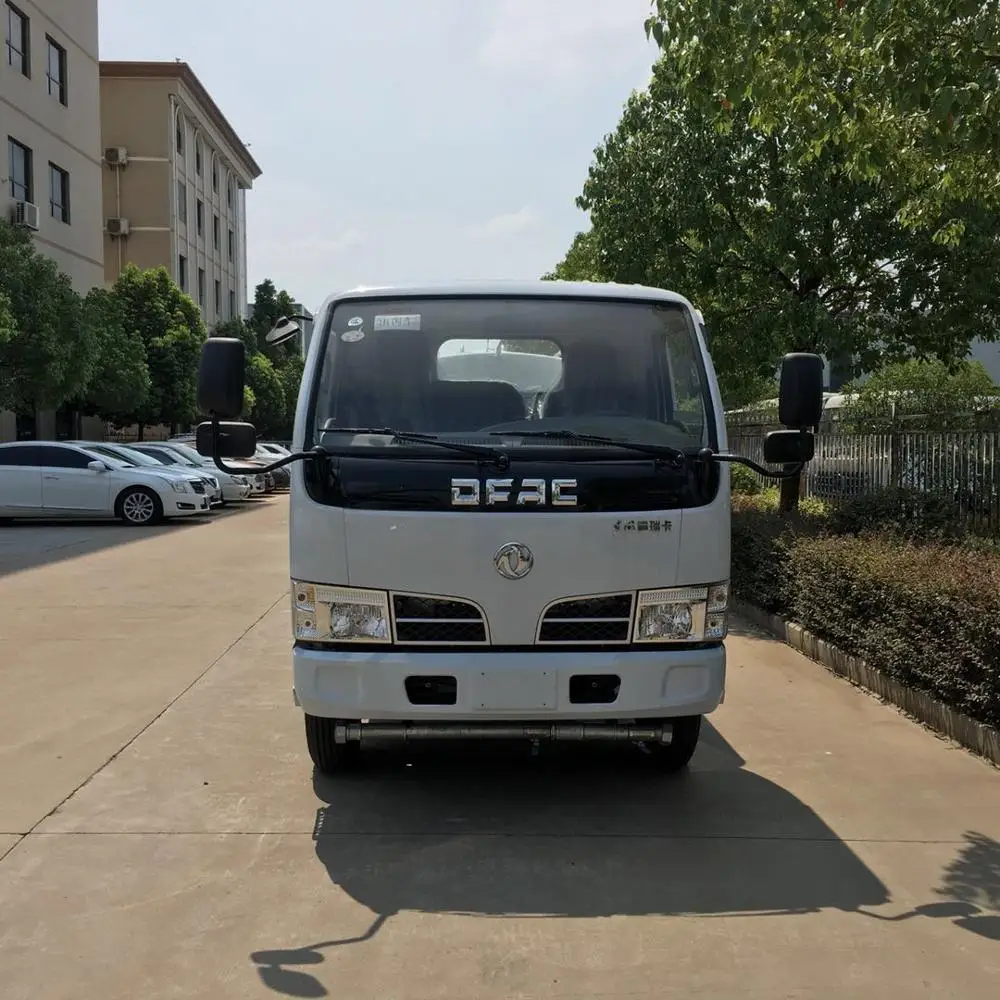

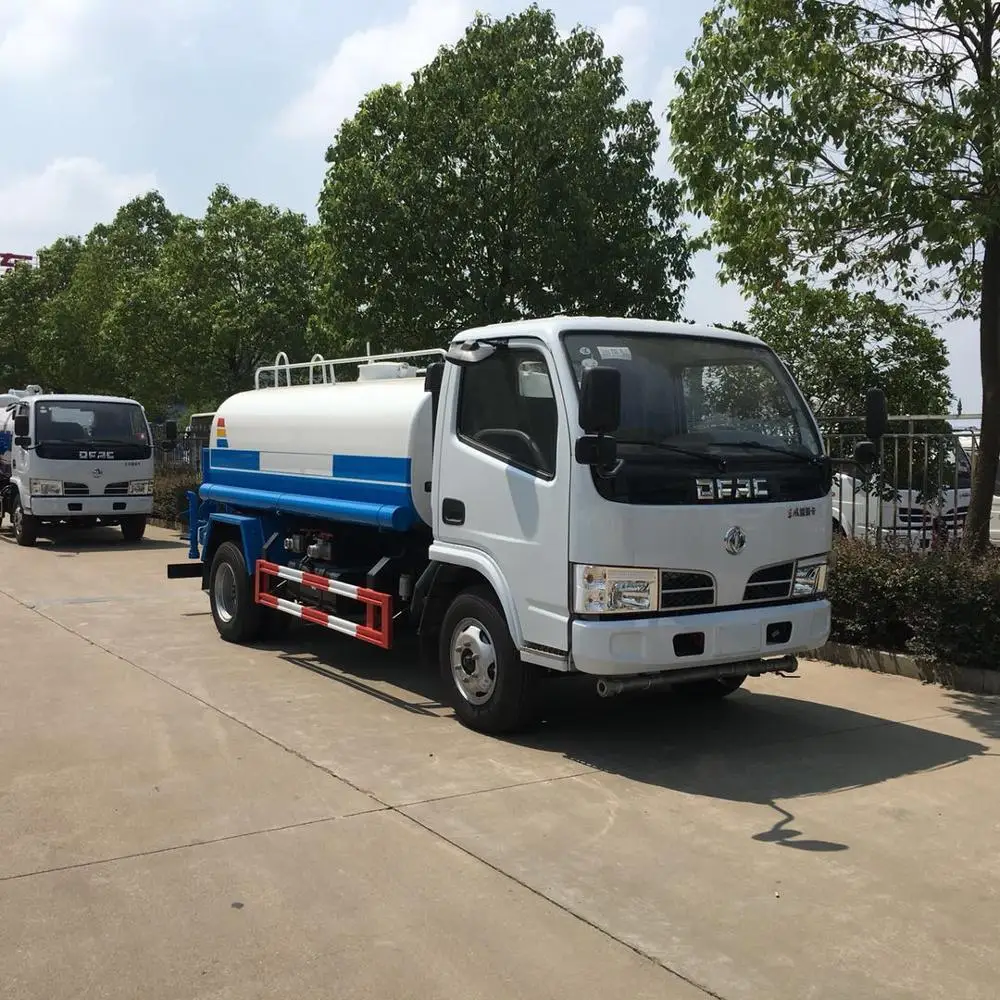

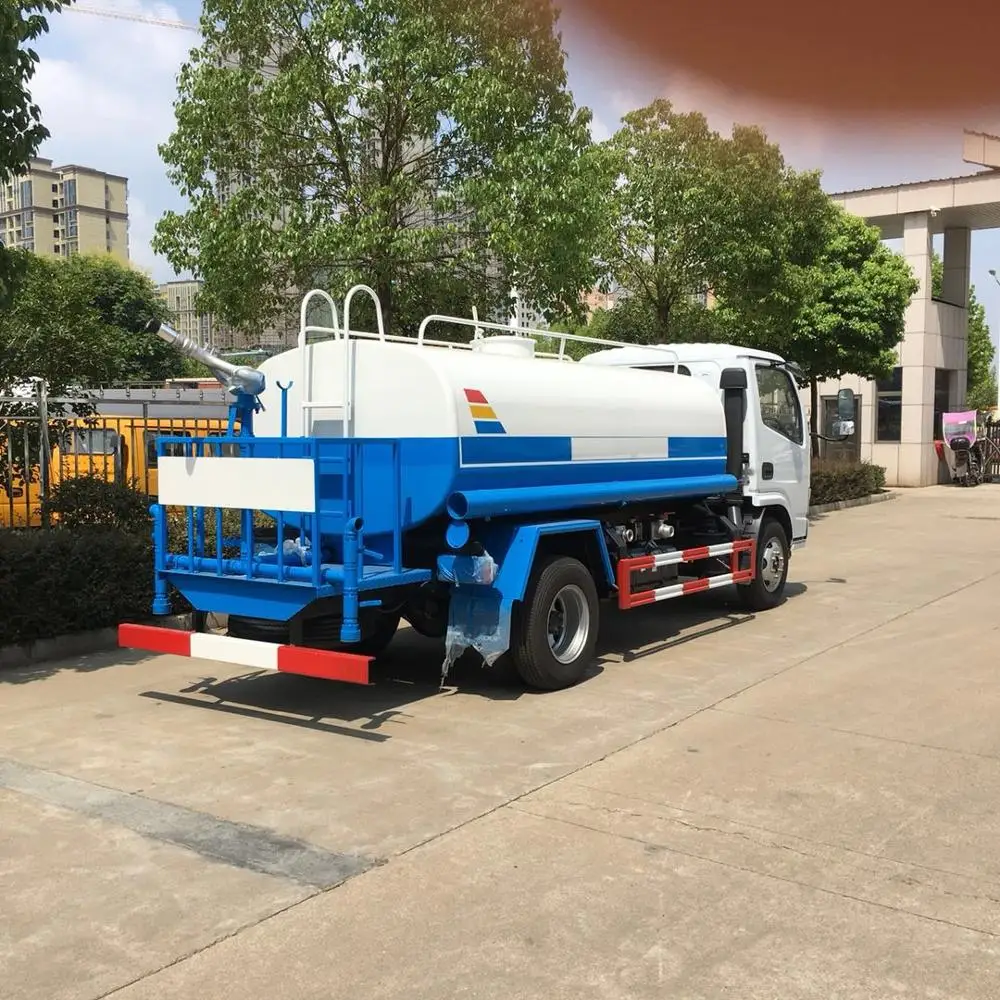

Dongfeng Furika 5000 liters road sprinkler water tank trucks factory direct sale

Name

DONGFENG 5 tons water tank truck

Technical parameters

Total mass(kg)

7360

 Curb Weight(kg)

3275

 Rated quality(kg)

3955

 Chassis Model

 EQ1080

 Approach/ departure angle(°)

 27/17

 Front / rear overhang

 1085/1597

 Dimensions(mm)

 5900X1900X2300

 Compartment
 dimension(mm)

 X X

 Number of axles

 2

 Maximum speed(km/h)

 90

 Tire size

 7.00-16LT 14PR

 Number of tires

 6

 Front track

1440

 Rear track

1425

 Wheelbase(mm)

 3360,3308,2800

 Axle load

 2640/4720

 Number of spring

 8/4+6,11/9+7,7/4+6

 Type of fuel

 Diesel

 Emission Standards

 Euro3/Euro4

Engine parameters

 Engine Model

 WP3Q130E50

 Engine Manufacturer

 Weichai power engine co.,ltd.

Displacement

2970

 Engine power(kw)

 96

 Chassis
 Description

Dongfeng 4x2 chassis, flat cab with left/right hand drive/AC; Weichai 130 horsepower diesel engine,Euro III/Euro IV Emission Standard, 6-speed gearbox; with anti-skid brake system.

 Modified
 Description

1. The tanker is made by 4 mm carbon steel plate or corrosion resistant plate. Tank volume: 5000 liters.

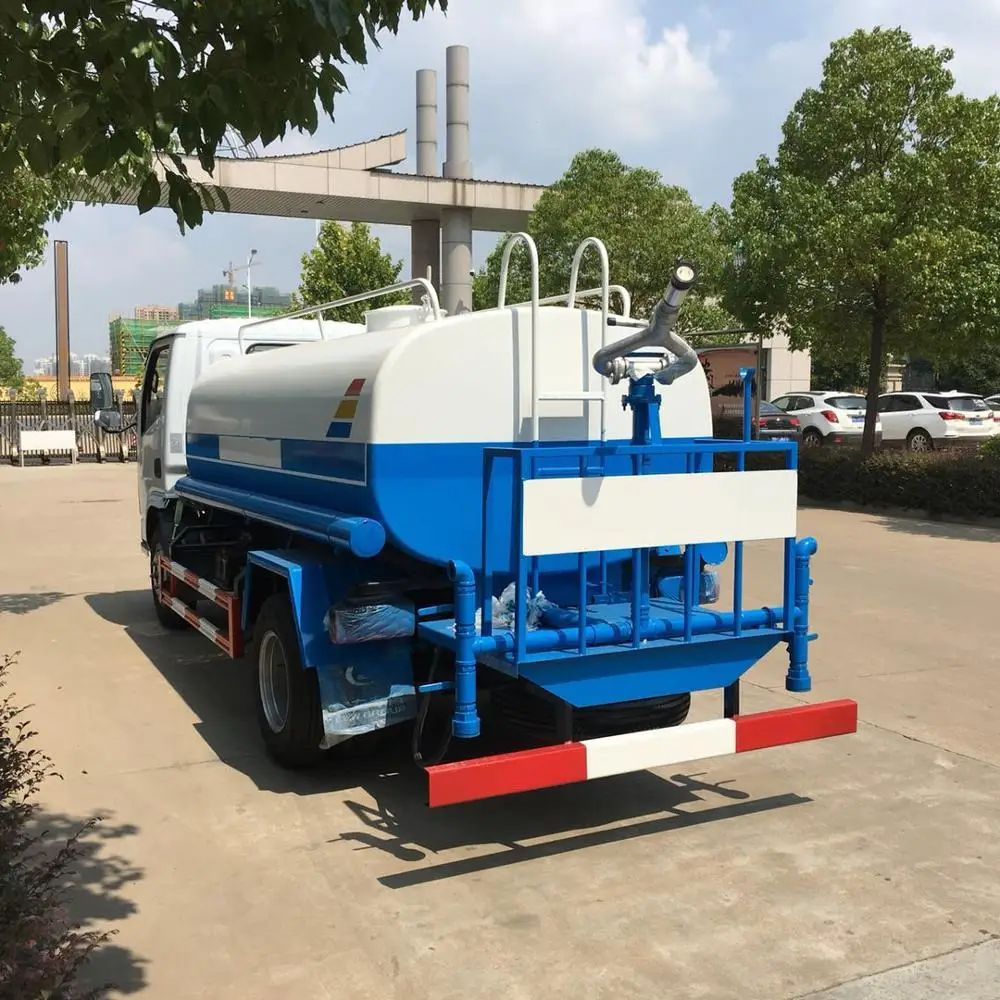

2. Equipped with front (rear,side)sprinkler, with rear working platform,Greening water cannon, 360°rotatable, adjust water to high or low(spray like columnar,vaporific,drizzle);
3. Pump parameters:65QZ40/50N(S),flow:660L/min,lift:50m,input shaft speed:1450r/min,shaft power:9.25KW,vertical suction:6.5m,direction of input shaft:left-right rotating
4. Equipped with self-flow valve,fire hydrant interface,self-priming and self-draining pump,inhale to tanker directly and inject by fire hydrant.

Basic composition

Chassis,tanker,PTO,transmission shaft,special self-priming pump,pipeline, jet,rear work platform.Optional equipment:GPS, gimbaled nozzle,VVB,pneumatic valve,visual operating system,external power,medicament tray.

Optional

The optional one row with a sleeper cab; text spray and vehicle colors can be changed based on the customer requirements.
