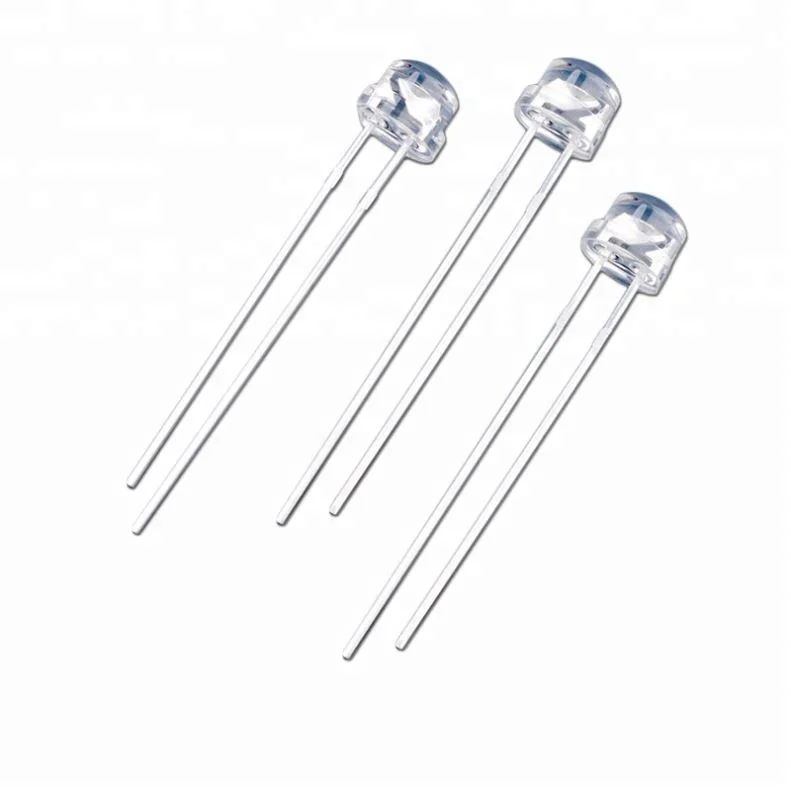

white light strawhat led diode 5mm

        Size of LED diode: Diemeter 3mm, 4mm, 4.8(5)mm, 8mm, 10mm, 2*3*4mm, 2*5*7mm and so on

          Color of LED diode: red, yellow, orange, green (yellow-green or traditional green and pure green), blue, white, pink, purple, dual-color or bi-color, RGB and so on.

          Appearance of LED diode: type of round, square, oval, straw hat, helmet, concave, bullet and so on

          Wavelength of LED diode: 370-410nm-purple, 455-462.5nm-white, 465-475nm-blue, 515-525nm-green, 565-575nm-(yellow-green), 585-595nm-yellow, 603-608nm-orange, 620-630nm-red

Many others for selection

Beam Angle: 15,20, 30, 45, 60, 80, 120 degrees(15°~180°)

Forward Voltage: 1.7V~2.0V,2.0-2.4V for red, yellow color, 3.0-3.6V for white .blue, green, white

Forward Current: 15~20mA, 350mA,700mA

Lens colors: water clear, color diffused

LED Diodes:

1. We provide 3mm LED, 4.8mm LED, 5mm LED, 8mm LED, 10mm LED, Flux LED.

2.Chip material: InGaN. AlGaIn

3. Emitting color: White, Red, Yellow, Pure Green, yellow green ,Blue, Amber, Orange.

4.Lens color: Water clear, color transparent, color diffused, white diffused

5. Available Wavelength: 470nm, 525nm, 585nm, 610nm, 630nm, 640nm(Tolerance of measurement of peaks Wavelength 5.0nm)

6.Available Temperature color: 3300K, 6500K,7000~8000K

7.Application: Lighting, Upholster, Project Building, Display, Traffic Light, etc.

8. Available Angle: 20 degree, 30degree, 40degree, 45degree, 70degree, 110degree

9.Superior performance in outdoor/indoor environment

10.The sample delivery time: Within 3-5days; The order delivery time: Within 7~15days upon payment done

11.All products are exported to USA, Canada, Australia, England, Malaysia, Germany, Greece, Indonesia, etc

12.Don't have pollution effect, Low power consumption and low forward voltage

13.Save Energy Sources& Long Life over 100, 000hours.

Dominant Wavelength:
Red: 640nm to 645nm

Hight bright red: 620nm to 625nm

Blue: 460nm to 475nm

Pure green: 515nm to 525nm

Yellow: 585nm to 595NM

Amber: 600nm to 605nm

Forwarder Voltage:
Red / Yellow / Yellow Green: 1.8-2.1V

Blue / Pure Green / White: 3.0~3.6V
